If you ask engineers and procurement managers to identify the most dependable anode technology for chlor-alkali electrolysis, the answer is invariably Titanium MMO anodes. The dimensionally stable anodes utilize a high-purity Grade 1 titanium substrate with a thermally applied mixed metal oxide coating of ruthenium-iridium or iridium-tantalum oxide to provide low chlorine overvoltage, excellent corrosion resistance, and service lives that graphite cannot rival. If you operate a chlor-alkali plant, you will want to make this the finest technical investment you can make today, for reliable output with little downtime.

Understanding Titanium MMO Anodes and Their Role in Chlor-Alkali Plants

What Are MMO Anodes?

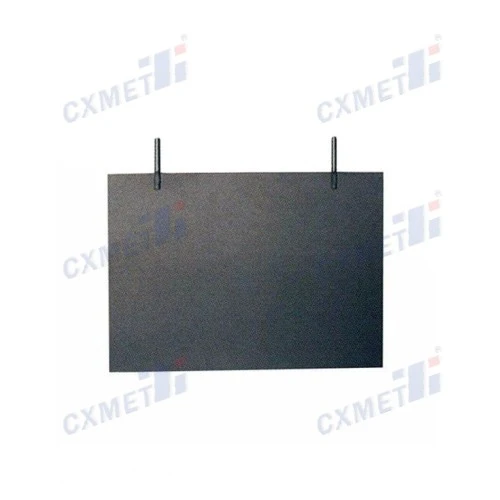

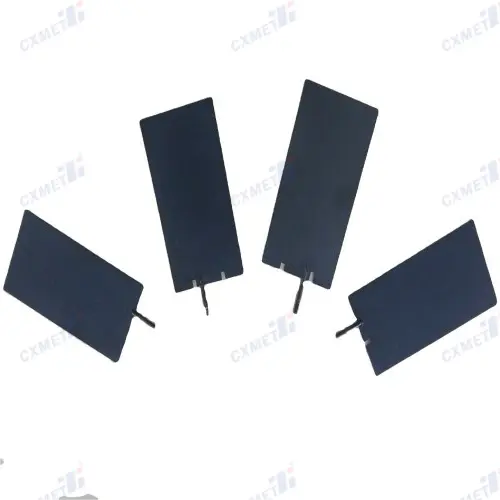

Mixed Metal Oxide anodes (referred to in the industry as DSA (Dimensionally Stable Anodes)) consist of a titanium base, covered with a crystalline oxide layer of noble metals. CXMET’s anodes are made of Grade 1 Titanium according to ASTM B381 with Ru-Ir oxide coatings of 8- 12 microns or Ir-Ta oxide coatings of 8- 12 microns. Platinum coating option (0.5-2.5 micron) is available. This exact coating thickness regulates catalytic activity with low-cost manufacture.

How They Work in Chlor-Alkali Electrolysis

In a chlor-alkali cell, saturated brine travels through an electrochemical chamber, evolving chlorine gas at the anode. CXMET’s anodes include a Ru-Ir coating, which reduces the chlorine development overpotential substantially in comparison to graphite. This has a direct reduction on the kWh/ton of chlorine generated, a demonstrable operational saving. The titanium substrate is immune to anodic dissolution in the extremely acidic chloride-rich environment where conventional materials are swiftly destroyed.

Relevant Standards and Certifications

CXMET is ISO 9001 quality management system and produces titanium MMO anodes to ASTM B381 for the titanium substrate. Purity of substrate is > 99.6%. Thermal cycling and electrochemical accelerated life tests confirm coating adherence. For U.S. procurement teams, this compliance history helps with supplier qualification assessments and lines up with NACE TM0108 performance norms often mentioned in industrial electrochemistry requirements.

Performance and Benefits of Titanium MMO Anodes in Chlor-Alkali Applications

Lifespan and Corrosion Resistance

The anodes of graphite are consumed during electrolysis, polluting the electrolyte and needing regular replacement. The oxide covering of a well-operating MMO anode, however, does not dissolve but depletes via electrochemical wear at a far slower pace. In chlor-alkali service, properly maintained Ru-Ir coated anodes routinely attain 8-12 years service life at typical current densities of 500-1500 A/m2. This lifespan cuts costs for replacement parts and periodic maintenance right away.

Energy Efficiency Gains

Independent electrochemical studies confirm that MMO-coated titanium anodes reduce cell voltage by approximately 200–300 mV compared to graphite in chlorine evolution service. Across a full-scale chlor-alkali plant operating continuously, this translates to energy savings of 10–20% per ton of chlorine—a figure that compounds quickly at industrial throughput. CXMET's low-overvoltage Ru-Ir coating is specifically formulated for this environment, keeping electricity costs predictable throughout the anode's service cycle.

Maintenance Best Practices

The anode service life is protected by paying attention to several operational conditions. CXMET suggests the following critical maintenance measures for chlor-alkali applications:

• Do not exceed the rated current density. Running beyond the specified range of 500-1,500 A/m 2 causes the coating consumption to increase exponentially, therefore decreasing the anode life with no corresponding increase in output.
• Control fluoride and organic pollutants in the brine feed water. These are anode toxins that target the oxide layer from the electrolyte side and result in premature failure regardless of current load.
• During setup, be careful with the anode coating. The oxide layer is fragile; mechanical scratching or contact with oils or greases may passivate the active surface prior to operation.

Following these methods will safeguard the coating investment and maintain cell voltage stability for the expected service life of the anode.

Titanium MMO Anodes vs Alternative Anode Technologies

Graphite and Lead Anodes: A Direct Comparison

During chlorine evolution, graphite anodes are gradually consumed, increasing the inter-electrode gap with time and cell resistance. Lead anodes are a source of heavy-metal pollution and are under increasing regulatory scrutiny in all U.S. and EU markets. Both materials are not dimensionally stable. The geometry of titanium MMO anodes remains consistent throughout their service life, resulting in fixed inter-electrode lengths and cell voltage, a feature that in turn directly contributes to the stability of the process of chlor-alkali production.

Platinized Titanium Anodes

Platinized anodes offer excellent conductivity but carry a significantly higher material cost per unit area due to platinum pricing. In chlorine evolution service specifically, the Ru-Ir oxide system outperforms platinum coatings in selectivity and long-term stability at the elevated chloride concentrations found in brine electrolysis. CXMET offers platinum coatings at 0.5–2.5 microns as an option, but for most chlor-alkali plant configurations, the Ru-Ir MMO coating delivers a better cost-to-performance ratio.

Choosing the Right Coating for Your Process

The performance of MMO anodes is dictated by the coating chemistry. Ru-Ir oxide coatings are developed for chlorine evolution conditions, the greatest demand in chlor-alkali plants. Ir-Ta oxide coatings are developed for oxygen evolution in very acidic electrolytes like sulfuric acid systems or electroplating baths. CXMET's technical staff will assess the application characteristics to advise on a coating specification, since the single most frequent reason for premature anode failure is choosing the improper coating for the electrolyte chemistry.

How to Choose the Best Titanium MMO Anodes for Your Chlor-Alkali Plant

Define Your Operating Parameters First

Before contacting any supplier, document your operating current density, brine concentration, cell temperature, and target service life. These four inputs determine coating type, coating thickness, and substrate grade. For chlor-alkali service at standard industrial current densities, CXMET's Ru-Ir 8–12 micron coating on GR1 titanium (ASTM B381) covers most plant configurations. If your process runs at higher current loads or elevated temperatures, the technical team can adjust specifications accordingly.

Evaluate Supplier Capabilities

A qualified titanium MMO anode supplier should demonstrate ASTM-compliant substrate sourcing, documented coating thickness control, and OEM customization capability. CXMET provides all three. With over 20 years of production experience and a manufacturing base in China's recognized titanium production region—Shaanxi Province—CXMET supplies titanium MMO anodes in customizable geometries with surface treatment options including sandblasting, acid cleaning, polishing, and brushing to match installation requirements.

Total Cost of Ownership Calculation

Initial price is rarely the most accurate metric for anode procurement decisions. A true cost-of-ownership calculation covers purchase price, energy consumption per ton of product, replacement frequency, and recoating potential. CXMET's anodes can be recoated after coating depletion at approximately 60–70% of the cost of new units—provided the titanium substrate remains structurally sound. This recoating option extends the value of the titanium base significantly across multiple service cycles.

Sourcing Titanium MMO Anodes – Market Insights and Supplier Overview

Global Market Context

Demand for MMO-coated titanium anodes continues to develop as chlor-alkali manufacturers replace old graphite electrode systems and as environmental rules prohibit the use of lead-based alternatives. In China, especially in the well-established titanium processing districts in Shaanxi Province, manufacturers have a significant portion of the worldwide market at low prices owing to integrated supply chains and closeness to raw materials.

Working with CXMET on Custom and Bulk Orders

CXMET accepts conventional catalog orders and custom-tailored specs. Standard Lead Times are 2-4 weeks for typical sizes and 4-6 weeks for unique geometries or specific coating combinations. The organization has the manufacturing capability to manage large bulk orders and liaises directly with procurement teams to synchronize the delivery schedule with plant turnaround periods. CXMET’s export paperwork and quality certification packages help U.S. customers with customs clearance and arrival inspection requirements.

Procurement Logistics and Quality Assurance

CXMET offers material certification (ASTM B381), coating thickness inspection reports, and lot traceability documents with every order sent. These data assist inbound inspection activities at the production site and provide the paper trail that engineering and quality assurance teams need to qualify electrochemical cells. CXMET’s secure payment terms and transparent business documents have made it a feasible sourcing choice for procurement teams in the U.S. with overseas supplier ties.

Conclusion

Titanium MMO anodes are still the technically soundest anode option for chloralkali electrolysis. They have certain benefits over graphite and lead substitutes due to their dimensional stability, low chlorine overvoltage, and resistance to electrolyte degradation. For the plant engineer or procurement manager considering an anode upgrade or the construction of a new plant, the clearest pathway to dependable cell performance is to pick the appropriate coating chemical and a provider with proven production controls. CXMET’s GR1 titanium substrate, ASTM B381-compliant manufacture, and Ru-Ir or Ir-Ta oxide coatings at regulated 8-12 micron thicknesses provide a reliable specification for severe chlor-alkali service.

FAQ

How long do MMO anodes typically last in chlor-alkali service?

At operating current densities of 500–1,500 A/m², Ru-Ir coated titanium anodes commonly last 8–12 years in chlor-alkali brine electrolysis. Lifespan depends on current density, brine purity, and operating temperature. Exceeding the rated current density shortens coating life significantly.

Can spent anodes be recoated?

Yes. If the Grade 1 titanium substrate remains structurally sound, spent anodes can be stripped and recoated. Recoating costs approximately 60–70% less than purchasing new units, making it a practical option for extending total asset life across multiple service cycles.

What certifications should I require from a supplier?

Request ISO 9001 documentation, ASTM B381 material certification for the substrate, and coating thickness inspection reports. For U.S. procurement teams, NACE TM0108 compliance testing data is also a useful qualifier when evaluating supplier technical capability.

What is the difference between Ru-Ir and Ir-Ta coatings?

Ru-Ir (ruthenium-iridium) oxide coatings are engineered for chlorine evolution environments, making them the correct choice for chlor-alkali plants. Ir-Ta (iridium-tantalum) oxide coatings are designed for oxygen evolution in acidic electrolytes such as sulfuric acid systems. Selecting the wrong coating for the application will accelerate premature failure.

What causes early anode failure?

The most common failure mode is formation of a non-conductive TiO₂ interlayer between the substrate and coating, caused by operating above breakdown voltage or inadequate surface preparation. Fluoride contamination in the brine feed is another documented cause of accelerated coating degradation.

Request a Custom Quote from CXMET – Trusted Titanium MMO Anode Manufacturer

CXMET has supplied high-specification titanium MMO anodes to industrial customers across marine, chemical processing, and power sectors for over 20 years. Our Ru-Ir and Ir-Ta oxide-coated anodes, built on ASTM B381 Grade 1 titanium, are customizable in size, coating type, and surface finish to match your plant's exact requirements. Contact our technical team directly at sales@cxmet.com or visit https://www.cxmet-tech.com/ to request product specifications and a competitive quote.

References

1. Trasatti, S. — Electrochimica Acta, 2000. "The Absolute Electrode Potential: An Explanatory Note."

2. Hine, F. — Electrode Processes and Electrochemical Engineering, Plenum Press, 1985.

3. Hayfield, P.C.S. — Development of the Noble Metal/Oxide Coated Titanium Electrode, Platinum Metals Review, 1998.

4. ASTM International — ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings, 2022.

5. Bommaraju, T.V., Orosz, P.J., and Sokol, E.A. — Brine Electrolysis, The Electrochemical Society Interface, 2007.

6. NACE International — NACE TM0108: Test Method for Evaluation of Coatings Used in IMO Tank Linings, 2008.
