When engineers and procurement managers search for the best titanium oxide electrode for water treatment systems, they are looking for a component that delivers long-term electrochemical stability, low energy consumption, and resistance to corrosive media. A titanium oxide electrode — technically classified as a Mixed Metal Oxide (MMO) coated titanium anode — combines a Grade 1 titanium substrate with catalytic noble metal oxide coatings such as Ru-Ir or Ir-Ta. These electrodes consistently outperform graphite and lead anodes in industrial water treatment applications by eliminating electrolyte contamination and reducing cell voltage by 0.2–0.5V.

Understanding Titanium Oxide Electrodes in Water Treatment

If you want to choose the right part for your water treatment system, you should know how these electrodes work and why they're the best choice in the chemical processing, marine, and power generation industries.

What Is a Titanium Oxide Electrode?

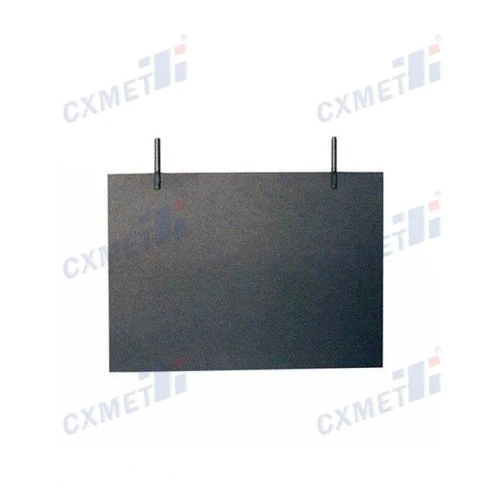

An electrocatalytic anode made of titanium that has a solid mixed metal oxide layer on top of it is called a titanium oxide electrode. Usually, oxides of ruthenium, iridium, or tantalum are used in the covering, which is put on by heating them up and breaking them down. CXMET's electrodes are made according to ASTM B381 standards and use Titanium Grade 1 (GR1) as the base for the best corrosion protection in their class.

How It Drives Pollutant Degradation

In electrochemical water treatment, a titanium oxide electrode generates reactive oxidizing species at the anode surface. These species include hydroxyl radicals and hypochlorite. This method breaks down biological pollutants, bacteria, and heavy metal ions without using extra chemicals. This makes it easier to handle the waste later on and lowers the costs of running the treatment plant.

Why It Outperforms Carbon and Platinum Alternatives

Aggressive electrolytes break down carbon electrodes quickly, contaminating the treated water. Platinum electrodes are very active, but the cost of the metal is too high for most people to afford. MMO-coated titanium anodes are a good compromise because they provide chlorine evolution potentials below 1.13V vs. SHE, stay stable in size over years of use, and keep calcium and magnesium precipitates from fouling by periodically reversing polarity.

Core Performance Metrics of Titanium Oxide Electrodes for Water Treatment

Understanding the technical details of how electrodes work helps purchasing teams write accurate specifications and avoid making purchases that are too small or not right for the job.

Electrochemical Conductivity and Stability

CXMET's MMO electrodes can handle current densities ranging from 500 A/m² in standard electrolysis cells to 10 kA/m² in high-throughput industrial settings. The oxide coating's rutile-phase crystal structure makes it both highly conductive and chemically inert. This means that the electrode surface doesn't dissolve into the electrolyte even after long periods of use at temperatures up to 80°C.

Coating Thickness and Service Life

How long a titanium oxide electrode lasts before it needs to be recoated is directly related to the width of the covering. Ru-Ir oxide coatings and Ir-Ta oxide coatings are used by CXMET at 8–12 microns, and platinum coatings are used at 0.5–2.5 microns. Following the NACE TM0108 protocol for the Accelerated Life Test (ALT), heavier noble metal loadings of 6–12 g/m² are expected to have service lives of 5–20 years, based on the working current density.

Surface Treatment and Adhesion Quality

The surface preparation affects the adhesion strength of the coating, which needs to be higher than 20 MPa to keep the layers from coming apart during thermal cycling. Before coating is applied, CXMET uses sandblasting, acid cleaning, polishing, or brushing. The method used depends on the electrode shape and the area where the coating will be used. XRF research confirms the presence of noble metals after coating, and SEM image confirms the smooth "mud-crack" surface shape that creates the most active surface area.

Comparative Analysis: Choosing the Best Titanium Oxide Electrode

There are many coating types and sellers on the market, so procurement teams need an organized way to compare them before they sign a long-term supply deal.

Ru-Ir vs. Ir-Ta Coating Formulations

The two most common types of MMO coating are used for different main reactions. In real life, these are how they compare:

• Ru-Ir oxide coating (8–12 µm): Optimized for processes that release chlorine. When a high chlorine generation rate is important, it works best in chlor-alkali, seawater electrolysis, and ballast water treatment. In NaCl-based electrolytes, Ru-Ir electrodes have a lower chlorine overpotential and a higher current efficiency.
• Ir-Ta oxide coating (8–12 µm): Optimized for reactions that release oxygen. It is more stable electrically in sulfate or phosphate solutions that are acidic, which makes it the best choice for cathodic protection systems, electrowinning metals in sulfuric acid, and treating pharmaceutical-grade water where product purity is a must.
• Platinum coating (0.5–2.5 µm): Used when the widest range of electrochemical activities is needed. Titanium anodes that are covered with platinum are used for precise electroplating and specialized analysis tasks where the platinum loading can be kept low to save money.

Each layer is designed to work with a certain electrical setting. Choosing the wrong formulation greatly reduces the service life, so it is very important to match the coating chemistry to the actual electrolyte composition before making a purchase. Because of these differences in performance, accurate specifications are an important part of any responsible procurement process.

Supplier Evaluation Criteria for B2B Teams

When looking at a titanium oxide electrode manufacturer, there are three things that always set trusted sellers apart from average ones. First, ask for ALT test results and XRF reports. Any company you can trust should be able to give them to you. Second, make sure the seller is certified to ISO 9001 and can meet the requirements of ASTM B381 substrates. Third, check to see if they can provide OEM customizations within a known lead time. CXMET is based in Shaanxi Province's "China Titanium Valley" and has more than 80 expert staff. They keep quality records for every batch of production and have been serving clients in the electronics, oil and gas, medicine, and marine industries for more than 20 years.

Procurement Guide for Titanium Oxide Electrodes: What B2B Buyers Need to Know

It's not enough to just know what to buy. Buying something the right way protects both your budget and the system's uptime.

Sizing and Customization Options

CXMET makes electrodes in common sizes up to 1000 mm × 2000 mm, and if you need a size outside that range, just let them know. Geometries that can be used include plates, rods, tubes, and mesh patterns. The substrate can be anywhere from 0.5 mm to 10 mm thick. When OEM clients add electrodes to their own reactor designs, CXMET engineers work directly with the client's design team to make sure that the exact sizes and edge sealing needs are met.

Pricing Factors and Bulk Order Considerations

The price of an electrode is mostly based on three factors: the type of substrate material, the amount of precious metal loaded per unit area, and the size of the order. Iridium spot prices change all the time on the world market, so people who sign long-term contracts should agree on a way for prices to be adjusted that is linked to public metal indices. When compared to spot sales, bulk buys usually cut the cost per unit by 15–25%. To help with planning inventory, CXMET can handle blanket buy orders with different arrival dates.

Maintenance Best Practices

Once the active layer is worn off, titanium oxide electrodes can be recoated. The titanium substrate keeps its full structural integrity in most service environments. This means that recoating with sandblasting, acid etching, and thermal decomposition reapplication can bring back full performance at a fraction of the cost of replacing the whole thing. Operators should keep an eye on changes in the voltage of the cells. A steady voltage rise of more than 10% above the standard at a constant current level usually means that the coating is wearing off, which is a good reason to check the electrodes.

Future Trends and Innovations in Titanium Oxide Electrodes for Water Treatment

Over the last five years, research in the Journal of Hazardous Materials and Electrochimica Acta has pointed to three ways that the next generation of MMO anodes will be different. Doped titanium suboxides (Magnéli phases) are being tested to see if they can resist corrosion like ceramics and conduct electricity like metals. Atomic layer deposition can be used to put down nanostructured oxide coatings that promise better control over the loading of noble metals and longer service intervals. Demand for advanced electrochemical treatment cells is still being driven by the U.S. EPA's rules on industrial pollution standards. This means that procurement teams that adopt new technologies early can choose more powerful electrode systems before their rivals do. According to Grand View Research, the global market for treating industrial water was worth about USD 14.7 billion in 2023. It is still growing, which means that high-performance anode materials will be in high demand for a long time.

Conclusion

For an industrial water treatment system to work properly, the coating chemistry, current density capacity, and substrate grade of a titanium oxide electrode must all be matched to the actual working environment. In systems that produce chlorine, Ru-Ir coatings are used. In systems that produce oxygen and acid, Ir-Ta coatings are used. Engineers and buying teams can start with CXMET's Grade 1 titanium MMO electrodes, which are made to ASTM B381 standards and come in fully adjustable sizes with quality data that can be shown. When compared to throwaway electrode designs, recoatability makes the asset last longer and lowers the total cost of ownership.

FAQ

How long does a titanium oxide electrode last in industrial water treatment?

Service life is affected by the thickness of the coating, the current density, and the make-up of the electrolyte. Eight- to twelve-micrometer MMO coatings from CXMET, which contain six to twelve grams of noble metals per square meter, usually last between five and twenty years under standard conditions. This was proven by ALT tests according to NACE TM0108.

Can CXMET produce electrodes for non-standard reactor geometries?

Yes. CXMET can fully customize for OEMs, including plates with sizes bigger than 1000 mm × 2000 mm, rod and mesh shapes, and possible edge sealing. For an accurate production quote, engineers should send in dimension drawings and electrolyte specifications.

What happens if fluoride ions are present in the electrolyte?

When fluoride levels are higher than 50 ppm, it can attack the titanium substrate where the coating meets it, which can lead to delamination. For applications that use fluoride, CXMET engineers can add a protective intermediate sub-layer; this needs to be stated during the design stage.

Is it possible to recoat a depleted electrode?

Yes. The Grade 1 titanium base keeps its shape even after the layer wears off. CXMET offers recoating services that include sandblasting, acid etching, and thermal decomposition reapplication. These methods restore full electrode performance at a much lower cost than buying new units.

Partner With CXMET — Your Trusted Titanium Oxide Electrode Manufacturer

CXMET has been making products for more than 20 years and has a team of more than 80 technology experts who work on every order. Our titanium oxide electrode line includes Grade Ti+MMO, ASTM B381, and coating choices for Ru-Ir, Ir-Ta, and platinum. It comes in sizes that can be fully customized and is used for electrowinning, water treatment, and other commercial purposes. Get in touch with our sales team right away for bulk pricing, OEM specifications, and technical help. To set up a meeting to talk about your project, email us at sales@cxmet.com or go to https://www.cxmet-tech.com/.

References

1. Comninellis, C., & Vercesi, G. P. — Journal of Applied Electrochemistry, 1991.

2. Trasatti, S. — "Electrocatalysis: Understanding the Success of DSA®" — Electrochimica Acta, 2000.

3. Martínez-Huitle, C. A., & Ferro, S. — "Electrochemical Oxidation of Organic Pollutants for Wastewater Treatment" — Chemical Society Reviews, 2006.

4. Panizza, M., & Cerisola, G. — "Direct and Mediated Anodic Oxidation of Organic Pollutants" — Chemical Reviews, 2009.

5. Grand View Research — Industrial Water Treatment Market Size & Forecast Report, 2023.

6. Liang, Z., et al. — "Recent Advances in Mixed Metal Oxide Anodes for Electrochemical Water Treatment" — Journal of Hazardous Materials, 2022.
