A platinized platinum titanium electrode may greatly minimize the long-term running expenses. The electrodes are composed of a highly pure titanium base (ASTM Grade 1, ASTM B381) with a thin layer of pure platinum on top of it (2.5–7.5 μm). It has low overpotential, excellent current efficiency, and can work in the same manner with a pH range of 0 to 14. These advantages make electrochemical operations like electrolysis, wastewater treatment, and electroplating use less energy, need fewer replacements, and suffer less downtime. All of these elements reduce the overall cost of operating over a number of years.

Understanding Platinized Platinum Titanium Electrodes and Their Cost-Saving Potential

What Makes This Electrode Different

The titanium foundation offers mechanical strength and corrosion resistance, while the platinum layer provides excellent electrocatalytic activity. They combine to generate what is known in the electrochemical industry as a Dimensionally Stable Anode (DSA) - an electrode which retains its shape throughout use. Graphite anodes wear out slowly, producing particles in the electrolyte and necessitating regular replacement. Titanium-platinum anodes address that challenge by stabilizing bath chemistry and reducing material costs.

Energy Efficiency and Overpotential Reduction

A lower overpotential suggests a lower voltage is required to power an electrochemical process. In a continuous industrial electrolysis line working 24/7, a decrease of overpotential of 0.1 V over a large electrode bank would provide considerable savings of energy on a monthly basis. Research published in the Journal of Applied Electrochemistry has shown the overpotential benefits of platinum-coated electrodes compared to graphite under acidic oxygen-evolution conditions, and the energy savings have been shown to be genuine and measurable.

Lifespan and Total Cost of Ownership

Platinum-coated titanium anodes may last for years before the coating has to be replaced, when used in chloride-free acid solutions at modest current densities (below 5,000 A/m²). More crucially, the titanium substrate may be reused – the wasted platinum layer can be scraped off, the substrate refurbished, and a new coating placed. Procurement managers in chemical processing and water treatment often mention this recoating option as a budget benefit, as it minimizes capital cost compared to buying new electrodes.

Comparing Electrode Options: Why Choose Platinized Platinum Titanium?

Pure Platinum vs. Platinum-Coated Titanium

Solid platinum electrodes have similar electrocatalytic activity, but at a cost that is prohibitive for large industrial installations. A platinized platinum titanium electrode employs only 2.5-72.5- 7.5 µmlatinum on an ASTM Grade 1 titanium substrate and provides almost equal electrochemical properties at a quarter of the material cost. For procurement teams running large-volume electroplating or hydrogen-generating facilities, this discrepancy in costs is significant.

Graphite and Stainless Steel Comparisons

Graphite anodes are low cost initially, but oxidize in oxidizing electrolytes and result in bath contamination and replacement every few months in heavy-duty applications. Some circumstances lead to passivation of the stainless steel anodes and prevent their use in chlorinating settings. Platinum-plated titanium anodes are immune to corrosion by chlorine and caustic solutions and many other hostile chemicals. They will work consistently and reliably in situations where graphite and stainless steel fail in months.

Total Cost of Ownership Analysis

Platinized titanium anodes are more expensive per unit initially than graphite or steel alternatives. But the total cost of ownership estimate changes dramatically when you include the impact of replacement frequency, energy consumption, bath contamination losses, and the manpower required for changeovers. Multi-year lifespan analyzes continuously performed by R&D teams and process engineers have shown the payback of the price premium for platinum-coated titanium anodes within 12–24 months in high-duty applications.

Practical Applications and Case Studies Demonstrating Cost Savings

Electroplating and Surface Finishing

In precise gold and hard chrome plating procedures, bath purity significantly impacts product output. An insoluble, platinized platinum titanium electrode minimizes metallic contamination of the plating solution and reduces scrap rates. When transitioning from lead anodes to platinized titanium anodes, documented applications in a hard chrome factory reported a 30% decrease in bath maintenance expenses, principally due to a dramatic reduction in electrolyte top-up frequency and waste treatment needs.

Water Treatment and Hydrogen Generation

Electrolytic water treatment systems and hydrogen generating cells are operating in frequent polarity reversal and high current density cycles. With a platinum coating on titanium electrodes, a polarity reversal may be tolerated without delamination or loss of performance, a recognized shortcoming of many other coatings. In municipal wastewater treatment applications, proven savings in yearly maintenance budgets have been realized due to prolonged electrode life (compared to graphite or MMO alternatives in certain pH ranges).

Cathodic Protection for Marine and Pipeline Infrastructure

Impressed current cathodic protection (ICCP) systems for ship hulls, offshore platforms, and underground pipelines in saltwater and soil conditions use long-life current sources in the form of platinum-coated titanium anodes. Compared to sacrificial zinc or aluminum anodes, platinized anodes provide a constant protective current with little mass loss, which decreases inspection and replacement cycles that contribute to operating expense throughout a 10-20 year asset life.

Procurement Insights: How to Source Platinized Platinum Titanium Electrodes Efficiently

Evaluating Supplier Quality and Certifications

The most significant procurement variable for this product class is quality control at the production level. The coating thickness should be tested by X-Ray Fluorescence (XRF) measurement, adherence verified by bending or tape tests according to ASTM standards, and surface morphology checked by SEM to ensure a dense, crack-free film layer. A supplier that delivers traceable inspection records and material certifications in compliance with ASTM B381 gives procurement teams the paperwork needed for internal approval procedures.

Understanding MOQ, Lead Times, and Customization

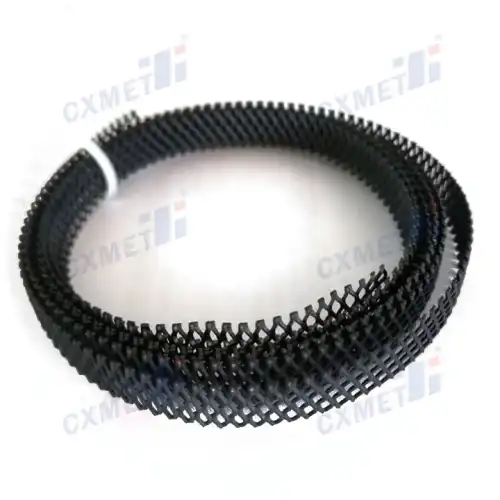

CXMET provides platinized titanium anodes in plate, mesh, bar, and other shapes. OEM engineering assistance is available for precise dimensions and substrate grade options (titanium Grade 1, 2, or 3). Packaging: Standard export wooden case specification or may be customized as per client needs. Air freight, sea freight, and express freight are all available. If you tell us what your MOQ needs and lead time limits are early on, we can provide you with better pricing and eliminate any supply chain gaps.

Bulk Purchasing and Cost Optimization

Manufacturers can better plan production runs when they get bulk orders of platinized platinum titanium electrodes with uniform shapes and coating thicknesses, and then pass those efficiencies on to the customer. If you have multiple electrochemical lines – say a chlor-alkali plant or a large electroplating operation – consolidating your electrode buys with one qualified supplier, capable of fully customizing your electrodes, reduces administrative overhead and provides pricing leverage unavailable with individual spot purchases.

Maximizing Performance and Long-Term Cost Benefits

Controlling Operating Parameters

The working temperature is kept below 80°C, and the current density is within the limits provided for the electrode (application dependent, e.g., up to 10,000 A/m²) to prevent rapid deterioration of the platinum-titanium interface. The process chemistry management is important because fluoride ions in the electrolyte are highly damaging to the titanium substrate. Monitoring of the voltages across the electrode banks might be useful in detecting precursors to passivation of the coating before full failure.

Routine Maintenance Protocols

Frequent cleaning to remove scale or organic deposits and planned visual inspection every 500 to 1,000 operating hours considerably extend service life. All else being equal, a 2.5 µm coating under moderate demand usage will last 3-5 times longer than a 0.5 µm coating. A sensible cost management solution is to choose a coating thickness suitable to your duty cycle. This pays advantages over the life of the electrode.

Predictive Maintenance and Data Integration

Your process control system can log voltage and current data in real time, giving your maintenance staff the ability to track trends in electrode performance over time. An early indication of coating depletion is a gradual voltage rise at constant current density, giving engineers time to organize a recoating cycle and prevent an unexpected shutdown. This strategy changes reactive maintenance to scheduled maintenance, which reduces loss of productivity and protects capital equipment.

Conclusion

Platinized platinum titanium electrodes provide demonstrable cost savings via longer service life, lower energy consumption lowe, lower bath contamination, and the opportunity of recoating to prolong substrate value across several coating cycles. For the majority of industrial uses, the initial premium above graphite or stainless steel alternatives will be repaid via reduced overall operating costs over a reasonable period of time. For engineers and purchasing teams in chemical processing, water treatment, marine, oil and gas, and electroplating, selecting the correct electrode from a reputable supplier is a simple route to better process economics and operational reliability.

FAQ

How long does a platinized titanium anode last compared to stainless steel?

In most industrial electrochemical applications a we,ll specified platinum coated titanium anode will outlive stainless steel by a considerable margin. Stainless steel will passivate and corrode in chlorine-evolving or acid conditions and typically has to be replaced within months. Years of service at modest current densities are possible with a 2.5 µm plating of platinum on ASTM Grade 1 titanium. When the platinum layer is consumed, the substrate may be replated.

Is the investment justified for smaller operations?

Yes, particularly when recoating is factored in. Smaller facilities that run continuous electrochemical processes — even at lower current loads — benefit from reduced bath contamination and fewer replacement cycles. The economics improve further when a supplier offers OEM customization at scale-appropriate order quantities.

What customization options are available?

CXMET manufactures electrodes in plate, mesh, bar, and bespoke perforated or expanded shapes. The thickness of the platinum coating may be customized from 2.5 to 7.5 µm (and more if required), and the substrate grade can be set as Grade 1, 2, or 3 titanium to suit chemical conditions. Exact dimensions are made to client designs for easy equipment integration.

Partner With CXMET for Your Platinized Titanium Anode Needs

CXMET, based in China's Shaanxi Province and operating since 2005, is a trusted platinized platinum titanium electrode manufacturer with over 80 technical professionals and 20 years of experience in non-ferrous metals. Our electrodes meet ASTM B381 standards, ship globally via air, sea, or express freight, and are backed by full OEM engineering support. Contact our team today to receive a customized quote: sales@cxmet.com.

References

1. Journal of Applied Electrochemistry — "Overpotential characteristics of platinum-coated titanium anodes in acidic electrolytes," 2019.

2. Electrochimica Acta — "Dimensionally stable anodes: performance and longevity in industrial electrolysis," 2020.

3. Corrosion Science — "Titanium substrate degradation mechanisms in electrochemical systems," 2018.

4. Journal of The Electrochemical Society — "Platinum coating adhesion and service life under high current density cycling," 2021.

5. Water Research — "Electrochemical treatment of wastewater using insoluble anodes: cost and performance evaluation," 2017.

6. ASTM International — ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings, 2022.
