A platinized titanium electrode can measurably improve electrolysis efficiency. By combining a Grade 1 titanium substrate with a precision platinum coating (typically 0.5–10 μm thick), this electrode type functions as a Dimensionally Stable Anode (DSA). It reduces cell overpotential by 0.2–0.5 V compared to conventional alternatives, sustains current densities up to 10,000 A/m², and resists corrosion across a full pH range of 0–14. For engineers and procurement teams in demanding sectors — from chlor-alkali production to marine cathodic protection — these properties translate directly into lower energy costs and longer service intervals.

Understanding Platinized Titanium Electrodes and Their Working Principle

What the Electrode Is Made Of

A platinized titanium electrode is made up of a high-purity titanium base (usually ASTM B265 Grade 1 or Grade 2) that has 99.99% pure platinum added to it by heating it up or applying an electric current to it on it electrically. Titanium Gr1 is used as the base material by CXMET to make these electrodes that meet ASTM B381. Platinum and titanium are mechanically connected, which creates a strong structure that doesn't delaminate even when used in harsh circumstances.

How the Platinum Coating Works

Titanium naturally forms a passive oxide film that stops substrate corrosion. This is called "valve metal" behavior. On top, the platinum layer works as an electrocatalytic surface. Platinum speeds up both the oxygen evolution and chlorine evolution processes because it doesn't make it hard for electrons to move. This makes the electrochemical process require less energy to work. You can change the coating thickness from 1 to 10 μm, and the active surface area and reaction rates depend on the surface finish (smooth, matte, or grainy).

Why Design Specifications Matter to Procurement

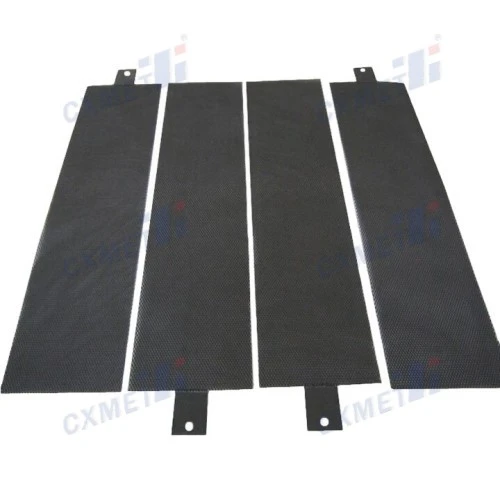

The shape of a platinized titanium electrode has a direct effect on how current flows and how much the process produces. Plated titanium is available from CXMET in the form of plates, mesh, bars, rods, and custom shapes. The sizes can be changed to fit current equipment. Even distribution of platinum across the electrode surface guarantees the same performance from one batch to the next. When purchasing managers look at technical specs, these design factors tell them if an electrode meets process needs, not just on paper, but also in production.

Comparing Platinized Titanium Electrodes With Other Electrode Types

Graphite and Stainless Steel: The Limitations

When electrolysis happens, graphite anodes break down. This lets out carbon particles that get into the liquid baths and make the voltage unstable over time. Stainless steel rusts in places that are acidic or high in chloride, and it usually needs to be replaced within a few months. Because neither material is dimensionally stable, the current distribution changes as the electrode breaks down, which gradually lowers the process efficiency.

Pure Platinum and Iridium: The Cost Problem

Pure platinum electrodes work very well for electrochemistry, but they are too expensive for most large-scale industrial applications. Mixed metal oxide (MMO) electrodes made of iridium work well for chlorine evolution but not so well for oxygen evolution. Platinized titanium is a good compromise because the titanium layer provides low-cost structural support and resistance to corrosion, and the thin platinum layer provides the needed catalytic performance without the need for solid platinum all the way through.

Where Platinized Titanium Wins on Total Cost of Ownership

The titanium base can be stripped and recoated more than once. This lowers the long-term cost of operation by about 40–60% compared to changing full solid electrodes. Because it can be used for 5 to 10 years, depending on the conditions, the total cost of ownership is much lower than other options. This recoatability factor makes budgeting and supply chain stability a lot better for buying teams that are in charge of multi-year supply contracts.

Evaluating the Efficiency Benefits in Electrolysis

Reduced Overpotential and Energy Savings

Overpotential is the extra voltage that is needed to cause an electrochemical process but is not needed by thermodynamics. Platinized titanium electrodes lower the voltage of the cell by 0.2 to 0.5 V compared to mixed metal oxide electrodes in some media. When used on a large scale in chlor-alkali plants, water treatment systems, or electroplating facilities, even small drops in voltage add up to big energy savings every year. There is a potential for oxygen evolution of 1.7 to 1.9 V vs. SHE and a potential for chlorine evolution of 1.3 to 1.5 V vs. SHE.

Real-World Performance Across Industries

In impressed current cathodic protection (ICCP) for coastal and offshore oil platforms, platinized titanium anodes provide a steady current of protection in the water without wearing out quickly as sacrificial anodes do. In hard chrome plating, switching from lead anodes to platinized titanium anodes gets rid of chromate sludge and keeps the space between the anode and cathode stable. This makes the plating more even on complicated shapes. In electrolytic water treatment, the electrode can handle reversing polarity, which is used to clean itself, and still keep its chemical activity.

Stability Under High Current Density

When exposed to sulfuric acid, the electrode works well at current densities of up to 75 A/dm². When operating normally, it can handle up to 10,000 A/m². When performance stays stable at high current densities, process throughput goes up directly, and bigger electrode arrays aren't needed. When R&D teams take lab processes to production levels, they need to make sure that the electrode geometry and current capacity are exactly the same as the reactor design.

Maintenance, Lifespan, and Cost Considerations for Procurement

Factors That Affect Service Life

How long an electrode layer lasts depends on the operating temperature, the type of electrolyte used, and the current rate. The platinized titanium electrodes from CXMET work reliably from -40°C to 120°C and can handle pH levels from 0 to 14. Electrolytes that contain fluoride can damage titanium's inactive oxide layer. Before choosing an electrode grade, process engineers should make sure that the electrolyte will work with the titanium. There are titanium plates in grades 1 through 4, and each one is good for a different type of corrosion climate.

Routine Maintenance Practices

An important part of a predictive maintenance program is checking for coating wear, scale or deposit buildup, and electrical resistance on a regular basis. Using weak acid solutions to clean gets rid of surface layers without hurting the platinum layer. When the coating wears off, the titanium substrate can be sent back to be recoated. This makes the asset last longer and saves a lot of money on replacement materials.

Procurement Specifications and Lead Times

Electrodes are packed by CXMET in normal export wooden cases or in any other way the customer requests. They can be sent by air, sea, or fast freight to the United States and other places around the world. Lead times depend on how complicated the unique design is and how many items are ordered. To meet quality assurance standards, purchasing managers should ask for mill test results, data on finishing thickness, and proof of uniform surface at the time of order.

Selecting a Reliable Platinized Titanium Electrode Supplier

What Certification and Quality Assurance Should Cover

A good provider should give you material approvals that meet ASTM B381, records on the thickness of the platinum layer, and proof that the titanium substrate can be tracked. CXMET has been in business for more than 20 years in Shaanxi Province, China, which is known in the industry as "China Titanium Valley." The company has 10 million RMB in registered capital and more than 80 professional technicians. This amount of institutional infrastructure helps keep process and output quality uniform.

OEM Customization Capabilities

Standard electrode sizes don't work for all uses. The engineering team at CXMET offers OEM services that include unique shapes, choosing the thickness of the platinum covering (1–10 μm is possible), specifying the surface finish, and offering extra edge sealing for uses where cutting the substrate would speed up degradation. Procurement teams that have their own reactor designs can work directly with CXMET's technical staff to make electrode configurations that work with their equipment.

Evaluating Supplier Responsiveness and After-Sales Support

Reliability of the supplier goes beyond the buy. The support team at CXMET responds quickly to questions about products, technical questions, and requests for help with problems. This response has a direct effect on production consistency for procurement managers whose job it is to keep downtime to a minimum. You can get a good idea of a supplier's technical depth and service capacity by looking at their track record in industries like marine, oil and gas, chemical processing, and pharmaceuticals, which are all areas that CXMET works in.

Conclusion

A platinized titanium electrode gives electrolysis measurable efficiency gains through lower overpotential, better physical stability, and resistance to rust that other electrode materials can't match. This type of electrode is a good technical and financial investment for procurement and engineering teams in heavy industry and high-tech manufacturing because it can be recoatable, has a long service life, and can be designed to fit specific needs. If you choose a provider with verified production standards, OEM capabilities, and quick technical support, you can be sure that the electrode will work as expected for as long as it is used.

FAQ

What is the standard platinum coating thickness for industrial electrodes?

CXMET offers platinum coating thicknesses from 1 to 10 μm as standard, with options up to 20 μm for specialized applications. Thickness selection depends on current density requirements, electrolyte aggressiveness, and expected service life.

Can the titanium substrate be reused after the platinum coating wears out?

Yes. The titanium substrate can be cleaned and recoated multiple times. This recoatability reduces long-term operating costs by an estimated 40–60% compared to full electrode replacement.

What shapes are available for platinized titanium electrodes?

CXMET manufactures electrodes in plates, mesh, bars, rods, tubes, and fully custom geometries. All sizes are customizable to fit specific equipment configurations.

Are these electrodes suitable for seawater environments?

Yes. Platinized titanium performs well in seawater for impressed current cathodic protection applications. The titanium substrate resists chloride attack, and the platinum coating maintains catalytic activity over extended periods.

What is the typical lead time for a custom order?

Order volume and geometric complexity both play a role in determining lead time. In addition to air freight and sea freight, CXMET also offers express freight services.

Get Your Custom Platinized Titanium Electrode Quote From CXMET

CXMET, or Shaanxi CXMET Technology Co., Ltd., is a reliable company that has been making platinized titanium electrodes for more than 20 years. If you need custom electrodes in shapes like plates, mesh, bars, and more, we can make them according to ASTM B381 and let you change the thickness of the platinum coating. You can talk to our expert team about your needs and get a price by emailing sales@cxmet.com.

References

1. Trasatti, S. (1999). Electrochimica Acta — "Electrocatalysis: understanding the success of DSA."

2. Kirk-Othmer Encyclopedia of Chemical Technology (2007) — "Electrochemical processes: chlor-alkali and related industries." John Wiley & Sons.

3. Chen, G. (2004). Separation and Purification Technology — "Electrochemical technologies in wastewater treatment."

4. Hayfield, P.C.S. (2002). Platinum Metals Review — "Development of the noble metal/base metal titanium anode."

5. Rajeshwar, K., & Ibanez, J.G. (1997). Environmental Electrochemistry: Fundamentals and Applications in Pollution Abatement. Academic Press.

6. ASTM International (2022). ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings. ASTM International.
