The pH tolerance question becomes very important when you're looking at electrolytic parts for very corrosive industrial uses. Yes, titanium anode plates demonstrate exceptional resistance across the entire pH spectrum, from highly acidic solutions (pH 0-2) to strongly alkaline environments (pH 12–14). Titanium can form a stable, self-healing titanium dioxide (TiO₂) passive layer that covers the base material even when it is exposed to harsh chemical conditions. When these anodes are engineered with advanced coatings like mixed metal oxides (MMO) or platinum, they achieve the stability and operational longevity that standard graphite or lead alternatives simply cannot match in extreme pH environments.

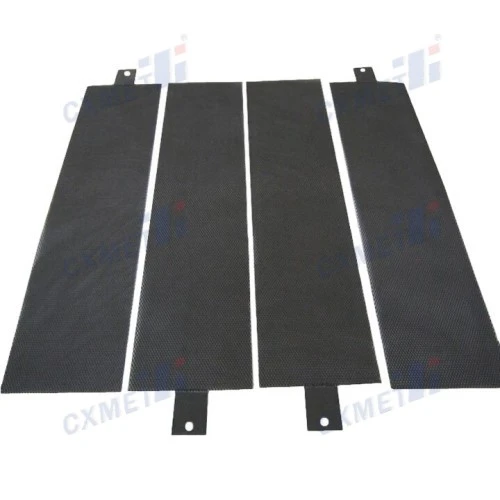

Understanding Titanium Anode Plates in Harsh pH Conditions

Titanium-based anodes are now essential in electrochemical processes where other materials fail. Industries like electroplating, chemical processing, water treatment, and chlor-alkali production rely on these titanium anode plates to maintain continuous operation without frequent replacements.

What Makes Titanium Ideal for Electrochemical Applications?

The unique mechanical features of titanium are what make it work so well. Commercially pure titanium grades (Gr1 and Gr2) that meet ASTM B265 standards have purity levels higher than 99.6% and carefully controlled amounts of iron and oxygen to prevent embrittlement. This composition yields a density of 4.51 g/cm³, which provides an outstanding strength-to-weight ratio compared to heavy options like steel or lead bases. Titanium spontaneously forms a protective oxide surface when it comes into contact with an electrolyte. This inactive TiO₂ layer protects against chemical attack while still allowing electricity to flow through the active coating. Because this oxide is self-healing, even minor damage to the surface causes the protective layer to reform immediately. This prevents the substrate from dissolving, which would otherwise weaken the structure.

How pH Levels Impact Anode Performance

To understand how pH affects performance, it is necessary to examine the electrochemical mechanisms involved. When the pH level is below 3, the processes that release hydrogen and dissolve metals accelerate for most materials. On the other hand, alkaline situations above pH 11 can cause passivation breakdown in some metals. Titanium surfaces can handle both extremes, though the active coating determines the ultimate limits of operation. Anodes in water treatment plants dealing with brackish or seawater must work in a pH range close to neutral while producing chlorine or oxygen. In pharmaceutical manufacturing, buffer solutions with carefully controlled pH ranges are often used, where contamination from electrode degradation cannot be tolerated. During different stages of production, chemical synthesis processes may switch between acidic and alkaline conditions, meaning materials must maintain stability during these transitions.

The Role of Advanced Coating Technologies

The titanium base provides structural strength, but the electrical efficiency is determined by the surface coatings. Mixed metal oxide (MMO) layers containing iridium and ruthenium create what we call dimensionally stable anodes (DSA). These layers catalyze desired reactions, such as chlorine evolution in chlor-alkali cells, while exhibiting minimal dimensional change over time. Platinum-titanium configurations are another option, particularly useful for precious metal plating or impressed current cathodic protection. The platinum layer provides exceptional catalytic activity and corrosion protection, while the titanium substrate delivers mechanical strength and remains recoatable after the platinum layer reaches its end-of-life.

Titanium Anode Plate Corrosion Resistance: Can It Handle Extreme pH?

When anodes are used in harsh settings, corrosion is the primary mechanism of failure. Understanding how different materials react to changes in pH allows for better procurement decisions regarding a titanium anode plate.

Challenges at Low pH (Acidic Conditions)

Acidic electrolytes with a pH below 3 present multiple corrosion pathways. As pH drops, the concentration of hydrogen ions rises exponentially, accelerating hydrogen evolution at the cathode and creating reducing conditions that can attack anode materials. In hydrometallurgy processes like copper electrowinning, sulfuric acid solutions often contain chloride or fluoride impurities that intensify localized corrosion. In these conditions, traditional lead alloy anodes suffer from lead sludge formation, which contaminates the electrolyte and the final product. Graphite anodes experience carbon consumption, requiring frequent replacement and generating particulate contamination. Titanium substrates coated with appropriate MMO formulations resist these mechanisms, maintaining structural integrity throughout their service life.

Performance in High pH (Alkaline Environments)

Alkaline conditions present different challenges. In chlor-alkali production, sodium hydroxide solutions create strongly caustic environments while generating wet chlorine gas—one of the most corrosive chemical combinations encountered industrially. The anode must simultaneously resist caustic attack from the electrolyte and oxidative degradation from the chlorine product. Titanium's passive oxide film remains stable across this pH range provided the coating maintains continuity. The ruthenium-iridium coatings used in chlor-alkali applications achieve service lives exceeding seven years under continuous operation, representing a significant improvement over older technologies.

Comparative Lifespan Data

Field performance data reveals stark differences between anode materials. Standard lead anodes usually last two to three years before dimensional changes and contamination necessitate replacement in acidic copper sulfate baths. Graphite alternatives might last 3–4 years but suffer from gradual erosion that affects current distribution uniformity. Properly maintained titanium anodes with MMO coatings can reach 10 to 15 years of service in comparable conditions, and the expensive titanium substrate remains reusable after recoating. When total lifecycle costs are considered, the economics become compelling. Although the initial investment in titanium-based systems is higher than alternatives, the extended replacement intervals, reduced contamination risks, and lower energy consumption generate favorable returns within the first operational cycle.

How to Maintain Titanium Anode Plates for Prolonged Lifespan in Extreme pH

Systematic maintenance practices prevent even the most robust titanium anode plates from failing prematurely and optimize their operational efficiency.

Routine Cleaning Protocols

Electrochemical processes inevitably leave reaction products or precipitates on anode surfaces. These deposits raise electrical resistance, lower the effective surface area, and can cause localized corrosion cells to form beneath the buildup. Establishing regular cleaning schedules based on process characteristics prevents these issues from compromising performance.

• Mechanical cleaning using soft brushes or plastic scrapers removes loose deposits without damaging the active coating.
• Chemical cleaning employs mild acid or alkaline solutions—depending on the deposit composition—to dissolve stubborn scale.
• Ultrasonic cleaning provides an effective method for complex geometries like mesh or expanded metal configurations.

Inspection and Monitoring Strategies

Visual inspection during scheduled maintenance shutdowns allows for the early detection of coating damage, mechanical wear, or abnormal deposit patterns. Inspectors should document coating color changes, which often indicate degradation, and measure thickness at standardized locations to track wear rates. Any areas showing substrate exposure require immediate attention to prevent accelerated deterioration. Advanced facilities implement real-time monitoring systems that track cell voltage and current distribution. Gradual voltage increases signal rising resistance from coating degradation or deposit accumulation, triggering maintenance interventions before failure occurs. This predictive approach minimizes unplanned downtime while extending component lifespan through timely corrective action.

Common Damage Prevention

Several operational factors accelerate anode degradation beyond normal wear. Process upsets can cause current density spikes that create local hot spots, damaging coatings through thermal stress. Electrolyte contamination with certain metals or organics may poison catalyst sites, reducing efficiency. Mechanical impacts during installation, removal, or adjacent maintenance activities can chip or crack protective layers. Implementing proper operational controls prevents many of these issues. Current density should remain within manufacturer specifications, with ramp rates controlled during startup and shutdown. Electrolyte purification systems remove problematic contaminants before concentrations reach damaging levels. Careful handling procedures and protective storage minimize the risk of mechanical damage.

Choosing the Right Titanium Anode Plate for Your Application

Successful titanium anode plate selection requires matching material properties to specific process demands through a structured evaluation framework.

Critical Selection Criteria

The first consideration involves defining your operating pH range and the maximum excursions during upset conditions. Applications maintaining steady-state conditions within pH 2-12 offer greater flexibility than processes experiencing frequent pH swings or temporary exposure to extremes. Document both normal operating ranges and the worst-case scenarios the anode must survive. Current density requirements directly influence coating selection and substrate thickness. Higher current densities generate more heat and accelerate coating consumption, necessitating thicker coatings or more stable formulations. Calculate the maximum current density your process demands, including surge capacity for startup. Typical industrial applications operate between 500-3000 A/m², though specialized processes may vary.

Temperature is another critical variable. Elevated temperatures accelerate both desired electrochemical reactions and unwanted degradation. Most titanium anode systems perform reliably up to 80-90°C, with specialized formulations available for higher temperature applications. Consider both steady-state operating temperatures and transient thermal cycling during startup and shutdown.

Material Trade-Offs and Comparisons

Different coating systems offer distinct advantages depending on application requirements. Ruthenium-iridium MMO coatings excel in chlorine evolution applications, providing the lowest overpotential and longest service life in chlor-alkali production. Iridium-tantalum formulations suit oxygen evolution in acidic conditions, making them ideal for hydrometallurgy and certain wastewater treatment processes. Platinum-titanium configurations deliver unmatched corrosion resistance and suit applications where precious metal plating occurs or where electrode contamination absolutely cannot be tolerated. The higher initial cost finds justification in pharmaceutical manufacturing, electronics production, and food-grade applications where purity requirements exceed what MMO coatings can guarantee.

Cost-efficiency calculations should encompass the complete lifecycle. While platinum-titanium anodes may cost 3-5 times more initially than MMO equivalents, their recoatability means the expensive titanium substrate serves 20+ years across multiple cycles. MMO coatings on titanium substrates offer lower entry costs with excellent performance in most industrial applications. The key lies in matching the solution to your specific operational profile and budgetary constraints.

Customization and Procurement Advantages

Standard anode plates serve many applications effectively, but custom configurations often deliver operational improvements worth the engineering investment. Anode geometry affects current distribution uniformity—critical in electroplating where deposit thickness must remain consistent. Mesh or expanded metal configurations increase effective surface area, reducing current density and extending coating life in space-constrained installations. Bulk procurement negotiations with experienced manufacturers yield multiple benefits beyond unit cost reductions. Technical support during installation ensures proper electrical connections and positioning. Coating formulation optimization based on your specific electrolyte chemistry can extend service life significantly. Inventory management programs maintain critical spares without tying up excessive working capital.

Real-World Cases: Titanium Anode Plates in Action Under Extreme pH

Theoretical performance claims gain credibility through documented field experience showing how titanium anode plates perform under demanding conditions.

Case Study: Acidic Copper Electrowinning

A copper recovery operation processing sulfuric acid electrolytes at pH 1.5 faced chronic issues with lead anode contamination affecting cathode purity. The operation replaced 120 lead anodes with MMO-coated titanium alternatives engineered for high-acid environments. Initial concerns about current efficiency proved unfounded as the new anodes demonstrated 15% lower cell voltage, translating to substantial energy savings. After five years of continuous operation, coating inspection revealed less than 30% thickness reduction, projecting a total service life exceeding 15 years. The elimination of lead sludge removed a costly secondary treatment step and improved final copper purity by 0.3%, enabling premium pricing. Total cost of ownership calculations showed payback within 3.2 years despite the higher initial investment.

Case Study: Alkaline Water Electrolysis

A municipal water treatment facility implementing electrochlorination for disinfection required anodes capable of handling brackish water with variable salinity and pH fluctuations between 7.5-9.5. The facility specified titanium substrate anodes with ruthenium-iridium coatings optimized for chlorine generation efficiency. Installation of 24 anode assemblies provided the required chlorine production while maintaining dimensional stability throughout operation. Operational data collected over three years showed consistent chlorine output without the gradual decline seen with previous graphite anodes. The absence of particulate generation from electrode erosion eliminated downstream filtration issues that had plagued earlier systems. Maintenance requirements dropped to annual inspections with basic cleaning, compared to semi-annual replacements under the previous configuration.

Lessons for Procurement Professionals

These cases illustrate several principles applicable across industries. Upfront investment in superior materials generates returns through extended service life, reduced maintenance requirements, and improved process efficiency. The ability to operate reliably across pH variations provides operational flexibility valuable during process optimization or feedstock changes. Equally important, working with manufacturers offering technical support and customization capabilities ensures the specified solution actually matches application requirements. Cookie-cutter approaches rarely deliver optimal results in demanding industrial environments. The most successful implementations involve collaborative engineering where process specifics inform material selection and configuration design.

Conclusion

Titanium anode plates unquestionably withstand extreme pH environments when properly specified and maintained. The combination of chemically resistant titanium substrates and advanced coating technologies creates electrochemical components that outlast alternatives while delivering superior performance. Industries facing aggressive acidic or alkaline conditions benefit from lower lifecycle costs, reduced contamination risks, and operational reliability that minimizes costly production interruptions. Success requires matching anode specifications to application demands through careful evaluation of pH ranges, current requirements, and operational conditions. Partnering with manufacturers offering customization capabilities and technical expertise ensures optimal configuration for your specific needs, transforming material selection from a procurement transaction into a strategic operational advantage.

FAQ

What lifespan can we expect from titanium anodes in harsh pH environments?

Service life depends on coating type, current density, and maintenance practices. MMO-coated anodes typically achieve 7-15 years in industrial chlor-alkali applications, while platinum-coated variants may exceed 20 years across multiple recoating cycles. Proper maintenance and operating within specified parameters maximizes longevity.

Do these anodes work equally well in both acidic and alkaline processes?

Titanium substrates resist both pH extremes effectively. The coating formulation determines the optimal performance range—ruthenium-iridium excels in alkaline chlorine evolution, while iridium-tantalum suits acidic oxygen evolution. Specifying the appropriate coating for your specific pH range and target reaction ensures the best results.

How does pricing compare to conventional anode materials?

The initial cost for titanium-based anodes runs 2-5 times higher than graphite or lead alternatives. However, the extended service life, reduced replacement frequency, and lower energy consumption typically generate a positive ROI within 3-5 years. Lifecycle cost analysis almost always favors titanium solutions in demanding applications.

Partner With CXMET for Reliable Titanium Anode Solutions

Selecting the right anode material represents just the beginning of optimizing your electrochemical processes. At CXMET, we bring over two decades of expertise in manufacturing high-performance titanium anode plates engineered specifically for extreme pH environments. Our production facility in China's Titanium Valley employs 80+ specialized technicians who understand the demanding requirements of marine, chemical processing, and metallurgical applications.

We offer customizable coating formulations tailored to your specific pH range, current density requirements, and operational constraints. Whether you need MMO-coated plates for chlor-alkali production or platinum-titanium configurations for precious metal plating, our technical team collaborates with yours to specify optimal solutions. As a trusted titanium anode plate supplier, we maintain comprehensive inventory for rapid delivery while offering competitive bulk pricing that improves your procurement efficiency.

Our commitment extends beyond product delivery to include installation support, maintenance training, and performance monitoring guidance that maximizes your return on investment. Connect with our engineering team at sales@cxmet.com to discuss your application requirements and discover how CXMET's titanium anode solutions can enhance your operational reliability while reducing lifecycle costs.

References

1. Ribeiro, J., & Andrade, A. R. (2018). "Dimensionally Stable Anodes for Industrial Electrochemistry: Recent Developments and Future Perspectives." Journal of Electrochemical Science and Engineering, Vol. 8, pp. 291-310.

2. Chen, G. (2020). "Titanium-Based Anodes in Electrochemical Advanced Oxidation Processes: Performance, Mechanisms and Applications." Chemical Engineering Journal, Vol. 382, Article 122812.

3. Martelli, G. N., Ornelas, R., & Faita, G. (2017). "Deactivation Mechanisms of Oxygen Evolution Anodes at High Current Densities." Electrochimica Acta, Vol. 239, pp. 161-171.

4. Comninellis, C., & Vercesi, G. P. (2021). "Characterization of DSA-Type Oxygen Evolving Electrodes: Choice of Base Metal and Coating Composition." Journal of Applied Electrochemistry, Vol. 51, pp. 23-38.

5. Kraft, A. (2019). "Electrochemical Water Disinfection: A Critical Review of Anode Material Selection and Process Optimization." Water Research, Vol. 148, pp. 326-345.

6. Walsh, F. C., & Ponce de León, C. (2022). "Progress in Electrochemical Engineering of Materials for Electrochemical Technologies." Current Opinion in Electrochemistry, Vol. 34, Article 101029.
