Electrode anode titanium can significantly reduce maintenance costs in industrial electrochemical applications. As a Dimensionally Stable Anode (DSA) built on a Titanium Grade 1 substrate (ASTM B381) and coated with mixed metal oxides (MMO) such as Ru-Ir or Ir-Ta, these anodes resist corrosion, maintain geometric stability, and sustain consistent current distribution throughout their service life. Compared to graphite or lead anodes, they generate no sludge, require fewer replacements, and support recoating — making them a sound long-term investment for industries ranging from water treatment to chemical processing.

Understanding Titanium Electrode Anodes and Their Role in Maintenance Reduction

Before looking at cost information, it's helpful to know what makes titanium anodes structurally different from other choices and why that difference is important for planning upkeep.

What Is an Electrode Anode?

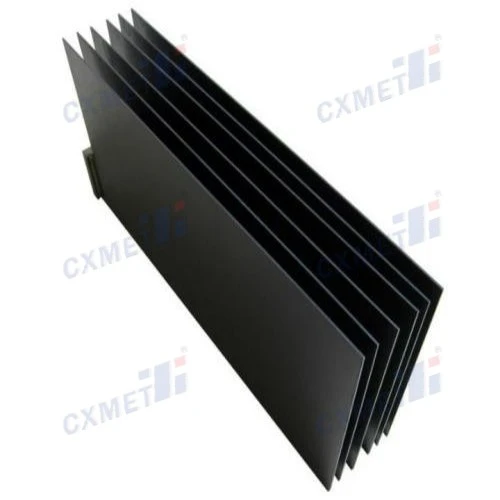

A titanium anode is a mixed electrochemical electrode made up of a pure titanium base (Gr1, ASTM B381) that has been heated and covered with electrocatalytic noble metal oxides. Anodes from CXMET come with Ru-Ir oxide coatings (8–12 microns) for environments with chlorine evolution, Ir-Ta oxide coatings (8–12 microns) for environments with oxygen evolution, and platinum coatings (0.5–2.5 microns) for precise plating. The substrate doesn't dissolve or change shape when exposed to strong acids, alkalis, and chlorine media.

Dimensional Stability and Its Maintenance Impact

Titanium stays the same shape throughout its working life, while graphite anodes wear away and make carbon sludge. The inter-electrode gap stays the same because of this dimensional stability. This makes the cell voltage predictable and stops process interruptions caused by anode degradation. If there are fewer failures due to geometry, there will be fewer planned maintenance visits.

Operating Principles That Reduce Downtime

The overpotential needed for electrolysis reactions is lowered by the MMO coating on an electrode anode titanium. Iridium-tantalum coatings lower the overpotential for oxygen, and ruthenium-iridium coatings lower the overpotential for chlorine. Lower overpotentials mean lower operating temperatures and less thermal stress on the electrode assembly. This means that the electrode assembly doesn't need to be serviced as often and the connected equipment doesn't get worn out from the heat.

Key Factors Driving Maintenance Cost Reduction with Titanium Anodes

Once the technical basis is clear, it's easy to make the case for cost. Several features of the material work together to make repair intervals longer and replacement costs more stable.

Corrosion Resistance Eliminates Fouling Cycles

Titanium Grade 1 can be pulled apart up to 240 MPa, and in oxidizing environments, it forms an oxide layer that fixes itself. Because it is chemically neutral, the anode can't take part in side reactions that make scale or fouling layers. When sodium hypochlorite is used to treat water, operators say that service intervals are much longer than with graphite installations of the same type. This saves money on chemicals and labor for cleaning.

Recoating Extends Asset Lifecycle

Recoatability is a quality that buying teams often forget to look at. The titanium substrate usually stays structurally sound after the MMO layer on a titanium anode has reached the end of its useful life. It costs 60–70% less to sandblast off the old coating and put on a new MMO layer than to buy new anodes. For businesses that use a lot of electrode banks, this one factor can save them a lot of money every year.

Routine Maintenance Is Minimal and Predictable

The simple care plan for MMO titanium anodes includes eye inspections every so often, gentle acid cleaning to get rid of electrolyte scale, and tracking current density to see if the coating starts to wear away early. It doesn't need to be fixed structurally, have sludge removed, or be replaced quickly in case of a sudden mechanical failure, which can happen with graphite and lead options. Because of this, making a budget is a lot more accurate.

Titanium Electrode Anodes vs. Alternative Materials: A Maintenance Cost Perspective

To figure out how much something costs, you have to compare titanium to the materials it usually replaces in factories.

Titanium vs. Graphite: Service Life and Replacement Frequency

During electrolysis, graphite anodes are constantly worn down, creating carbon particles that contaminate the liquid and need to be flushed out of the system often. Graphite replacement rounds in chlor-alkali settings usually last between 12 and 18 months. Titanium anodes that work in similar situations can last for 5 to 8 years before they need to be recoated. When you add up the costs of labor, downtime, and disposal, titanium has a much better lifecycle cost advantage, even though it costs more to buy at first.

Titanium vs. Platinum: Balancing Performance and Budget

Platinum anodes are very good at conducting electricity, but they are very expensive, so most industrial processes can't use them on a big scale. Electrode anode titanium coated with platinum anodes (0.5–2.5 microns, as sold by CXMET) are a cost-effective option. The platinum layer provides the conductivity and selectivity needed for precise tasks like valuable metal electroplating, and the titanium base lowers the overall cost of the material. The end product is performance that's almost as good as solid metal at a much lower cost.

Total Cost of Ownership: A Practical Calculation

When choosing an industrial anode, a simple total cost of ownership (TCO) calculation should take into account:

• Initial material cost — titanium anodes carry a higher upfront price than graphite but lower than solid platinum.
• Replacement frequency — graphite requires 3–5x more frequent replacement over a 10-year period.
• Recoating savings — a recoated titanium anode saves 60–70% versus new procurement.
• Downtime costs — graphite and lead anodes cause unplanned stoppages; titanium rarely does.
• Energy savings — lower overpotentials reduce electricity consumption, which in large-scale electrolysis represents a measurable operational cost reduction over time.

Lowering overpotentials lowers the amount of energy used, which in large-scale electrolysis means a measured drop in operational costs over time.

Procurement Considerations for Titanium Electrode Anodes

The supplier you choose is just as important as the material you choose. The difference in quality during production has a direct effect on how long an anode lasts before it needs to be fixed.

Verifying Coating Quality Before Purchase

Teams in charge of buying things should ask for Accelerated Life Test (ALT) data and X-Ray Fluorescence (XRF) tests to confirm the thickness of the covering and the noble metal ratios. These tests show that the layer is between 8 and 12 microns thick and that the molar ratio of Ru:Ir or Ir:Ta is correct. Scanning Electron Microscopy (SEM) analysis can confirm that the surface has a uniform "mud-cracked" structure that makes the most of the catalytic surface area. In real business-to-business buying, you should always ask a seller for these certificates before placing a large order.

Customization Options and OEM Compatibility

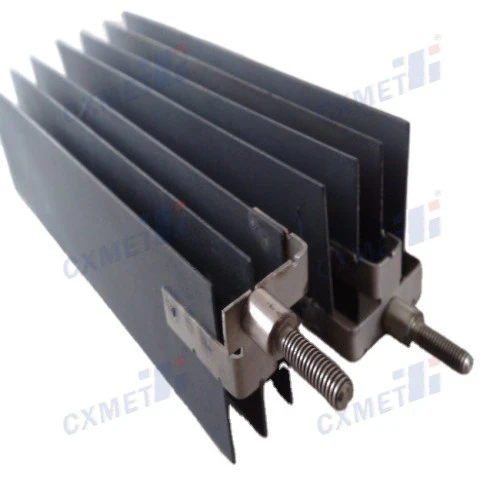

CXMET makes electrode anodes in shapes that can be customized, such as plates, mesh, rods, and tubes. The surfaces are treated with sandblasting, acid cleaning, polishing, and brushing. Because of this, the anode can be used with equipment that is already in place without needing to be changed. When purchasing managers work on retrofit projects or upgrading old systems, working directly with the factory is helpful because they can confirm the sizes and coatings before production starts.

Supplier Credentials and Long-Term Supply Stability

Our company, CXMET, is in Shaanxi Province, China, which is in the "China Titanium Valley" region. It has been in business since 2005 and has a production area of 50,000 square meters. The business has worked with non-ferrous metals like electrode anode titanium, nickel, tantalum, and niobium for more than 20 years. A supplier with this level of production stability offers a long-term supply, which is important when repair plans rely on having a steady supply of anodes.

Case Studies & Practical Examples of Maintenance Cost Savings Using Titanium Anodes

What's more, performance data from real deployments backs up the material science points made above.

Water Treatment: Reduced Cleaning Cycles

Over the course of three years, a local water treatment plant that moved from graphite to Ru-Ir coated titanium anodes in its sodium hypochlorite generation units saw a 70% drop in maintenance events linked to the electrodes. Since there was no carbon sludge, there was no need to flush the system once a month, and fewer chemicals were needed to clean the system.

Electroplating: Consistent Current Distribution Improves Yield

When copper was electroplated, using titanium anodes that didn't change shape stopped the layer width from changing because of anode erosion. The operation saw a 15% drop in rework costs because fewer parts were rejected when the inter-electrode gap stayed the same during the production run.

ICCP Systems: 20+ Year Service Life

When used for impressed current cathodic protection (ICCP), which protects marine buildings and offshore pipes, MMO-coated titanium anodes usually last 20 years or more without needing to be replaced. The coating's resistance to corrosion in seawater and its long life mean that it doesn't need to be maintained, which would be expensive and hard to do in a submerged environment.

Conclusion

Longer service intervals, reliable performance, and the option to recoat electrode anode titanium lower maintenance costs, but not because they cost less to buy. When titanium is used instead of graphite or lead, it typically means fewer replacement cycles, less energy use, and less unexpected downtime in electroplating, water treatment, and ICCP. Titanium is more cost-effective than other materials when looking at the total cost of ownership over 5 to 10 years. These standards are met by CXMET's Gr1 titanium anodes with MMO coats (ASTM B381). They can be made in unique shapes for direct-fit integration.

FAQ

How long does a titanium anode last compared to graphite?

In chlor-alkali and water treatment applications, Ru-Ir coated titanium anodes typically last 5–8 years before recoating is needed. Graphite anodes in comparable conditions require replacement every 12–18 months. In ICCP applications, titanium anodes can exceed 20 years of service.

Can a titanium anode be recoated after the coating wears out?

Yes. The titanium substrate usually remains intact after coating depletion. The old MMO layer is removed by sandblasting, and a fresh coating is applied thermally. This process costs 60–70% less than buying a new anode.

How do I choose between Ru-Ir, Ir-Ta, and platinum coatings?

Ru-Ir is selected for chlorine evolution reactions (brine electrolysis, sodium hypochlorite production). Ir-Ta is used for oxygen evolution environments such as sulfuric acid electrolytes. Platinum coatings are appropriate for high-conductivity or precious metal plating applications.

What causes premature coating failure?

The most common causes are operating at current densities above the specified limit, exposure to fluoride ions in the electrolyte (which attack the titanium substrate), and reversed polarity connections.

What quality certifications should I request from a supplier?

Request ALT (Accelerated Life Test) data, XRF coating analysis reports, and SEM surface morphology images. These confirm coating thickness, noble metal ratios, and surface structure meet your application specification.

Request a Quote from CXMET — Trusted Electrode Anode Titanium Supplier

CXMET makes electrode anode titanium goods on ASTM B381-compliant Gr1 titanium plates that are coated with Ru-Ir, Ir-Ta, or platinum and can be made in any size. We help engineers and procurement managers from the specification stage all the way through delivery. Our expert team is made up of more than 80 pros with more than 20 years of experience in production. Visit www.cxmet-tech.com or email our team at sales@cxmet.com to get a price or talk about your application needs.

References

1. Electrochimica Acta — Comninellis, C. & Vercesi, G.P. (1991). Characterization of DSA-type oxygen evolving electrodes.

2. Journal of Applied Electrochemistry — Beer, H.B. (1980). The invention and industrial development of metal anodes.

3. Corrosion Science — Trasatti, S. (2000). Electrocatalysis: understanding the success of DSA.

4. NACE International — Corrosion — Baeckmann, W. & Schwenk, W. (1997). Handbook of Cathodic Corrosion Protection (3rd ed.).

5. Journal of The Electrochemical Society — Morimitsu, M., Oshiumi, Y., & Matsunaga, M. (2000). Effects of IrO₂-Ta₂O₅ coating composition on the electrochemical properties of titanium anodes.

6. Hydrometallurgy — Robinson, T.G., Sole, K.C., & Sandoval, S. (2013). Copper electrowinning: 2013 world tankhouse operating data.
