If you work in electrochemical processing, water treatment, or metal recovery, the choice of anode material directly affects your operating costs, product quality, and system uptime. Electrode anode titanium — specifically a Titanium Grade 1 substrate coated with mixed metal oxides (MMO) — has become the preferred choice across industries ranging from marine engineering to pharmaceutical manufacturing. This article breaks down how these anodes work, where they perform best, and what to look for when sourcing them from a qualified supplier like CXMET.

Understanding Titanium Electrode Anodes

What They Are Made Of

A titanium electrode anode is made up of a very pure titanium base (Titanium Gr1 according to ASTM B381) that has an electrocatalytic oxide layer on top of it. CXMET makes anodes with three main treatment choices: platinum (0.5–2.5 microns), Ir-Ta oxide (8–12 microns), and Ru-Ir oxide (8–12 microns). Engineers have full control over the process chemistry because each coating is designed to work with a certain electrochemical reaction and working environment.

How They Function in Electrochemical Systems

It takes less overpotential to power chlorine or oxygen evolution reactions when the oxide coating is present. This directly lowers the amount of energy needed to make one unit of product. The inter-electrode gap stays the same over the service life because the titanium base doesn't dissolve into the electrolyte. This property keeps the voltage and current distribution in the cell stable over time.

Why They Are Called Dimensionally Stable Anodes

Lead anodes and graphite anodes break down and release carbon particles into the electrolyte and cathode deposits, respectively, unlike electrode anode titanium. Titanium electrode anodes, on the other hand, keep their original shape. Because of this, titanium electrode anodes are called Dimensionally Stable Anodes (DSA), which is a term that directly describes how well they work in precise electrochemical uses.

Comparing Titanium Electrode Anodes with Other Anode Types

Titanium vs. Graphite and Lead

Graphite anodes break down over time, so they need to be replaced often and carbon particles get into the process bath. In metal electrowinning, where product quality is very important, lead anodes can cause contamination. Both of these problems are solved by titanium anodes, which provide a chemically neutral and physically stable base that always sends clean current to the workpiece or cathode.

Titanium vs. Platinum and MMO Anodes

Platinum anodes are very good at conducting electricity, but they are very expensive, so they can only be used in a few specific situations, like making sensors or precision electroplating. Titanium anodes coated with MMO have similar electrocatalytic activity but cost a lot less per unit area. MMO titanium anodes are a better balance between performance and cost for most large-scale industrial operations, such as brine electrolysis and copper electrowinning.

Cost vs. Performance Trade-Off

Even though titanium anodes cost more up front than graphite or lead ones, they end up being cheaper to own in the long run. Titanium anodes usually have a lower cost per working hour when you take into account how often they need to be replaced, how much energy they use because they have less overpotential, and how clean the solution is. This difference can mean measurable saves every year for big chlor-alkali plants.

Maintenance, Lifespan, and Fabrication of Titanium Electrode Anodes

Expected Service Life by Application

How long electrode anode titanium works depends a lot on the type of covering, the current level, and the chemistry of the electrolyte. When used correctly, MMO titanium anodes can last more than 20 years in impressed current cathodic protection (ICCP) for offshore pipelines. At moderate current densities, swimming pool chlorinators usually last between 3 and 5 years. When chlor-alkali cells in factories run at 2,000–5,000 A/m², the repair plan is usually set by how quickly the coating wears off.

Maintenance Best Practices

Monitoring the operating current density is the most important part of maintenance. When the specified current density is exceeded, too much heat is produced, which speeds up the degradation of the layer. It is also known that fluoride ions in the solution can cause early failure because they attack the titanium base directly. Regular checks to see if the coating is even and regular readings of the voltage trends in the cells are good early-warning systems that keep unplanned downtime from happening.

Recoating and Fabrication Quality Control

One big cost benefit of titanium anodes is that they can be recoated. The titanium substrate usually stays structurally sound after the oxide layer wears away. CXMET's manufacturing process includes sandblasting to get rid of old coating, acid cleaning to get the surface ready, and reapplying a new MMO layer, which saves about 60% to 70% of the cost of a new anode. X-Ray Fluorescence (XRF) is used to check the coating thickness and noble metal ratios, and adhesion testing according to ASTM D3359 is also part of quality control.

How to Choose and Procure the Right Titanium Electrode Anode

Match the Coating to the Reaction

Electrochemical usefulness depends on the coating choice. Because Ru-Ir oxide coatings are made for chlorine evolution reactions, they are the most common choice for electrolyzing brine and making sodium hypochlorite. Ir-Ta oxide layers are chosen for oxygen evolution tasks, such as electrowinning copper, cobalt, or nickel with sulfuric acid. Platinum coatings are used when high conductivity is needed or when a specific precious metal plating is needed. Making the wrong choice here will raise your energy costs and shorten the life of your finish.

Evaluate Supplier Capabilities

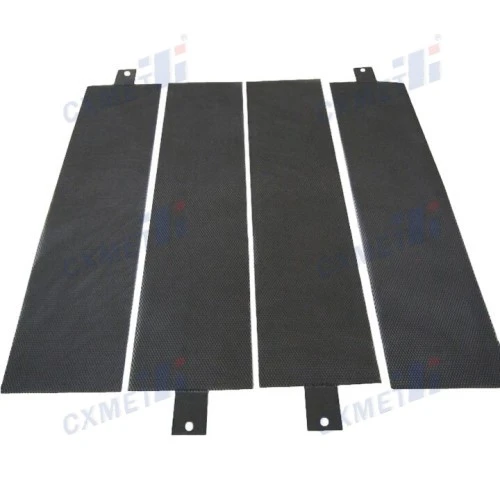

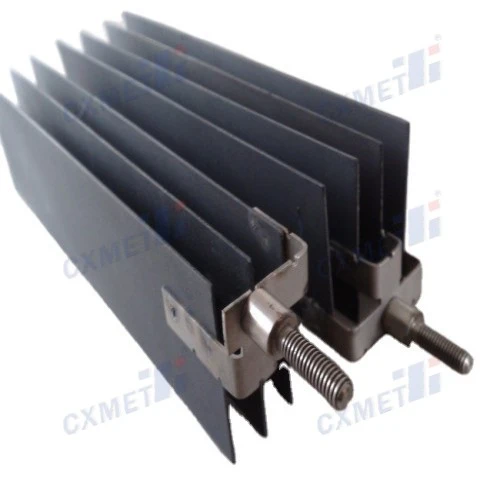

In addition to coating chemistry, procurement teams should check to see if the supplier of electrode anode titanium can provide custom geometries. CXMET has electrode anodes in the shapes of plates, mesh, rods, and tubes, and can make them to fit inside existing cell hardware. The different surface treatments—such as grinding, acid cleaning, polishing, and brushing—are chosen based on how well the coating system needs to stick to the surface. A big part of lowering the risk of buying is making sure that the seller has the right certifications and can provide third-party test data.

Procurement Logistics and Lead Time

When buying in bulk, it's common to check wait times against production plans. CXMET is in Shaanxi Province, which is China's designated titanium production hub. They keep enough materials on hand and have enough production capacity to handle both standard and custom orders. When you're sourcing, talking directly with the technical team stops specification mismatches and speeds up the project timeline.

Addressing Common Challenges and Solutions

Premature Coating Failure

Operating above the maximum current density, fluoride contamination in the electrolyte, flipped polarity connection, and mechanical damage during installation are the four main reasons why coatings fail early. There is a unique failure profile for each reason. 20,000 A/m² accelerated life testing (ALT) can predict how long something will last in the real world before it is put into use. This gives engineers information to help them feel good about their design choices before they commit to a full installation.

Here are the most common types of failure and the direct ways to fix them:

• Excessive current density: Operate within the manufacturer's rated range. Install current monitoring equipment and set automatic cutoffs at threshold values to prevent thermal runaway of the coating layer.
• Fluoride contamination: Test electrolyte chemistry regularly. Fluoride concentrations above 10 ppm are known to attack the titanium substrate beneath the oxide layer, causing rapid delamination and substrate pitting.
• Reversed polarity: Label connections clearly during installation and use polarity protection circuits. A single polarity reversal event can destroy a coating that would otherwise last years under normal conditions.

It is much cheaper to deal with these failure modes ahead of time than to replace the whole anode array in the middle of the production cycle. Setting up a written inspection protocol that includes visual checks, logging of cell voltage, and regular XRF verification gives operations teams the information they need to fix a problem before it becomes a shutdown event.

Installation Best Practices

For a solid fitting, the connection hardware must be properly torqued, electrical continuity must be checked, and the contact areas between the anode and current feed must be clean. Copper-cored titanium busbars lower resistance losses across large anode arrays. This is important in high-current industrial cells where IR drop across the structure impacts how well energy is used and how evenly current flows.

Conclusion

When your process needs something that stays the same size over time, lasts a long time, and is resistant to harsh chemical conditions, electrode anode titanium is the best option. Electrochemical fit is based on the coating choice: Ru-Ir for chlorine evolution, Ir-Ta for oxygen evolution, or platinum for specific uses. Managing the current density and keeping an eye on the electrolyte will protect your investment and make the anode last longer. Since titanium anodes can be recoated, they are a good investment for most industrial electrochemical uses because of their low total cost of ownership.

FAQ

Can a titanium anode be recoated after the coating wears out?

Yes. After the coating wears off, the titanium base generally stays whole. After the surface is acid-cleaned and the old coating is sandblasted off, a new MMO layer is put on top. When compared to buying a new anode, this method saves about 60–70%.

How do I select the correct coating type?

Ru-Ir oxide is used to make chlorine (electrolysis of brine). Ir-Ta oxide is used to make oxygen in sulfuric acid conditions. Platinum coatings are used for purposes that need good conductivity or valuable metal plating. If you choose the wrong coating, the operating voltage will go up and the service life will go down.

What causes premature anode failure?

Most of the time, it's because the current density is too high, the electrolyte has fluoride in it, or the connections are backward. All of these can be controlled by making sure the system is set up correctly and keeping an eye on the electrolytes and electrical safety.

What current densities can titanium anodes handle?

Titanium anodes that have been coated with MMO can handle current densities of up to 5,000 A/m² in industrial settings without passivation, but this depends on the coating specification and the chemistry of the electrolyte.

Partner with CXMET for Your Electrode Anode Titanium Needs

CXMET is a reliable electrode anode titanium maker in Shaanxi Province, China, that has been making products for over 20 years. Our Titanium Gr1 anodes are made to ASTM B381 standards and go through strict XRF and adhesion tests. They can have Ru-Ir, Ir-Ta, or platinum coats, and their shapes can be changed to fit your needs. Our expert team is ready to help you with your project from the beginning to the end, whether you need standard forms or designs that are made just for your application. You can get a price from us by emailing sales@cxmet.com.

References

1. Trasatti, S. — Electrochimica Acta, 2000. "Electrocatalysis: Understanding the Success of DSA."

2. Beer, H.B. — Journal of the Electrochemical Society, 1980. "The Invention and Industrial Development of Metal Anodes."

3. Comninellis, C. & Chen, G. — Electrochemistry for the Environment, Springer, 2010.

4. NACE International — NACE TM0108: Evaluation of Coating Systems for Impressed Current Cathodic Protection, 2008.

5. ASTM International — ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings, 2019.

6. Kuznetsova, E. et al. — Journal of Applied Electrochemistry, 2015. "Degradation Mechanisms of Mixed Metal Oxide Anodes in Industrial Electrolysis."
