If you work in water treatment, chemical processing or metal electrowinning you’ve probably asked this question at some time. An electrode anode titanium is a Dimensionally Stable Anode (DSA), which is a titanium grade 1 substrate covered with noble metal oxides such as Ru-Ir or Ir-Ta. It maintains its geometry over its service life, unlike graphite or lead anodes, has uniform current distribution, and reduces the electrolysis voltage considerably. That means cheaper operating expenses and fewer unexpected shutdowns for engineers and procurement teams running high-demand operations.

Understanding Titanium Electrode Anodes and Their Benefits

What Makes Titanium the Preferred Substrate

Titanium Grade 1 (ASTM B381) ≥240 MPa tensile strength with natural passivation in acidic and alkaline conditions. This implies the base metal doesn't dissolve into the electrolyte, a common issue with graphite and lead substitutes. The result is a cleaner process stream and a substrate that can be recoated after the oxide layer is depleted, recouping around 60-70% of the cost of a new anode.

The Role of MMO Coatings

The titanium surface is coated with thermally applied Mixed Metal Oxide (MMO) coatings namely Ru-Ir oxide (8-12 micron) and Ir-Ta oxide (8-12 micron). These coatings lower chlorine and oxygen overpotentials, and this is the main driving force for energy savings in brine electrolysis and sulfuric acid conditions. For applications needing high conductivity or compatibility with precious metal plating, a platinum coating option (0.5-2.5 micron) is offered.

How Coating Choice Affects Process Efficiency

Procurement teams often make the error of choosing the incorrect coating. Ru-Ir coatings are very efficient for chlorine evolution processes and so are the best choice for sodium hypochlorite production and chlor-alkali plants. Ir-Ta coatings are the chosen coatings for oxygen evolution processes in electrowinning circuits. The service life of the anode till maintenance is closely related to how well the coating chemistry is matched to the kind of reaction.

Comparing Titanium Anode Electrodes with Other Anode Materials

Titanium vs. Graphite and Stainless Steel

In operation, the graphite anodes deteriorate, continuously creating carbon particles, polluting the electrolyte and varying the inter-electrode distance. Corrosion of stainless steel in chloride environment results in the release of metallic ions into the process bath.​​​​​​​ Electrode anode titanium and titanium anodes experience neither failure mode. Dimensional stability means the cell voltage stays stable throughout time. This immediately minimizes the energy needed per output unit.

Titanium vs. Platinum-Coated Electrodes

Platinum coatings are good conductors but the material is more expensive. The price gap is an important economic restriction for industrial large-scale installations. Titanium MMO anodes may deliver similar electrochemical performance at a fraction of the cost. This makes them the realistic solution for big volume applications such as water treatment and metal polishing where huge surface areas of electrodes are required.

Where MMO Titanium Holds a Clear Advantage

That’s where the economics become interesting for procurement managers. MMO titanium anodes are capable of passing current densities of 2,000–5,000 A/m2 without passivation, they retain their geometric stability under operational stress, and may survive recoating cycles that prolong total asset life considerably beyond the capabilities of any single graphite or lead anode. This lifespan profile alters the total cost of ownership calculation in a significant way for sites where continuous electrolysis processes are used.

How to Choose the Right Titanium Anode Electrode for Your Needs

Matching Grade and Coating to Your Application

Always start with the response environment. Ru-Ir coated Ti Gr1 anodes are required for chlorine evolution applications. Ir-Ta coated anodes are required for oxygen evolution in sulfate based electrolytes. If your process includes precious metal electrodeposition or high conductivity requirements, the standard is platinum coating (0.5-2.5 micron). “Getting this right from the procurement stage avoids early coating failure and costly mid-cycle replacements.

Geometry, Size, and Surface Treatment Options

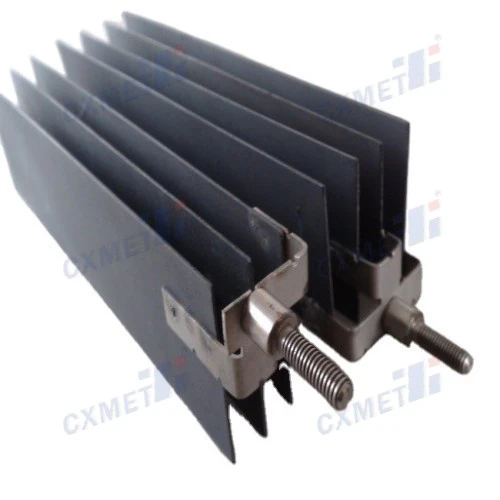

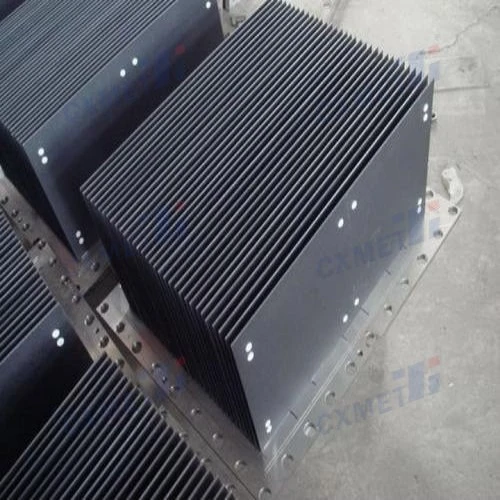

CXMET makes electrode anode titanium in unique shapes including plates, mesh, rods and tubes with exact dimensions to fit your current equipment. The surface treatments such as sand blasting, acid cleaning, polishing and brushing impact the active surface area and the bonding strength of the catalytic layer. Thermal oxide coatings often adhere best to a sandblasted and acid cleaned surface, which is important for extended service life under high current density situations.

Lifecycle Cost vs. Upfront Price

Engineers sometimes look at the unit pricing and miss the overall cost of ownership. A well-designed MMO titanium anode in an electrowinning circuit may survive 5-20 years, depending on operational current density and electrolyte composition. The asset is worth a lot more than it is worth to buy because of the opportunity to recoat. The ideal question to ask your supplier is not “what does it cost?” but “what is the cost per ampere-hour over the life of the electrode?”

Procurement Guide: Sourcing High-Quality Titanium Anode Electrodes

Key Quality Control Metrics to Request

Prior to submitting your bulk purchase, ask your supplier for proof on three important quality characteristics. Verification of the coating thickness and the Ru:Ir molar ratio by X-Ray Fluorescence (XRF) . The life prediction is made using an accelerated life test (ALT) at high current densities (often 20,000 A/m 2 in a standard electrolyte) following ASTM or NACE. Adhesion tests based on ASTM D3359 proved that the catalytic oxide layer would not delaminate under hydraulic stress during operation.

Evaluating Electrode Anode Titanium Suppliers

Not all electrode anode titanium makers are created equal. When sourcing, ensure that the supplier is working to ASTM B381 for the titanium substrate and can offer traceable material certificates. Suppliers with in-house coating facilities can better manage the process than suppliers that outsource the thermal oxide application stage. Operational maturity is also shown by lead time transparency and the capacity to take OEM special orders.

Reducing Supply Chain Risk

Procurement managers in sectors such as oil and gas or chemical processing know that anode failure mid-campaign is significantly more costly than paying a little more for a certified product. A partnership with a supplier that carries regular sizes and can create bespoke sizes on demand creates a considerable buffer for your supply chain. It is normal to ask for sample electrodes to test in-house before placing a big order, and any reputable manufacturer would be happy to do this.

Real-World Applications and Case Studies

Chlor-Alkali and Water Treatment Plants

Ru-Ir coated Ti anodes are used for the production of sodium hypochlorite in municipal water treatment plants and desalination operations. One example of this utilization in published data from research in the chlor-alkali industry was the replacement of old graphite anodes with MMO titanium anodes in a seawater electrolysis system, which resulted in a decrease in energy consumption per kilogram of chlorine generated of around 15-20%. The titanium anode also provided the geometric stability that avoided the voltage drift from graphite degeneration.

Hydrometallurgy and Metal Electrowinning

The recovery of copper, cobalt and nickel in sulfuric acid electrolytes has turned away from lead anodes for mainly contamination reasons. Ir-Ta coated titanium anodes result in no lead residual in the cathode deposit, a direct quality requirement for battery grade copper and cobalt. The anodes also survive the high oxygen evolution rates required in these circuits without structural damage.

Impressed Current Cathodic Protection (ICCP)

MMO titanium wire and tube anodes are used for impressed current cathodic protection of offshore oil pipelines, wind turbine foundations and reinforced maritime constructions. For underground or submerged installations, it is common to have service lives of 20 years or more without any physical maintenance. This makes the material selection effectively a one-time infrastructure choice for the life of the project.

Conclusion

While electrode anode titanium may not be the best option for every case, it is the most durable and cost-effective anode technology available for the industries discussed in this article—marine, chemical processing, hydrometallurgy, water treatment, and cathodic protection. The combination of a Titanium Gr1 substrate, precise MMO coatings and configurable shape, together with the recoating possibility, make it a long-term asset, not a disposable. If you are running your process in a corrosive electrolyte and you need even current distribution over years of continuous operation, then titanium is the material to select.

FAQ

How long does an electrode anode titanium typically last?

The service life depends on the application and the operating current density. Swimming pool chlorinators should last 3-5 years. Titanium anodes for impressed current cathodic protection systems are maintenance-free and have a service life of over 20 years.

Can a depleted titanium anode be recoated?

Yes. When the oxide layer is depleted, the titanium substrate is usually structurally sound. Sandblasting the old layer and adding fresh MMO coating usually saves 60 – 70% than buying new anodes.

How do I choose between Ru-Ir, Ir-Ta, and platinum coatings?

Chlorine evolution in brine based systems is made using Ru-Ir. Ir–Ta is favored for oxygen evolution in sulfate electrolytes. High conductivity or precious metal plating calls for the use of platinum coating.

What causes premature anode failure?

The most common reasons include operation at a current density higher than the design value, the presence of fluorides in the electrolyte which destroy the titanium substrate and inadvertent polarity reversal.

Does CXMET offer customized dimensions?

Yes. CXMET manufactures electrode anode titanium in fully customizable shapes and sizes, including plates, mesh, rods, and tubes, matched to your equipment specifications.

Request a Quote from CXMET — Electrode Anode Titanium Manufacturer

CXMET has supplied high-performance electrode anode titanium products to industrial clients across marine, chemical, and power sectors for over 20 years. Whether you need standard dimensions or a fully custom geometry with Ru-Ir, Ir-Ta, or platinum coating, our technical team will help you specify the right product for your process. Contact our team today at sales@cxmet.com or visit https://www.cxmet-tech.com/ to request a sample or project quote.

References

1. Trasatti, S. Electrochimica Acta, 2000 — "Electrocatalysis: Understanding the Success of DSA."

2. Hayfield, P.C.S. Platinum Metals Review, 1998 — "Development of the Noble Metal/Oxide Coated Titanium Electrode."

3. ASTM International. ASTM B381, 2019 — "Standard Specification for Titanium and Titanium Alloy Forgings."

4. NACE International. NACE TM0108, 2008 — "Test Methods for Evaluating the Properties of Impressed Current Anodes."

5. Comninellis, C., & Vercesi, G.P. Journal of Applied Electrochemistry, 1991 — "Characterization of DSA-Type Oxygen Evolving Electrodes: Choice of a Coating."

6. Jaksic, M.M. International Journal of Hydrogen Energy, 2001 — "Advances in Electrocatalysis for Hydrogen Evolution and the Volcano Relationship."
