When engineers and procurement managers ask which anode material performs better, the answer increasingly points to titanium anodes. Built on an electrode anode titanium Gr1 substrate (ASTM B381) and coated with mixed metal oxide (MMO) catalysts such as Ru-Ir or Ir-Ta, these Dimensionally Stable Anodes (DSAs) hold their geometry throughout service life, deliver consistent current distribution, and last significantly longer than graphite or lead alternatives. For industries where downtime costs money and product purity is non-negotiable, the data strongly favors titanium.

Understanding Titanium Electrode Anodes and Conventional Anodes

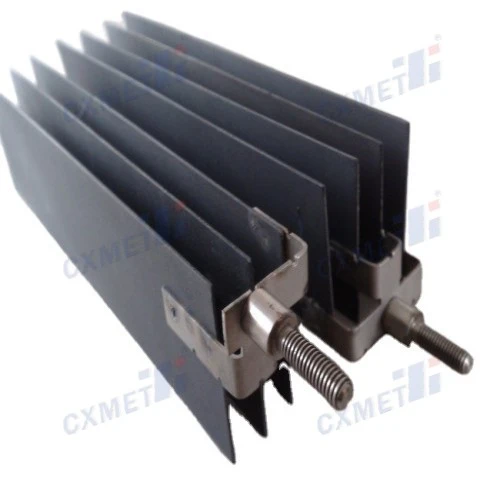

What Is a Titanium Anode Electrode?

An anode electrode made of high-purity titanium and electrocatalytic noble metal oxides is called a titanium anode electrode. Titanium Gr1 base material that meets ASTM B381 is used in CXMET's products. Coating options include Ru-Ir oxide (8–12 micron), Ir-Ta oxide (8–12 micron), and platinum (0.5–2.5 micron). Because the coating lowers the voltage needed to power electrochemical processes, the cost of energy goes down immediately. In both acidic and alkaline environments, the titanium substrate doesn't rust and doesn't dissolve in the electrolyte.

What Are Conventional Anodes?

Graphite, a lead-silver combination, and stainless steel are all common types of anodes. During electrolysis, graphite slowly breaks down, adding carbon bits to the electrolyte. When copper or nickel is electrowon, lead anodes make lead sludge, which is bad for the cathode products. When the current density is high, stainless steel anodes quickly become passivated. Each common material has a certain structural flaw that shortens its usefulness and allows process contamination, which are issues that companies with strict quality standards can't afford.

Why the Distinction Matters for Procurement

The choice of material like electrode anode titanium has a direct effect on the total cost of ownership, the dependability of the process, and compliance with regulations. When engineers choose anode materials for making chlor-alkali, treating water, or electrowinning metals, they have to weigh the starting cost of the materials against how often they need to be replaced, the amount of work that needs to be done on them, and the risk of product contamination. Knowing the difference between a DSA and a regular anode is the first thing that you need to do to make a smart purchase choice.

Comparing Performance: Titanium Anode Electrode vs. Conventional Anodes

Corrosion Resistance and Dimensional Stability

Titanium Gr1 forms an inactive oxide layer that can handle strong sulfuric acid, brines high in chloride, and alkaline solutions. The base doesn't wear away as graphite does, so the gap between the electrodes stays the same for the whole life of the anode. A stable gap means a stable cell voltage, which means that you can count on using the same amount of energy and getting the same quality of product every time. Lead anodes, on the other hand, oxidize and shed material into the liquid, so the cells need to be cleaned often.

Lifespan and Total Cost of Ownership

In independent accelerated life tests, MMO-coated titanium anodes have been shown to last more than 20 years in impressed current cathodic protection (ICCP) systems and 3–5 years in swimming pool chlorinators. Graphite anodes that are used with chlorine usually need to be replaced every 6 to 18 months. Even though a titanium DSA costs more to buy, it costs less overall over a five-year operating window because it doesn't need to be replaced as often and requires less maintenance work. When the covering wears off and the titanium base stays whole, recoating only costs 30–40% of buying a new anode.

Environmental and Safety Profile

In many U.S. states, graphite dust and lead sludge are considered hazardous waste and need to be disposed of by people who have the right license. When MMO titanium anodes are working normally, they don't make any measurable byproducts of anode dissolution. This means that less hazardous waste is made, and it's easier to follow environmental rules. You have to follow this clean working model if you work in a facility that processes drugs, electronics, or food-related materials.

These differences in performance are big for businesses that have to closely watch both their spending and their compliance. By choosing the right anode from the start, you can avoid the costs that add up from contamination, trash removal, and shutdowns that were not planned.

Procurement Considerations for Titanium Anode Electrodes

Matching Coating to Process Chemistry

The most important technical choice in electrode anode titanium procurement is the coating. Because Ru-Ir oxide films work best for chlorine evolution processes, they are the usual choice for electrolyzing brine and making sodium hypochlorite. Ir-Ta oxide layers are made to release oxygen in sulfuric acid settings, which is why they are best for electrowinning copper or cobalt. Platinum coatings are good for applications that need high conductivity or precious metal plating. If you choose the wrong covering type, it will break down faster and last less long.

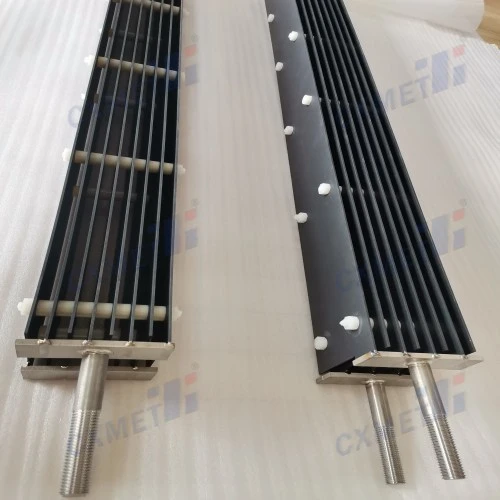

Customization and Size Options

One useful thing about working with CXMET is that the electrode shape can be changed to fit your needs. Plates, mesh, rods, and tubes are some of the shapes that can be used. Surface techniques like sandblasting, acid cleaning, polishing, and brushing are used based on the chemical and mechanical needs of the job. To avoid expensive cell changes, exact measurements are matched to existing equipment. This level of flexibility is very important, especially for repair projects that need to use standard sizes that don't work with old infrastructure.

Supplier Qualification and Quality Verification

Procurement teams should make sure that any DSA supplier meets these quality standards:

• Accelerated Life Test (ALT): Subjects the anode to 20,000 A/m² in a standardized electrolyte to predict actual service life. This is the single most reliable indicator of coating quality.
• X-Ray Fluorescence (XRF) analysis: Verifies coating thickness and noble metal ratios, guarding against under-specified delivery.
• Adhesion test per ASTM D3359: Confirms the catalytic layer bonds securely to the titanium substrate under hydraulic stress.
• Material certificate: Confirms Titanium Gr1 substrate conforming to ASTM B381.

By asking for these papers before sending out a purchase order, you can avoid getting low-quality goods that look good but break down soon after being used. When suppliers give you all the paperwork, you can use it to build a reliable quality record that makes the approval process easier within your company.

Maintenance and Longevity: Maximizing Your Titanium Anode Investment

Routine Inspection Protocols

Every 6 to 12 months, based on the current density and electrolyte makeup, check the anodes. Look for coating loss in certain areas, base cracking, or cell voltage rises that don't make sense. A rising cell voltage at a constant current usually means that the coating is wearing off instead of the equipment breaking down. If you catch this early, you can plan for recoating instead of shutting down in an emergency.

Cleaning Methods

Use 5–10% diluted hydrochloric acid at room temperature for 15–30 minutes to get rid of scale and oxide layers on electrode anode titanium. Then, rinse the surface well with deionized water. Cleaners with fluoride should never be used because the fluoride ions directly damage the titanium base and can't be fixed. For light surface coating, mechanical cleaning with soft brushes is fine.

Common Failure Modes and Fixes

Operating above the rated current density, fluoride contamination in the electrolyte, and connecting the cell with the wrong polarity during commissioning are the three most common reasons why the DSA fails before it should. All three can be avoided by following the right steps for installation and keeping an eye on how things are running. In normal situations, when the covering wears off, the titanium base is still there and can be recoated, which brings it back to full performance at a much lower cost than replacement.

Case Studies and Industry Applications: Titanium Anodes in Action

Electroplating Operations

In documented industrial case studies, switching from graphite to MMO titanium anodes cut the number of times the anodes needed to be replaced by about 70% in hard chrome and decorative plating lines. The dimensionally stable anode spreads current evenly, which improved the consistency of the plating thickness and cut down on reject rates and rework.

Water Treatment and Desalination

Municipal water treatment plants that use titanium-based anodes for electrochlorination say that they only need to be recoated every 5–8 years, while graphite anodes only need to be recoated every 12–18 months for the same service. Since there is no carbon in the cleaned water stream, there is no need for a second filtering step, which lowers the cost of running the system.

Cathodic Protection for Marine and Oil & Gas Infrastructure

For ICCP systems that protect offshore pipes, subsea structures, and port facilities, tubular and wire-form MMO titanium anodes are the usual choice. Their design life of 20 years or more is the same as the asset life of major infrastructure, so they don't need to be replaced through maintenance dives or excavations.

Conclusion

Titanium DSA anodes are better than graphite, lead, and stainless steel options in every way that matters to heavy industry: resistance to rust, stability in dimensions, service life, and environmental compliance. The higher cost up front is more than made up for in the first repair cycle. CXMET's electrode anode titanium goods are made from ASTM B381 Titanium Gr1 and have MMO coatings that are carefully applied. They are designed to meet the needs of chlor-alkali, electrowinning, water treatment, ICCP, and electroplating uses. Titanium is the scientifically sound and cost-effective choice whether you are building a new cell or making changes to old equipment.

FAQ

How long does a titanium DSA last compared to graphite?

In chlorine evolution service, MMO titanium anodes typically last 5–15 times longer than graphite anodes, depending on current density and electrolyte chemistry. ICCP applications routinely see service lives exceeding 20 years.

Can the coating be renewed after it depletes?

Yes. The titanium substrate usually remains structurally intact after coating depletion. Sandblasting the old oxide layer and applying a fresh MMO coating costs approximately 30–40% of a new anode purchase price.

How do I choose between Ru-Ir, Ir-Ta, and platinum coatings?

Select Ru-Ir for chlorine evolution (brine electrolysis, hypochlorite generation). Choose Ir-Ta for oxygen evolution in sulfuric acid environments such as copper or nickel electrowinning. Platinum coatings are appropriate for precision plating or high-conductivity requirements.

What causes premature coating failure?

Excessive current density, fluoride ions in the electrolyte, and reversed polarity during commissioning are the leading causes. All three are preventable through proper design, material compatibility checks, and installation procedures.

Does CXMET offer custom sizes and shapes?

CXMET supplies electrode anode titanium in plates, mesh, rods, tubes, and other geometries. Dimensions are produced to customer specifications to match existing cell designs.

Get a Custom Quote from CXMET — Your Trusted Electrode Anode Titanium Supplier

For more than 20 years, CXMET has sold high-performance titanium anodes to businesses in the marine, oil and gas, chemical processing, and water treatment industries. You can get our Titanium Gr1 anodes in any shape you want. They are ASTM B381-compliant and can have Ru-Ir, Ir-Ta, or platinum finishes. Get in touch with our technical team right away for a review of your specifications and a competitive quote. To set up a meeting to talk about your project, email us at sales@cxmet.com.

References

1. Trasatti, S. Electrochimica Acta — "Electrocatalysis: Understanding the Success of DSA." 2000.

2. Beer, H. B. Journal of the Electrochemical Society — "The Invention and Industrial Development of Metal Anodes." 1980.

3. Panizza, M., & Cerisola, G. Chemical Reviews — "Direct and Mediated Anodic Oxidation of Organic Pollutants." 2009.

4. NACE International. NACE TM0108 — Test Method: Evaluation of Coating Resistance Properties. 2008.

5. ASTM International. ASTM B381 — Standard Specification for Titanium and Titanium Alloy Forgings. 2019.

6. Correa-Lozano, B., Comninellis, C., & De Battisti, A. Journal of Applied Electrochemistry — "Service Life of Ti/SnO₂-Sb₂O₅ Anodes in Acidic Solutions." 1997.
