Titanium anode plates lower the amount of energy needed for electrolysis by lowering the voltage and overpotential requirements of electrochemical processes. Their mixed metal oxide coatings, which are usually made of ruthenium-iridium or platinum, make electron transfer and oxygen evolution reactions more efficient. This directly lowers the amount of electricity needed to keep the process going. Because they are very resistant to corrosion and keep the flow of current steady, these anodes keep working at their best for long periods of time. This means that they use less power and cost less to run in industrial settings.

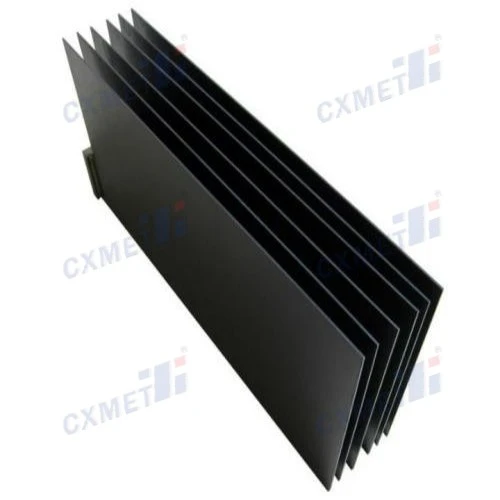

Understanding Titanium Anode Plates in Electrolysis

Modern electrolysis systems depend on anode materials that are strong and can handle harsh chemical environments while still being very electrochemically efficient. Titanium anode plate base plates are the base for these important parts because they offer a special mix of structural strength and electrical performance that other materials can't match.

Structure and Composition of Titanium Anodes

The usual titanium anode plate is made up of a base made from commercially pure titanium that meets the requirements of ASTM B265 Grade 1 or Grade 2. The titanium content in this substrate is higher than 99.6%, and the amounts of impurities are carefully controlled so that the iron content stays below 0.30% and the oxygen content stays below 0.25%. This gives the substrate both mechanical strength and chemical stability. The base is then covered with a layer of a catalytic material, which is usually a mix of metal oxides like ruthenium-iridium (Ru-Ir) or iridium-tantalum (Ir-Ta) compounds. The coating's thickness is designed to meet the needs of the predicted working conditions and the current density. It can be anywhere from 0.5 micrometers to 20 micrometers. This stacked design makes an anode that is stable in terms of its shape and won't change during long electrolysis processes.

Operating Principles in Electrochemical Cells

During electrolysis, the titanium anode plate helps oxidation processes happen. Depending on the fluid, oxygen or chlorine is usually released. The MMO covering speeds up these processes by lowering the amount of energy needed to start them off. This lets them happen at lower voltages. The titanium layer below creates a passive TiO₂ layer that stops rust and keeps the metal's ability to conduct electricity through the catalytic coating. This self-healing oxide film makes sure that the system keeps working even if the layer gets slightly damaged. It's a fail-safe feature that increases the system's useful life.

The geometry of the anode also influences performance. To get the most efficient surface area for a certain reactor design, engineers can choose from mesh, plate, or tube configurations. A bigger surface area makes it easier for the electrolyte to connect and for the current to flow more evenly, both of which directly improve energy economy. Titanium's density of 4.51 grams per cubic centimeter gives it a good strength-to-weight ratio. Compared to heavier materials like lead or steel, this makes installation and upkeep easier.

Performance Advantages Over Traditional Materials

When purchasing managers look at different anode choices, they should know that titanium anode plate systems work better than graphite, lead, and stainless steel options in a number of ways. Graphite anodes are constantly worn down, which means they need to be replaced often and can contaminate processes that are sensitive to contamination. Lead anodes were used a lot in electrowinning in the past, but they can pollute with heavy metals and don't have the current density needed for high-throughput processes today. Anodes made of stainless steel rust quickly in solutions that contain chloride, which limits their use. The titanium anode plate gets around these problems because it is naturally resistant to corrosion and can be recoated. When the catalytic layer breaks down after years of use, the expensive titanium substrate can be stripped and recoated, which saves money in the long run and keeps the system running smoothly.

Energy Saving Mechanisms of Titanium Anode Plates

To figure out how these titanium anode plates lower power use, we need to look at the electrical and physical features that make them different from other materials. Energy savings happen through several interconnected processes that lower the energy needed to power electrolysis reactions.

Low Overpotential Characteristics

Overpotential is the voltage that is higher than the ideal minimum needed to keep an electrochemical process going. The overpotential for both oxygen and chlorine evolution processes is very low on mixed metal oxide coatings on titanium anode plate surfaces. A ruthenium-iridium layer usually shows a chlorine evolution potential of about 1.13 volts compared to a normal hydrogen electrode. This is a lot less than graphite or anodes that aren't stable in terms of their shape. Cutting down on overpotential directly leads to lower cell voltage needs—as little as a 100-millivolt drop across a big electrolysis plant with thousands of amps can save a lot of energy each year, measured in megawatt-hours.

Enhanced Conductivity and Current Distribution

The catalytic layers make the anode structure very good at conducting electricity, so there aren't many resistive losses as the current runs through it. That's not all. The titanium anode plate base also helps, and its conductivity stays the same from pH 0 to 14. Because it is stable, shielding passive layers can't form. These layers would raise the resistance and waste energy as heat. When the current is spread out evenly across the anode surface, spikes and concentration polarization effects that use more energy are avoided. Engineers who are making electrolysis systems can use this property to their advantage by choosing anode shapes that have the most active surface area. This will increase current efficiency even more and cut down on lost energy.

Corrosion Resistance and Operational Stability

Gains in energy efficiency don't mean much if the anode breaks down quickly and needs to be replaced often. It is because titanium anode plate-based anodes don't corrode that they keep working well for a long time, which is usually longer than five to seven years in tough situations like making chlor-alkali. This stability stops the performance loss that happens over time with replaceable anodes, where surface roughness and contamination raise working voltages over time. Keeping the cell voltages fixed and low throughout the anode's useful life saves even more energy and makes the process more predictable for planning production.

Industrial sites that switched from old lead alloy anodes to new titanium anode plate systems have seen energy used in continual electrolysis processes go down by 15% to 20%. The lower overpotential, better current efficiency, and lack of the periodic voltage rises that happen when traditional anodes break down all add up to these savings. Savings get bigger as the building gets bigger. For example, an electrowinning business that uses tens of megawatts can save hundreds of thousands of dollars a year on energy costs.

Comparing Titanium Anode Plates with Other Anode Materials

When making a purchase choice, it's important to compare the different anode methods objectively. We've put together performance data for the most popular industrial anode materials to help engineers and purchasing teams make smart choices. Titanium anode plates remain the preferred choice for modern high-efficiency facilities.

Performance Metrics Comparison

Graphite anodes have been used for a long time in many electrochemical processes. Graphite has a low starting cost and good conductivity, but it is used up quickly, which means it needs to be replaced often and could get contaminated. Most of the time, graphite anodes work with current levels below 1,000 amperes per square meter and have bigger overpotentials than coated titanium anode plate options. In harsh settings, service life rarely lasts longer than 18 months, so replacements have to be done often.

For many years, lead alloy anodes were the most popular choice for electrowinning because they didn't rust in sulfuric acid solutions. But lead poses a chance of pollution that goes against today's standards for clean products and the environment. Lead anodes can only handle a certain amount of current—usually no more than 300 amperes per square meter—and their dimensions aren't stable, which changes how the current flows as the anode ages. Lead's weight makes it harder to move and requires more support in the structure.

Our goods are in a group called Dimensionally Stable Anodes (DSA) on Titanium. Depending on how the liquid flows and how well the temperature is managed, these titanium anode plates can handle current levels of more than 2,000 amps per square meter. In most cases, service life is longer than five years, and the ability to recoat adds another three to five years of useful life. Because the substrate is naturally stable in terms of its dimensions, it doesn't change shape in ways that hurt current spread in other materials. The covered titanium anode plates keep cell voltages low and fixed for the whole time they're working, which is probably the most important thing they do.

Total Cost of Ownership Analysis

The higher price of titanium anode plate-based systems at first needs to be justified by estimates of their total cost of ownership, which include the cost of energy used, the number of times they need to be replaced, the cost of maintenance work, and the cost of downtime. The finances of a typical analysis for a medium-sized electroplating plant are very good. Graphite anodes cost $800 per square meter to buy and need to be replaced every 18 months. They also use about 15% more energy than titanium anode plate options because they have a higher overpotential. Over ten years of operation, the total costs add up to about $14,500 per square meter of anode area. This includes four full anode repairs, more energy use, and breaks for maintenance.

Titanium anode plates with mixed metal oxide coats cost around $3,200 per square meter at first, but they only need to be recoated once every six years, which costs around $1,600 per square meter. The cost over ten years is about $10,800 per square meter, because the equipment will use less energy, need to be replaced less often, and be down for less time. In high-current situations, where energy costs are a big part of the total cost of ownership, the economic benefit stands out more.

Practical Considerations in Procurement and Maintenance

When choosing the right titanium anode plate solutions, you need to pay attention to technical details, the qualifications of the provider, and practical factors that affect how well the solution works in the long run and how much it costs.

Evaluating Supplier Credentials and Manufacturing Standards

Quality differences between makers of titanium anode plates can have a big effect on how well they work and how long they last. People who work in procurement should make sure that possible sellers have documented quality management systems that are, ideally, certified to ISO 9001 or similar standards. The material used for the base should meet certain standards. For North American markets, ASTM B265 for titanium plate and sheet is the main standard. Chemical makeup papers that show how pure titanium is and how much impurity is allowed give confidence in the quality of the base material.

The steps used to apply coatings should be looked at very carefully. When thermal breakdown methods use several thin layers of precursor solutions, the coatings are more even and stick better than when they only use one application method. The coating thickness and current density numbers that suppliers give you should fit your operational needs. Our factory at CXMET is spread out over 50,000 square meters and is in China's Titanium Valley. There, we have more than 80 skilled workers who know how to make and use advanced coatings. Our bases are always purer than what is required by ASTM, and our coating methods create even layers that can be checked by both electron microscopy and electrochemical tests.

Customization Options for Specific Applications

For each type of electrolysis, a specific titanium anode plate setup is needed. For chlor-alkali processes, ruthenium-iridium compounds are needed that are best for releasing chlorine into saturated brine solutions. Iridium-tantalum mixtures work well for electrowinning because they can handle the strong acidity of sulfuric acid solutions. Platinum-titanium designs may be chosen for water treatment systems to make them last longer in environments with changing water chemistry. Flat plates can be used for parallel-plate cell designs, expanded mesh can lower the resistance of the electrolyte, and tube shapes can be used for impressed current cathodic protection systems.

Maintenance Practices to Maximize Service Life

When you follow the right procedures for operation and care, the titanium anode plate will last longer and use less energy over the service time. Monitoring changes in cell voltage can help you spot coating loss early on. Gradual voltage rises over weeks or months show that catalytic activity is decreasing, which could mean that you need to recoat. Keeping the temperature and makeup of the electrolyte steady stops the coating from wearing off faster. Avoiding operation at current levels that are higher than what was specified in the design will keep the system from breaking down too soon.

Damage to the covering can be found early on by visually inspecting it every so often during planned repair shutdowns. Minor flaws in the covering can usually be fixed locally, so the whole titanium anode plate doesn't have to be replaced. If the covering on the substrate wears off, it should be sent back to the maker to be professionally stripped and recoated instead of being thrown away. This way, the base material can still be used and has a lot of value.

Case Studies & Industry Applications Demonstrating Energy Savings

There is clear proof from real-life applications that properly configured titanium anode plate systems can improve efficiency and save money.

Electrowinning Facility Performance Improvement

In 2019, iridium-tantalum treated titanium anode plates were used instead of lead alloy anodes in a copper electrowinning process in the southwestern United States. Every year, the plant processes about 40,000 tons of copper by electrolyzing it in an electrolyte of sulfuric acid at current levels of about 280 amps per square meter. Before the change, the lead anodes had to be replaced every four years and had an average cell voltage of 2.15 volts.

When the covered titanium anode plates were put in place, the cell voltage level settled at 1.92 volts, which is 230 millivolts less than before. When the factory was producing, it used about 22 megawatts of electricity. This voltage drop cut that amount by about 10.7%, which saved more than $340,000 a year at the current standard industrial electricity rates. Eliminating the pollution from lead sludge made cathode copper more pure and cut down on the costs of meeting environmental standards. These titanium anode plates are still working as well as they did when they were first installed, and they don't need to be replaced. This is in contrast to the lead anodes, which would have needed to be completely replaced, which would have caused production to stop.

Municipal Water Treatment Application

A water treatment plant in the Pacific Northwest that serves 180,000 people set up a system to make sodium hypochlorite using titanium anode plates wrapped with ruthenium and iridium. It replaces the old method of buying and keeping dangerous chlorine gas by electrolyzing weak saltwater to make chlorine for cleaning. The titanium anode plates work with current levels close to 1,800 amperes per square meter, making about 500 kg of chlorine equivalent every day.

The center picked covered titanium anode plates over graphite ones because they were expected to last longer and use less energy. The first three years of operational data show stable hypochlorite generation, with cell voltages staying within 50 millivolts of the values set when the system was first started up. The building manager says that energy use is 12% lower than what was expected based on graphite anode performance data. This means that about $28,000 a year is saved on power costs. Cutting out the steps for replacing the anodes during this time saved about 120 hours of maintenance work and the downtime that would have been needed for changing the graphite anodes.

Emerging Technology Trends

Improvements in covering makeup keep making them work better and be used in more situations. Nanostructured coating designs are being made by researchers to increase the useful surface area and lower overpotential even more. Composite coats that use conductive clay materials might be able to make things last longer in the harshest circumstances. Because of these improvements, titanium anode plate technology is now seen as a smart investment that will meet the higher standards for efficiency and environmental protection that will be put in place in the future.

Conclusion

Using less energy in electrolysis processes has a direct effect on how profitable the process is and how sustainable it is for the world. Titanium anode plates save energy because they have low overpotential, good conductivity, and stable long-term performance that doesn't lead to the slow loss of efficiency that happens with other anode materials. Total cost of ownership estimates that take into account longer service life, less upkeep, and continued energy efficiency show that the higher initial investment is worth it from an economic point of view. When purchasing managers and engineers look at different anode choices, they should give more weight to suppliers who have a track record of technical knowledge, strict manufacturing standards, and the ability to make a lot of changes to the product. When properly specified systems are set up correctly, the case studies show that facilities in a wide range of businesses can make big changes to their operations and cut costs.

FAQ

What is the typical service life of titanium anode plates in industrial electrolysis?

Service life depends on how they are used, but titanium anode plates with mixed metal oxide coatings that are properly defined can last for five to seven years of constant industrial service. Some harsh conditions, like saturated brine chlor-alkali cells, may be close to the lower end of this range. On the other hand, less demanding uses, like cathodic protection or weak electrolyte systems, often last longer than seven years. Recoating the substrate adds three to five years to its useful life, bringing the total operating lifespan to ten years or more with the right care.

How much energy can facilities realistically save by switching to titanium anodes?

How much energy is saved depends on the technology used for the anode and the conditions of the process. When facilities switch from graphite or lead anodes to other types, they usually see their energy use drop by 10% to 20%. The amount of money saved depends on the size of the building and how many hours it is used. Continuous high-current operations save the most money overall. Even the most optimistic figures show that medium- and large-scale electrolysis facilities will save a lot of money, and the payback time is usually between 18 and 36 months.

Can existing electrolysis cells accommodate titanium anode retrofits?

Titanium anode plates can be added to most cell designs with little change. Because they are stable in size and shape, they can be directly replaced with other anode systems. Suppliers who know a lot about application engineering can tell you what sizes and electrical connections are needed to match your current infrastructure. This cuts down on switching costs and downtime.

Partner with CXMET for Superior Titanium Anode Plate Solutions

To get the most out of your electrolysis operations, you need to work with a titanium anode plate provider that you can trust, and that knows how to meet the technical needs of industrial electrochemical processes. Since 2005, CXMET has worked with the marine, oil and gas, chemical processing, and metallurgy industries, learning a lot about how to make high-performance materials that can handle tough conditions. Our titanium anode plates have precisely designed surfaces that meet ASTM B265 standards and coatings made of ruthenium-iridium, iridium-tantalum, and platinum that are best for your electrolyte chemistry and current density needs.

We want procurement managers and engineering teams to look into how customized anode solutions can help you use less energy and make your process more reliable. Our expert support staff works with clients to look at working conditions, suggest the best anode configurations, and offer ongoing help for the entire lifecycle of the product. Email our team at sales@cxmet.com to talk about your unique application needs and get thorough technical proposals. CXMET offers low prices, quick responses, and full customization options to help you reach your business goals and create long-lasting relationships based on measurable performance improvements.

References

1. Chen, G., "Electrochemical Technologies in Wastewater Treatment," Environmental Science & Technology, Vol. 38, 2004, pp. 11-20.

2. Schmittinger, P., et al., "Chlorine: Principles and Industrial Practice," Wiley-VCH, Weinheim, Germany, 2008.

3. Karlsson, R.K.B., and Cornell, A., "Selectivity Between Oxygen and Chlorine Evolution in the Chlor-Alkali and Chlorate Processes," Chemical Reviews, Vol. 116, 2016, pp. 2982-3028.

4. Kuhn, A.T., "Industrial Electrochemical Processes," Elsevier Publishing Company, Amsterdam, 1971.

5. Trasatti, S., "Electrocatalysis: Understanding the Success of DSA," Electrochimica Acta, Vol. 45, 2000, pp. 2377-2385.

6. Comninellis, C., and Vercesi, G.P., "Characterization of DSA-Type Oxygen Evolving Electrodes: Choice of a Coating," Journal of Applied Electrochemistry, Vol. 21, 1991, pp. 335-345.
