Titanium electrodes greatly improve the efficiency of oxygen generation because they are resistant to corrosion, have high conductivity, and can catalyze reactions. By making a stable base for mixed metal oxide (MMO) layers, especially iridium oxide (IrO₂) and ruthenium oxide (RuO₂), these electrodes keep their performance even in tough electrolyte conditions, reduce energy loss, and speed up reaction kinetics. Their improved surface shape and current distribution lower overpotential, which makes oxygen production more efficient in chlor-alkali, water treatment, and electrowinning.

Understanding Titanium Electrodes and Their Role in Oxygen Evolution

The Core Structure of Modern Titanium Electrodes

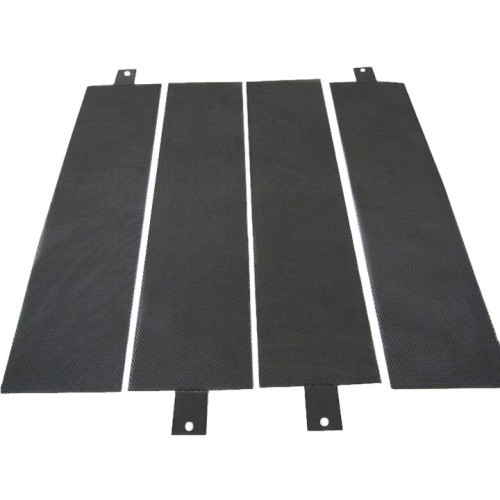

We make titanium electrodes at CXMET using high-purity Grade 1 or Grade 2 titanium plates that meet ASTM B265 standards. The base is very mechanically stable and keeps its shape even when the current density reaches 10 kA/m². This base makes sure that the performance stays the same over long periods of time, without the size changes that happen with other materials when they expand when they get hot. The carefully planned surface area of our electrodes is a key factor in how well they work as catalysts. By carefully treating the surface, we make microscopic structures that have the most active spots for the oxygen evolution process. This way of thinking about design directly leads to lower operating voltages and lower energy use, which are very important for businesses like copper electrowinning where power costs are a big part of the cost of doing business.

How Catalytic Coatings Transform Performance

Our titanium electrodes can be coated with IrO₂, RuO₂, or platinum, and the thickness of the layer can be set between 2 and 5 μm. Iridium-based coatings work very well in the acidic oxygen evolution settings that are common in electrometallurgy. They are very stable in sulfate solutions with pH levels below 2. The coating is the real catalyst, and it's where water molecules split into oxygen gas. The activation energy hurdles are lowered by these mixed metal oxide coatings, which lets oxygen evolution happen at much lower overpotentials than on raw titanium. Titanium anodes that are properly treated keep cell voltages stable at around 3.1 to 3.3V for thousands of hours of chlor-alkali production. The electrical oxide structure of the layer makes it easier for electrons to move while also protecting against chemical breakdown caused by new oxygen and chlorine species that form during electrolysis.

Chemical Stability in Aggressive Environments

Titanium's natural passivation layer is very resistant to rust, but when it is anodized, this oxide film stops conducting electricity. Our coating methods get around this problem by keeping the electrical contact while keeping the chemical inertness. This two-in-one feature is very useful in situations like nickel electrowinning, where even a small amount of electrode breakdown can make the finished product not pure enough for battery-grade materials. Our electrodes are built to last, so they can be exposed to hot, strong acids and oxidizing conditions that would quickly break down options like graphite or lead. When making manganese dioxide electrolytically, at temperatures close to 80°C in concentrated sulfuric acid, titanium electrodes keep their shape and chemical activity much longer than other materials.

Performance Optimization of Titanium Electrodes in Oxygen Evolution

Advanced Coating Technologies

We are always making improvements to our coating methods to deal with the twin problems of electrode corrosion and catalytic decline. Doping techniques that add tantalum pentoxide to iridium-based surfaces greatly increase their useful life by making them stick together better and lowering the number of tiny cracks that form when heated and cooled. This change is especially helpful when the wires are heated and cooled over and over again during irregular operation. We can change the catalytic qualities of multi-metal oxide formulas to fit different electrolyte compositions and working conditions. Iridium-tantalum mixes work best in acidic oxygen evolution environments, while ruthenium-iridium blends work best in chlorine evolution processes in brine electrolysis. The design of the coating, including its thickness, porosity, and crystalline structure, is carefully improved using rapid life testing, in which one hour of testing is equal to hundreds of hours of operation in the field.

Quantifying Efficiency Improvements

Metrics that measure performance show that improved electrode design has real benefits. When our copper processing clients switch from regular anodes to our MMO-coated titanium electrodes, the cell voltage drops by 200 to 300 mV. This drop in voltage saves more than 1.8 megawatts of energy, which means that a plant with 200 cells running at 30,000 amperes has a much smaller carbon footprint and lower maintenance costs. Improvements in operational life are just as amazing. Accelerated life testing shows that titanium electrodes with fine iridium coatings can keep working as catalysts for 5-7 years in copper electrowinning service, compared to 2-3 years for coatings from older generations. This longer lifespan means that they don't need to be replaced as often, which cuts down on production downtime and the total cost of ownership by a large amount.

Surface Engineering Strategies

Before applying the coating, we use special surface treatments to get the best bonding and active site density. Controlled scratching makes the surface rough on a microscopic level, which holds the catalytic layer in place physically and increases the useful surface area. This step of preparation is very important for keeping the coating's integrity during the mechanical stress of gas bubble evolution. If the base isn't properly prepared, the coating can physically come off during strong oxygen generation. By optimizing the shape of the electrodes, the current flows evenly, which stops areas from warming and wear patterns from concentrating. Our normal 1000 mm × 500 mm × 3 mm dimensions can be changed to fit different cell configurations, making sure that the electrode area has the same amount of current flowing through it. This level of precision makes the coating last longer and keeps the quality of the product stable during electroplating and electrowinning.

Comparative Analysis of Titanium Electrodes with Alternative Materials

Titanium Versus Graphite in Harsh Environments

Graphite electrodes are cheap to make at first, but they don't work well in acidic conditions. When anodic polarization happens in acidic fluids, graphite continuously oxidizes carbon, making CO₂ and losing material over time. This use means that they need to be replaced often, and it adds carbon to sensitive electrochemical processes like making medicine intermediates. These worries are gone with our titanium electrodes because they are naturally resistant to rust. In tests comparing different materials in copper sulfate solutions at 250 A/m², graphite anodes changed size observably within 30 days, but titanium electrodes stayed the same size for 18 months. The stability benefit is especially clear in situations where the product needs to be very pure or where upkeep gaps need to be long.

Cost-Benefit Analysis Against Platinum

Platinum has great catalytic activity for oxygen generation, but the high cost of the material means it can only be used in small lab settings. At the moment, platinum electrodes are 15 to 20 times more expensive than titanium electrodes with MMO coats that are the same size and shape. Due to this huge price difference, platinum can't be used on a commercial scale for things like treating water or making chlor-alkali. Our iridium-based coatings offer catalytic performance that is similar to platinum while still being cost-effective enough for big electrode grids. Once the catalytic layer is gone, the titanium base can be chemically cleaned and recoated, giving the product a long life that saves even more money on capital costs. This ability to be used again and again is especially helpful for tasks that need a lot of electrode surface area, since the difference in cost between platinum- and titanium-based solutions adds up over time.

Longevity and Maintenance Advantages

Total cost of ownership estimates always favor titanium electrodes when looking at how long they last and how much upkeep they need. Some older systems still use lead anodes, but they need to be replaced every 6 to 12 months because they rust and break down mechanically. The break needed to change electrodes messes up production plans and makes equipment less useful overall. Titanium electrodes can last for 5 to 7 years if they are used properly and only need to be cleaned every so often. The longer replacement cycle cuts down on the need for spare parts inventory and the cost of upkeep work. Sudden rises in cell voltage are early warning signs of covering wear, so maintenance can be planned ahead of time instead of having to be done when production stops.

Procurement Insights: Selecting and Buying Titanium Electrodes for OER Applications

Material Specifications and Certifications

When buying managers look for titanium electrode providers, they should check the grades of substrate materials and production standards. Compliance with ASTM B265 guarantees that titanium's purity and mechanical qualities stay the same, which is necessary for effective performance. Material test records that list the chemical makeup, tensile strength, and surface finish of a material provide quality assurance and allow for tracking. Coating specs need to be looked at with the same level of care. Manufacturers you can trust will give you rapid life test data that shows how stable the coating is in real-life working conditions. The electrolyte makeup, temperature, and current density patterns should be the same in these tests as they will be in your application. Micrographic study of the coating thickness shows that the catalyst is loaded enough for the expected service life.

Evaluating Supplier Capabilities

Customized engineering help from well-known makers shows that they are technically skilled. At CXMET, our group of more than 80 skilled technicians helps customers find the best electrode specifications for their needs. This way of working together solves special problems that come up in areas like power metallurgy, pharmaceuticals, and chemical processing where regular methods might not work. Critical factors for evaluating a provider are their ability to make things and their dependability in delivering them. Our 50,000-square-meter factory in China's Titanium Valley lets us make electrodes in a variety of standard and unique designs more quickly and with more flexibility. Quality management systems that are certified to international standards give customers faith that the product they receive will be the same from one sale to the next.

Balancing Customization with Bulk Purchasing

Standardized electrode sizes can save money through economies of scale, but customizing them is often needed for the best results. Our modular design method lets us change the sizes of parts without changing the way they are made, which keeps customization costs to a minimum. This adaptability lets retrofit setups work even when the current cell shape limits the size of the electrodes. When you buy in bulk, you can be sure of stable prices and a steady supply chain. This is especially helpful for businesses that are planning big capacity increases or machine changes. We work with buying teams to set up supply deals that combine the costs of keeping inventory with the benefits of volume prices. No matter how big or small the order is, the technical support stays the same. This makes sure that both small and large businesses get the same level of engineering help.

Maintenance and Lifespan Management of Titanium Electrodes

Routine Cleaning and Operational Protocols

Regular cleaning plans that get rid of scale deposits and organic fouling without hurting catalytic surfaces are the first step in proper upkeep. Mild acid cleaning with diluted hydrochloric or sulfuric acid solutions breaks down metal precipitates that have built up during operation. Abrasive touch can speed up coating loss, so mechanical scrubbing should be avoided. Operational rules have a big effect on how long electrodes last. Gradual current rise during startup stops thermal shock, which can crack the coating very small. For our normal electrodes, keeping the electrolyte temperature within certain ranges—usually below 80°C—keeps the coating from sticking and the catalytic activity going. Controlling impurity levels and managing electrolytes correctly keeps active catalytic sites from becoming poisoned.

Early Detection of Performance Degradation

Advanced tracking systems keep an eye on changes in cell voltage, which lets them know right away if there are problems with layer wear or passivation. When the voltage goes 100 to 150 mV above the baseline, it's usually time to change the layer during the next maintenance window. This proactive method stops sudden failures that stop production without warning. During planned repair shutdowns, eye checks are done on a regular basis to find any damage to the coating or strange wear patterns. If there is discoloration, burning, or delamination, it means that the working conditions may need to be changed. Our technical support team helps clients figure out what these signs mean and how to fix problems so that production speed is back to normal.

Total Cost of Ownership Optimization

Finding the real cost of ownership means looking at things like the initial purchase price, how well they work, how much they cost to maintain, and how often they need to be replaced. Our titanium electrodes have better TCO profiles because they save energy, last longer, and can be used on different substrates. Lower working voltages often pay for themselves in 18 to 24 months in high-current-density uses by saving money on energy costs. Strategies for lifecycle management get the best return on investment. We give advice on the best time to change based on an evaluation of the coating's state rather than on random time intervals. When coatings need to be replaced, our recoating services bring electrodes back to almost their original performance for about 40% of the cost of a new electrode. This extends the life of the asset and cuts down on waste.

Conclusion

Titanium electrodes improve the efficiency of oxygen generation by being more resistant to corrosion, having better catalytic coatings, and working reliably in harsh industrial circumstances. Because they have less overpotential, last longer, and have a lower total cost of ownership, they are the best choice for a wide range of uses, from copper electrowinning to water treatment. To get the most out of the performance benefits these advanced electrodes offer, procurement teams and engineers need to know about material specs, source skills, and best upkeep practices.

FAQ

How long does an MMO-coated titanium electrode last?

Service life is affected by the amount of current and the makeup of the electrolyte. When copper is electrowinning normally at 250–350 A/m² in acidic sulfate solutions, high-quality iridium-based films keep working as catalysts for 5–7 years. These predictions are backed up by accelerated life testing, where one hour of testing is equal to hundreds of hours of running in the field. Maintenance and operational control have a big effect on how long an MMO-coated titanium electrode actually lasts.

Can the titanium substrate be reused after coating depletion?

Yes, the titanium base keeps its full structural stability even after the coating wears off. Chemical stripping gets rid of worn-out catalyst layers, which lets professionals recoat and bring performance back to almost original levels. This ability to be used more than once lowers long-term capital costs by about 60% compared to replacing the electrode completely. This makes titanium electrodes more cost-effective over time.

What distinguishes ruthenium-iridium from iridium-tantalum coatings?

Ruthenium-based coatings improve the release of chlorine in brine electrolysis processes, making them the most efficient way to make chlor-alkali. Iridium-tantalum mixtures work very well in the acidic oxygen evolution conditions that are common in electrowinning and electrorefining. The choice of covering should be based on the chemistry of the liquid and the reaction selectivity that is wanted. For your unique application needs, our expert team can help you figure out the best coating specs.

What signals indicate electrode performance issues requiring attention?

A sudden rise in the cell voltage of 100 to 150 mV above the baseline level is usually a sign of layer loss or passivation. Loss of current effectiveness could mean that the catalyst spot is poisoned or the coating is damaged. If you look closely and see staining, blistering, or delamination, you can be sure that the layer has physically broken down. By keeping an eye on these signs, you can plan preventative maintenance before a full electrode failure stops production.

Partner with CXMET for Premium Titanium Electrode Solutions

CXMET has been making high-performance titanium electrodes for oxygen evolution uses in the marine, chemical processing, and mining industries for more than 20 years. Our flexible coating choices, which include IrO₂, RuO₂, and platinum mixes, give your processes the catalytic efficiency and longevity they need. As a reliable titanium electrode provider, we offer full technical help from developing specifications to managing the product's lifecycle. This makes sure that the product works at its best and costs the least. Email our engineering team at sales@cxmet.com to talk about your unique needs and find out how our Grade 1 and Grade 2 titanium electrodes can help you use less energy and get more use out of your equipment.

References

1. Trasatti, S. (2000). Electrocatalysis: Understanding the success of DSA. Electrochimica Acta, 45(15-16), 2377-2385.

2. Chen, G., Chen, X., & Yue, P.L. (2002). Electrochemical behavior of novel Ti/IrOx–Sb2O5–SnO2 anodes. Journal of Physical Chemistry B, 106(17), 4364-4369.

3. Panić, V.V., Dekanski, A.B., Milonjić, S.K., Atanasoski, R.T., & Nikolić, B.Ž. (2005). The influence of the aging time of RuO2 and TiO2 sols on the electrochemical properties and behavior for the chlorine evolution reaction. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 157(1-3), 269-274.

4. Comninellis, C., & Vercesi, G.P. (1991). Characterization of DSA-type oxygen evolving electrodes: choice of a coating. Journal of Applied Electrochemistry, 21(4), 335-345.

5. Beer, H.B. (1980). The invention and industrial development of metal anodes. Journal of the Electrochemical Society, 127(8), 303C-307C.

6. Kötz, R., & Stucki, S. (1986). Stabilization of RuO2 by IrO2 for anodic oxygen evolution in acid media. Electrochimica Acta, 31(10), 1311-1316.
