A titanium anode plate improves electroplating by distributing current evenly, ensuring even metal deposition, and offering high corrosion resistance in harsh electrolyte environments. When mixed metal oxides (MMO) like ruthenium-iridium or iridium-tantalum are put on the titanium base, it keeps its electrochemical performance over long periods of time. This dimensional stability stops flaws like rough surfaces or incomplete coverage from forming, which happens a lot with regular anode materials. This leads to better plating quality, shorter maintenance periods, and a lower total cost of ownership, all of which are important for industries that need accuracy and dependability.

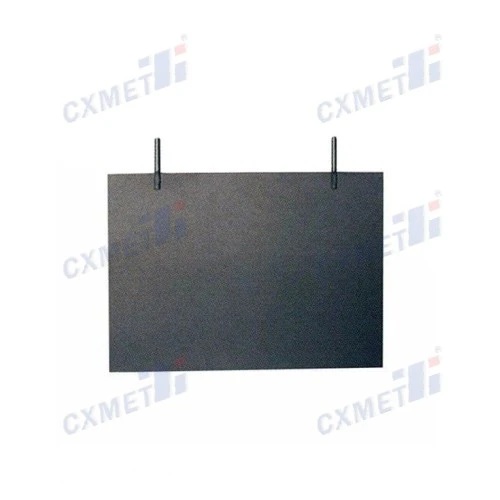

Understanding Titanium Anode Plates in Electroplating

You can't say enough good things about the anode materials used in electroplating. Metal ions move from the electrolyte fluid to the cathode surface because of an electric field during the soldering process. The current comes from the anode, which makes it easier for the ions to move while keeping the chemical and structural stability. Because of their unique electrical qualities, titanium anode plates are a big step forward from older materials.

Our titanium anode plates at CXMET are designed to work well in difficult electrochemical processes. These flexible parts are very important in a wide range of situations, from treating water to finishing metal. The titanium core works as a strong but light base, and the covering, which is usually a mix of valuable and base metal oxides, is what does the catalytic work. This shape makes sure that electrons move quickly while also stopping breakdown or passivation, which are issues that often happen with other anodes.

Core Design Features of Titanium Anodes

A very carefully controlled covering method is used to make these anodes. Acid etching or sanding are used to prepare the surface of the titanium base. This makes the surface rougher, which helps the layer stick better. The MMO layers are then put on using thermal decomposition, in which precursor solutions are painted on the base and heated to more than 400°C. This process makes an oxide layer that is strong, electrically conductive, and resistant to chemical attack.

Our anodes have excellent rust protection, can handle tough chemical conditions, and will work for a long time. The high conductivity makes the flow of current more efficient, which means your activities use less energy. You can get coats that are made to order with different mixes of metal oxides to meet specific electrical needs, whether you're adding copper, nickel, zinc, or valuable metals.

Electrochemical Operation and Current Efficiency

During electroplating, the anode helps with oxidation processes that balance out the reduction that's happening at the cathode. In dimensionally stable anodes (DSA), the titanium base doesn't do anything, but the oxide covering helps oxygen escape or breaks down metal, depending on the make-up of the electrolyte. This design keeps the cell voltage steady and stops sudden resistance spikes that can mess up the even plating.

The long life of our titanium plates and their strong construction mean that you won't have to change them as often, which cuts your long-term costs by a large amount. Titanium is both light and strong, which makes it easy to work with without sacrificing durability. This is useful for installation and maintenance tasks.

Titanium Anode Plates vs. Alternative Anode Materials

Selecting the right anode material requires understanding the trade-offs between performance, durability, and cost. Various materials have been employed in electroplating systems, each with distinct characteristics that influence operational outcomes.

Comparison with Graphite Anodes

Graphite anodes were once very popular because they were cheap and worked well as a conductor. However, they have a number of important flaws. During operation, graphite is constantly worn away, leaving carbon particles that get into the metal bath and lower the quality of the finish. Because the material is porous, it is also easily damaged by chemicals, especially acidic ones. This means that it needs to be replaced often and production has to stop. titanium anode plate offers a superior alternative with excellent corrosion resistance and long-term durability.

Titanium anodes get rid of all of these problems. The solid metal base doesn't break down easily mechanically, and the oxide covering makes the surface chemically neutral so it doesn't get into the solution. When compared to graphite anodes, which may need to be replaced every 6 to 12 months, titanium alternatives can last for 3 to 5 years or longer in the same conditions.

Titanium vs. Platinum and MMO Configurations

Platinum-coated titanium anodes are great at catalyzing reactions and are often used in special cases where high oxygen evolution overpotential or specific selectivity are needed in precious metal plating. Platinum, on the other hand, can be too expensive for large installations. Pure titanium that has been coated with MMO is a cheaper option that works well with a lot of different plating chemicals.

What makes you choose one covering type over another depends on where you work. Electrolytes that contain fluoride can damage the protective oxide layer on bare titanium. To protect it, special tantalum-stabilized formulas or platinum-based coats may be needed. Standard MMO coatings work well in chloride, sulfate, and most alkaline baths, so they can be used for most industrial electroplating tasks.

Cost-Effectiveness and Total Ownership Analysis

Procurement managers should look at more than just the buy price when deciding what anode materials to use. Titanium anodes cost more up front than graphite ones, but they save a lot of money in the long run because they last longer and need less upkeep. Getting rid of the need to change anodes so often cuts down on production delays, labor costs, and the cost of getting rid of trash. Stable cell voltage and better current distribution lead to higher energy efficiency, which makes the economic case for titanium-based solutions even stronger.

Optimizing Electroplating Performance with Titanium Anode Plates

Achieving peak electroplating performance requires more than simply installing quality anodes. Strategic design considerations and proactive maintenance practices work together to maximize the benefits of your titanium anode investment.

Design Specifications and Customization

Anode geometry has a big effect on how current flows through the plating tank. The cathode structure and the deposit traits must be compatible with the plate's width, surface area, and shape. In high-current uses, thicker plates are better because they are more rigid and can better get rid of heat. The effective current capacity is based on the surface area. Anodes that are too small cause higher current densities, which speed up coating degradation and shorten lifespan.

CXMET specializes in making custom metal solutions for harsh settings. They work closely with engineering teams to make sure you get the right anode measurements for your needs. Our expert team can help you with flat plates, mesh setups, or custom shapes for tanks with complicated shapes. They can give you advice and find solutions that are perfect for your situation.

Coating Selection for Process Requirements

The anode coating for a titanium anode plate needs to have certain catalytic properties for each type of electroplating. Decorative chrome plating uses chromic acid solutions that are very acidic. Iridium-tantalum oxide films are good for this because they are very stable in low-pH settings. When it comes to alkaline zinc plating methods, ruthenium-based MMO formulas that don't passivate in high-pH situations work best.

Our coats can be made to order and come in a range of mixed metal oxide compositions to meet specific electrochemical needs. During the procurement phase, giving us detailed information about the electrolyte composition, operating temperature, and current density ranges lets us suggest the best coating system, which will ensure the best performance and longest life.

Maintenance Practices for Extended Service Life

Titanium anodes don't need as much maintenance as other materials, but there are things that can be done to keep them from breaking down too soon and make them last longer. The oxide covering is safe from mechanical damage if you don't scrape or clean it with rough materials. Checking the voltage of the cell on a regular basis lets you know when the coating is wearing away early. Gradual voltage increases show that the anode resistance is going up as the active layer wears away.

Reverse current when the system is turned off is a common reason why it fails too soon. When the power is turned off, the residual charge can push the current in the wrong direction, which could damage the interface between the coating and the substrate. Your anode investment is safe if you follow the right shutdown steps or put in diodes to stop reverse polarity. Organic contamination of the coating surface can also lower performance, so controlling contamination and filtering the electrolyte on a regular basis are important things to think about.

Real-World Performance Evidence

Finishing cars and making gadgets are just two of the industries that have seen big changes after switching to titanium anodes. After switching from graphite to MMO-coated titanium, a chemical processing plant in the southeastern United States used 40% less energy and no longer had to change the anodes every three months. The steady current efficiency made the deposits more uniform, which cut down on rejections and raised quality standards across all of their production lines.

Procurement Considerations for Titanium Anode Plates

Sourcing high-quality titanium anode plates requires careful evaluation of potential suppliers, their manufacturing capabilities, and product certifications. The procurement decision impacts operational reliability for years, making thorough due diligence essential.

Supplier Evaluation and Quality Standards

Anode manufacturers with a good reputation have strict quality control systems and hold the right industry certifications. Look for suppliers that have ISO 9001 certification. This means that their manufacturing processes are standardized and they have good quality management. Material certificates that list the grade of the titanium base (usually Grade 1 or Grade 2 for the best rust protection) and the layer formula make it possible to track the materials and make sure they meet the requirements.

The "China Titanium Valley" is Shaanxi state in China, where the Shaanxi CXMET Technology Co., Ltd. has been making high-performance non-ferrous metals for over 20 years. Our building is 50,000 square meters and has a listed capital of 10 million yuan. It is home to more than 80 skilled techs whose sole job is to improve titanium anode technology. We believe in honesty and new ideas, and we make sure that our goods meet foreign standards while also being very durable and dependable.

OEM and Customization Advantages

Standard anodes that you can buy in stores might not work perfectly with your tank setup or process needs. Through OEM relationships, customers can choose from a wide range of unique sizes, coatings, and connection methods that work with current systems. Customized designs make the best use of current flow, which could improve uniformity in plating and general efficiency more than stock goods can.

Because we offer personalized technical support, we can help you with any technical problems or needs, giving you specific advice and answers. This collaborative approach cuts down on costly trial-and-error during implementation, which speeds up the time to production and lowers the risk of problems during installation.

Market Pricing and Lead Time Considerations

Titanium anode prices depend on the type of substrate, coating, size, and quantity of the order. When you buy in bulk, you can usually get discounts that make the unit economics better for large installations or operations with more than one tank. Lead times rely on how complicated the customization is and how much can be made at once. Standard configurations may ship in two to four weeks, while fully customized designs may need six to ten weeks.

Planning purchase cycles for titanium anode plate around these dates keeps output from being interrupted. Supply chain freedom comes from working with dependable sellers who keep common-sized items in stock and can speed up rush orders when needed. Our quick response times and ability to solve problems effectively help you keep your operations running smoothly.

Building Strategic Supplier Relationships

Long-term relationships with reliable anode providers have more benefits than just one-time deals. Preferred customer agreements can give you better prices on future sales, priority ordering for production, and access to expert help. Suppliers who care about your success may offer substrate recoating services. Once the oxide layer wears off, the titanium base can be chemically stripped, fixed, and recoated, which will save you a lot of money in the long run compared to replacing the whole thing.

At CXMET, we want to build long-lasting relationships with our customers by giving them great service and low prices. Many different types of businesses use our metals, including those in the sea, oil and gas, chemical processing, power metallurgy, pharmaceutical, electronics, and finishing industries.

Future Trends and Innovations in Titanium Anode Plate Technology

The electroplating industry continues evolving, driven by demands for improved efficiency, environmental sustainability, and process precision. Titanium anode technology advances alongside these trends, incorporating new materials science insights and responding to regulatory pressures.

Advanced Coating Materials and Nano-Structures

Nanostructured metal oxides research offers better catalytic activity and longer service life. At the molecular level, these improved materials have a lot more surface area, which means there are more places for electrical processes to happen. This leads to higher current efficiency at lower overpotentials, which saves energy and lowers operating costs.

Tantalum-stabilized formulations made for environments with a lot of fluoride are another innovation that makes it easier to do things that were hard to do before. These special coatings protect against fluoride ions that would break down regular MMO layers. This makes more chemicals work with titanium anode technology.

Environmental and Regulatory Considerations

As environmental laws get stricter around the world, businesses are moving toward better soldering methods. Titanium anodes help with these projects in a number of ways. By getting rid of disposable anodes, less toxic trash is made, since broken-down graphite and rusted metal anodes don't have to be thrown away. When current efficiency goes up, energy use goes down. This means that plating processes leave less of a carbon footprint.

Titanium anodes are used in electrochemical water treatment systems to make disinfecting agents on-site. This eliminates the risks of transporting and storing dangerous chemical additives. This technology solves important problems related to safety and following the rules, while also making operations simpler.

Strategic R&D Alignment

Companies seeking competitive advantage should align with suppliers committed to continuous innovation. CXMET's focus on international market development and the introduction of advanced technology positions us at the forefront of titanium anode evolution. Our R&D efforts emphasize developing new materials and processing techniques that address emerging industry needs, ensuring our customers benefit from cutting-edge solutions.

Emerging applications in specialized plating processes, high-efficiency electrolyzers, and green chemistry initiatives will drive demand for increasingly sophisticated anode technologies. Partnerships with manufacturers who invest in these development areas provide access to next-generation capabilities as they become commercially available.

Conclusion

Titanium anode plates represent a transformative technology for modern electroplating operations, delivering superior performance, longevity, and economic value compared to traditional materials. The combination of a robust titanium substrate with advanced mixed metal oxide coatings creates anodes that resist corrosion, maintain stable electrical properties, and operate reliably for years in demanding chemical environments. Procurement managers and engineers evaluating anode options should consider total ownership costs, customization capabilities, and supplier expertise alongside initial pricing. As environmental regulations tighten and efficiency demands increase, titanium-based solutions position your operations for sustained competitiveness and regulatory compliance.

FAQ

What is the typical service life of titanium anode plates?

Service life depends on current density and electrolyte composition. With a properly specified MMO coating at standard operating parameters, expect 18-60 months of continuous operation. Higher current densities and aggressive chemistries accelerate wear, while conservative loading extends lifespan. Accelerated life testing (ALT) validates performance expectations under your specific conditions.

Can titanium anode plates be recoated after the coating depletes?

Yes, the titanium substrate remains chemically stable after coating depletion. The exhausted surface can be chemically stripped, inspected for damage, and recoated with fresh mixed metal oxides. This recoating process costs significantly less than purchasing new anodes, reducing long-term capital expenditure while maintaining performance.

What causes anode passivation and how is it prevented?

Passivation occurs when the electrocatalytic layer is exhausted or an insulating titanium dioxide layer grows at the substrate interface. Operating beyond recommended current density limits or physical damage to the coating triggers this failure mode. Maintaining proper current loading and avoiding mechanical contact with the coating surface prevents premature passivation.

How do titanium anodes perform in fluoride-containing electrolytes?

Standard coatings can be sensitive to fluoride ions, which attack the protective oxide layer on titanium. Specialized tantalum-stabilized formulations or platinum-based coatings are designed specifically for fluoride-rich environments, providing reliable performance where standard MMO coatings might fail.

Partner with CXMET for Superior Titanium Anode Solutions

Shaanxi CXMET Technology Co., Ltd stands as a trusted titanium anode plate supplier with over 20 years of manufacturing excellence serving the marine, oil and gas, chemical processing, and electronics industries. Our certified anodes combine superior corrosion resistance, optimized conductivity, and customizable coatings tailored to your exact electroplating requirements. With more than 80 specialized technicians and comprehensive technical support, we deliver solutions that enhance operational efficiency and product quality.

Whether you need standard configurations or fully customized designs, our team provides expert consultation to match your process specifications, tank geometry, and performance objectives. Competitive pricing, reliable lead times, and substrate recoating services ensure exceptional value throughout the product lifecycle. Contact us at sales@cxmet.com to discuss your titanium anode plate requirements with our engineering team and discover how CXMET's expertise can optimize your electroplating operations.
