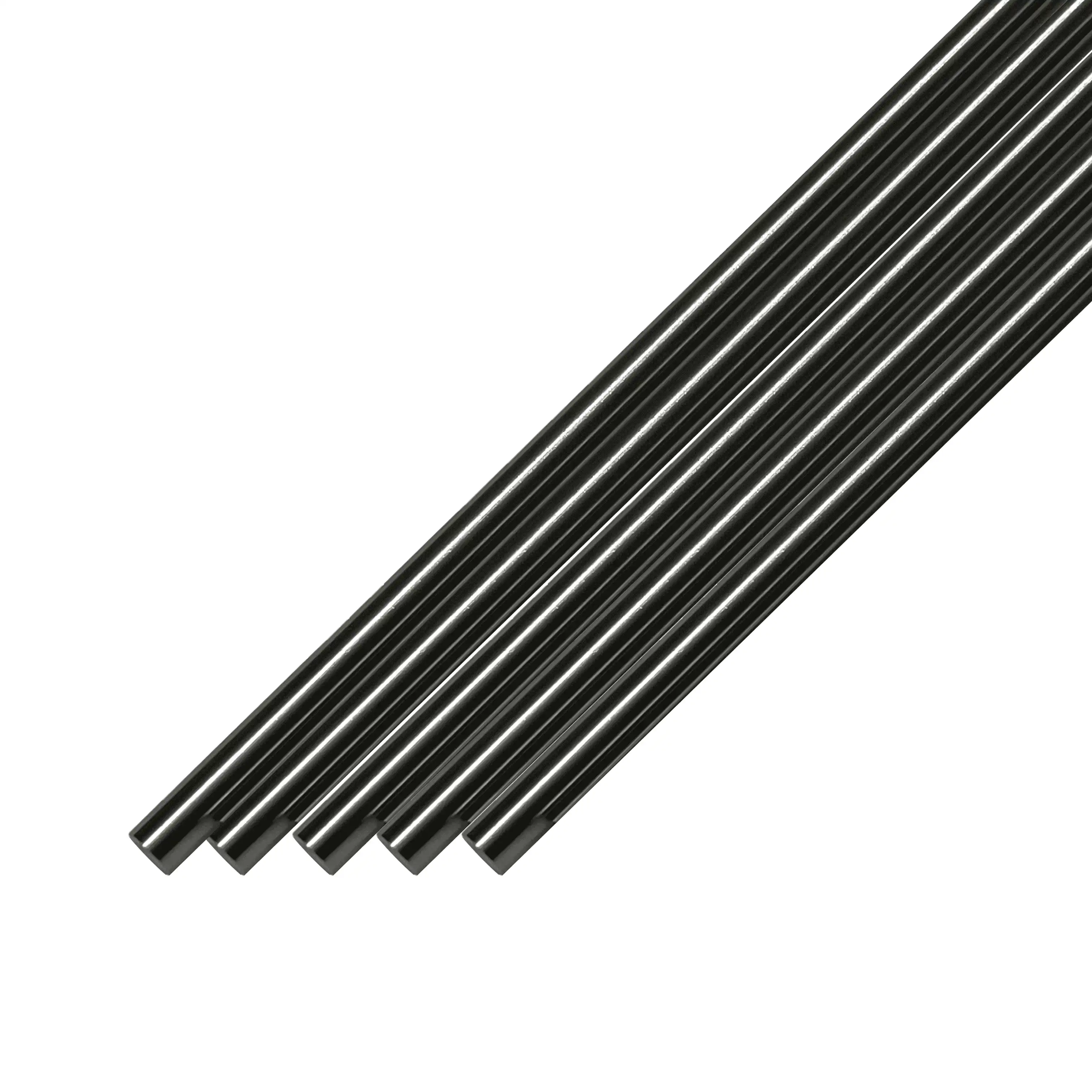

Heat treatment is an important step that greatly improves the qualities of Titanium 6Al-4V Grade 5 Round Bar, a high-performance metal that is widely used in military, medical, and commercial settings. With its high strength-to-weight ratio, great rust resistance, and better heat resistance, this modern material is made up of titanium, 6% aluminum, and 4% vanadium. However, these qualities can be improved even more to meet the needs of a specific product through precision-controlled heat treatment methods. For better mechanical qualities, higher wear resistance, and better performance in a wide range of conditions, heat treatment can change the grain of the metal. It will talk about the complicated process of heat treating Titanium 6Al-4V Grade 5 Round Bar and how different methods can change the material's qualities to fit a wide range of commercial needs, from medical implants to rocket parts.

What are the Key Heat Treatment Processes for Titanium 6Al-4V Grade 5 Round Bar?

Solution Treatment

A very important part of heat treating Titanium 6Al-4V Grade 5 Round Bar is solution treatment, which includes heating the metal to a high temperature (usually around 955°C or 1750°F) and keeping it there for a certain amount of time. The goal of this process is to dissolve the alloying elements into the titanium matrix so that the solid solution is uniform. Solution treatment makes Titanium 6Al-4V Grade 5 Round Bar get a regular microstructure, which is important for making the mechanical properties better. The high temperature moves the alloying elements around, getting rid of any separation that might have happened during the production process. Once the holding time is over, the material is quickly cooled or dampened, normally with water, to keep the uniform structure. This quick cooling stops the formation of unwanted phases and keeps the alloying elements in solution, which prepares the material for later processes that improve its age.

Aging Treatment

Titanium 6Al-4V Grade 5 Round Bar needs to be aged, which is also called precipitation hardening, before its tensile qualities can be improved. The material is heated to a lower temperature, normally between 480°C and 595°C (900°F to 1100°F), for a certain amount of time. This process usually comes after solution treatment. As titanium ages, small particles called precipitates form inside the matrix. This makes the metal much stronger and harder. Titanium 6Al-4V Grade 5 Round Bar's aging process lets controlled alpha and beta phases form. The end qualities of the material are directly affected by how these phases are distributed and how big they are. You can change the exact temperature and length of time that the bar is aged to get the right mix of strength and flexibility. This lets you make the round bar's features fit specific uses, like making parts for spacecraft or medical implants.

Stress Relieving

Titanium 6Al-4V Grade 5 Round Bar needs to be stressed-relieved during the heat treatment process. This is especially true after the material has been through industrial processes that create internal stresses, like cutting or forming. For this process, the round bar is heated to a modest temperature, usually between 480°C and 650°C (900°F to 1200°F), and kept there for a certain amount of time. It is then slowly cooled down. The main goal of stress relief is to lower or get rid of any remaining pressures in the material without changing its composition or mechanical features too much. Stress reducing Titanium 6Al-4V Grade 5 Round Bar can make it more stable in its dimensions, make it more resistant to wear, and lower the risk of stress corrosion cracking. This process is especially important for parts that will be loaded and unloaded many times or that will be used in acidic settings. It makes sure that the round bar stays strong and works well for a long time.

How Does Heat Treatment Affect the Microstructure of Titanium 6Al-4V Grade 5 Round Bar?

Alpha-Beta Phase Distribution

Titanium 6Al-4V Grade 5 Round Bar's alpha-beta phase distribution is greatly changed by heat treatment, which is an important factor in figuring out its mechanical qualities. The microstructure of the metal is made up of both alpha (hexagonal close-packed) and beta (body-centered cubic) phases. The relative amounts and shapes of these stages can be changed by carefully controlling the parameters of the heat process. As an example, slow cooling from above the beta transus temperature helps a rough, plate-like alpha structure form inside existing beta grains. This structure is called Widmanstätten alpha. This substructure is usually a good mix of strength and flexibility. On the other hand, faster cooling rates may lead to a tighter alpha structure, which may make the material stronger but less flexible. Manufacturers can make Titanium 6Al-4V Grade 5 Round Bar work best for certain uses by changing the spread of the alpha and beta phases. For example, they can focus on strength for aircraft parts or balance the qualities for medical implants.

Grain Size and Morphology

Titanium 6Al-4V Grade 5 Round Bar's mechanical qualities are directly affected by how it is heated, which is a key part of controlling the grain size and shape. Temperature, length of heat treatment, and rate of cooling all have a big effect on how grains grow. Larger grains are often formed when solution treatment temps are higher and holding times are longer. This can make the material less likely to creep, but it may also make it less strong and flexible. On the other hand, lower temperatures and shorter times can keep a smaller grain structure, which could make the material stronger and less likely to wear down. The shape of the alpha phase in Titanium 6Al-4V Grade 5 Round Bar can also be changed by heat treatment, which can range from equiaxed to acicular structures. Equiaxed alpha grains tend to be more flexible and easy to shape, while acicular features can make materials stronger and more resistant to wear. Manufacturers can change the qualities of Titanium 6Al-4V Grade 5 Round Bar to fit the needs of many industries, from aircraft to biomedicine, by carefully controlling these microstructural features.

Precipitate Formation and Distribution

Titanium 6Al-4V Grade 5 Round Bar's growth and spread of precipitates are greatly affected by heat treatment, which is very important for getting the right mechanical qualities. Fine precipitates form within the titanium core during the hardening process, which makes the metal stronger and harder. The heat treatment factors have a big effect on the size, shape, and spread of these precipitates. For Titanium 6Al-4V Grade 5 Round Bar, the main way it gets stronger is by small alpha precipitates forming in the beta phase. The size and spread of these precipitates can be made better by carefully controlling the aging temperature and time. It is usually thought that finer, more widely distributed precipitates make things stronger and harder, while rougher precipitates may make things more flexible and difficult to break. Heat treatment can also change the way intermetallic compounds like Ti3Al are formed, which can change the qualities of the alloy even more. Titanium 6Al-4V Grade 5 Round Bar can be fine-tuned for specific uses by changing how precipitates form and spread out during heat treatment. This is done by balancing strength, flexibility, and other important qualities.

What Are the Benefits of Heat-Treated Titanium 6Al-4V Grade 5 Round Bar in Various Applications?

Aerospace Industry

Titanium 6Al-4V Grade 5 Round Bar that has been heat-treated has many uses in the aircraft business, where dependability and good performance are very important. The heat treatment process makes the metal even stronger for its weight, which makes it perfect for important parts like engine parts, landing gear, and airframe frames. The better wear resistance of heat-treated Titanium 6Al-4V Grade 5 Round Bar is very useful in flight uses because it makes sure that airplane parts that are loaded and unloaded many times are safe and last a long time. Heat treatment makes the material less likely to creep, which means it can keep its qualities at high temperatures, which is important for engine parts. Titanium 6Al-4V Grade 5 Round Bar that has been heat-treated is also resistant to rust, which means it can be used in many airplane structures that are exposed to tough environments. Manufacturers can find the best balance between strength and flexibility by customizing the heat treatment process. This makes sure that aircraft parts meet the strict performance and safety standards in this difficult business.

Medical Implants

Heat-treated Titanium 6Al-4V Grade 5 Round Bar plays a crucial role in the medical industry, particularly in the production of high-quality implants and surgical instruments. The heat treatment process enhances the biocompatibility of the alloy, making it ideal for long-term implantation in the human body. The improved strength and fatigue resistance of heat-treated Titanium 6Al-4V Grade 5 Round Bar ensure that medical implants, such as hip and knee replacements, can withstand the stresses of daily use over extended periods. The corrosion resistance of the heat-treated alloy is particularly beneficial in the biological environment, preventing degradation and potential adverse reactions. Furthermore, the ability to tailor the mechanical properties through heat treatment allows for the production of implants with specific characteristics, such as modulus of elasticity closer to that of human bone, reducing the risk of stress shielding. The enhanced surface properties achieved through heat treatment also facilitate better osseointegration, promoting the bonding between the implant and surrounding bone tissue.

Industrial Applications

Because it has better qualities, heat-treated Titanium 6Al-4V Grade 5 Round Bar is widely used in many industry settings. Heat-treated bars are great for reactors, heat exchangers, and pipe systems that are exposed to harsh chemicals in the chemical processing business because they are less likely to rust. The material is used in gas engines, offshore oil equipment, and nuclear plant parts, and its increased power and resistance to wear are good for the energy sector. Marine uses heat-treated Titanium 6Al-4V Grade 5 Round Bar works well in salty seawater, so it can be used for propeller shafts, valves, and platforms that are out at sea. The material is used in parts like connecting rods and suspension for cars and races because it has a high strength-to-weight ratio and better mechanical qualities. Heat-treated Titanium 6Al-4V Grade 5 Round Bar is also used in the sports equipment business to make high-performance items like bicycle frames and golf club heads. This is because it is strong, lightweight, and long-lasting.

Conclusion

Treating Titanium 6Al-4V Grade 5 Round Bar at high temperatures is a key step that makes it much better and more useful for many business purposes. Optimizing the alloy's composition through carefully controlled solution treatment, aging, and stress relief processes makes it stronger, more resistant to wear, and better overall performance. Temperature-treated Titanium 6Al-4V Grade 5 Round Bar is a great material for aircraft, medical, and industrial uses because it can have its mechanical qualities fine-tuned by changing the alpha-beta phase distribution, grain size, and precipitate formation. Better heat treatment methods will probably lead to even more creative uses for this metal as technology improves.

For high-quality Titanium 6Al-4V Grade 5 Round Bar and expert technical support, look no further than Shaanxi CXMET Technology Co., Ltd. Located in the "China Titanium Valley," we specialize in the production and distribution of non-ferrous metals, including titanium and its alloys. Our commitment to integrity, innovation, and customer satisfaction ensures that you receive durable and reliable products tailored to your specific needs. With over 80 professional technicians and years of industry experience, we offer comprehensive solutions for various applications. For inquiries or to discuss your titanium requirements, please contact us at sales@cxmet.com.

FAQ

Q: What is the typical temperature range for solution treatment of Titanium 6Al-4V Grade 5 Round Bar?

A: The typical solution treatment temperature for Titanium 6Al-4V Grade 5 Round Bar is around 955°C (1750°F).

Q: How does aging treatment affect the strength of Titanium 6Al-4V Grade 5 Round Bar?

A: Aging treatment increases the strength of Titanium 6Al-4V Grade 5 Round Bar by promoting the formation of fine precipitates within the titanium matrix.

Q: What is the purpose of stress relieving in heat treatment of Titanium 6Al-4V Grade 5 Round Bar?

A: Stress relieving reduces or eliminates residual stresses within the material, improving dimensional stability and fatigue resistance.

Q: How does heat treatment affect the corrosion resistance of Titanium 6Al-4V Grade 5 Round Bar?

A: Heat treatment can enhance the corrosion resistance of Titanium 6Al-4V Grade 5 Round Bar by optimizing its microstructure and surface properties.

References

1. Lütjering, G., & Williams, J. C. (2007). Titanium (2nd ed.). Springer-Verlag Berlin Heidelberg.

2. Donachie, M. J. (2000). Titanium: A Technical Guide (2nd ed.). ASM International.

3. Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.

4. Leyens, C., & Peters, M. (Eds.). (2003). Titanium and Titanium Alloys: Fundamentals and Applications. Wiley-VCH.

5. Froes, F. H. (Ed.). (2015). Titanium: Physical Metallurgy, Processing, and Applications. ASM International.

6. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. (2003). Titanium Alloys for Aerospace Applications. Advanced Engineering Materials, 5(6), 419-427.
