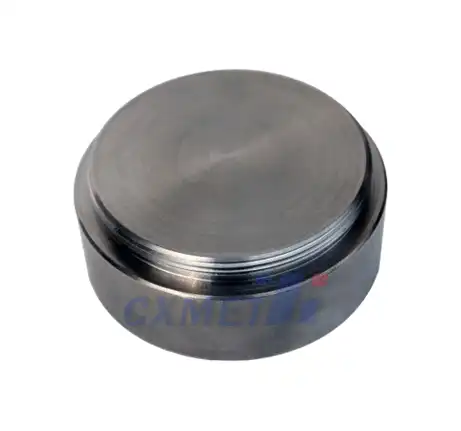

To achieve the outstanding purity and performance characteristics required by semiconductor, aerospace, and optoelectronic applications, the bonding and manufacturing of hafnium sputtering targets is an extremely complex process in advanced materials engineering. Precise control of metallurgical parameters and specialized techniques are essential to this process.  Engineers and technicians involved in thin film deposition procedures must have a thorough understanding of the manufacturing and bonding processes of hafnium sputtering targets since the quality of the materials used directly affects the performance of the devices and the manufacturing yield.  Hafnium sputtering targets must undergo rigorous quality control at every stage of the manufacturing process to guarantee they are structurally sound, have a uniform density, and are ready for machining. Other steps in the process include powder preparation, consolidation, and bonding to backing plates.  The bonding process is of utmost importance because it ensures a stable contact between the hafnium target material and the backing plate, which is crucial for the sputtering process.  Hafnium sputtering target manufacture is an extremely specialized area that integrates cutting-edge bonding technologies, precise machining, and advanced metallurgy due to the difficulties inherent in the manufacturing process.

What Raw Material Processing Steps Are Required for Hafnium Sputtering Target Manufacturing?

Hafnium Powder Preparation and Purification

The manufacturing of hafnium sputtering target begins with the preparation of ultra-high-purity hafnium powder through sophisticated chemical processing and purification techniques that achieve the 99.95% minimum purity required for semiconductor applications. The raw hafnium material undergoes multiple purification steps including chemical dissolution, solvent extraction, and thermal decomposition to remove zirconium and other trace impurities that could compromise sputtering performance. The powder preparation process for hafnium sputtering target involves careful control of particle size distribution, typically ranging from 44 to 150 micrometers, to ensure optimal consolidation characteristics during subsequent pressing and sintering operations. Advanced analytical techniques including inductively coupled plasma mass spectrometry and X-ray fluorescence analysis verify that the hafnium powder meets the stringent purity specifications required for high-performance sputtering applications. The powder handling procedures maintain an inert atmosphere throughout processing to prevent contamination from oxygen, nitrogen, and other reactive species that could form compounds detrimental to the electrical and thermal properties of the finished hafnium sputtering target. Quality control measures include particle morphology analysis and surface area measurements to ensure consistent powder characteristics that will produce uniform density and microstructure in the consolidated target.

Powder Consolidation and Pressing Techniques

To obtain the theoretical density of 13.31 g/cm³ while retaining microstructural homogeneity, specific pressing procedures are needed to consolidate hafnium powder into dense, uniform blanks, which is a vital step in hafnium sputtering target manufacture. Hot isostatic pressing (HIP) or vacuum hot pressing techniques are employed to consolidate the hafnium powder under carefully controlled temperature and pressure conditions that promote diffusion bonding between particles without introducing porosity or grain growth that could affect sputtering performance. The pressing parameters including temperature, pressure, and time are optimized for hafnium sputtering target production to achieve maximum density while preventing excessive grain growth that could lead to non-uniform sputtering behavior. The consolidation process typically involves heating the hafnium powder to temperatures between 1800°C and 2000°C under pressures of 100-200 MPa in an inert or vacuum atmosphere to prevent oxidation and maintain material purity. To prevent density fluctuations that might lead to preferred sputtering or target failure during operation, advanced pressure control systems make sure that pressure is uniformly distributed throughout the powder compact. The consolidated hafnium blanks undergo comprehensive density measurements and ultrasonic inspection to verify structural uniformity and detect any internal defects that could compromise the performance of the finished hafnium sputtering target.

Microstructural Characterization and Quality Verification

The microstructural characterization of consolidated hafnium blanks is essential for ensuring that the hafnium sputtering target will exhibit consistent sputtering behavior and long service life in demanding thin film deposition applications. Metallographic examination through optical and electron microscopy reveals the grain structure, phase distribution, and presence of any secondary phases or inclusions that could affect sputtering uniformity. The grain size analysis for hafnium sputtering target materials typically targets fine, equiaxed grain structures that promote uniform material removal during sputtering while minimizing the formation of particles or arcing that could contaminate deposited films. In order to ensure that the hafnium sputtering target remains mechanically stable throughout heat cycling, X-ray diffraction analysis verifies the crystal structure and identifies any undesired phases or residual stresses.  Chemical examination of the solidified substance confirms that all purity requirements have been met during consolidation, paying special attention to quantities of carbon, nitrogen, and oxygen that may produce compounds impacting electrical conductivity. Mechanical property testing including hardness measurements and thermal expansion analysis ensures that the hafnium sputtering target will maintain dimensional stability and resist cracking or deformation under the thermal stresses encountered during sputtering operations.

How Are Hafnium Sputtering Target Backing Plate Bonding Processes Performed?

Backing Plate Selection and Surface Preparation

The selection and preparation of backing plates for hafnium sputtering target bonding requires careful consideration of thermal expansion compatibility, thermal conductivity, and mechanical strength to ensure reliable performance throughout the target's service life. Copper backing plates are commonly used for hafnium sputtering target applications due to their excellent thermal conductivity and relatively close thermal expansion match, though other materials such as molybdenum or copper-molybdenum composites may be selected for specific applications. The surface preparation of backing plates involves precision machining to achieve the flatness and surface finish specifications required for optimal bonding, typically requiring surface roughness values of Ra ≤ 0.4 micrometers to promote intimate contact during the bonding process. Chemical cleaning procedures remove any surface oxides, oils, or contaminants that could interfere with bond formation, with the cleaned surfaces maintained in controlled atmospheres until bonding operations begin. The dimensional accuracy of backing plates must match the hafnium sputtering target specifications precisely, with tolerances typically held to ±0.025 mm to ensure proper fit and uniform stress distribution during bonding. Quality control procedures include surface inspection, dimensional verification, and chemical cleanliness testing to ensure that backing plates meet all requirements for successful bonding to the hafnium target material.

Diffusion Bonding and Pressure Welding Techniques

The diffusion bonding process for hafnium sputtering target assembly creates a metallurgical bond between the target material and backing plate through the application of controlled temperature, pressure, and time in a protective atmosphere. The bonding temperature is carefully selected to promote atomic diffusion across the interface while avoiding excessive grain growth or phase transformations that could compromise the microstructure of the hafnium sputtering target. Typical bonding parameters involve temperatures between 800°C and 1200°C, pressures of 10-50 MPa, and bonding times of 1-4 hours, depending on the specific materials and interface requirements. The bonding atmosphere is maintained under high vacuum or inert gas conditions to prevent oxidation and ensure clean interface formation between the hafnium target and backing plate. Pressure distribution systems ensure uniform contact pressure across the entire bonding interface, preventing the formation of unbonded areas that could lead to thermal stress concentrations or target failure during operation. Advanced process control systems monitor temperature uniformity, pressure stability, and atmosphere purity throughout the bonding cycle to ensure consistent results and optimal bond quality for each hafnium sputtering target assembly.

Interface Quality Assessment and Bond Integrity Testing

The assessment of bond quality between the hafnium sputtering target and backing plate requires comprehensive testing protocols that evaluate both the mechanical integrity and thermal performance of the bonded assembly. Ultrasonic inspection techniques detect unbonded areas, voids, or delamination at the interface, with scanning procedures that map bond quality across the entire target surface. Thermal cycling tests subject the bonded hafnium sputtering target to repeated heating and cooling cycles that simulate the thermal stresses encountered during sputtering operations, verifying that the bond remains intact without cracking or delamination. Mechanical testing procedures including pull tests and shear tests measure the bond strength and ensure that it exceeds the minimum values required for safe operation under the mechanical loads encountered during target installation and use. By analyzing the test samples by cross-sectional metallography, we can see the microstructure of the bonded interface and verify that the diffusion bonding was successful and that no brittle intermetallic compounds were formed, which may have compromised the bond integrity.  To provide efficient cooling during high-power sputtering operations that create considerable thermal loads, thermal conductivity tests confirm that the bonded assembly delivers appropriate heat transfer from the hafnium sputtering target to the backing plate.

What Quality Control Measures Ensure Hafnium Sputtering Target Performance?

Dimensional Accuracy and Surface Finish Verification

The dimensional accuracy and surface finish requirements for hafnium sputtering target manufacturing demand sophisticated measurement and control systems that ensure compliance with the tight tolerances required for optimal sputtering performance. Coordinate measuring machines with sub-micrometer accuracy verify that all critical dimensions including diameter, thickness, flatness, and concentricity meet specification requirements, typically maintaining tolerances of ±0.025 mm for diameter and ±0.010 mm for thickness uniformity. The sputtering surface meets the required roughness of Ra < 0.8 micrometers, as confirmed by profilometry and interferometry surface finish measurements. This is essential for consistent sputtering behavior and uniform plasma production. The machining processes for hafnium sputtering target fabrication employ diamond turning or precision grinding techniques that produce the required surface quality while minimizing subsurface damage that could affect sputtering performance. Flatness measurements across the target surface ensure that variations remain within specified limits, typically less than 0.025 mm total indicator reading, to maintain uniform target-to-substrate spacing during sputtering operations. Visual inspection procedures detect any surface defects, scratches, or contamination that could cause arcing or particle generation during sputtering, with acceptance criteria based on defect size and frequency limits established for each application.

Chemical Purity and Compositional Analysis

The chemical purity verification of hafnium sputtering target materials requires comprehensive analytical testing that confirms compliance with the 99.95% minimum purity specification and detects trace impurities that could affect sputtering performance or film quality. With detection limits high enough to confirm conformity with purity standards for semiconductors, glow discharge mass spectrometry offers quantitative examination of all metal contaminants.  To make sure these interstitial impurities don't create compounds that might impact the electrical or mechanical characteristics of the hafnium sputtering target, inert gas fusion analysis analyzes the hydrogen, oxygen, and nitrogen content.  X-ray photoelectron spectroscopy examines the target material's surface composition and oxidation state, identifying any oxide formation or contamination that could impact the initial sputtering behavior. In order to characterize the product thoroughly while yet meeting production goals for customer delivery, the analytical testing program employs both destructive and non-destructive procedures.  In order to identify process aberrations that may need corrective action, statistical process control techniques monitor analytical data over time. This allows for the hafnium sputtering target production process to be kept under close watch.  The capacity to quickly identify and resolve any quality concerns that may occur during target use is made possible by traceability documentation, which ties analytical data to particular manufacturing lots and raw material batches.

Performance Testing and Validation Procedures

The performance validation of hafnium sputtering target assemblies involves comprehensive testing protocols that simulate actual sputtering conditions and verify that the targets will meet performance expectations in production environments. Electrical testing measures the resistance and continuity of the bonded assembly to ensure adequate electrical contact and uniform current distribution across the target surface during sputtering operations. Thermal performance testing evaluates heat transfer characteristics and thermal cycling behavior to verify that the hafnium sputtering target will maintain structural integrity under the thermal loads encountered during high-power sputtering processes. The target material shows the predicted deposition properties and the film composition fulfills the purity and stoichiometry criteria, according to sputtering rate measurements taken in controlled test settings.  To make sure that contamination levels aren't too high for important purposes, particle generation testing measures the amount and size distribution of particles produced during sputtering using microscopy and laser light scattering.  In order to assess wear patterns, erosion features, and end-of-life behavior, accelerated life testing treats hafnium sputtering target samples to prolonged sputtering exposure under controlled circumstances.  For process certification and production deployment of hafnium sputtering target materials in their respective applications, clients demand performance data and documentation that is provided by the thorough testing program.

Conclusion

Sophisticated control over powder processing, consolidation processes, and bonding procedures is required for the manufacture and bonding of hafnium sputtering targets in order to achieve the performance characteristics and outstanding purity required by advanced thin film applications.  Reliable performance in semiconductor fabrication, aerospace coatings, and optoelectronic device manufacture is achieved by extensive quality control procedures and accurate manufacturing processes.

Shaanxi CXMET Technology Co., Ltd., located in China's materials hub, specializes in manufacturing premium hafnium sputtering targets with over 20 years of expertise in refractory metals processing. Reliability in semiconductor, aeronautical, and optoelectronic devices is guaranteed by our dedication to precise production and quality assurance. For tailored solutions and thorough technical assistance, get in touch with our knowledgeable technical staff at sales@cxmet.com.
