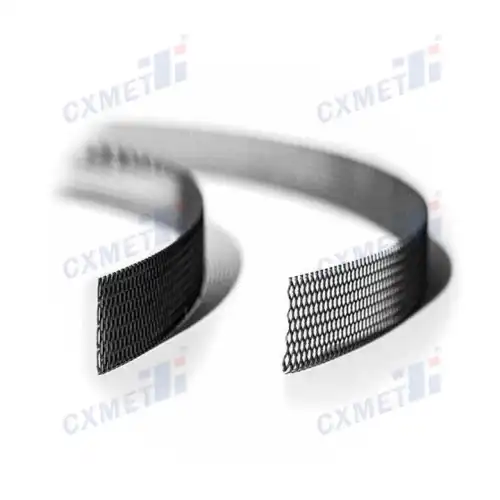

Mixed Metal Oxide (MMO) ribbon anodes have become increasingly popular in cathodic protection systems due to their exceptional performance and durability. These anodes are particularly effective when installed in concrete and sand media, providing long-lasting protection against corrosion for various structures. The installation process of MMO ribbon anodes in these media requires careful planning and execution to ensure optimal performance. This blog post will explore the intricate details of how MMO ribbon anodes are installed in concrete and sand media, covering the preparation steps, installation techniques, and best practices. Understanding this process is crucial for engineers, contractors, and facility managers involved in corrosion protection projects, as proper installation significantly impacts the effectiveness and longevity of the cathodic protection system.

What Are the Key Considerations for MMO Ribbon Anode Installation in Concrete?

Surface Preparation

When installing MMO ribbon anodes in concrete, proper surface preparation is crucial. The concrete surface must be clean, dry, and free from any contaminants that could interfere with the anode's performance. This typically involves cleaning the surface with high-pressure water jets or sandblasting to remove dirt, debris, and any loose concrete. Once cleaned, the surface should be inspected for cracks or voids, which must be filled with an appropriate repair material. The MMO ribbon anode requires a smooth, even surface for optimal contact and current distribution. Additionally, any reinforcing steel in the concrete should be located and marked to avoid damage during the installation process. The prepared surface should be tested for alkalinity and chloride content to ensure it's suitable for the MMO ribbon anode installation.

Anode Positioning

The positioning of the MMO ribbon anode is critical for its effectiveness in concrete structures. The anode should be placed in a way that ensures uniform current distribution across the protected surface. This often involves creating shallow grooves or channels in the concrete surface to accommodate the ribbon anode. The depth and width of these channels should be carefully calculated based on the dimensions of the MMO ribbon anode and the required level of protection. It's important to maintain consistent spacing between parallel runs of the anode to achieve even current distribution. The anode should also be positioned to avoid direct contact with reinforcing steel, which could lead to short circuits. Proper tensioning of the MMO ribbon anode during installation is essential to prevent sagging or displacement over time.

Electrical Connections

Establishing reliable electrical connections is a crucial aspect of MMO ribbon anode installation in concrete. The anode must be connected to the power source and the structure being protected through a series of carefully designed and implemented electrical connections. This typically involves using specialized connection methods such as thermite welding or compression fittings to ensure low-resistance, durable connections. The connection points should be properly insulated to prevent moisture ingress and corrosion. It's also important to incorporate test stations at regular intervals along the length of the MMO ribbon anode to allow for future monitoring and maintenance of the cathodic protection system. The electrical design should account for voltage drops along the length of the anode and ensure that sufficient current can be delivered to all parts of the protected structure.

How Does the Installation Process Differ for MMO Ribbon Anodes in Sand Media?

Trench Preparation

When installing MMO ribbon anodes in sand media, the first step is proper trench preparation. The trench should be excavated to the specified depth and width, taking into account the local soil conditions and the required level of protection. The trench bottom must be leveled and compacted to provide a stable base for the anode. Any sharp objects or rocks that could damage the MMO ribbon anode should be removed. It's important to consider the groundwater level and implement appropriate drainage measures if necessary. The trench should also be designed with sufficient space to accommodate the backfill material that will surround the MMO ribbon anode. In some cases, a layer of fine sand or specialized backfill material may be placed at the bottom of the trench to create an optimal environment for the anode.

Anode Laying Techniques

The laying of MMO ribbon anodes in sand media requires careful handling and precise techniques. The anode should be unrolled carefully to avoid kinks or twists that could affect its performance. It's crucial to maintain consistent tension on the ribbon anode during installation to ensure it remains straight and evenly distributed within the trench. The anode should be secured at regular intervals using non-conductive fasteners to prevent movement during backfilling. In cases where multiple lengths of MMO ribbon anode are required, proper splicing techniques must be employed to maintain electrical continuity. The spacing between parallel runs of the anode should be carefully controlled to achieve the desired current distribution. Special attention should be given to areas where the anode changes direction or passes through transitions in the soil composition.

Backfilling and Compaction

The backfilling process is critical for the proper functioning of MMO ribbon anodes in sand media. A specialized backfill material, often a mixture of fine sand and chemical enhancers, is used to surround the anode. This backfill serves multiple purposes: it provides a conductive environment for the anode, helps distribute the current evenly, and protects the anode from physical damage. The backfill should be carefully placed around the MMO ribbon anode, ensuring that no voids or air pockets are formed. Compaction of the backfill material is typically done in layers to achieve the desired density without damaging the anode. The final layer of backfill should be slightly mounded to allow for settling and to prevent water from pooling above the anode. Proper backfilling and compaction are essential for maximizing the efficiency and lifespan of the MMO ribbon anode in sand media.

What Are the Best Practices for Monitoring and Maintaining MMO Ribbon Anodes?

Regular Inspection Protocols

Implementing regular inspection protocols is crucial for ensuring the continued effectiveness of MMO ribbon anodes. These inspections should be conducted at scheduled intervals and include visual checks for any signs of physical damage or deterioration of the anode system. For anodes installed in concrete, this may involve examining the surface for any cracks or spalling that could indicate issues with the underlying anode. In sand media installations, periodic excavations may be necessary to inspect the condition of the anode and its surrounding backfill. The inspection should also include measurements of the anode's electrical output and the overall system performance. Any deviations from the expected values should be thoroughly investigated and addressed promptly. It's important to maintain detailed records of these inspections to track the system's performance over time and identify any trends that may indicate potential problems.

Performance Testing

Regular performance testing is essential for evaluating the effectiveness of MMO ribbon anodes and identifying any issues before they become critical. These tests typically include measuring the anode's output current, the structure's potential, and the system's overall resistance. For concrete installations, potential mapping of the protected surface can help identify areas where protection may be inadequate. In sand media installations, soil resistivity measurements can provide valuable information about the anode's operating environment. Advanced testing techniques, such as close-interval potential surveys or AC impedance measurements, may be employed for more detailed analysis. The results of these tests should be compared against the system's design criteria and historical performance data to assess its ongoing effectiveness. Any significant deviations should trigger a thorough investigation and potential corrective actions.

Maintenance and Replacement Strategies

Developing effective maintenance and replacement strategies is crucial for maximizing the lifespan and performance of MMO ribbon anodes. Regular maintenance activities may include cleaning of anode surfaces in concrete installations, adjustment of system operating parameters, and repair of any damaged components. For anodes in sand media, periodic replenishment of the backfill material may be necessary to maintain optimal conductivity. It's important to have a clear understanding of the expected service life of the MMO ribbon anode and plan for its eventual replacement. This planning should consider factors such as the anode's wear rate, changes in the protected structure's condition, and evolving protection requirements. When replacement is necessary, it should be carried out with minimal disruption to the protected structure and surrounding environment. Implementing a proactive maintenance and replacement strategy can significantly extend the effective life of the cathodic protection system and ensure continuous protection of the structure.

Conclusion

The installation of MMO ribbon anodes in concrete and sand media is a complex process that requires careful planning, precise execution, and ongoing maintenance. By following best practices in surface preparation, anode positioning, and electrical connections, these anodes can provide highly effective and long-lasting cathodic protection. Regular monitoring and maintenance are crucial for ensuring optimal performance throughout the system's lifespan. As corrosion protection technologies continue to evolve, MMO ribbon anodes remain a reliable and efficient solution for a wide range of applications.

For high-quality MMO ribbon anodes and expert technical support, consider Shaanxi CXMET Technology Co., Ltd. Located in Shaanxi province, China, we specialize in the production and distribution of non-ferrous metals, including advanced MMO anodes. Our commitment to integrity, innovation, and customer satisfaction ensures that you receive durable and reliable products tailored to your specific needs. For more information or to discuss your project requirements, please contact us at sales@cxmet.com.

FAQ

Q: What is the typical lifespan of an MMO ribbon anode?

A: The lifespan of an MMO ribbon anode can vary depending on the operating conditions, but it typically ranges from 20 to 40 years when properly installed and maintained.

Q: Can MMO ribbon anodes be used in both freshwater and saltwater environments?

A: Yes, MMO ribbon anodes are suitable for use in both freshwater and saltwater environments due to their corrosion-resistant properties.

Q: How often should MMO ribbon anodes be inspected?

A: It's recommended to conduct visual inspections annually and perform more comprehensive performance testing every 3-5 years, depending on the specific application and environmental conditions.

Q: What are the advantages of using MMO ribbon anodes over traditional sacrificial anodes?

A: MMO ribbon anodes offer longer lifespans, more uniform current distribution, and lower maintenance requirements compared to traditional sacrificial anodes.

Q: Can MMO ribbon anodes be installed in existing structures?

A: Yes, MMO ribbon anodes can be retrofitted into existing structures, although the installation process may be more complex than in new construction.
