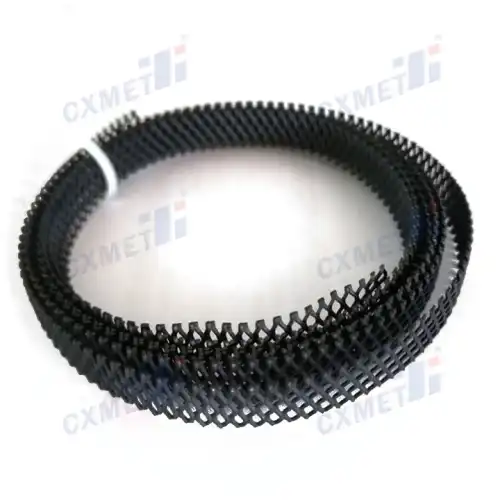

Combining cutting-edge metallurgy with exact coating technology, the production process of MMO Ribbon Anode on titanium mesh substrate is a remarkable feat of electrochemical engineering. The end result is long-lasting cathodic protection systems. This specialized manufacturing process involves the application of mixed metal oxide coatings, primarily IrO2/Ta2O5, onto ASTM B265 Grade 1/2 titanium substrates through carefully controlled thermal and chemical processes. Engineers and workers in cathodic protection, maritime engineering, and infrastructure protection must understand how MMO Ribbon Anode is created if they work in fields that need dependable current distribution and long-term performance. The manufacturing process requires precise control of substrate preparation, coating application, thermal treatment, and quality verification to ensure that each MMO Ribbon Anode meets the demanding requirements for uniform current distribution, exceptional durability, and resistance to aggressive environments. Protecting vital infrastructure from corrosion damage is made very difficult by the intricacy of this manufacturing process, which in turn affects the performance characteristics of MMO Ribbon Anode systems.

What Substrate Preparation Steps Are Required for MMO Ribbon Anode Manufacturing?

Titanium Substrate Selection and Initial Processing

The manufacturing of MMO Ribbon Anode begins with careful selection and preparation of ASTM B265 Grade 1 or Grade 2 titanium substrates that provide the mechanical strength and corrosion resistance essential for long-term cathodic protection performance. The titanium sheets are precision-slit into standard ribbon widths using specialized cutting equipment that maintains dimensional accuracy while preventing edge defects that could compromise coating adhesion. The initial processing of titanium substrate for MMO Ribbon Anode manufacturing includes verification of chemical composition and mechanical properties to ensure compliance with ASTM standards and customer specifications. In order to ensure that the coating application is applied uniformly, surface inspection processes are used to identify any imperfections, inclusions, or abnormalities in the titanium substrate.  To ensure the final MMO Ribbon Anode is installed and performs as expected, the dimensions of the titanium ribbons are checked to ensure they meet the required width, thickness, and straightness specifications. Quality control measures during initial processing include ultrasonic testing to detect internal defects and surface roughness measurements to establish baseline conditions before chemical treatment begins.

Chemical Cleaning and Oxide Removal

The chemical cleaning process for MMO Ribbon Anode substrate preparation involves systematic removal of natural oxide layers and surface contamination that could prevent proper adhesion of the mixed metal oxide coating. The titanium substrate undergoes degreasing operations using approved solvents to remove any manufacturing oils, fingerprints, or organic contamination that accumulated during handling and storage. Acid etching procedures using controlled concentrations of hydrofluoric and nitric acid solutions remove the natural titanium dioxide layer and create the surface roughness profile necessary for optimal coating adhesion. The etching parameters including acid concentration, temperature, and immersion time are precisely controlled to achieve consistent surface preparation across all MMO Ribbon Anode substrates. Multiple rinse cycles using deionized water remove all traces of etching chemicals and prevent contamination that could interfere with subsequent coating operations. The cleaned titanium substrate is immediately processed to prevent re-oxidation and maintain the optimal surface condition for coating application.

Surface Activation and Roughening

The surface activation process for MMO Ribbon Anode manufacturing creates the microscopic surface texture and chemical reactivity required for strong adhesion of the mixed metal oxide coating. Controlled sandblasting or chemical roughening techniques increase the surface area and create mechanical anchoring sites that enhance coating adhesion and durability. The surface roughness profile is carefully controlled to optimize the balance between coating adhesion and electrical conductivity, with measurements performed using calibrated surface profilometry equipment. Surface activation treatments may include plasma cleaning or chemical activation procedures that modify the surface chemistry of the titanium substrate to promote better wetting and adhesion of the coating precursors. The activated surface condition is verified through contact angle measurements and surface energy analysis to ensure optimal conditions for coating application. Time limits between surface activation and coating application are strictly controlled to prevent surface contamination or re-oxidation that could compromise the manufacturing quality of the MMO Ribbon Anode.

How Are Mixed Metal Oxide Coatings Applied to Create MMO Ribbon Anode?

Precursor Solution Preparation and Application

The coating application process for MMO Ribbon Anode manufacturing begins with preparation of precisely formulated precursor solutions containing iridium and tantalum compounds that will form the electrochemically active mixed metal oxide layer. The precursor solutions are prepared using high-purity chemicals in controlled ratios that determine the final composition and electrochemical properties of the MMO Ribbon Anode coating. Solution preparation includes pH adjustment, concentration verification, and homogeneity testing to ensure consistent coating properties across all production batches. The application of precursor solutions to the titanium substrate is performed using controlled dip-coating or brush-coating techniques that achieve uniform coverage and coating thickness. Multiple thin coats are applied rather than single thick applications to ensure proper adhesion and minimize coating defects that could affect the performance of the finished MMO Ribbon Anode. Each coating application is followed by controlled drying procedures that remove solvents and prepare the surface for subsequent thermal treatment.

Thermal Treatment and Sintering Processes

The thermal treatment process transforms the applied precursor chemicals into the stable mixed metal oxide coating that gives MMO Ribbon Anode its exceptional electrochemical properties and durability. Controlled atmosphere furnaces maintain precise temperature profiles and atmospheric conditions during the sintering process to ensure complete conversion of precursors to the desired oxide phases. The sintering temperature typically ranges from 450°C to 550°C, with careful control of heating and cooling rates to prevent thermal stress and coating defects. Multiple thermal cycles may be required to build up the desired coating thickness and achieve optimal crystalline structure in the mixed metal oxide layer. The furnace atmosphere is carefully controlled to prevent contamination and ensure proper oxidation reactions during the formation of the MMO Ribbon Anode coating. Temperature uniformity throughout the furnace is monitored and controlled to ensure consistent coating properties across all ribbon segments in each production batch.

Multi-Layer Coating Build-Up and Quality Control

The manufacturing of MMO Ribbon Anode typically requires multiple coating cycles to achieve the minimum thickness of 2 micrometers specified for optimal performance and durability. Each coating layer is applied using the same precursor solution and thermal treatment procedures, with intermediate quality checks to verify coating uniformity and adherence. Layer thickness measurements using calibrated coating thickness gauges ensure that each application contributes appropriately to the total coating build-up. Visual inspection between coating cycles identifies any defects or irregularities that require correction before additional layers are applied to the MMO Ribbon Anode. The final coating thickness is verified using multiple measurement techniques including cross-sectional microscopy and eddy current thickness gauges to ensure compliance with specifications. Coating adhesion testing using standardized procedures verifies that the finished coating will withstand the mechanical stresses encountered during installation and service.

What Final Processing Steps Complete MMO Ribbon Anode Manufacturing?

Conductive Connection Integration

The integration of conductive connections represents a critical final processing step in MMO Ribbon Anode manufacturing, ensuring reliable electrical connectivity throughout the anode system. High-precision spot welding equipment creates permanent connections between conductive titanium strips and the coated ribbon substrate without damaging the mixed metal oxide coating. The welding parameters including current, time, and electrode pressure are optimized to achieve strong mechanical connections while maintaining the integrity of the electrochemically active coating. Connection point spacing is calculated to ensure uniform current distribution along the length of the MMO Ribbon Anode while minimizing resistance losses. Quality control procedures verify the electrical continuity and mechanical strength of all welded connections through resistance measurements and pull testing. The conductive strip material and dimensions are selected to handle the expected current loads while maintaining compatibility with the titanium substrate and coating system.

Comprehensive Testing and Quality Verification

The final testing procedures for MMO Ribbon Anode manufacturing encompass comprehensive evaluation of all critical performance characteristics including coating thickness, adhesion, conductivity, and dimensional accuracy. Accelerated life testing simulates long-term service conditions to verify that the MMO Ribbon Anode will meet specified performance requirements throughout its design life. Electrochemical testing procedures evaluate the current-voltage characteristics and verify that the anode exhibits the expected electrochemical behavior under simulated service conditions. Coating adhesion testing using standardized bend tests and thermal cycling procedures ensures that the mixed metal oxide layer will remain intact under installation and service stresses. Dimensional verification confirms that all geometric specifications are met and that the finished MMO Ribbon Anode will install properly in cathodic protection systems. Documentation procedures record all test results and provide complete traceability for each production batch.

Packaging and Shipping Preparation

The packaging process for MMO Ribbon Anode requires special handling procedures to protect the delicate coating and maintain product quality during transportation and storage. Individual ribbon sections are carefully wound onto non-conductive spools or reels that prevent mechanical damage to the coating while allowing easy unwinding during installation. Protective wrapping materials prevent moisture exposure and physical damage during shipping while allowing visual inspection of the product condition upon receipt. Packaging documentation includes material certificates, test reports, and handling instructions that ensure proper storage and installation of the MMO Ribbon Anode. Special shipping containers and cushioning materials protect against shock and vibration damage that could compromise coating integrity or dimensional accuracy. Quality control procedures verify that packaging operations do not introduce contamination or damage that could affect the performance of the finished MMO Ribbon Anode system.

Conclusion

To attain the high performance characteristics expected by cathodic protection applications, the fabrication of MMO Ribbon Anode on titanium mesh substrate involves complex control of substrate preparation, coating application, and thermal processing.  These anodes provide dependable, long-term protection for vital infrastructure in the harshest situations thanks to meticulous production processes and thorough quality control.
