GR2 Titanium Wires are shipped and packed based on their diameter ranges. They are done in a special way that keeps the integrity of the material safe while it is being shipped and stored. Fine-diameter wires, which are usually between 0.1mm and 3mm, come on small spools that are precision-wound to keep them from getting tangled up or breaking. For medium diameters (3 mm to 6 mm), stronger reels with strengthened flanges are used. For heavy gauges above 6 mm, strong coils or drums with extra protective wrapping are used. Each type of package has corrosion inhibitors, moisture barriers, and dimensional labelling that meet ASTM B863 standards. This makes sure that engineers and purchasing managers get materials that keep their required tensile strength and surface quality after delivery.

Understanding GR2 Titanium Wire and Its Specifications

Grade 2 titanium wire is the best balance point among commercially pure titanium products because it has a modest tensile strength and great corrosion resistance. At Shaanxi CXMET Technology Co., Ltd., we make these wires with titanium that is about 99.2% pure. They have tensile strengths between 345 MPa and 510 MPa and can stretch no more than 18%. Because of its makeup, the material can naturally create a layer of protective titanium dioxide when it comes into contact with oxygen. This makes it very useful in marine settings and chemical processing plants where chloride-induced corrosion would destroy other materials.

Standard Diameter Ranges Available

We can make wires with diameters ranging from very thin (0.1 mm) wires used for medical suturing to strong (8 mm) wires used in structural aircraft parts. The three most popular diameters that are bought are fine wire (0.1mm to 1.5mm) for welding filler and orthodontic devices, medium wire (1.5mm to 4mm) for making springs and anodising racks, and heavy wire (4mm to 8mm) for making fasteners and additive manufacturing feedstock. Each diameter category goes through cold drawing processes that are set up to keep dimensional tolerances of ±0.05mm. This is very important for automated production settings where dimensional consistency has a direct effect on yield rates.

Mechanical Property Variations by Size

Beyond just cross-sectional strength, wire diameter has a big effect on mechanical performance traits. Because thinner diameters are more flexible and easier to shape, 0.5mm wire is perfect for complicated braiding tasks in catheter building. On the other hand, the heavier 6mm wire is better at resisting fatigue in uses that are loaded and unloaded many times, like aircraft cable assemblies. Work hardening happens during the cold-drawing process, which raises the yield strength by 15–25% compared to annealed conditions. However, this benefit decreases as the diameter increases. When procurement teams understand these connections, they can define exact diameter needs that match operational stress profiles. This way, they don't have to settle for oversized materials that add to the cost of the project without needing to.

Packaging Methods for GR2 Titanium Wire According to Diameter

Proper packaging methodologies preserve the substantial GR2 Titanium Wires investment represented by high-purity titanium wire throughout global supply chains. We have developed diameter-specific protocols over our 20 years of operation that address the unique vulnerability profiles of each size category.

Spool and Reel Configurations for Fine Wire

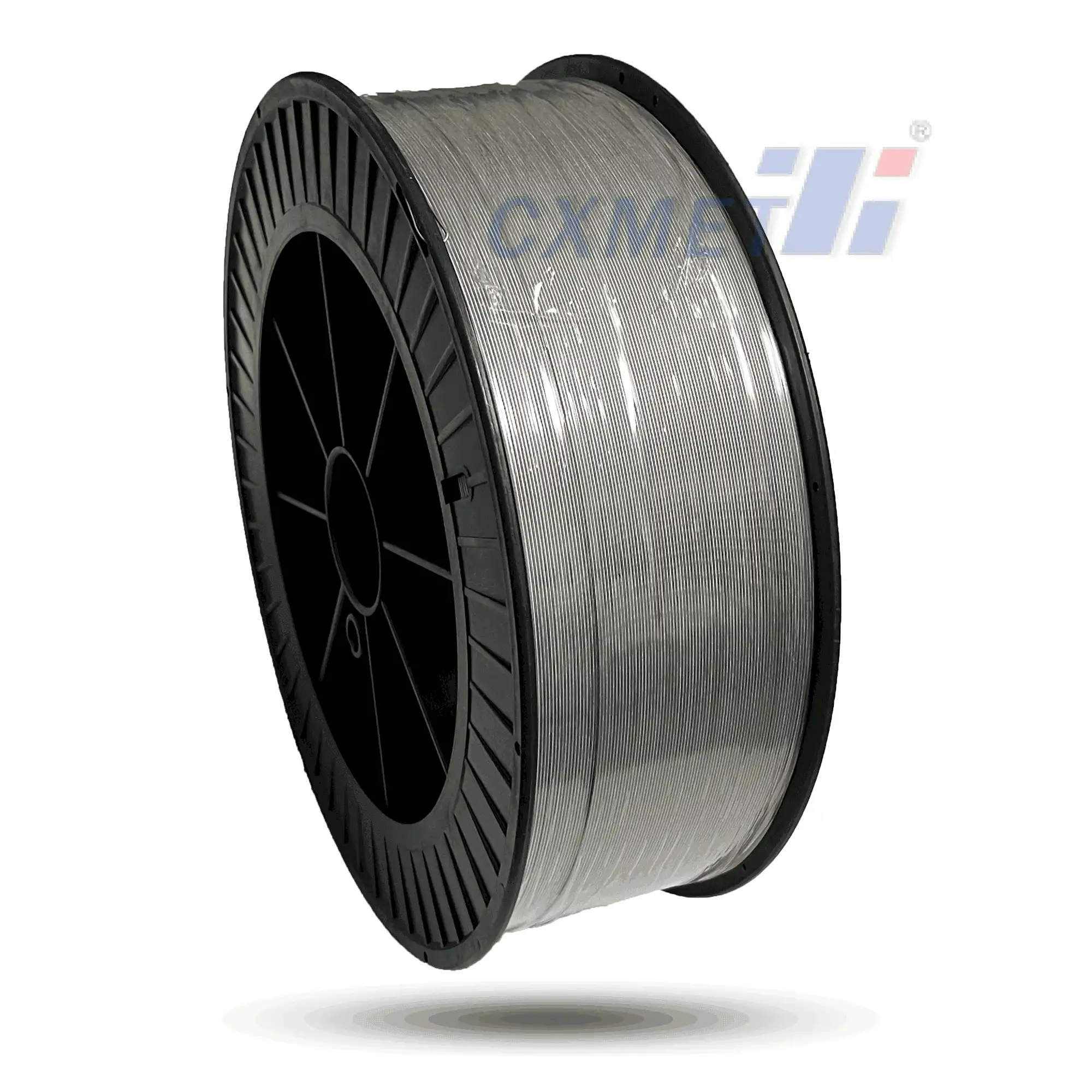

Fine-diameter wire below 2mm arrives wound on precision-machined plastic or metal spools with flanges designed to prevent wire overlap and subsequent surface scratching. Each spool contains between 50 meters and 500 meters of wire, depending on diameter, with the exact length calculated to prevent core collapse under the wire's own weight during unwinding operations. We apply a light coating of soluble rust inhibitor before winding, which purchasers can remove through simple degreasing without affecting weldability when the wire serves as ERTi-2 filler material. The spools nest within foam-padded boxes rated for international shipping vibration standards, with desiccant packets maintaining internal humidity below 40% to prevent hydride formation in the titanium matrix.

Coil Packaging for Medium and Heavy Gauges

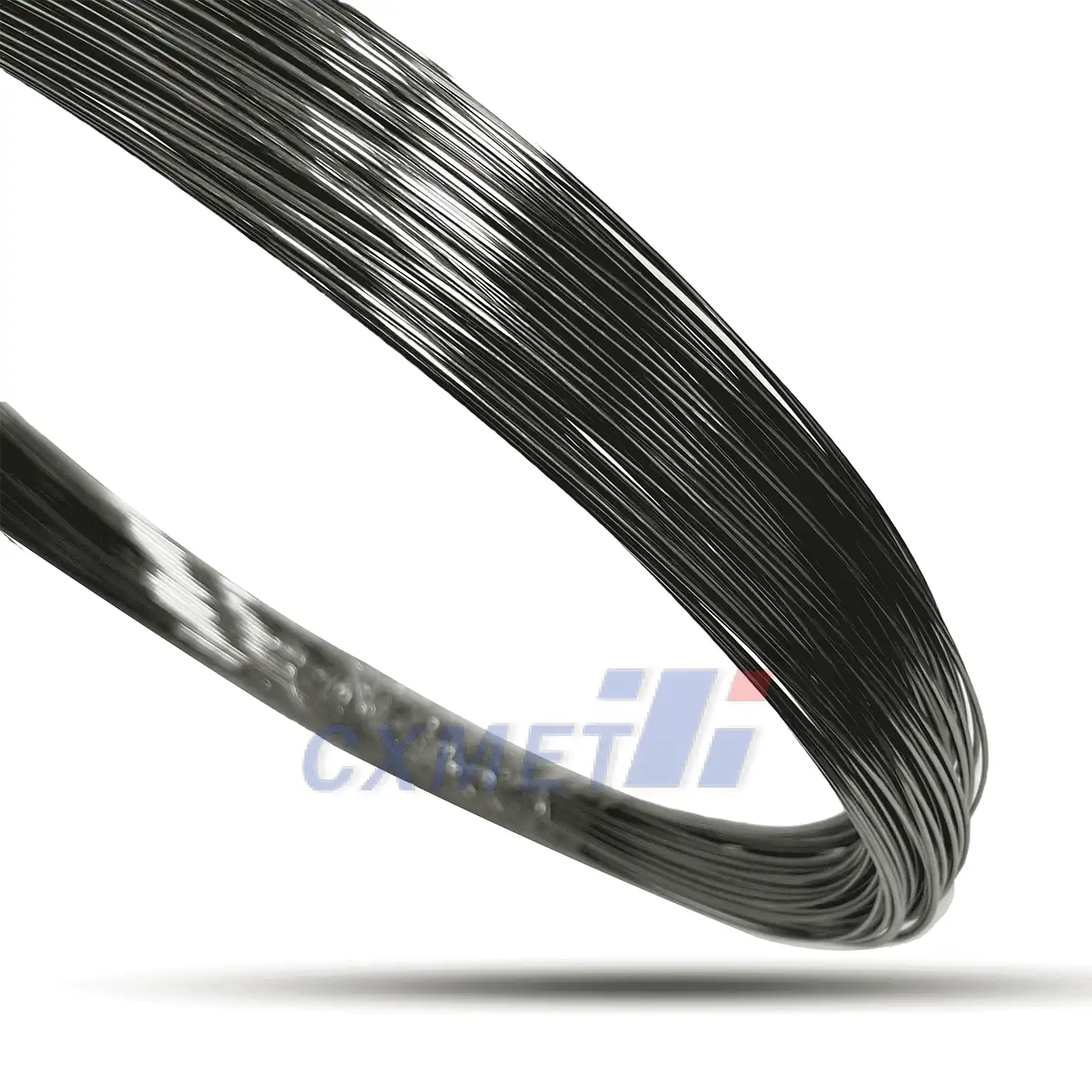

Wire diameters exceeding 3mm transition to coil packaging, where the material winds into self-supporting rings bound at multiple points with corrosion-resistant tie wire. These coils typically range from 10kg to 50kg in weight, striking a balance between handling convenience and shipping efficiency. We wrap each coil in VCI (Vapor Corrosion Inhibitor) paper that releases protective molecules, creating an invisible coating on the titanium surface, effective for up to 24 months in covered storage conditions. External packaging consists of heat-shrunk polyethylene film providing moisture barriers and wooden crates for coils exceeding 25kg, which meet ISPM-15 international phytosanitary standards for fumigation-free shipping.

Customized Solutions for Specialized Applications

Aerospace and medical device manufacturers often require additional packaging specifications beyond standard commercial offerings. We accommodate requests for individual spool serialization, enabling lot traceability to specific ingot batches, critical when components require material certification documentation. Cleanroom-compatible packaging utilizing electrostatic-dissipative materials protects wire destined for semiconductor manufacturing environments. For subsea equipment fabricators requiring immediate offshore deployment, we provide vacuum-sealed aluminum foil pouches with inert gas purging that eliminate all atmospheric exposure until the moment of use, preserving surface chemistry for critical welding operations in remote locations.

How Diameter Influences Supply Options and Procurement Decision-Making

The relationship between wire diameter and procurement variables extends beyond simple unit pricing, affecting lead times, minimum order quantities, and supply chain flexibility in ways that directly impact project timelines.

Inventory Availability and MOQ Considerations

Common diameters such as 1mm, 2mm, and 3mm typically remain in stock at our Shaanxi facility, enabling shipment within 48 hours of order confirmation. These popular sizes support minimum order quantities as low as 5kg, accommodating prototype development projects and R&D testing programs. Conversely, specialized diameters like 0.3mm or 7.5mm operate on a made-to-order basis with 15-25 day production windows and 25kg minimum quantities reflecting the setup costs associated with die changes and drawing schedule adjustments. Procurement managers can optimize both cost and delivery timelines by consolidating requirements around stocked diameters during the design phase, rather than specifying custom sizes that introduce unnecessary lead time extensions.

Application-Based Diameter Selection

Matching wire diameter to end-use application prevents both material waste and performance shortfalls. Welding operations in chemical reactor fabrication typically consume 2.4mm or 3.2mm filler wire, sizes that balance arc stability with deposition rates when joining 6mm and thicker plate. Spring manufacturers serving the GR2 Titanium Wires in the medical device sector specify 0.8mm to 1.5mm wire, providing the elastic modulus needed for consistent compression characteristics across sterilization cycles. Additive manufacturing via Wire Arc techniques prefers a 1.2mm diameter, which melts uniformly under controlled arc conditions while maintaining sufficient rigidity for consistent wire feed through automated systems. These application-diameter correlations stem from decades of field performance data rather than theoretical calculations alone.

Comparative Material Economics

While GR2 titanium wire commands premium pricing compared to stainless steel alternatives, total cost of ownership calculations frequently favor titanium in corrosive service conditions. A chemical processing plant replacing stainless steel tie wire in chlorinated environments every 18 months discovered that switching to 1.5mm Grade 2 titanium wire lasting beyond 10 years reduced annual maintenance expenses by 60% despite the 4x higher initial material cost. The 4.51 g/cm³ density advantage translates to tangible weight savings in aerospace applications where every kilogram removed from rotating assemblies reduces fuel consumption throughout the aircraft's service life, creating cost recoveries that dwarf procurement price differentials.

Benefits of Choosing GR2 Titanium Wire by Diameter for Industrial Use

Optimizing diameter selection unlocks performance advantages inherent to Grade 2 titanium's material properties, particularly in demanding operational environments where premature failure carries catastrophic consequences.

Corrosion Resistance Across Service Conditions

The spontaneous passivation characteristic of Grade 2 titanium manifests consistently across all diameter ranges, though surface-area-to-volume ratios influence reaction kinetics in specific chemical environments. Thinner 0.5mm wire used in electroplating basket construction exposes greater surface area per unit mass, accelerating the formation of the protective oxide layer when immersed in sulfuric acid anodizing baths. This rapid passivation prevents the dissolution issues that plague copper and aluminum alternatives within hours of exposure. Heavier 5mm wire in marine fastener applications develops equivalent corrosion protection, though the thicker cross-section provides additional material reserve that extends service life beyond 30 years in continuously submerged seawater applications where stainless steel experiences pitting failure within 5-7 years.

Performance Validation Through Industry Applications

Aerospace manufacturers have documented significant operational improvements after transitioning to diameter-optimized Grade 2 titanium wire. A commercial aircraft engine producer replaced nickel alloy safety wire with 1mm GR2 titanium wire in turbine section lockwiring applications, achieving 40% weight reduction without compromising the 450°C temperature exposure capability required during engine operation. The material change eliminated galvanic corrosion issues previously encountered between nickel wire and titanium structural components, extending inspection intervals and reducing unscheduled maintenance events by 25%. Marine engineering firms constructing desalination systems report that 3mm Grade 2 titanium wire used in heat exchanger tube support structures maintains dimensional stability through 15-year service lives despite continuous exposure to concentrated brine at 80°C, conditions that cause stress corrosion cracking in conventional austenitic stainless steels within 36 months.

Engineering Efficiency Gains

Proper diameter specification streamlines manufacturing workflows and reduces secondary processing requirements. Medical device fabricators producing orthodontic archwires purchase 0.9mm Grade 2 titanium wire in the bright-annealed condition, eliminating heat treatment steps and allowing direct forming into complex curves without spring-back issues. Chemical equipment manufacturers appreciate that 2.5mm wire arrives with surface finishes of 1.6 Ra micrometers, sufficiently smooth for direct welding without additional pickling, reducing fabrication time by 20% compared to alloy grades requiring mandatory surface preparation. These efficiency improvements compound throughout production volumes, transforming material cost premiums into net savings when evaluating fully GR2 Titanium Wires' burdened manufacturing expenses.

Reliable Suppliers and Ordering Tips for GR2 Titanium Wire by Diameter

Selecting a qualified supplier represents a critical procurement decision affecting material quality, delivery reliability, and total project success. Certification verification and supply chain transparency distinguish premium providers from commodity distributors.

Certification Standards and Quality Assurance

Shaanxi CXMET Technology Co., Ltd. maintains certifications under ASTM B863 for titanium wire specifications and AWS A5.16 for welding filler metal classifications, ensuring every production lot meets dimensional tolerances, chemical composition limits, and mechanical property minimums documented through certified mill test reports. Our ISO 9001:2015 quality management system governs raw material incoming inspection through final product testing, with computerized tensile testing equipment calibrated quarterly against NIST-traceable standards. Procurement managers should request Certificate of Compliance documentation specifying heat number traceability, particularly for applications in FDA-regulated medical devices or ASME pressure vessel fabrication, where material pedigree audits occur routinely. We provide these certificates in digital format within 24 hours of shipment, expediting receiving inspection processes for time-sensitive projects.

Optimizing Procurement Strategy

Volume-based pricing structures reward consolidated purchasing, with price breaks typically occurring at 100kg, 500kg, and 1000kg order quantities. However, buyers should balance unit cost savings against inventory carrying costs and material shelf life considerations. While Grade 2 titanium wire remains stable indefinitely under proper storage conditions, tying up working capital in excessive inventory creates opportunity costs that may exceed the 8-12% price differential between pricing tiers. We recommend establishing blanket purchase orders covering annual requirements with scheduled releases matching production consumption rates, capturing volume pricing while minimizing on-hand inventory. Custom diameter orders benefit from planning, as scheduling production runs during our quarterly die maintenance windows can reduce lead times from 25 days to 12 days for orders placed 60 days ahead of required delivery dates.

Regional Distribution Capabilities

Our distribution network extends throughout North America and Europe through partnerships with specialized non-ferrous metal service centers stocking commonly specified diameters. This regional presence enables two-day delivery to most industrial centers for standard sizes, though direct shipment from our Shaanxi facility often proves more cost-effective for orders exceeding 200kg. International shipping via air freight typically requires 7-10 days door-to-door, including customs clearance, while ocean freight extends to 35-45 days but reduces transportation costs by 70% for shipments above 500kg. Procurement teams should communicate project timelines transparently, allowing us to recommend optimal shipping methods balancing cost and schedule requirements, rather than defaulting to premium express services unnecessarily.

Conclusion

Understanding how GR2 Titanium Wires are packaged and supplied according to diameter specifications empowers procurement professionals to make informed decisions that optimize material performance, control costs, and ensure timely project completion. The diameter-specific packaging methodologies protect material integrity throughout global supply chains, while recognizing how wire size influences procurement variables enables strategic sourcing approaches. Shaanxi CXMET Technology Co., Ltd. combines two decades of manufacturing expertise with responsive technical support, delivering certified Grade 2 titanium wire that meets the exacting standards of aerospace, chemical processing, and medical device industries. The investment in proper material selection and qualified suppliers generates measurable returns through extended component service life, reduced maintenance requirements, and enhanced operational reliability.

FAQ

1. What lead times should we expect for custom wire diameters?

Standard diameters maintained in inventory typically ship within 48-72 hours of order confirmation. Custom diameters require 15-25 business days for production, including die preparation, drawing operations, and quality testing. Placing orders 60 days in advance during scheduled maintenance windows can reduce lead times to 12 days. We recommend discussing your timeline requirements directly with our technical team at sales@cxmet.com to explore expediting options that may include prioritized production scheduling or alternative diameter substitutions meeting your application specifications.

2. How does wire diameter affect corrosion resistance performance?

Grade 2 titanium's corrosion resistance stems from spontaneous oxide layer formation, which occurs uniformly across all diameter ranges. Thinner wires exhibit higher surface-area-to-volume ratios, accelerating initial passivation in aggressive chemical environments. However, heavier diameters provide greater material thickness, extending service life in applications involving mechanical wear combined with corrosive exposure. The protective oxide layer reforms instantaneously if damaged, maintaining corrosion immunity regardless of wire size in most industrial environments.

3. Are certified test reports available with bulk orders?

Every shipment from Shaanxi CXMET Technology Co., Ltd. includes Certificates of Compliance documenting chemical composition, tensile strength, yield strength, elongation values, and heat number traceability compliant with ASTM B863 requirements. These certified mill test reports enable material verification during receiving inspection and provide documentation for quality management system audits. We supply digital copies within 24 hours of shipment and can provide additional third-party inspection reports when specified during order placement for applications requiring enhanced material pedigree documentation.

Partner with CXMET for Your GR2 Titanium Wire Requirements

Shaanxi CXMET Technology Co., Ltd. stands as a trusted GR2 Titanium Wires manufacturer with comprehensive capabilities spanning a diameter range from 0.1mm to 8mm, backed by ASTM B863 and AWS A5.16 certifications. Our 50,000-square-meter facility in China's Titanium Valley houses advanced cold-drawing equipment and quality testing laboratories staffed by more than 80 specialized technicians, ensuring consistent material properties across production lots. We offer customizable surface finishes, flexible packaging configurations, and competitive pricing structures for both prototype quantities and production volumes. Procurement managers benefit from our technical support team's expertise in application-specific diameter selection, material substitution analysis, GR2 Titanium Wires,  and supply chain optimization. Whether your project demands corrosion-resistant components for chemical processing, lightweight structural elements for aerospace assemblies, or biocompatible wire for medical devices, our product portfolio delivers performance reliability that reduces the total cost of ownership. Contact our team at sales@cxmet.com to discuss your diameter specifications, request certified test reports, or receive a detailed quotation tailored to your procurement requirements.

References

1. American Society for Testing and Materials. (2021). ASTM B863-21: Standard Specification for Titanium and Titanium Alloy Wire. ASTM International, West Conshohocken, PA.

2. American Welding Society. (2018). AWS A5.16/A5.16M: Specification for Titanium and Titanium-Alloy Welding Electrodes and Rods. Miami, FL: American Welding Society.

3. Lutjering, G., & Williams, J.C. (2007). Titanium (2nd ed.). Berlin: Springer-Verlag, Engineering Materials and Processes Series.

4. Schutz, R.W., & Watkins, H.B. (1998). Recent developments in the application in the energy industry. Materials Science and Engineering: A, 243(1-2), 305-315.

5. Donachie, M.J. (2000). Titanium: A Technical Guide (2nd ed.). Materials Park, OH: ASM International.

6. Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. Materials Park, OH: ASM International.
