knowledges

Electrode anode titanium, specifically Dimensionally Stable Anodes (DSA) built on a Titanium Grade 1 substrate with mixed metal oxide (MMO) coatings, typically last between 3 and 20+ years depending on the application. In swimming pool chlorination or light-duty water treatment, service life commonly runs 3–5 years. In impressed current cathodic protection (ICCP) for offshore pipelines, properly engineered units routinely exceed 20 years. Industrial electrowinning applications fall somewhere in between, averaging 8–12 years. Coating type, current density, and electrolyte chemistry are the primary variables that determine exactly where your anodes land within that range.

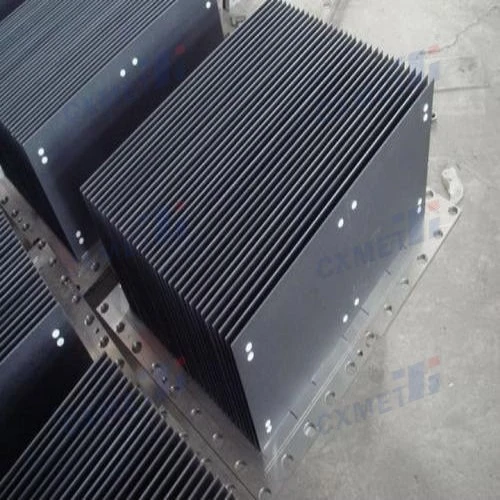

Understanding Titanium Electrode Anode Lifespan

Why Titanium Is the Preferred Substrate

Titanium Grade 1 has a tensile strength of 240 MPa and is almost completely resistant to corrosion caused by chloride. It doesn't dissolve into the electrolyte or change shape when an electrical load is applied for a long time, as graphite or lead does. Because titanium is so stable, it is the standard material for industrial DSA electrodes in the naval, chemical processing, and power metallurgy fields.

Typical Lifespan Ranges by Application

The useful service ceiling is set by the coating loading (in grams per square meter of noble metal oxide) and the operating current density. It can last 8–10 years with a coating of 8–12 microns thick of Ru-Ir oxide that is electrolyzed at 500 A/m² in brine. In pharmaceutical plating, the same substrate with a platinum coating of 0.5 to 2.5 microns may last for 5 to 7 years at a lower current density. ICCP anodes that work below 50 A/m³ in saltwater usually last longer than 20 years.

Environmental Factors That Affect Durability

They attack the inactive oxide layer on the substrate, which makes fluoride ions some of the worst contaminants for electrode anode titanium. When the electrolyte temperature is above 60°C, the layer dissolves more quickly. When the pH changes outside of the intended range, especially when strong acids are present below pH 1, the coating's life is significantly reduced. When buying, teams know about these factors ahead of time; they can choose the right coating chemistry before making an order.

Key Factors Affecting the Lifespan of Titanium Anode Electrodes

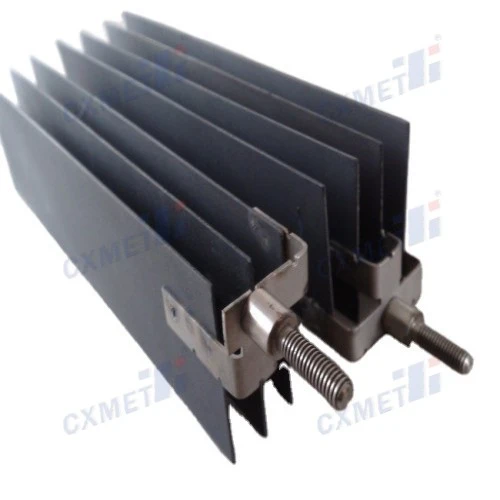

Coating Type and Thickness

CXMET makes three main types of coatings. Ru-Ir oxide (8–12 microns) is used to target reactions that release chlorine in brine and make sodium hypochlorite. It is possible for Ir-Ta oxide (8–12 microns) to release oxygen in sulfuric acid conditions that are typical in copper and nickel electrowinning. Platinum coating (0.5–2.5 microns) is used for high conductivity and precise plating. It is very important to match the coating chemistry to the electrochemical reaction. This is the single most important choice for service life.

Operating Current Density

Too much current density creates heat at the anode surface, which speeds up the breakdown of the oxide layer. A study in the Journal of Applied Electrochemistry confirms that increasing the design current density by two times can shorten the life of DSA coatings by forty to sixty percent. Under normal conditions, CXMET anodes can handle continuous current levels of between 2,000 and 5,000 A/m². However, only using them within this range protects the coating's integrity.

Manufacturing Quality and Standards Compliance

CXMET makes titanium anode plates that are in line with ASTM B381 (Grade Ti GR1). To get the adhesion profile needed for long-lasting oxide coatings, the surface is prepared in a certain order: sandblasting, acid cleaning, polishing, and brushing. X-ray fluorescence (XRF), an independent quality check method, confirms the coating thickness and noble metal ratios. Accelerated Life Testing (ALT) at 20,000 A/m² confirms the expected service life before shipment.

Maintenance and Care Tips to Maximize Titanium Anode Lifespan

Routine Inspection Protocols

Every 6 to 12 months, engineers should plan to do visual and electrical checks on electrode anode titanium. One clear sign of early coating wear is a change in color from the dark gray-green color of new MMO oxide to a lighter, more metallic look. When you measure cell voltage at steady current loads, you can get a good idea of how well the battery is working. A steady rise in cell voltage over time means that the coating is wearing off.

Cleaning Procedures to Prevent Scale Buildup

Scales of calcium and magnesium on the anode surface act as an insulating barrier, raising the voltage in the cell and making hot spots that speed up degradation in certain areas. A soak in 5–10% hydrochloric acid at room temperature for 30 minutes gets rid of carbonate scale well without hurting the oxide cover. This process doesn't need any special tools and can be done by in-house maintenance teams.

Troubleshooting Common Failure Modes

Reversed polarity connections, fluoride contamination, and running above the rated current density limit are the three most common reasons why things break too soon. When the polarity is switched around, the titanium base has to work as a cathode. This quickly removes the oxide covering by releasing hydrogen. Putting in polarity safety switches and keeping electrolyte purity logs are easy, low-cost ways to keep your anode working for a lot longer.

Comparing Titanium Anode Electrodes with Other Anode Materials

Titanium MMO vs. Graphite Anodes

During operation, graphite anodes gradually oxidize, releasing carbon particles into the electrolyte and making gunk that taints the cathode product. The inter-electrode gap changes over time because of their dimensional instability, which causes the voltage to drift. Titanium DSA electrodes keep the same shape over time, so they always give the same amount of current and pure product. Graphite may be cheaper at first, but over three years, it usually ends up being more expensive because it needs to be replaced more often and more products get contaminated.

Titanium MMO vs. Lead Alloy Anodes

Some old electrowinning circuits still use lead anodes, but they can contaminate refined metal products with lead, which is a big problem for companies that make copper, cobalt, and nickel. Electrode anode titanium coated with Ir-Ta oxide completely block this path for contamination. Besides that, they work with lower oxygen evolution overpotentials, which saves energy directly per ton of processed metal.

Total Cost of Ownership Perspective

Titanium surfaces can be coated again. When the MMO layer is no longer useful, the base titanium structure—which usually stays whole—can be polished and recoated for about 60% to 70% less than the price of a new anode. Because it can be recoated, procurement managers get a long-lasting asset instead of a consumable. This changes the total cost of ownership calculation in a big way when compared to graphite or lead alternatives.

Procurement Insights: Buying Titanium Electrode Anodes for Long-Term Value

Sourcing from Certified Manufacturers

Any seller should have to give the purchasing team ASTM B381 substrate approval, XRF coating verification records, and ALT test data. CXMET is based in Shaanxi Province, which is China's designated titanium production hub. For more than 20 years, it has sold titanium anodes to companies in the electronics, oil and gas, chemical processing, pharmaceutical, and marine industries. Each order comes with certifications that show how the materials can be tracked.

Customization and Sizing Options

CXMET has anode shapes like plates, mesh, rods, tubes, and wire forms that can be fully customized. The sizes are made to fit current tools without having to be changed. The coating type—Ru-Ir, Ir-Ta, or platinum—is chosen with the help of CXMET's expert team based on the electrolyte chemistry and current density needs of the client. This level of specification matching directly lowers the chance that the coating will fail too soon.

Delivery, Compliance, and After-Sales Support

A competitive price is not enough for supply lines to be reliable. With more than 80 professional technicians working for them, CXMET keeps up production on a floor space of 50,000 square meters. Clients get documentation that meets ASTM standards, quick technical help with installation and problems, and access to coating services that protect the value of assets over time.

Conclusion

Electrode anode titanium can last anywhere from 3 years in systems with a lot of chlorine to over 20 years in systems with very little power. There are four things that determine where your anodes fall in that range: coating chemistry, current density, electrolyte composition, and manufacturing quality. The most reliable and cost-effective long-term results will come from choosing the right coating—Ru-Ir for chlorine evolution, Ir-Ta for oxygen evolution, or platinum for precision applications—and getting them from a manufacturer that offers certified substrates and coating data that can be checked.

FAQ

How often should titanium anodes be replaced?

How often you replace the coating relies on the type of coating and how hard it is used. Every 8–10 years, MMO-coated anodes need to be recoated or replaced in brine electrolysis with a modest current density. The same substrate may work in ICCP systems for 20 years or more. Instead of sticking to a set plan, keep an eye on changes in the cell voltage. Rising voltage at steady current is the best sign that it's time to renew the coating.

Are titanium anodes compatible with all electrolytes?

Titanium Grade 1 substrates can stand up to most electrolytes that are acidic or basic. The main exception is liquids that contain fluoride, which attack the inactive titanium oxide layer chemically. Electrolytes that are based on chlorine, sulfuric acid, or alkaline are all well within the design range of CXMET's MMO-coated anodes. Before choosing a coating, you should always check with the technical team to make sure that the electrolyte composition is correct.

Can I recoat my existing titanium anode substrate?

Yes. The titanium substrate is usually still structurally sound after the coating wears off. CXMET offers recoating services that are about 60% to 70% less expensive than buying new anodes. The process includes grinding off the worn-down oxide layer and putting on a new MMO covering that meets the original thickness requirements.

What causes early coating failure?

Three main things that cause MMO coating to fail early are reversed polarity, fluoride contamination, and long-term over-current operation. Each one can be avoided by making sure the circuit is properly protected, keeping an eye on the electrolyte, and staying within the limits for current density.

Request a Quote for CXMET Electrode Anode Titanium

The expert staff at CXMET is ready to help you find the best titanium anode electrode for your needs. With more than 20 years of confirmed production experience, we are a trusted titanium electrode anode maker. We offer ASTM B381-compliant substrates, custom geometries, and verified MMO coatings, all of which come with full paperwork. Contact us today to get a chat about your project and a quote that beats other quotes. To make a request, you can email our team at sales@cxmet.com.

References

1. Comninellis, C., & Vercesi, G. P. (1991). Journal of Applied Electrochemistry, 21(4), 335–345.

2. Beer, H. B. (1980). "The Invention and Industrial Development of Metal Anodes." Journal of The Electrochemical Society, 127(8), 303C–307C.

3. Trasatti, S. (2000). "Electrocatalysis: Understanding the Success of DSA." Electrochimica Acta, 45(15–16), 2377–2385.

4. ASTM International. (2019). ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings. ASTM International.

5. NACE International. (2008). NACE TM0108: Evaluating the Corrosion Resistance of Impressed Current Anode Materials. NACE International.

6. Feng, Y., & Johnson, D. C. (1994). "Electrocatalysis of Anodic Oxygen-Transfer Reactions: Oxidation of Iodide at Electrodeposited Film Electrodes of Platinum-Group Metal Oxides." Journal of The Electrochemical Society, 141(10), 2708–2711.
