Choosing the best MMO coated titanium anodes starts with understanding your specific electrochemical environment. The right anode depends on coating type, current density range, electrolyte chemistry, and expected service life. CXMET produces titanium anodes from Grade 1 titanium (ASTM B381) with Ru-Ir oxide, Ir-Ta oxide, or platinum coatings, each engineered for distinct industrial processes. Whether you work in cathodic protection, electroplating, or water treatment, matching the coating chemistry to your application prevents premature failure and lowers your total operating cost.

Understanding MMO Coated Titanium Anodes

What They Are and How They Work

Anodes made of Mixed Metal Oxide have a titanium base that is valued for its passive TiO2 film on the surface and a thin layer of catalytic oxide on top of it. This layer, which is about 8–12 microns thick, causes electrochemical processes on the anode surface, while the titanium base doesn't dissolve. This makes an electrode that is stable in terms of size and keeps the gap between electrodes fixed. This keeps the cell voltage and product purity stable over years of use.

Coating Chemistries and Their Roles

Two types of coating are most commonly bought by businesses. The Chlorine Evolution Reaction (CER) works best with Ru-Ir oxide layers, which is why they are the best choice for chlor-alkali plants, ocean electrolysis, and chlorinating swimming pools. Ir-Ta oxide coatings are designed to work with the Oxygen Evolution Reaction (OER) in very acidic conditions, like when making copper foil, using sulfuric acid electrolytes, or precision electroplating. For uses that need the purest electrocatalytic material, CXMET also has platinum layers that are 0.5 to 2.5 microns thick.

Available Anode Geometries

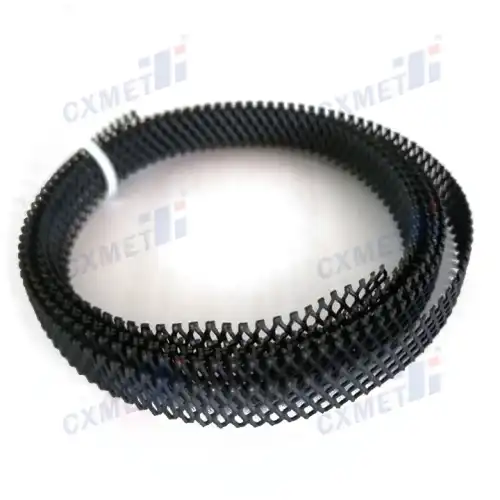

Titanium anodes like mmo coated titanium anodes can be made in mesh, plate, rod, tube, and wire shapes. Each shape has a different effect on how the stream flows. Mesh anodes work well in cathodic protection systems that cover a big area, tube anodes work well in reactor cells that are limited in space, and rod and wire anodes work well in deep-well impressed current installations. As per ASTM B381, CXMET offers fully customizable dimensions. This means that procurement teams can choose the geometry, surface treatment (such as sandblasting, acid cleaning, polishing, or brushing), and coating type all in one order.

Key Criteria for Choosing the Best MMO Coated Titanium Anode

Performance Metrics to Evaluate

Three technical factors set good anodes apart from average ones: how well the coating sticks, how much overpotential there is, and how much current can flow through them. When MMO coating is put properly, it shows a unique "mud-crack" microstructure under SEM. This microstructure improves the active surface area and lowers the chlorine or oxygen evolution overpotential by 10–20% compared to lead anodes. The thermal decomposition sintering method used by CXMET makes coatings that can handle current densities between 500 A/m² and 2,000 A/m³, based on the electrolyte.

Cost of Ownership vs. Purchase Price

The real cost of ownership, not the initial price, is what tells the whole story. If the coating is too thin or doesn't stick well, it might only last two to three years at low current loads, which means it needs to be replaced often and production has to stop. Lifecycle cost goes down a lot when you spend more on an 8–12 micron coating that is properly specified and has a service life of ten to twenty years. Purchasing managers should ask manufacturers for accelerated life test data and think about the possibility of recoating. Spent titanium plates from CXMET can be stripped, cleaned, and recoated, which keeps the value of the GR1 base material.

Customization and OEM Compatibility

Standard stock anodes don't always work with all cell arrangements for mmo coated titanium anodes. Because CXMET's sizes are fully changeable, engineers can choose the exact sizes, connection types, and surface styles to match the shape of an existing reactor without having to add new hardware. This level of standard control cuts down on the time it takes to commission and the risk of installation, which are two things that experienced buying teams always put above unit price.

Comparing MMO Coated Titanium Anodes with Other Anode Types

MMO vs. Graphite and Lead Anodes

Over time, graphite anodes wear away, polluting the solution and making the electrode gap smaller. Lead anodes can contaminate electrolytes with heavy metals and don't work well in electrolytes that are low in acidity or sulfate. Titanium anodes that are dimensionally stable, on the other hand, don't dissolve, so they don't leave behind any metal impurities at the cathode deposit. This is a big plus in copper and nickel electrowinning, where product quality is important for business.

MMO vs. Platinum Anodes

Platinum anodes have great electrocatalytic activity, but they are very expensive, so they can't be used on a large scale. The OER performance of MMO coatings, especially Ir-Ta versions, is about the same in most commercial electrolytes, but they cost a lot less. The 0.5–2.5 micron platinum coating option from CXMET works well in situations that need platinum-level purity without the need for a solid platinum electrode.

Environmental and Regulatory Factors

Environmental rules are getting stricter in the US and around the world when it comes to using lead anodes. Titanium-based anodes don't make any harmful trash when they dissolve; they're in line with EPA rules for wastewater release, and they make it easier to report environmental compliance. This compliance benefit lowers regulatory risk over the asset's entire service life for teams that are responsible for both practical and environmental goals.

Maintenance, Cleaning, and Lifespan Optimization

Routine Inspection Practices

Visual inspection every three to six months can help find early layer delamination or passivation in one area before it moves to other areas. Watch for changes in the cell voltage when the current stays the same. An unexpected rise of 0.2 to 0.5 V is often a sign that the coating is wearing away. If this is caught early, it is possible to do targeted work instead of replacing the whole anode.

Cleaning Protocols

Most of the time, the anode function of mmo coated titanium anodes is slowed down by scale buildup from salts in hard water. A soak in 5–10% HCl at room temperature for 30–60 minutes gets rid of calcium and magnesium scale without hurting the oxide cover. Do not use mechanical scratching on the active electrode surface. The MMO layer is thin and brittle, so wire brushing or grinding it will greatly shorten its life.

Factors That Affect Service Life

The operating conditions have a direct effect on how long a titanium anode lasts. High current density speeds up the coating's breakdown; fluoride ions and organic contaminants act as "anode poisons" that break down the oxide layer too quickly. The three best ways to reach or go beyond the rated service life are to keep the current density between 500 and 1,500 A/m², keep the electrolyte temperature within the design limits, and keep fluoride from getting into the system.

Purchasing and Supplier Selection Guide

What to Look for in a Manufacturer

A good MMO anode maker should have ISO 9001 certification, be able to fully trace their materials back to the grade of titanium they are made of, and be able to give you data from rapid life tests for each coating recipe. Launched in 2005, Shaanxi CXMET Technology Co., Ltd. is in China's "titanium valley" in Shaanxi Province and has more than 80 technical staff with more than 20 years of production experience. The company makes goods that meet ASTM B381 standards and sells them to people in the electronics, pharmaceutical, marine, oil and gas, chemical processing, and power generation businesses.

Ordering, Lead Times, and Logistics

It takes longer to make tools and apply coatings to anodes that are made to specific measurements. When you work with a provider that keeps both standard and semi-finished stock on hand, you can get backups faster. With OEM manufacturing services and bulk order pricing, CXMET gives procurement teams the freedom to use their resources for both planned and unplanned maintenance needs. Check the packaging instructions for MMO surfaces that are easily damaged—the right foam or bubble wrap separation keeps coating chips from getting damaged during shipping.

Verifying Product Quality Before Shipment

For big orders, ask for a third-party inspection or plant acceptance testing. Key requirements for acceptance include measuring the coating thickness (8–12 microns for Ru-Ir and Ir-Ta; 0.5–2.5 microns for platinum), making sure the substrate is pure (>99.6% Ti for GR1), and testing the adhesion by pulling it off. When these checks are done before shipping, they protect purchase funds and keep expensive installation delays from happening.

Conclusion

Picking the right mmo coated titanium anodes isn't a choice that works for everyone. Performance and lifespan are affected by the coating's chemistry, the substrate's grade, its shape, and the working conditions. By systematically looking at these factors—comparing Ru-Ir and Ir-Ta coatings, figuring out the total cost of ownership, and working with a supplier that allows full customization—engineers and procurement managers can make decisions based on facts. CXMET's Grade 1 titanium anodes are made to ASTM B381 standards and have oxide layers that are carefully controlled to meet the exact needs of heavy-industry electrochemical uses.

FAQ

How long do MMO coated titanium anodes typically last?

Service life depends on current density, electrolyte temperature, pH, and the absence of contaminants like fluoride. Under standard industrial conditions (500–1,500 A/m²), a properly specified 8–12 micron coating can last 10 to 20+ years.

Can the titanium substrate be reused after the coating wears out?

Yes. Spent anodes can be stripped of the depleted oxide layer, chemically cleaned, and recoated. This extends the value of the GR1 titanium base and reduces long-term procurement cost.

How do I choose between Ru-Ir and Ir-Ta coatings?

Select Ru-Ir coatings for chlorine evolution applications such as chlor-alkali or seawater electrolysis. Choose Ir-Ta coatings for oxygen evolution in acidic sulfate environments like copper electrowinning or electroplating.

What is the recommended operating current density?

Most applications run between 500 A/m² and 1,500 A/m² to balance efficiency and coating longevity, though CXMET anodes are rated to handle up to 2,000 A/m² in suitable electrolytes.

How should these anodes be handled during installation?

The oxide coating is thin and brittle. Avoid mechanical impact or scratching on the active surface, and keep the electrode free from oils and greases, which can passivate the electrode and reduce performance.

Request a Custom Quote from CXMET — Trusted MMO Coated Titanium Anode Manufacturer

CXMET offers high-performance mixed metal oxide titanium anodes that are custom-made to your exact needs, including the type of covering, the shape, and the finish of the surface. With more than 20 years of experience making things and a professional team of more than 80 experts, we help procurement teams from the first proposal to delivery. Get in touch with our team right away to talk about your project needs, ask for a sample, or get bulk pricing. You can email us at sales@cxmet.com.

References

1. Trasatti, S. (1991). Physical Electrochemistry of Ceramic Oxides. Electrochimica Acta.

2. Beer, H. B. (1980). The Invention and Industrial Development of Metal Anodes. Journal of The Electrochemical Society.

3. Comninellis, C., & Vercesi, G. P. (1991). Characterization of DSA-type Oxygen Evolving Electrodes. Journal of Applied Electrochemistry.

4. ASTM International. (2019). ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings. ASTM International.

5. Lipp, L., & Pletcher, D. (1997). The Preparation and Characterization of Tin(IV) Oxide Coated Titanium Electrodes. Electrochimica Acta.

6. Panić, V. V., & Nikolić, B. Ž. (2007). Sol-Gel Prepared Active Ternary Oxide Coating on Titanium. Journal of The Electrochemical Society.
