Selecting the right electrode anode titanium starts with matching your electrochemical process requirements to the correct substrate grade and coating type. CXMET produces titanium anodes from Titanium Gr1 (ASTM B381), coated with Ru-Ir oxide (8–12 micron), Ir-Ta oxide (8–12 micron), or platinum (0.5–2.5 micron). Each coating targets a specific reaction environment. Getting this match right determines your energy efficiency, service life, and total cost of ownership. This guide walks procurement engineers through every decision point—from coating chemistry to supplier qualification—so you buy once and buy right.

Understanding the Basics of Titanium Electrode Anodes

What Makes Titanium a Preferred Anode Substrate

Titanium Grade 1 has a tensile strength of at least 240 MPa and forms an inactive oxide layer that repairs itself in both acidic and basic electrolytes. It doesn't break down or contaminate the electrolyte like graphite does. Dimensionally Stable Anodes (DSA) is what the business world calls these products because they don't change in size. The titanium base stays together even after the catalytic coating wears off. This means that the substrate can be recoated, which saves 60–70% of the cost of buying new anodes.

The Role of Noble Metal Oxide Coatings

The electrochemical response is caused by the oxide layer, not the titanium base. A coating of Ru-Ir lowers the overpotential for chlorine evolution, which makes it perfect for systems with salt water and sodium hypochlorite. An Ir-Ta coating helps oxygen move through and can handle the sulfuric acid environments that are common in electrowinning. Platinum coating works well for precise electroplating where almost no contamination is acceptable. The service life is directly related to the thickness of the coating. CXMET's 8–12 micron oxide coatings and 0.5–2.5 micron platinum coatings are put on using a controlled heat decomposition method.

Why Procurement Teams Must Understand Electrode Fundamentals

Specification mistakes are much less likely to happen when the engineering and procurement teams share the same basic information. If you order the wrong coating type, like Ru-Ir for an oxygen-evolution process, the anode will only last half as long. Knowing the limits of current density (usually between 2,000 and 5,000 A/m² for MMO anodes) also keeps thermal stress from causing the anodes to fail too soon. When purchasing managers understand these factors, they can write more detailed technical specs, cut down on back-and-forth with sellers, and avoid expensive replacements in the field.

Key Factors to Consider When Selecting Titanium Electrode Anodes

Coating Type and Process Chemistry

The most important thing to look for in a covering is that its chemistry matches that of your solution. Ru-Ir oxide layers work best in places with a lot of chloride, like chlor-alkali plants and saltwater electrolysis. Ir-Ta oxide layers don't break down in copper electrowinning, which has a lot of air and low pH. Platinum coatings are used for valuable metal plating and high-conductivity tasks. If there are fluorides in the electrolyte, they will directly damage the titanium substrate. This is why the full chemistry of the operating fluid must be disclosed during specification.

Geometry, Size, and Surface Treatment

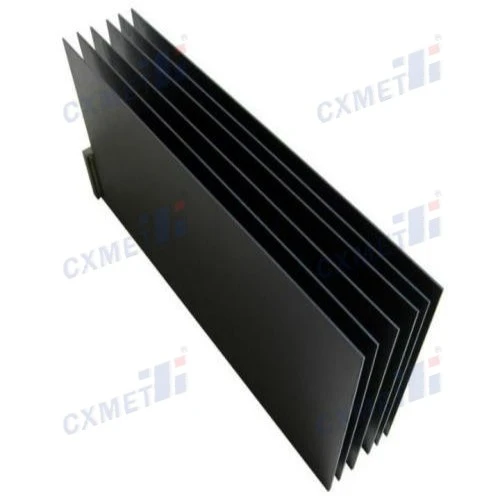

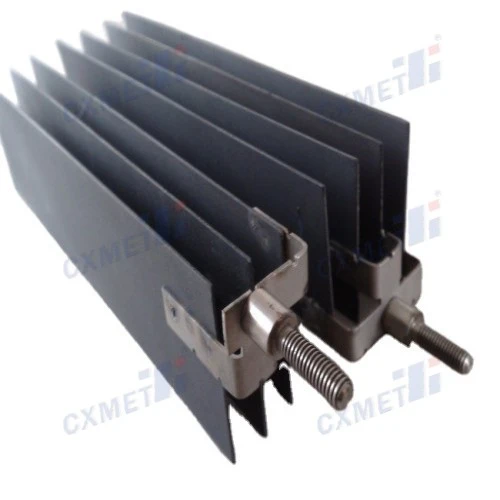

Electrode anode titanium comes in different shapes and sizes, such as plates, mesh, bars, tubes, and wires. Different shapes cause different patterns of current to flow across the cathode surface. CXMET offers measurements that can be changed to fit your needs, and the surface treatments—sandblasting, acid cleaning, polishing, and brushing—are chosen based on whether the application needs a smooth contact or the most active surface area. It is common for coastal buildings to have tubular or wire forms with sand-blasted sides for Impressed Current Cathodic Protection (ICCP). Flat plate or mesh anodes with acid-cleaned sides work best in electroplating tanks.

Operating Current Density and Coating Loading

How long the anode works before it needs to be recoated is based on the coating loading, which is given in grams of noble metal per square meter. Higher current densities speed up the wear and tear on the coating. Before you place your order, make sure you know what your operating current density is and ask the seller for the coating loading standard. Based on your current density, CXMET's technical team can figure out how long the expected service life is and suggest the right loading level. This step alone stops the most common mistake buyers make: they buy anodes that don't have enough coating for the duty cycle.

Titanium Electrode Anode Comparisons to Other Anode Materials

Titanium vs. Graphite Anodes

Graphite anodes are always breaking down, releasing carbon particles into the electrolyte that change the chemistry of the bath. They also have higher overpotentials for oxygen and chlorine, which uses more energy. In the same situation, a titanium MMO anode usually cuts energy use by 15–30% and stops sludge from forming. It costs less to buy graphite at first, but over the next two to three years, titanium will be cheaper because it doesn't need to be replaced as often and doesn't lose quality as much.

Titanium vs. Lead and Stainless Steel Anodes

Slowly breaking down lead anodes in sulfuric acid electrolytes contaminates cathode deposits, which is a big problem in copper electrowinning where strict purity requirements must be met. Anodes made of stainless steel rust quickly in salt conditions and let iron into the system. An electrode anode titanium that has been coated with Ir-Ta stays geometrically stable in sulfuric acid and doesn't cause any metal contamination. During the service cycle, the inter-electrode gap stays the same. This maintains stable cell voltage and uniform product purity, two factors that have a direct impact on the quality of the next step in the process.

When Platinum Anodes Are a Better Fit

Pure platinum wire or foil anodes don't react chemically with a wide range of potentials, and they can handle small amounts of fluoride that would damage titanium. Because it only needs a small surface area for lab-scale or low-volume specialty plating, pure platinum is a cheap choice. However, platinum-coated titanium gives the same electrochemical performance in big commercial tanks for a lot less money. The platinum-coated titanium anodes from CXMET have a covering that is 0.5 to 2.5 microns thick on a Gr1 base. This is done to balance cost-effectiveness with the high conductivity needs of precision plating lines.

Practical Procurement Insights for Titanium Electrode Anodes

Evaluating Supplier Qualifications

When looking for a titanium anode manufacturer, make sure they have proof that their substrate and coating specification sheets meet ASTM B381 standards and show the amount of noble metal in grams per square meter. Check with the seller to see if they do Accelerated Life Testing (ALT) and X-Ray Fluorescence (XRF) proof. These two tests prove the real service life and stop coatings from being delivered below specification. CXMET has its own quality control processes, such as XRF coating verification and adhesion testing according to ASTM D3359. This gives procurement managers data that they can check before the goods are shipped.

Pricing Models and Lead Times

The price of a titanium anode depends on the order volume, the weight of the substrate, the type of coating, and the market prices of noble metals. Because coating is applied in batches, ordering in bulk lowers the cost per unit. For first orders, custom shapes have tooling costs that add up, but these costs are quickly paid off for future orders. After the drawing is approved, the standard wait time for special MMO titanium anodes is four to six weeks. OEM orders with custom shapes, precise dimensions, and special coatings can be accepted by CXMET. Get in touch with the sales team early in the project to make sure delivery fits in with your commissioning schedule.

Managing the Supplier Relationship After Purchase

A good relationship with a seller of electrode anode titanium goes beyond the first order. In your seller deal, ask for the option of recoating. This will protect you if the coating wears off but the substrate is still good. Set up a clear way for people to talk about technical issues during installation and operation. After the sale, CXMET's engineering team offers technical help, such as advice on how to avoid polarity reversal and control current density, which are the two most common reasons why anodes fail too soon in field installations.

Case Studies and Real-World Applications of Titanium Electrode Anodes

Seawater Chlorination System Upgrade

A power plant on the coast switched from graphite anodes to CXMET Ru-Ir treated titanium mesh anodes in the system that chlorinates seawater that comes in. Within the first year of operation, the amount of energy used to make one kilogram of sodium hypochlorite dropped by about 22%, and upkeep times went from every three months to once a year. Because the titanium base is dimensionally stable, the electrode spacing stayed the same. This kept the chlorine output stable and required less human input.

Copper Electrowinning Operation

A copper refinery that used lead anodes had problems with cathodes that were contaminated more than was allowed. When the Ir-Ta-covered titanium anodes were switched to, the lead breakdown stopped completely. The purity of the copper cathode went up from 99.95% to 99.99%, which meets the requirements for LME Grade A. The company also said that there was a measurable drop in cell voltage variation, which meant that the power draw across the tank house was more stable.

ICCP Protection for Offshore Pipeline Infrastructure

Along a 40-kilometer section of a subsea pipeline, an offshore pipeline operator put in MMO-coated titanium wire anodes to protect it from impressed current cathodic damage. Based on how much the coating weighs and how dense the operating current is, the design life is more than 20 years without having to be replaced. The anodes work without any upkeep in deep seawater, which is proof that titanium-based ICCP systems are the best for protecting against rust offshore.

Conclusion

There are three important choices you need to make in order to choose the right electrode anode titanium: the coating type needs to match your process chemistry, the geometry needs to match your equipment, and the supplier needs to be able to back up their product specs with test data. In most industrial electrochemical uses, titanium Gr1 surfaces with calibrated MMO or platinum coatings work better than graphite, lead, and stainless steel when looking at the total cost over their whole life. Titanium substrates' ability to be recoated adds long-term value to an asset that no other disposable anode material can match. Start with the technical standard and make sure it's correct with your supplier. The choice about what to buy will then make sense.

FAQ

How long does a titanium MMO anode typically last?

How long something lasts depends on how much is loaded on it and how dense the current is. Most swimming pool chlorinators last between three and five years when they run at a low current rate. Service life can be more than 20 years in ICCP applications with the best design current density. Before you buy, you should always ask for the coating loading specification (g/m²) and compare it to the operating current density.

How does corrosion resistance compare between titanium and graphite anodes?

Titanium that has been coated with a noble metal layer doesn't rust in acidic chloride or sulfate solutions. Graphite is constantly wearing away, releasing carbon into the air and needing to be replaced often. Titanium's passive oxide layer grows back on the substrate surface, so the structure stays strong even if the electrocatalytic coating wears off.

Can titanium anodes be customized for specific electroplating tank dimensions?

CXMET sells anodes in the form of plates, mesh, rods, and tubes, and the sizes can be changed to fit any tank design. Different surface treatments, like sandblasting, acid cleaning, polishing, and brushing, are chosen based on the job. Custom orders are welcome with approved technical drawings, and the sales team can help you choose the best coating type for your plating chemistry.

What causes premature anode failure?

The main reason is too much current density, which creates heat that speeds up the coating's breakdown. Fluoride that gets into the electrolyte directly attacks the titanium substrate. A link with the wrong polarity is another common reason. This makes the anodic processes happen on the titanium base instead of the coating. These types of failure can be avoided by following the right startup steps and keeping an eye on the process.

Partner With CXMET for Your Titanium Anode Needs

The titanium electrode anode made by CXMET has been accepted for more than 20 years in China's "Titanium Valley." Our ASTM B381 Gr1 plates have platinum, Ir-Ta, or Ru-Ir coatings that have been checked for thickness and stress requirements. We can handle custom shapes, OEM sales, and bulk buying plans, and our wait times are affordable. Contact our technical sales team to talk about the details of your project and get a quote that fits your needs. You can email us at sales@cxmet.com or go to www.cxmet-tech.com.
