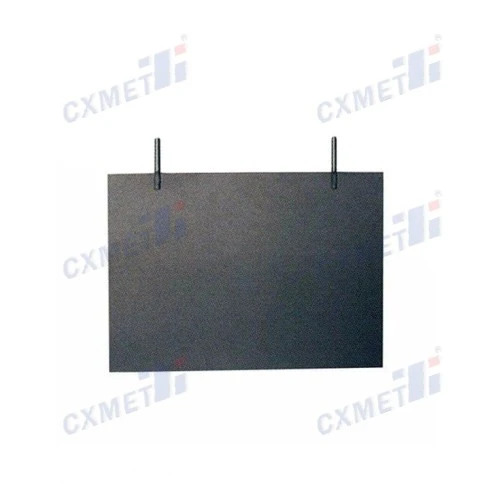

Determining whether your titanium anode plate is coated for oxygen or chlorine evolution requires understanding the specific mixed metal oxide (MMO) formulation applied to the substrate. Oxygen evolution coatings typically contain high concentrations of iridium oxide (IrO₂) and are designed for sulfuric acid environments and water electrolysis. Chlorine evolution coatings, on the other hand, feature ruthenium oxide (RuO₂) combined with titanium dioxide, optimized for brine electrolysis and chlor-alkali production. The coating type dictates electrochemical efficiency, operational lifespan, and compatibility with your process chemistry. Specifying the correct coating prevents premature failure and ensures optimal current efficiency in your electrochemical system.

Key Benefits and Applications of Titanium Anode Plates with Different Coatings

When titanium anode plates are paired with special MMO coatings, they work better than other electrode materials in a number of ways. In acidic or salty conditions, steel anodes rust quickly, contaminating them with iron and needing to be replaced often. Graphite electrodes are always wearing away, releasing carbon particles into the fluids and needing to be resized on a regular basis. Platinum-clad electrodes are very resistant to corrosion, but they are too expensive for large-scale industrial installations.

Advantages of Titanium-Based Anode Systems

Since CXMET titanium anode plates are made from commercially pure titanium substrates (ASTM B265 Gr1 or Gr2) that hold their shape at pH 0–14, they are more corrosion-resistant. Titanium's favourable strength-to-weight ratio (4.51 g/cm³ vs. 11.34 g/cm³ for lead) makes it easier to handle and install, needing less support. Effective current distribution saves 15% to 20% energy over traditional electrode systems by optimising the coating's high conductivity. Dimensionally stable titanium anodes keep their shape. It avoids graphite electrode placement difficulties that need to be changed. Last longer and need fewer replacements. Depending on application intensity and upkeep, coated titanium anodes may last 5–10 years.

All these benefits instantly reduce operating costs and increase process dependability. Titanium anode technology eliminates electrode-derived contamination, minimises electrode maintenance downtime, and lowers replacement part inventory costs.

Application-Specific Benefits by Coating Type

At high temperatures and acidity, oxygen evolution coatings are durable in hydrometallurgical processes like copper and zinc electrowinning. These layers allow current levels of 200-500 A/m² while the cell voltage remains below 2.0V, lowering power consumption. For advanced oxidation, water treatment facilities create hydroxyl radicals from oxygen-evolving anodes. These radicals destroy organic pollutants without oxidants.

For chemical manufacturing and water purification, chlorine evolution coatings boost chlorine output. These anodes sustain current efficiency over 95% in CHL chlorine gas and sodium hydroxide plants. It maximises plant production per kWh. Swimming pool sanitation and municipal water treatment use chlorine-evolving anodes to make hypochlorite. This eliminates concentrated chlorine compound transportation and storage risks. The coating prefers chlorine over oxygen to avoid wasteful side reactions.

Maintenance Considerations and Service Life Factors

How long a coating lasts depends on how it is used and how the electrolytes are managed. The main stress factor is current density, and higher levels speed up electrolytic wear. If a layer says it will last 3000 hours at 2000 A/m², it might actually last 8000 hours at 1000 A/m². Electrolyte impurities, especially fluoride ions that are higher than 50 ppm, attack both the titanium coating and the titanium underneath it very aggressively by breaking down the protective TiO₂ film. Temperature changes above the design limits—usually 60°C for chlorine evolution and 80°C for oxygen evolution—speed up degradation by putting more stress on the material and making it dissolve faster. Monitoring the voltage of the cell on a regular basis can help find problems with the coating early on. Voltage rises of 0.3V to 0.5V above the standard show that the catalyst is losing a lot of power and needs to be fixed.

How to Choose the Right Titanium Anode Plate Coating for Your Needs

To choose the best coating, you need to carefully look at your electrochemical environment and your operational goals. When the performance of a finish doesn't meet the needs of an application, buying titanium anode plates based only on their original cost is often not worth it in the long run.

Analyzing Electrolyte Composition and Operating Conditions

Which coating formulation will work well depends on the chemistry of the electrolyte. When the chloride level is higher than 5 g/L, chlorine evolution coatings are needed to keep oxygen evolution products from breaking down quickly. When sulfuric acid concentrations are higher than 100 g/L and chloride content is low, oxygen evolution coatings that can handle the acidity are needed. Electrochemical dynamics and material stability are both affected by temperature. Generally, higher temperatures speed up processes but also make them wear out faster. Current density standards must match coating specs, because going over the maximum capacity leads to overheating in certain areas and failing more quickly. Some processes keep going at a steady state all the time, while others have a lot of start-stop cycles or changes in current that put extra mechanical and thermal stress on the coating.

Comparing Titanium Anodes with Alternative Electrode Materials

Graphite anodes are still used in some electroplating processes because they are cheap, but they are constantly being used up, which raises costs and makes the process dirty with carbon. Their rate of erosion is usually between 0.5 kg and 2 kg per ton of metal deposited, so they need to be replaced and moved around often. Platinum-coated titanium or niobium anodes are very resistant to rust and last more than 15 years. However, because platinum prices vary from $900 to $1,200 per troy ounce, they are only cost-effective for specific uses with small anode surface areas. Lead alloy anodes used to be the most common way to make chlor-alkali, but they are no longer used because they are bad for the environment and don't use as little energy as modern MMO-coated titanium anodes, which lower cell voltage by 0.5V to 1.0V and save 20% to 30% of energy.

Evaluating Total Cost of Ownership and Supplier Credentials

The purchase price is just one portion of the product life expenses. Purchase, installation, energy use, maintenance, and replacement or coating are all part of the total cost of ownership. A coating that costs 40% more may last twice as long and consume 10% less energy, making it a better value over five years. Supplier dependability is crucial when purchasing since electrode failure may shut down manufacturing lines and trigger costly emergency shutdowns. Certifications like ISO 9001 for quality management and ISO 14001 for environmental standards demonstrate tight industrial norms. Performance testing papers should contain quick life tests, coating adhesion, and electrical characterisation results. Customers feel more secure with manufacturer warranties that demonstrate the product's durability. Under specific usage situations, reliable suppliers provide 30- to 60-month performance guarantees.

Manufacturing and Quality Testing of Titanium Anode Plates

Precision control is needed at many stages of the manufacturing process to make high-performance titanium anode plates, from preparing the substrate to applying the coating and finally testing to make sure it works.

Substrate Selection and Surface Preparation

Making anything starts with ASTM B265-compliant high-purity titanium base plates. Grade 1 titanium can form intricate structures like expanded mesh and is the most flexible. However, grade 2 titanium is stronger and may be utilised for mechanically rigid flat plates. Titanium must be greater than 99.6%, iron less than 0.30%, and oxygen less than 0.25%, according to chemical purity criteria. This prevents electrical stress from weakening the structure. The anchor design required for the covering sticks after surface preparation. Sandblasting with aluminium oxide or silicon carbide grit removes the smooth native oxide layer and roughens the surface to 3–6 micrometres. After that, oxalic acid or hydrochloric acid solutions etch the surface further and generate chemical bonding sites. Properly prepared substrates are matte grey. This removes the passive membrane that prevents coating adherence.

Coating Application Methodologies

Most MMO anodes are coated via thermal degradation. You may brush, spray, or dip-coat precursor solutions of metal chlorides or organic metallics in isopropyl alcohol or hydrochloric acid. Each time, a tiny precursor layer is placed on the substrate. In a controlled-atmosphere furnace, the substrate thermally breaks down around 350°C–500°C. This technique converts precursors to oxides and bonds them to titanium. Depending on how long it should last and how concentrated the current is, the coating thickens to 0.5 to 20 micrometres. Because of their greater ohmic resistance, thicker layers persist longer but catalyse less. Some coatings can be deposited electrochemically. From water-based solutions, metal ions are electrochemically reduced onto the substrate. Industrial MMO anodes seldom employ this approach.

Quality Control Standards and Testing Protocols

Anodes undergo extensive quality assurance inspections before use to ensure the coating is intact and that they can work. The mechanical bonding strength of coating adhesion is tested using tape pull or bend tests. Normal tension doesn't tear or delaminate good coatings. Accelerated corrosion testing uses high current densities in simulated process electrolytes. Long-term voltage fluctuations estimate field service life. Stable anodes over 500 to 1000 hours of fast testing generally survive as long as expected under normal circumstances. X-ray fluorescence or eddy current measurements of coating thickness demonstrate uniform application and compliance. Cyclic voltammetry and chronopotentiometry indicate catalytic activity and evolution potentials. Suppliers must provide compliance certifications with test results and material tracking. After-sales service, including professional guidance, installation, and troubleshooting, adds value to the product.

Procurement Insights: Where and How to Buy Titanium Anode Plates

To make sure you get a steady supply at a good price, strategic buying of titanium anode plates means balancing technical needs with business concerns.

Custom versus Standard Anode Configurations

Standard rectangular plates with sizes like 100 mm x 200 mm or 150 mm x 300 mm can be used in a lot of different situations. They also have faster lead times and lower unit costs because they can be made in larger quantities. Custom configurations offer the best options for reactors with unique shapes or unusual working conditions. Mesh anodes have a bigger useful surface area, which means they can carry more current in smaller installation areas. Applications that need a constant flow of current in cylinder-shaped reactors work well with tubular designs. Electrical connections are easier to make, and installation takes less time when complex shapes have built-in current distribution bars. Custom coating formulas made to fit specific electrolyte compositions or working situations can make goods last longer or work better than standard ones. Usually, customized goods cost 20% to 50% more than standard ones, but they pay for themselves when they work better or last longer, which is called a return on investment.

Evaluating Supplier Credentials and Geographic Factors

Supplier selection should include manufacturing, technical understanding, quality practices, and company demands. Industry experience in several applications demonstrates that the individual understands procedures and problem-solving. Location impacts shipping rates and wait times, yet modern logistics networks can source products worldwide and deliver them on time. Shaanxi, known as the "China Titanium Valley," has many titanium processing professionals and a good supply chain, so costs are reasonable without compromising quality. RoHS environmental safety certification and ASME pressure tank certifications demonstrate your commitment to global best practices. Customers in comparable sectors refer suppliers to show how well they function in similar working settings. Technical assistance, including material selection, installation, and problem-solving, adds value throughout a product's lifespan.

Understanding Pricing Structures and Procurement Timing

The price of coated titanium anodes depends on the base material, coating metal content, manufacturing difficulty, and market conditions. Depending on coating, size, and quantity, kilogram prices range from $80 to $300. Because iridium is more costly than ruthenium, oxygen evolution coatings rich in it cost more. Buy 50–100 products in bulk to receive a discount. The price may drop 15%–25%. Lead times vary from three to six weeks for typical items to eight to twelve weeks for special designs that need bespoke tooling or coating formulas. Avoid urgent orders and structure procurement cycles around maintenance schedules to save freight and expedite expenses. Framework agreements with selected suppliers preserve pricing and guarantee the top sellers obtain items when supplies are low.

Conclusion

Whether your titanium anode plate has an oxygen or chlorine evolution layer affects its performance, cost, and lifespan. Iridium-rich oxygen evolution coatings function best in acidic, low-chloride environments. However, ruthenium coatings improve chlorine evolution in brine electrolysis and chlorinated water treatment. People shouldn't merely consider pricing while buying. They should consider battery chemistry, current density, temperature, and total cost of ownership. Products perform well in tough industrial circumstances due to stringent testing and supplier certifications. For critical electrochemical applications, parts from well-known manufacturers with excellent technical capabilities and extensive support services provide the greatest value and lowest operating risk.

FAQ

1. What is the typical service life of a coated titanium anode?

Service life is greatly affected by the type of covering, the current density, the makeup of the electrolyte, and the temperature at which the titanium anode plates are being used. When used in chlor-alkali service, chlorine evolution anodes usually last for four to six years of constant use at rated current levels of around 2000 A/m². Oxygen evolution anodes can last more than eight years in copper electrowinning applications if they are kept in good shape and the current density stays below 400 A/m². When current levels are higher than what was planned or when electrolyte impurities attack the coating, wear speeds up. Regularly checking the voltage lets you know early on when the coating is wearing down, so you can replace it before a major failure stops production.

2. Can titanium anode base plates be recoated after the original coating fails?

Recoating is one of the best ways to save money on titanium substrates. Chemical dissolution or mechanical abrasion are used to remove the deactivated coating. This is followed by sandblasting and acid pickling to make the surface clean and ready to use again. Then, a new coating is put on using the same thermal decomposition methods that were used to make the first one. Recoating costs about 30% to 40% of the price of a new anode, but it saves a lot of money by keeping the expensive titanium base. When recoating is done right, it brings performance back to almost original levels, and the expected service life is the same as or slightly longer than the first coating cycle.

3. How can I identify early signs of coating degradation?

A steady rise in voltage during activity is the best way to tell if the layer is wearing away. Voltage spikes of 0.3V to 0.5V above baseline are a sign of serious catalyst loss that needs to be looked at. Color changes or changes in the structure of the surface may be visible to the naked eye, but a lot of covering loss can happen before this is seen. When you measure current efficiency by product output per electrical input, you can see that anode performance is also going down. Using systematic voltage logging and regular electrochemical testing lets you plan maintenance ahead of time, which stops sudden failures that mess up production schedules and put equipment at risk of damage.

Partner with CXMET for Superior Titanium Anode Solutions

Choosing the right titanium anode plate supplier has a direct effect on how well your business runs and how well you manage your costs over time. CXMET is an expert at making covered titanium anodes with great care for tough industrial uses in the sea, chemical processing, power metallurgy, and water treatment fields. Our expert team makes coating suggestions that are unique to your needs after carefully studying your electrolyte chemistry and working conditions. We have manufacturing facilities in Shaanxi Province's well-established titanium production cluster. We offer advanced processing and reasonable prices that make our products a great deal. Full quality checks are done on every batch of production to make sure that the performance is always up to world standards. Procurement managers and engineering teams can email us at sales@cxmet.com to get technical advice and bulk prices on titanium anode plate options that are made to fit your needs.
