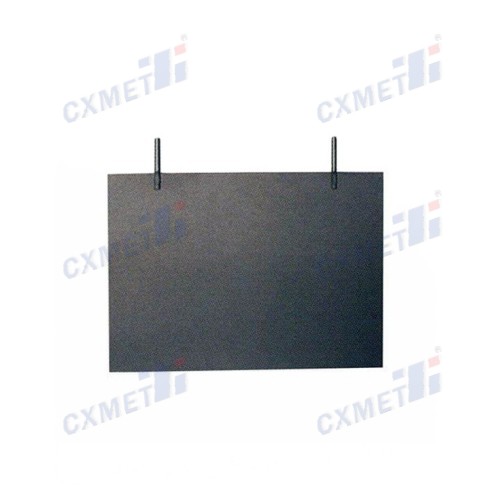

OEM titanium MMO anodes are electrochemical components built on a Grade 1 titanium substrate coated with Mixed Metal Oxides such as iridium, ruthenium, or tantalum. At CXMET, we manufacture these anodes to ASTM B381 standards with coating thicknesses between 8–12 microns for Ru-Ir and Ir-Ta systems, and 0.5–2.5 microns for platinum coatings. Fully customizable in size, surface treatment, and lead configuration, they deliver dimensional stability, low overpotential, and long service life across cathodic protection, chlor-alkali, and electroplating applications.

Understanding Titanium MMO Anodes: Composition, Function, and Benefits

What Makes the MMO Coating Work

How well a dimensionally stable anode works is completely determined by the chemistry of its coating. Noble metal oxide blends are put directly on a high-purity GR1 titanium base by CXMET using thermal decomposition. The blends are Ru-Ir for environments where chlorine is formed and Ir-Ta for environments where oxygen is formed. It is possible for the crystalline oxide layer to achieve a substrate purity of more than 99.6%, and it works well at current densities of 500 A/m² to 1,500 A/m² in most industrial settings.

Electrochemical Function in Industrial Systems

These anodes help keep electrochemical reactions under control without breaking down in the electrolyte. In cathodic protection devices, the Ir-Ta layer doesn't passivate in acidic concrete and high-resistance soils. In chlor-alkali and electro-chlorination systems, anodes that are coated with Ru-Ir efficiently change brine into sodium hypochlorite with very few byproducts being made. Because the chemicals are stable, the shape of the anode stays the same over time. This stops the inter-electrode gap drift that happens with graphite and lead alternatives.

Performance Metrics Worth Knowing

Tests done by outside groups show that titanium MMO anodes can last more than 20 years when used for cathodic protection and between 3 and 7 years when used for severe electrowinning, based on the thickness of the coating and the current density. Because of the lower overpotential, chlor-alkali production has been shown to save 10–20% of the energy used by graphite anodes. The anodes made by CXMET meet ASTM B381 and internal quality standards that are in line with ISO 9001. This gives buying teams a baseline for performance that they can use before they place an order.

Customization of Titanium MMO Anodes: Sizes, Coatings, and Lead Options

Sizing for Your System

Most off-the-shelf anodes don't work with complicated industrial systems without being changed. Rods, tubes, mesh, plates, and ribbon forms are just some of the measurements that can be changed in CXMET. This means that your team can choose the geometry that works best with current cell designs or new equipment. Correct sizing cuts down on installation work and stops mistakes in current distribution that shorten the life of the anode. There are different ways to treat the surface, such as sandblasting, acid cleaning, polishing, and brushing, based on the coating's bonding needs and the area where it will be used.

Here are the main types of coatings and where they work best:

• Ru-Ir oxide coating (8–12 micron): Designed for chlorine evolution applications such as swimming pool sanitation, ballast water treatment, and electro-chlorination. The ruthenium component lowers chlorine overvoltage, reducing power draw.
• Ir-Ta oxide coating (8–12 micron): Suited for oxygen evolution in acidic electrolytes, including copper foil production, electroplating, and impressed current cathodic protection in soil or seawater.
• Platinum coating (0.5–2.5 micron): Applied where ultra-low contamination and high corrosion resistance are required, such as pharmaceutical water systems and precision electronics manufacturing.

Each type of coating is designed to work in a certain electrical setting. Picking the wrong one speeds up coating wear and raises running costs, so before approving a specification, CXMET's expert team looks at your electrolyte chemistry and current density.

Lead Wire and Connection Configurations

Customizing leads affects how quickly they are installed and how well they work electrically in the long term. CXMET sells anodes with lead wires made of titanium or copper that come in different lengths and termination styles. A safe, low-resistance link between the anode and power supply stops overheating in one area, which can create a non-conductive TiO2 layer at the substrate-coating interface. This is one of the main reasons why field installations fail too soon.

Comparing Titanium MMO Anodes to Alternative Anode Materials

Graphite and Lead: Lower Upfront Cost, Higher Long-Term Risk

Graphite anodes slowly break down, raising the voltage of the cell and adding carbon bits to the liquid. Lead anodes add lead ions to the solution, which taints the cathode metal during electrowinning processes and makes it harder to meet environmental standards. Over the course of 5 to 10 years, both of them cost more to own because they need to be replaced more often than titanium MMO anodes.

Platinized Titanium: A Closer Competitor

The base material for platinumized titanium anodes is the same, but they use a thin layer of platinum instead of a mixed oxide layer. They work well in electrolytes with low chloride, but they tend to passivate more quickly when there is a lot of chloride or a lot of current. CXMET's MMO coatings are more chemically compatible, especially in places like seas and industrial wastewater where the amount of ions changes all the time.

Where MMO Anodes Win Consistently

Offshore pipes, big chlor-alkali plants, or copper electrowinning circuits are all places where uptime is important. The dimensional stability and corrosion resistance of MMO-coated titanium are two things that make it very useful in these situations. In a well-known case in hydrometallurgy, moving from lead to titanium MMO anodes got rid of the lead pollution in the cathode copper and cut the distance between the anodes and cathodes by 15%. This meant that less energy was used to make each ton of metal.

Maintenance, Lifespan, and Operational Guidelines

Factors That Shorten Service Life

Overloading the current density is the main reason why coatings wear out faster. When you run an anode that is rated for 500 A/m² at 1,500 A/m², the oxide layer will be used up very quickly. Fluoride ions and organic contaminants break down the MMO surface even when the current load is normal. Bad electrical connections that add resistance at the lead junction cause localized heating, which speeds up the formation of the TiO2 interlayer and finally stops all electron movement.

Inspection and Preventive Care

Visual checks every three months for titanium MMO anodes for changes in coating color, pitting, or edge delamination find degradation early, before it becomes a system failure. Scale formations can be removed without hurting the oxide layer by cleaning with weak acid solutions. If you scratch the active surface with rough tools, the coating will break easily, and the bare titanium underneath will rust. If you measure resistance at the lead connection that is higher than the baseline, you should re-terminate the joint before the next operating cycle.

Recoating as a Cost Strategy

When the oxide layer gets thinner than what is needed, the titanium base can be stripped, cleaned chemically, and covered again. This method gets back about 60% to 70% of the cost of a new anode unit while recovering full electrochemical performance. CXMET offers recoating programs for customers who return used anodes. This makes the overall cost-effectiveness of titanium MMO systems better than any other material used for anodes.

Procurement Strategy: How to Source Quality OEM Titanium MMO Anodes

Evaluating Supplier Credentials

Certifications are important. A trustworthy company that makes titanium MMO anodes should have ISO 9001 quality management certification, test records that can be tracked for the titanium base (ASTM B381 GR1), and data for checking the thickness of the coating on each batch. "Titanium Valley" in China is home to CXMET. The company has been making products for more than 20 years and has a team of more than 80 technology experts working with customers in China and around the world.

Key Purchasing Parameters to Negotiate

Before placing an OEM order, the engineering and procurement teams should agree on the type of coating, the grade of the substrate, the tolerances for size and shape, the surface treatment, the lead specifications, and the range of acceptable coating thicknesses. MOQ and wait times depend on how complicated the design is. Standard rod and mesh formats usually ship faster than custom-machined plate assemblies. High-volume industrial buyers usually ask for a sample batch to test in-house before committing to full production volume.

Working With an OEM Partner

OEM partnership goes beyond buying from a catalog. As your titanium MMO anode provider, CXMET's scientific team looks at your process factors, suggests the best coating chemistry, and writes down the details in a formal drawing so that you can use it again in the future. This keeps specs from changing between runs of production and gives your quality team a fixed point of reference for inspecting new products.

Conclusion

When it comes to long-term reliability, titanium MMO anodes made on Grade 1 bases are the best choice for electrochemical systems that work in harsh industrial settings. Because they are dimensionally stable, have low overpotential, and can be recoated, they are cost-effective over the entire lifecycle of an asset. The right coating chemistry and accurate sizing determine how well the anode works and how long it lasts, whether you're using it to protect seawater from cathodic damage, make chlorine, or electrowin metal. With 20 years of experience making things out of non-ferrous metals, CXMET designs each anode to your exact specifications.

FAQ

What is the difference between Ru-Ir and Ir-Ta coatings?

Ru-Ir coatings are designed for chlorine evolution environments, such as saltwater electrolysis or chlor-alkali production. Ir-Ta coatings target oxygen evolution in acidic media, including electroplating and cathodic protection in soil or concrete. Selecting the correct coating for your electrolyte is the single most important factor in achieving rated service life.

Can the titanium substrate be reused after the coating wears out?

Yes. Provided the GR1 titanium base remains structurally sound, spent anodes can be stripped and recoated at approximately 60–70% of the cost of new units. CXMET supports recoating services for returned substrates.

What operating current density is recommended?

Most applications run between 500 A/m² and 1,500 A/m². Exceeding the rated current density accelerates coating consumption and shortens anode life significantly.

What causes premature failure in MMO anodes?

The most common failure mode is a non-conductive TiO₂ interlayer forming between the substrate and coating. This results from voltage spikes above the breakdown threshold, fluoride contamination, or poor substrate surface preparation before coating application.

Partner With CXMET for Your Titanium MMO Anode Supply

CXMET has been making titanium MMO anodes for over 20 years and has a reputation for reliability in the naval, oil and gas, chemical processing, and electronics industries. Our anodes are made of Grade 1 titanium that meets ASTM B381 standards. They can be coated with Ru-Ir, Ir-Ta, or platinum, and the sizes and lead shapes can be changed to fit your needs. To get a quote or talk about your application needs, please email our technical team at sales@cxmet.com or visit www.cxmet-tech.com right now.

References

1. Trasatti, S. (1999). "Electrocatalysis: Understanding the Success of DSA." Electrochimica Acta, 45(15–16), 2377–2385.

2. Comninellis, C., & Chen, G. (Eds.). (2010). Electrochemistry for the Environment. Springer Science & Business Media.

3. ASTM International. (2019). ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings. ASTM International.

4. Hayfield, P. C. S. (2002). Development of the Noble Metal/Mixed Metal Oxide Electrode: A Review. Platinum Metals Review, 46(1), 2–14.

5. Panizza, M., & Cerisola, G. (2009). "Direct and Mediated Anodic Oxidation of Organic Pollutants." Chemical Reviews, 109(12), 6541–6569.

6. NACE International. (2016). NACE TM0108: Evaluation of Coating Performance on Submerged Metallic Structures for Cathodic Protection Systems. NACE International.
