If your business relies on electrochemical performance under harsh circumstances, the correct anode material might be a game changer. A titanium oxide electrode, specifically a Mixed Metal Oxide (MMO) coated titanium anode, offers the chemical stability, catalytic efficiency, and dimensional uniformity demanded by engineers in water treatment, marine, chemical processing, and cathodic protection systems. CXMET manufactures these electrodes on Grade 1 titanium substrates to ASTM B381. They are offered with Ru-Ir oxide, Ir-Ta oxide, and platinum coatings in fully customizable sizes.

Understanding Titanium Oxide Electrodes – Properties and Applications

What Makes the Material Work

A titanium oxide electrode combines a highly passive titanium substrate with a crystalline noble metal oxide coating — typically in a rutile-phase structure. This design provides both metallic conductivity and chemical passivity. The adhesive strength of the acid-etched substrate surface is more than 20 MPa, and the electrocatalytic activity of the coating minimizes the overpotential of chlorine or oxygen evolution reactions, therefore directly reducing energy consumption in long-cycle industrial processes.

Core Industrial Applications

These anodes are employed in some of the most demanding settings in the B2B industry. Impressed Current Cathodic Protection (ICCP) protects offshore platforms or subsea pipelines from electrochemical corrosion for decades. They produce sodium hypochlorite in situ for ballast and electrochemical water treatment systems and resist fouling from calcium and magnesium precipitates. In hydrometallurgy of copper, nickel, and cobalt electrowinning, they are used instead of lead anodes and reduce electrolyte contamination and cell voltage by 0.2 to 0.5V.

Why Engineers Prefer MMO Anodes Over Legacy Options

Graphite anodes and lead anodes wear down over time, polluting the electrolyte and bringing variability into the manufacturing process. An MMO coated titanium anode will keep its dimensions throughout its service life. This minimizes inter-electrode shorting, delivers uniform current distribution, and removes the unpredictability of older anode materials – a perennial cause of unexpected downtime for procurement teams.

OEM Customization of Titanium Oxide Electrodes – Coatings and Sizes

Coating Selection: Ru-Ir vs. Ir-Ta vs. Platinum

Coating chemistry determines electrochemical function. CXMET offers three primary options. Ru-Ir oxide coating (8–12 microns) is optimized for chlorine evolution reactions — the preferred choice for chlor-alkali production and seawater electrolysis. Ir-Ta oxide coating (8–12 micron) targets oxygen evolution in acidic environments, making it the standard for cathodic protection and metal electroplating. Platinum coating (0.5–2.5 micron) suits precision sensing and high-purity applications. Each coating is applied via thermal decomposition for consistent coverage on the titanium oxide electrode.

Geometry and Size Customization

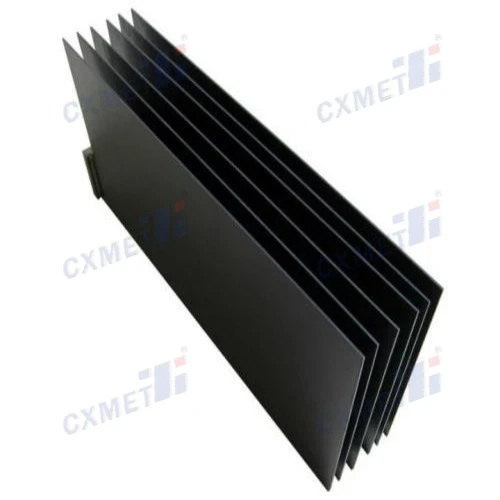

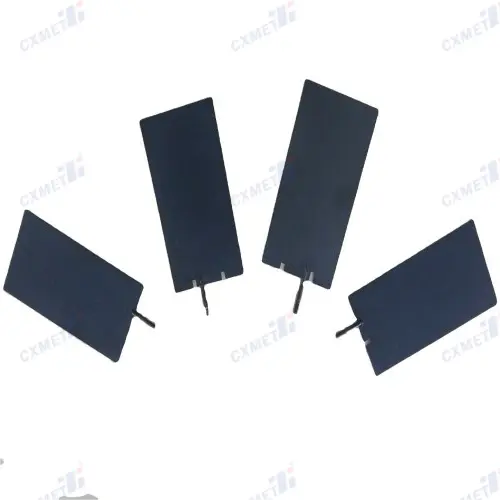

CXMET manufactures titanium anodes in plate, rod, mesh, tube, and expanded metal shapes. Standard panels are available up to 1000mm x 2000 mm, with greater sizes available on request. Substrate thickness: 0.5 mm to 10 mm. Each dimension is designed to fit right into your current cell layout, minimizing installation complexity and process modification time. Custom edge sealing is also offered for extended service life in high-current applications.

Surface Treatment and Quality Verification

Coating adherence and electrode life are directly influenced by surface preparation. Before coating, CXMET uses one or more of the following treatments: sandblasting, acid cleaning, polishing, or brushing — determined according to the substrate geometry and intended application. Quality Verification: X-ray Fluorescence (XRF) to check coating thickness and noble metal loading; Scanning Electron Microscopy (SEM) for surface morphology; Adhesion Testing under ASTM D3359; Accelerated Life Testing (ALT) per NACE TM0108.

Comparing Titanium Oxide Electrodes with Alternative Materials

Titanium Oxide vs. Platinum Anodes

Platinum is an excellent catalyst for low-volume, high-precision applications. But the cost of the material at industrial scale is prohibitive for most B2B purchasing budgets. The MMO-coated titanium anodes show comparable catalytic activity with a unit cost reduction of >10 times and a projected service life of 5-20 years depending on current density and electrolyte composition. MMO anodes offer a longer-term, more sustainable investment for large-size cells or high-throughput devices.

Titanium Oxide vs. Carbon Electrodes

In oxidizing or acidic media, carbon anodes are gradually eroded, contaminating the electrolyte with particles and decreasing the purity of the result. Titanium oxide electrodes are stable in structure under long-term current loading in strong sulfuric acid, chloride-rich brine, and other hostile environments. This chemical robustness removes a major source of process variation and minimizes the number of cell maintenance shutdowns – a real benefit for continuous process industries such as chlor-alkali and metal refining.

Total Cost of Ownership Across the Lifecycle

When evaluating electrode materials, the initial purchase price is only one variable. Factor in replacement frequency, electrolyte contamination risk, energy consumption from overpotential differences, and downtime for cell maintenance. MMO-coated titanium electrodes consistently demonstrate lower total lifecycle costs when deployed in medium-to-large-scale electrochemical systems. The substrate can also be recoated after the active layer is exhausted — sandblasting, acid etching, and thermal recoating restore full functionality at significantly less than the cost of a new unit.

How to Choose the Right OEM Titanium Oxide Electrode for Your Business

Match Coating Chemistry to Process Chemistry

The most common specification error in anode procurement is selecting coating type based on price rather than process chemistry. Ru-Ir formulations degrade faster in pure oxygen evolution environments; Ir-Ta formulations are less efficient in chlorine evolution service. Start with a clear definition of your electrolyte composition, operating pH, and target reaction — then work backward to the coating that best fits those parameters.

Define Operating Parameters Before Requesting a Quote

Prior to discussing with a titanium oxide electrode provider, record your current density need (CXMET electrodes may accommodate up to 10 kA/m2), operating temperature (standard ratings up to 80°C, greater with specialized coatings), electrode shape limits, and desired service life. Having this data at hand speeds up the quote process and lets the manufacturer to propose the right noble metal loading, usually represented as g/m². This in turn determines electrode lifetime for your particular operating circumstances.

Evaluate the Supplier's Technical Depth

An OEM manufacturer should be able to give ALT data, XRF coating verification reports, and SEM morphological analysis as required. They should also provide a clear answer to technical queries like fluoride ion tolerance threshold, reverse polarity compatibility, and recoating techniques. CXMET has over 20 years of experience serving industrial customers in the maritime, oil and gas, chemical processing, pharmaceutical, and electronics industries with more than 80 skilled specialists.

Benefits of Partnering with a Trusted OEM Titanium Oxide Electrode Manufacturer

Documented Compliance and Standards Alignment

CXMET electrodes are produced in accordance with ASTM B381 specifications using Grade 1 titanium substrate. Coating methods are based on thermal decomposition procedures proven against life testing according to NACE TM0108. This paperwork aids in supporting procurement compliance requirements for regulated sectors and facilitates supplier certification for ISO-certified facilities.

Long-Term Technical Support

Buying from a certified MMO anode manufacturer ensures you also receive engineering assistance beyond the original sale. CXMET offers technical consulting for cell design, troubleshooting underperforming anodes, evaluating recoating options, and advising on system modifications. This seamless transition lightens the pressure on your technical staff and reduces the time to fix production problems.

Recoating Services Extend Asset Value

Because the titanium substrate retains its value after the active coating is consumed, CXMET offers industrial recoating services that restore electrodes to full performance. This extends asset life and reduces the procurement cycle for replacement units — a practical advantage for operations running large anode inventories.

Conclusion

Titanium oxide electrodes — especially MMO-coated titanium anodes – provide a scientifically proven and economically efficient option for electrochemical operations in a wide range of heavy industries. CXMET manufactures these electrodes to ASTM B381 specifications with Grade 1 titanium in completely configurable dimensions with Ru-Ir oxide, Ir-Ta oxide, and platinum coating choices. CXMET’s combination of proven coating quality, technical support, and recoating capabilities qualifies it as a long-term partner for procurement teams and engineers that want predictable anode performance and no operational ambiguity.

FAQ

Can a depleted titanium oxide electrode be recoated?

Yes. Once the active oxide layer is exhausted, the titanium substrate maintains its structural value. The electrode is re-coated by sandblasting, acid etching, and thermal decomposition re-coating, bringing the electrode back to full operating condition for a fraction of the cost of a new unit.

How does fluoride contamination affect MMO anodes?

Fluoride concentrations above 50 ppm can attack the titanium substrate at the coating interface, leading to delamination. In fluoride-bearing electrolytes, a protective sub-layer or conductive ceramic intermediate is required. Always disclose electrolyte composition when requesting a specification.

What is the difference between Ru-Ir and Ir-Ta coatings?

Ru-Ir (Ruthenium-Iridium) is optimized for chlorine evolution reactions — chlor-alkali, saltwater electrolysis, and brine systems. Ir-Ta (Iridium-Tantalum) targets oxygen evolution in acidic environments, including cathodic protection and electroplating applications.

Are CXMET electrodes compatible with reverse polarity systems?

Standard MMO coatings are not rated for reverse polarity service. CXMET offers specialized formulations engineered for self-cleaning electrolyzers and cyclic polarity applications — confirm this requirement at the time of inquiry.

What operating temperature range do these electrodes support?

Standard CXMET titanium oxide electrodes are rated to 80°C. Higher temperature operation is possible with application-specific coating formulations — contact our technical team to discuss your process conditions.

Get Custom Titanium Oxide Electrode Quotes from CXMET

CXMET is a verified titanium oxide electrode manufacturer with over 20 years of production experience, ASTM B381-compliant substrates, and full OEM customization across coatings and sizes. Whether you need Ru-Ir, Ir-Ta, or platinum-coated anodes for your next project, our engineering team is ready to support your specification process from the first technical question to final delivery. Send your requirements to sales@cxmet.com or visit https://www.cxmet-tech.com/ to request a quote today.

References

1. Trasatti, S. Electrochimica Acta — "Electrocatalysis by Oxides — Attempt at a Unifying Approach." 1984.

2. Beer, H.B. Journal of The Electrochemical Society — "The Invention and Industrial Development of Metal Anodes." 1980.

3. Comninellis, C. & Vercesi, G.P. Journal of Applied Electrochemistry — "Characterization of DSA-Type Oxygen Evolving Electrodes: Choice of a Coating." 1991.

4. ASTM International. ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings. 2019.

5. NACE International. NACE TM0108: Evaluation of Coating Performance on Anode Materials in Electrochemical Systems. 2008.

6. Panizza, M. & Cerisola, G. Chemical Reviews — "Direct and Mediated Anodic Oxidation of Organic Pollutants." 2009.
