Platinized titanium electrodes are used as high-performance insoluble anodes in a variety of electrochemical devices. These electrodes are based on a titanium Gr1 substrate (ASTM B381) and covered by pure platinum (99.99%) by coating, brushing, and sintering procedures, providing dimensional stability during long periods of electrolytic operation. When compared to graphite or stainless steel alternatives, they are resistant to corrosion in the whole pH range 0–14, can handle current densities up to 10,000 A/m², and have a lifetime of 5–10 years. Engineers value its combination of electrochemical stability and configurable shape for challenging industrial applications.

Understanding Platinized Titanium Electrodes: Properties and Functions

Structure and How It Differs from Conventional Electrodes

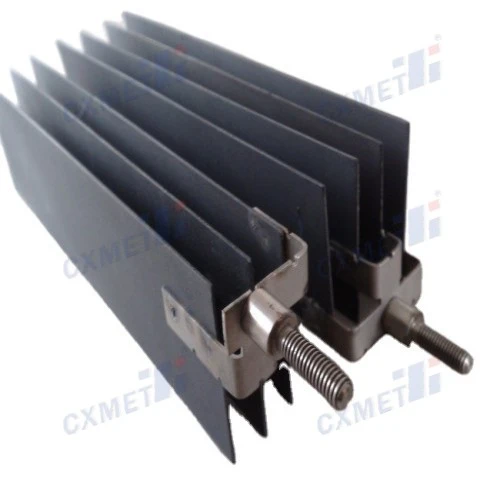

The Platinized Titanium Electrode is a pure titanium substrate (often Gr1) covered with a thin layer of platinum (1-10 μm) either by thermal breakdown or electrodeposition. This structure is in sharp contrast to graphite anodes, which deteriorate over time and contaminate the electrolyte baths. Corrosion of stainless steel electrodes in severe acid environments and toxic sludges from lead anodes. The titanium base behaves as a “valve metal”, generating a passive oxide coating preventing the corrosion of the substrate even in fluoride-free acid environments, while the platinum surface offers strong electrocatalytic conductivity.

Electrochemical Principles Behind Their Operation

The platinum covering favors oxygen and chlorine evolution processes at low overpotential in the electrolysis. The oxygen evolution potential of the electrodes of CXMET was 1.7-1.9 V vs. SHE, and the chlorine evolution potential was 1.3-1.5 V vs. SHE. This lower overpotential means lower energy usage, which is a definite advantage in large-scale industrial electrolysis, where energy prices are high. The electrode has a fixed anode-to-cathode gap that stabilizes the current distribution and increases the uniformity of the plating across complicated geometries.

Procurement Specifications and Customization Options

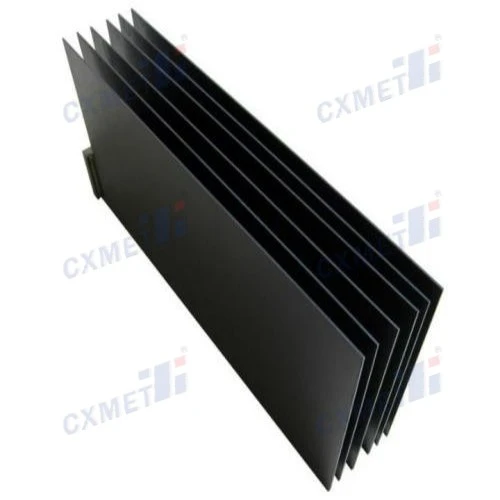

CXMET offers platinized titanium electrodes in plates, mesh, bars, rods, and bespoke geometries, all made to ASTM B381 standards. Coating thickness is 1-10 μm, with variable possibilities up to 20 μm. The operating temperature range is -40°C to 120°C; surface treatments are supplied in smooth, matte, or textured finishes. Products are sent by air, sea, or express freight in standard export wooden boxes. OEM customisation includes dimensions, substrate grade (Gr1- Gr4), edge sealing, and surface area optimization.

Key Applications of Platinized Titanium Electrodes in Electrochemical Cells

Water Treatment and Large-Scale Electrolysis

Electrodes for industrial water treatment systems are stable during continuous operation at high current density. Platinized titanium anodes are known to be reliable for electrolytic disinfection, electrochlorination, and wastewater treatment applications that need steady chlorine or ozone production. Because they are insoluble, they do not add metal ions to the treated water, which is important for municipal and industrial water systems. Electrode materials impact treatment efficiencies and operating costs in large-scale electrochemical water systems, according to the Water Research Foundation.

Electrochemical Testing Labs, Chlor-Alkali, and Metal Finishing

In the laboratory, platinum-coated titanium electrodes provide a reproducibility and chemical inertness not available with graphite. They are resistant to harsh chlorine gas conditions and can preserve their structural integrity in chlor-alkali manufacturing. Because their anodes are insoluble, they do not contaminate the bath and also allow for the control of coating thickness, advantages in metal finishing procedures such as hard chrome plating and precious metal electrodeposition. Studies published in the Journal of Applied Electrochemistry demonstrate that dimensionally stable anodes improve cell voltage variance by 10-15% against consumable anodes.

Green Energy: Hydrogen Generation and Fuel Cells

Platinum-plated titanium electrodes give repeatability and chemical inertness in the laboratory that cannot be achieved with graphite. They can tolerate the extreme conditions of chlorine gas and maintain their structure in chlor-alkali production. Because their anodes are insoluble, they do not contaminate the bath and also allow for the control of coating thickness, which is advantageous in metal finishing procedures such as hard chrome plating and precious metal electrodeposition. Studies published in the Journal of Applied Electrochemistry demonstrate that dimensionally stable anodes improve cell voltage variance by 10-15% against consumable anodes.

Comparing Platinized Titanium Electrodes with Other Electrode Types

Performance Metrics vs. Graphite and Stainless Steel

As the graphite electrodes are eroded, carbon particles are transported to the electrolyte pools and the cell voltage rises over time. Stainless steel anodes deteriorate in acid or chloride conditions, and their life is cut to months rather than years. In contrast, platinized titanium electrodes do not alter their size over the 5-10 years of service life, do not form any sludge, and have the same voltage qualities. This means lower electrolyte replacement costs and fewer process interruptions for enterprises using continuous electrochemical cycles.

Ruthenium-Coated Titanium vs. Platinum-Coated Titanium

Ruthenium oxide-coated titanium electrodes (RuO2/TiO2 DSA) are preferable for chlorine evolution applications and have a reduced starting cost. However, platinum-coated electrodes are preferred for oxygen evolution and applications where zero metal ion leaching is required, such as pharmaceutical processing or food-grade water treatment, and high-purity electrodeposition. In addition, the platinum coating exhibits better passivation resistance in fluoride-containing or highly oxidative conditions, whereas the ruthenium coatings are prone to erode more quickly.

Cost Analysis and Bulk Procurement Value

Per unit, platinized titanium electrodes are more expensive than graphite or steel ones. However, the total cost of ownership estimate is better for platinum-coated designs. Recoatability is important: The titanium substrate may be stripped and recoated several times, which results in 40–60% lower long-term OPEX compared to complete electrode replacement. CXMET provides OEM pricing structures and bulk buy programs to procurement managers that handle big purchases to further minimize per-unit prices.

Maintaining and Optimizing the Performance of Platinized Titanium Electrodes

Cleaning Methods and Routine Inspection

Routine maintenance maintains the performance of the electrode the same year after year. The suggested maintenance measures for platinum-plated titanium electrodes are:

• Chemical cleaning: The calcium scale and oxide deposits are removed by dilute hydrochloric acid (5–10%) without damaging the platinum layer. Limit soak time to 30 minutes every cycle to avoid stressing the substrate.
• Mechanical Cleaning: Surface deposits are removed by soft brushing with non-abrasive nylon brushes. Do not wire brush as this can harm the platinum coating and increase wear.
• Visual inspection: Quarterly examination for coating delamination, corrosion at edges, or discolouration allows for early detection of deterioration before it impacts process output.

These procedures demonstrably increase electrode service life and avoid premature failure in high current applications.

Operational Factors That Affect Durability

Coating wear rate increased with current density, electrolyte temperature, and pH. If the cell is run at a rated current density of 10,000 A/m2 or greater, the platinum is used faster. At temperatures over 120 °C or in the presence of fluoride-containing solutions, the passive coating of titanium may be destroyed and the substrate attacked. The coating will last for the stated service life as long as the electrolyte pH is kept in the tolerance range of 0-14, and there is no sudden change of polarity unless the electrode is rated for such duty.

Evaluating Supplier Certifications and Warranty Terms

When choosing an electrode provider, procurement teams should validate conformance to ASTM B381, seek material test reports (MTRs), and verify the uniformity data of the platinum coating. Platinized titanium electrode is supplied by CXMET with full documentation including chemical composition (Titanium and mixed metal oxides) and coating thickness verification. Other key measures of supplier reliability include warranty durations and the availability of recoating service. The total procurement risk for the manufacturer is much lower with after-sales recoating programs.

Choosing and Procuring Platinized Titanium Electrodes: A B2B Buying Guide

Defining Technical and Commercial Criteria

Suppliers’ procurement teams should be at least contacted with the required electrode form (plate, mesh, rod, bar), platinum coating thickness, operating current density, electrolyte chemistry, and estimated annual throughput. These characteristics describe material grade, coating specification, and quantity requirements. The most prevalent cause of early electrode failure is a specification mismatch; therefore, getting this stage right saves the schedules and costs of projects farther down the road.

Evaluating OEM Manufacturers vs. Distributors

When buying directly from an OEM manufacturer like CXMET, consumers may get unique engineering assistance, direct quality control, and reasonable pricing on large purchases. Distributors add a markup layer. They may provide limited customizing capabilities. For projects needing particular geometries or coating thicknesses outside of the conventional range, the most efficient way to procure is to partner with an OEM. CXMET’s engineering staff offers direct technical assistance to match electrode parameters to process requirements before order confirmation.

Logistics, Lead Times, and Bulk Purchase Negotiation

CXMET can provide air freight, sea freight, and express freight for your foreign shipments, packaged in standard export hardwood boxes or as per your special specifications. Typical lead times depend on the complexity and amount of the order. With blanket purchase orders and timed releases, large or recurrent purchases may cut per-unit price, as well as provide supply continuity. International purchasers should also review Incoterms, import duty categories for titanium items, and necessary export papers during the procurement planning stage.

Conclusion

Platinized titanium electrodes provide a technically sound and economically reasonable option for electrochemical cells used in water treatment, metal finishing, chlor-alkali manufacturing, and hydrogen generation. They are better than graphite, stainless steel, and consumable anodes owing to dimensional stability, low overpotential, and total pH tolerance. CXMET manufactures these electrodes to the ASTM B381 standard on Titanium Gr1 substrate with interchangeable platinum coating thickness, in plates, mesh, bars, and various shapes. With more than 20 years of manufacturing experience and a direct OEM manufacturing strategy, CXMET offers the technical depth and supply reliability that industrial procurement demands.

FAQ

How long does a platinized titanium electrode typically last?

The service life is 5-10 years depending on the terms of operation. The main factors are the current density and the chemistry and temperature of the electrolyte. Routine maintenance schedules and operating within rated settings will result in electrode life extending to the higher end of this estimate.

Can these electrodes be customized for specific industrial applications?

Yes CXMET provides complete OEM customisation in respect of size, platinum coating thickness (1-10 μm, 20 μm max), substrate grade, surface polish, edge sealing and geometry – plates, mesh, rods, bars or other non-standard geometries. Direct engineering consulting is provided on custom projects prior to manufacturing.

Does maintenance affect replacement cycles?

Proper maintenance directly delays replacement. Chemical and mechanical cleaning prevents deposit buildup that accelerates coating wear. Quarterly inspections catch early delamination before it progresses to substrate damage. Recoating the titanium substrate rather than replacing the entire electrode further extends the asset's useful life and reduces total material cost per operating cycle.

Are these electrodes suitable for pharmaceutical or food-grade water applications?

Yes. The insoluble nature of the platinum coating means no metal ions leach into the electrolyte, which satisfies purity requirements in pharmaceutical processing and food-grade water electrolysis systems.

Request a Custom Platinized Titanium Electrode Quote from CXMET

CXMET — your direct platinized titanium electrode manufacturer — brings 20+ years of titanium alloy expertise to every order. Our Titanium Gr1 electrodes (ASTM B381) ship worldwide via air, sea, or express freight. Whether you need standard plates or fully custom geometries, our engineering team supports your specifications from design to delivery. Contact our team at sales@cxmet.com or visit https://www.cxmet-tech.com/ to request a quote or discuss your application requirements.

References

1. Trasatti, S. Electrochimica Acta, 2000.

2. Beer, H. B. Journal of the Electrochemical Society, 1980.

3. Comninellis, C. & Vercesi, G. P. Journal of Applied Electrochemistry, 1991.

4. Panizza, M. & Cerisola, G. Chemical Reviews, 2009.

5. Fóti, G. & Comninellis, C. Electrochemical Engineering, Modern Aspects of Electrochemistry, 2004.

6. Water Research Foundation. Electrochemical Processes for Water Treatment: Performance and Cost Analysis, 2015.
