If you work in industrial water treatment, you already know that electrode selection directly affects system performance, operating costs, and compliance outcomes. A platinized titanium electrode—a titanium substrate (Gr1, per ASTM B381) coated with pure platinum via brushing, coating, and sintering—delivers both electrochemical efficiency and long service life in aggressive aqueous environments. This guide walks procurement managers, engineers, and R&D teams through how these electrodes work, where they perform best, and how to source them from a proven manufacturer like CXMET.

Understanding Platinized Titanium Electrodes in Water Treatment

Construction and Material Properties

The Titanium Gr1 substrate used by CXMET in their platinized titanium electrodes is in line with ASTM B381. Grade 1 titanium is the most resistant to rust of all the available pure grades. This means that it can be used with chlorinated water, acidic wastewater, and caustic media. The platinum layer, which is put on with brushing and sintering to a thickness of 1–10 μm, creates a strong metal link that doesn't come apart under high current loads. Shapes that can be used include plates, mesh, and bar forms, and the sizes can be changed to fit your needs.

Electrochemical Principles Behind Water Treatment Performance

In electrolytic water treatment, the anode has to keep up with oxidation processes without breaking down. Because platinum has a low overpotential for oxygen evolution (1.7–1.9 V vs. SHE) and chlorine evolution (1.3–1.5 V vs. SHE), the system can run at lower cell voltages, which uses less energy. The inactive oxide film on the titanium substrate stops substrate corrosion in fluoride-free solutions across a full pH range of 0–14 and temperatures from -40°C to 120°C. This keeps the electrode's shape stable for 5–10 years.

Platinized vs. Unplatinized Titanium Electrodes

Over time, bare titanium builds up a layer of resistant oxide, which raises the cell voltage and lowers the effectiveness of the treatment. This problem doesn't happen at all with a platinum-coated anode. It doesn't produce carbon pollution as graphite anodes do. It doesn't make sludge as lead anodes do. The titanium substrate can also be recoated. When the platinum layer wears off, CXMET can remove it and recoat it, which lowers the cost of replacement by 40–60% compared to buying new electrodes.

Core Applications of Platinized Titanium Electrodes in Water Treatment

Electrochemical Oxidation and Disinfection

Electrical oxidation is used in municipal and industrial water treatment plants to get rid of germs and break down organic chemicals that don't break down easily. At current levels of up to 10,000 A/m², platinized titanium electrodes generate hydroxyl radicals and reactive chlorine species that are better at killing bacteria, viruses, and drug leftovers than UV or ozone alone. A 2019 study in the journal Water Research proved that anodes with fixed dimensions killed over 99.9% of microbes in pilot-scale tests without causing any other contamination.

Electrocoagulation and Heavy Metal Removal

Electrocoagulation is becoming more popular as a way to treat produced water from oil and gas operations and handle the wastewater from chemical processing. When iron or aluminum cathodes are used with platinized titanium anodes, metal hydroxide flocs form on the spot. These flocs collect heavy metals like chromium, arsenic, and lead that are dissolved in the fluid. Chemical coagulants are not needed for this process, which lowers the cost of reagents and the cost of moving sludge. Field data from industrial installations show that a single-pass configuration can remove 85–95% of heavy metals.

Chlorine Generation, pH Control, and Electrolysis

Platinum anodes are needed to keep the chlorine output stable over thousands of hours of operation for on-site sodium hypochlorite production, which is used a lot in cooling tower treatment, ballast water management, and pharmaceutical-grade water systems. Controlled electrolysis can also be used to change the pH of these electrodes, which is useful in water systems for chemical processes and power plants. Because they don't react with anything, they keep metals from getting into the treated water stream, which is a must in places that make drugs and electronics.

Choosing the Right Platinized Titanium Electrode for B2B Procurement

Key Selection Parameters

To choose the right electrode, you need to make sure that its specs match the conditions of your process. Here are the main factors that buyers should look at before placing an order:

• Platinum coating thickness: Thicker coatings (up to 10 μm from CXMET, or custom up to 20 μm) extend service life in high-current-density applications such as ballast water treatment systems.
• Substrate grade: Gr1 titanium is preferred for water treatment due to its superior corrosion resistance; Gr2 through Gr4 options are available for structural applications requiring higher tensile strength.

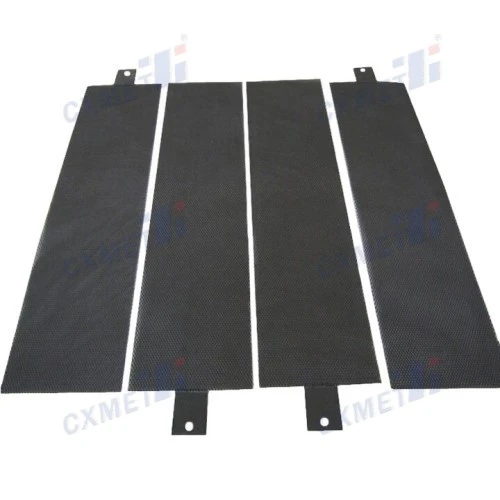

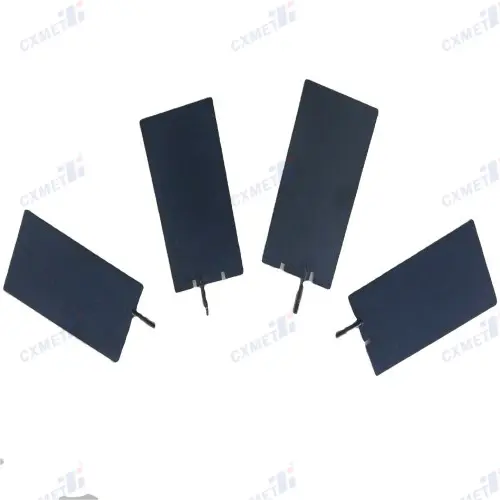

• Electrode geometry: Mesh electrodes increase active surface area per unit volume, improving mass transfer in flow-through reactors. Plates and bars suit tank-based electrolyzers.

By matching these factors to your working temperature, pH, and current density needs, you can avoid failures and downtime that aren't necessary.

Comparing Electrode Materials

Graphite anodes are always wearing away, which contaminates the electrolyte and means they need to be replaced often. Pure platinum electrodes work better than other materials, but they are too expensive to use on a large scale. Anodes made of lead pose a threat of toxicity that goes against current environmental rules. A platinized titanium electrode combines the electrocatalytic properties of platinum with the mechanical durability of titanium at a fraction of the cost of solid platinum. This makes it the best choice for large-scale industrial water treatment in the pharmaceutical, oil and gas, chemical processing, and marine sectors.

Verifying Manufacturer Credentials

If you buy something from anyone, make sure they give you material test records that show they follow ASTM B381, data on how regular the platinum coating is, and adhesion test results. Reliable manufacturers, such as Shaanxi CXMET Technology Co., Ltd., which was established in 2005 and has over 80 professional technicians and 50,000 m² of production space in China's "Titanium Valley," offer full traceability documentation and custom engineering support for OEM projects.

Procurement Guide: Sourcing Platinized Titanium Electrodes Efficiently

Navigating Suppliers and Lead Times

CXMET ships to buyers in the U.S. by air freight, sea freight, and express freight. The goods are packed in standard export wooden cases or in custom configurations. Lead times change based on how complicated the order is and what finish is needed. Production processes are usually shorter for normal plate and mesh shapes. Custom OEM designs with unique geometries or edge sealing need more engineering review time. Before an order is confirmed, CXMET's team handles this through direct technical communication.

Customization and Certification Verification

CXMET's OEM services for a platinized titanium electrode let buyers choose the exact thickness of the platinum covering, the grade of the base, the surface finish (smooth, matte, or textured), and the size limits. Check that the supplier gives you certificates of conformance, material composition reports (in CXMET's case, titanium and mixed metal oxides), and electrochemical performance data before signing the contract. These papers are necessary for quality checks in chemical processing, marine, and pharmaceutical settings.

Pricing Benchmarks and Bulk Ordering

The price of a platinized titanium electrode changes along with the price of commodities, so making a long-term deal with a maker to lock in a price keeps costs stable. Bulk orders that are based on predictions of yearly consumption usually get better per-unit prices and more priority when it comes to production schedules. Talk to CXMET's sales team about minimum order numbers to find the most cost-effective way to place orders for your project.

Maintenance, Longevity, and Troubleshooting

Routine Cleaning and Inspection

Calcium carbonate and metal hydroxide deposits that build up on electrode surfaces during operation can be removed by cleaning them with diluted hydrochloric acid regularly. Every 500 to 1,000 hours of use, a visual check can help find early signs of covering wear, edge damage, or mechanical stress. The optional edge sealing feature of CXMET lowers the risk of crevice corrosion at the mounting places for electrodes, which means that high-conductivity electrolytes can go longer between service times.

Diagnosing Common Performance Issues

A quick rise in cell voltage at a steady current is often the first sign that the platinum coating is wearing off or that the surface is getting dirty. When voltage goes up and disinfection effectiveness goes down, it's clear that the coating is wearing down instead of being contaminated. Then the electrode should be taken off to be looked at. Recoating is the most cost-effective way to go if the titanium base stays physically sound.

Strategies for Extending Service Life

Platinum doesn't dissolve faster when the current density stays within the limits set by the maker, which for CXMET's electrodes is up to 10,000 A/m². The titanium passive film is protected by staying away from media that contain fluoride. When designing a self-cleaning electrolyzer, polarity reversal cycles should be programmed within the electrode's rated voltage window to keep the substrate from getting stressed.

Conclusion

Platinized titanium electrodes are a good choice for treating water in industries, from cleaning water in cities to managing water from oil and gas production. They are also a good value for money. They are better than graphite, lead, and uncoated titanium because they are more stable in size, can handle a wide range of pH levels, and can be coated again.

FAQ

How often should platinized titanium electrodes be replaced?

Service life is between 5 and 10 years, based on the temperature, current level, and type of electrolyte used. The lower end of this range may be reached by applications that run close to their maximum current density (10,000 A/m²) in places with a lot of chlorine. Once the platinum covering wears off, the titanium base can be recoated, which makes it much more useful for a longer time.

What certifications should I verify before purchasing?

Look for proof that the product meets ASTM B381 standards, records on the materials used, and data from platinum coating consistency tests. For electronics and pharmaceuticals, you should ask for certificates of conformance and records of traceability. OEM and bulk orders can get full documentation packages from CXMET.

Can CXMET produce electrodes to custom dimensions?

Yes. The engineering team at CXMET can work with specific geometry requirements, such as exact sizes, the thickness of the platinum coating (1–10 μm as standard, up to 20 μm on request), the choice of substrate grade, and the finish on the surface. Under OEM deals, you can also get proprietary design integration.

Are these electrodes suitable for seawater applications?

Yes. Because seawater has a lot of chloride, the Gr1 titanium base and platinum layer can handle it. This makes the electrodes suitable for treating ballast water and marine cathodic protection systems.

Partner with CXMET for Your Next Water Treatment Project

Customers in the oil and gas, chemical processing, marine, and chemical processing industries have been buying platinized titanium electrodes from CXMET for more than 20 years. We are a reliable company in China's Titanium Valley that makes platinized titanium electrodes. We provide ASTM B381 Gr1 substrates, full OEM customization, and direct technical help from a group of over 80 experts. Get in touch with us right away to get specifications, samples, or a quote that is tailored to your project. You can email our team at sales@cxmet.com.
