Cost is seldom a single figure for procurement managers and engineers looking at anode alternatives to industrial electrochemical systems. The titanium MMO anode is a dimensionally stable electrode, manufactured from a Grade 1 titanium substrate and coated with mixed metal oxides including iridium, ruthenium, or tantalum. The Real Price is based on raw material inputs, coating engineering, service life, and overall operational value. B2B customers in maritime, chemical processing, oil & gas, and power sectors know what drives pricing and can make decisions based on facts, not just the sticker price.

Understanding Titanium MMO Anodes and Their Cost Components

What Goes Into the Electrode

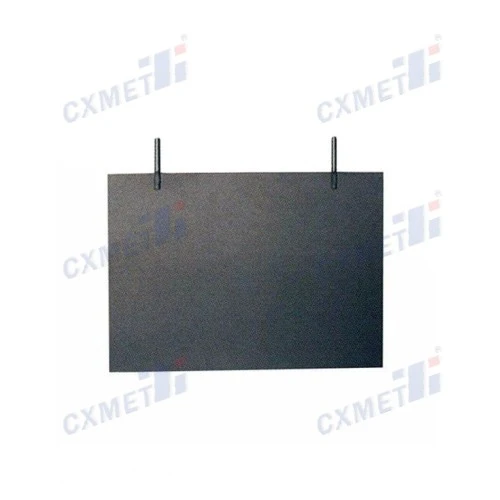

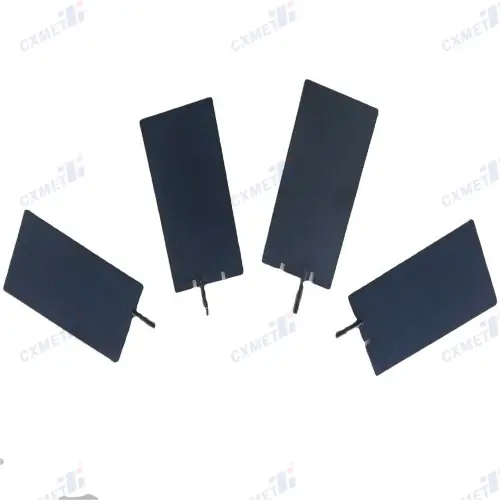

The anode is a mixed metal oxide deposited on a high-purity titanium substrate, ASTM B265 or ASTM B381 Grade 1, for corrosion resistance and electrical conductivity. The unit cost has a large component due to the substrate itself, since titanium prices follow the cycles of world sponge production and aerospace demand.

The MMO Coating Layer

The electrochemical performance lies in the oxide coating. Ru-Ir oxide 8-12 micrometers Ir-Ta oxide 8-12 micron Platinum 0.5 - 2.5 microns The amount of noble metals, the thickness of the coating, the precision of thermal decomposition have a direct effect on the cost of manufacture and the operational life of the electrode (5-10 years under typical conditions of use).

Quality Assurance and Certification

Adds process expense but safeguards long-term dependability. Rigorous testing processes include coating adhesion tests, uniformity measurement, and current efficiency validation. Buyers that do not use qualified vendors typically see early coating delamination, resulting in accelerated replacement cycles and higher overall cost.

Key Factors Affecting the Cost of Titanium MMO Anodes

The ultimate pricing for titanium MMO anodes is dependent on the raw material markets, the production processes, and the performance specifications. Each consideration needs to be considered before a purchase order is placed.

Here are the key cost factors procurement teams should watch:

• Noble Metal Spot Prices: Iridium and ruthenium are platinum group metals traded in tight worldwide markets. The cost per anode may thus be strongly impacted by a 10% change in iridium pricing, especially for coatings with a larger iridium loading. Buyers sourcing in bulk should watch the London Platinum and Palladium Market (LPPM) statistics.
• Quality of Titanium Substrate and Form Quality 1 is the most corrosion-resistant and purest titanium; however, it is more expensive than Grade 2. The form (mesh, plate, rod, tube, or custom) has an impact on the material waste and the machining time, and this is all taken into consideration when calculating the price.
• Coating thickness and formulation: Thicker oxide layers (up to 20µm) increase lifetime but need higher noble metal loading and longer heat treatment cycles. The pricing of tailor-made formulations, Ir-Ta for oxygen evolution or Ru-Ir for chlorine evolution, depends on the catalytic target.
• Scale and automation of production: Facilities with automated coating lines and highly regulated decomposition furnaces allow for improved batch-to-batch homogeneity. The uniformity means less waste, and the savings are passed on to bulk customers.

These drivers are interrelated. For instance, a thicker platinum coating on a Grade 1 mesh in a bespoke size would have a higher unit price, but might need much fewer replacements during a five-year working window, so dramatically decreasing overall lifespan cost.

Comparing Titanium MMO Anode Costs with Alternative Solutions

Lead and Graphite Anodes

Lead alloy and graphite anodes are less expensive initially, but both disintegrate or degrade during operation, polluting process streams and necessitating regular replacement. Titanium MMO anodes avoid these drawbacks. Anode sludge generated from lead electrodes poses compliance problems in chlor-alkali or electrowinning processes that may easily offset years of savings on the purchase price.

Platinized Titanium Anodes

Platinized titanium anodes have a good performance in certain applications, but cost more per unit than ordinary Ru-Ir MMO coatings. The Ir-Ta oxide formulation is frequently able to provide the same electrochemical efficiency at reduced noble metal loading cost for high pH or high temperature situations.

Total Cost of Ownership Analysis

Electrochemical engineering studies reveal that dimensionally stable anodes, which comprise MMO-coated titanium, provide a 10-20% energy savings over consumable anodes in large-scale electrolysis. Over a 10-year asset life, the energy savings often more than balance the higher purchase cost, making the ROI argument simple for facilities with continuous operations.

How to Choose and Procure Titanium MMO Anodes for Your Business

Match the Coating to the Application

Ru-Ir oxide coatings are most appropriate for applications of chlorine evolution such as electrochlorination and saltwater disinfection. Ir-Ta oxide coatings are chosen for the applications of oxygen evolution, such as cathodic protection and water treatment. The electroplating of platinum in the range of 0.5-2.5 microns is very suitable for precision electroplating. Wrong specification of formulation loses money and lowers service life.

Verify Manufacturer Credentials

Ru-Ir oxide coatings are most appropriate for the applications of chlorine evolution such as electrochlorination and saltwater disinfection on titanium MMO anodes. Ir-Ta oxide coatings are chosen for the applications of oxygen evolution, such as cathodic protection and water treatment. The electroplating of platinum in the range of 0.5-2.5 microns is very suitable for precision electroplating. Wrong specification of formulation loses money and lowers service life.

Procurement Strategy for Volume Buyers

Generally, buying directly from manufacturers (not wholesalers) translates to reduced unit cost and shorter loops for communication on particular measures. Blanket purchase orders may fix price against raw material volatility, control inventory levels, and can be issued on a scheduled basis. Order the surface treatments such as sandblasting, acid cleaning, polishing, or brushing in advance to avoid delays.

Maintenance Tips and Common Challenges to Optimize Cost Efficiency

Routine Inspection Protocols

Visual inspections at 500 – 1000 hours of operation provide engineers a chance to discover early coating wear, edge degradation, or mechanical problems ahead of failure. The record of inspection results offers a basis for decisions on timely refurbishment and on extending the overall service life.

Avoiding Coating Degradation

The oxide layer is rapidly consumed when operation is above the rated current density (>10,000 A/m2) or pH range (0-14). Instability of the power supply causes sudden current spikes, resulting in thermal stress in the coating. Providing surge protection and maintaining steady electrolyte composition are low-cost interventions with payback in increased electrode life.

Refurbishment as a Cost-Control Tool

Many manufacturers also provide recoating services for used titanium substrates. The titanium base remains structurally sound when the coating is depleted, making refurbishment a realistic alternative at a fraction of the cost of a new unit for sites with significant installed anode stocks. This further eliminates material waste and provides support for sustainable buying objectives.

Conclusion

The price of a titanium MMO anode, a mixed metal oxide electrode, depends on the grade of the substrate, the composition of the noble metal coating, the accuracy of manufacture and the climate in which it has to operate. The net result: buyers who consider all of these elements in aggregate, and not just one component, such as unit pricing, have generally delivered superior results throughout the entire life of the asset. CXMET is a trusted sourcing partner for engineers and purchasing professionals who need technical precision and commercial dependability, with established expertise, ASTM-compliant materials, and flexible customisation options.

FAQ

How long does a titanium MMO anode typically last?

A correctly configured MMO anode will survive 5-10 years under normal working circumstances (steady current density, regulated pH, and temperatures below 80°C). Harsh circumstances or present loads over specification may reduce that window, however prudent operation can increase it.

What is the difference between Ru-Ir and Ir-Ta MMO coatings?

Ru-Ir coatings are designed for chlorine evolution reactions and are the usual option in electrochlorination and brine electrolysis. Ir-Ta coatings perform better in cathodic protection and water treatment systems and encourage oxygen evolution. The efficiency and lifetime of the electrodes depend on the selection of the right formulation for the intended reaction.

Can titanium MMO anodes be manufactured to custom dimensions?

Yes. Reputable companies make anodes in mesh, plate, rod, tube, and custom geometries. With the order, it is possible to pick the surface treatment of the substrate. Custom orders often need measurement drawings and application details to substantiate coating choice and thickness.

Why do noble metal prices affect anode cost so significantly?

Iridium and ruthenium are produced in very small global quantities, primarily as byproducts of platinum and palladium refining. Their limited supply makes pricing sensitive to demand shifts in electronics, catalysis, and electrochemical industries simultaneously.
