Titanium MMO anodes have become the preferred choice for engineers and procurement teams working in corrosion-intensive environments. These dimensionally stable anodes consist of a high-purity Grade 1 titanium substrate (per ASTM B381) coated with a mixed metal oxide layer — typically Ru-Ir or Ir-Ta oxide at 8–12 microns, or platinum at 0.5–2.5 microns. Their ability to deliver consistent electrochemical performance over decades, without dissolving or contaminating process fluids, makes them genuinely useful across marine, oil and gas, chemical processing, and power generation sectors.

Understanding Titanium MMO Anodes and Their Technology

What Makes MMO Coating Different

Anodes made of graphite, lead, or plain titanium break down over time and add impurities to the electrolyte. This problem is solved by MMO-coated titanium anodes, which put a crystalline noble metal oxide layer right on top of the titanium base. This layer has a low overpotential for both chlorine and oxygen evolution processes. This means that less energy is used during each production cycle. Studies in electrochemical engineering show that alternatives to graphite always save 10–20% of the energy used.

The Role of Coating Chemistry

CXMET has three main covering choices, and each one is designed to do a certain electrochemical job. Ru-Ir oxide layers (8–12 microns) work best in places where chlorine is released, like when brine electrolyzes or hypochlorite is made. Ir-Ta oxide coatings (8–12 microns) are made to release oxygen in acidic environments. They work great for electroplating baths and for ICCP (impressed current cathodic protection) in concrete or soil. Platinum coats (0.5–2.5 microns) are good for uses that need the best corrosion protection at low current levels.

Dimensional Stability as an Operational Advantage

The fact that titanium MMO anodes don't lose their shape is one of their best uses. In contrast to lead anodes, which break down over time and change the space between electrodes, MMO-coated titanium stays the same shape throughout its useful life. This means that the voltage across the cells stays stable, the gaps between the electrodes stay the same, and process engineers don't have to keep recalibrating systems. In industrial processes that run all the time, this regularity cuts down on downtime and worker costs.

Applications of Titanium MMO Anodes in Marine and Industrial Environments

Marine Cathodic Protection and Seawater Systems

MMO anodes are used in marine settings in impressed current cathodic protection systems to keep ship hulls, offshore platform legs, and underwater cables safe from fast corrosion caused by seawater. At constant current densities of 500 to 1,500 A/m², a standard marine ICCP system with Ir-Ta-coated anodes can protect for more than 20 years. These anodes also work with seawater electro-chlorination systems that are used on ships to clean up ballast water. They meet IMO D-2 discharge standards without adding any harmful byproducts.

Chlor-Alkali and Industrial Electrochemistry

The older graphite electrodes in chlor-alkali plants broke down after 12 to 18 months of use. They were replaced with Ru-Ir-coated anodes. If you put an 8–12 micron MMO coating on a GR1 titanium substrate, the device can work for 3–7 years under normal industrial current loads. This depends on the type of electrolyte and the temperature. Similar results can be seen in electroplating lines and the production of copper foil. This is because physical stability allows for close space between the anode and cathode, which directly lowers the amount of power needed per kilogram of deposited metal.

Pipeline and Infrastructure Protection

In the oil and gas industry, underground pipes that are exposed to sea sediments or high-resistance soils need anodes that don't passivate when the electrochemical conditions change. Ir-Ta MMO anodes put in place along pipeline lines have been shown to be effective at protecting against damage in both slightly acidic and slightly basic soils. MMO-based ICCP systems don't need to be replaced as often as sacrificial zinc or magnesium anodes, which lowers field maintenance costs over the lifecycle of an asset (10–20 years).

Comparing Titanium MMO Anodes with Other Anode Types

MMO vs. Graphite and Lead Anodes

Graphite anodes oxidize while they're working, which causes them to shrink over time and release carbon particles into the electrolyte that make it dirty. Lead anodes break down and add lead ions to process streams, which is a big problem in chemical uses that are meant to be used in medicine or food. Titanium MMO anodes don't fail in either of these ways. Under normal working conditions, the oxide layer stays on, and the titanium base doesn't dissolve. This makes it the better and longer-lasting choice for most industrial electrochemical processes.

Coating Selection: Ru-Ir vs. Ir-Ta vs. Platinum

Picking the right coating chemistry is important because it has a direct effect on both performance and anode life. Here is a useful guide to the three coatings that CXMET offers:

• Ru-Ir oxide (8–12 microns): Optimized for chlorine evolution. Best used in brine electrolysis, hypochlorite generation, and swimming pool disinfection systems where chloride ions are present in high concentrations.
• Ir-Ta oxide (8–12 microns): Designed for oxygen evolution in acidic environments. Preferred for ICCP systems in soil and concrete, as well as sulfuric acid-based electrowinning of copper, nickel, and cobalt.
• Platinum coating (0.5–2.5 microns): Suited for applications requiring low current density and maximum electrochemical stability, including reference electrode systems and specialty electroplating.

The electrical characteristics of each type of coating are different. One of the best ways to get the most out of your investment is to make sure that the covering is right for the area in which it will be used.

Environmental and Safety Profile

MMO anodes pose a lot less of a threat to the environment than lead-based alternatives. They don't make heavy metal slime, don't need dangerous ways to be thrown away, and are in line with REACH and RoHS standards that apply to businesses in the US and Europe.

Procurement and Maintenance Considerations for Titanium MMO Anodes

Selecting a Qualified Manufacturer

Not every MMO anode is made to the same high level. It's important that the base is pure. CXMET uses GR1 titanium that is pure enough to reach 99.6% according to ASTM B381. Long-term performance is affected by how well the coating sticks, how even the oxide layer is, and how it is applied thermally. Before committing to a supplier, procurement teams should ask for material certifications and test reports that include information on coating thickness, adhesion strength, and results from accelerated life tests.

Customization and Surface Treatment Options

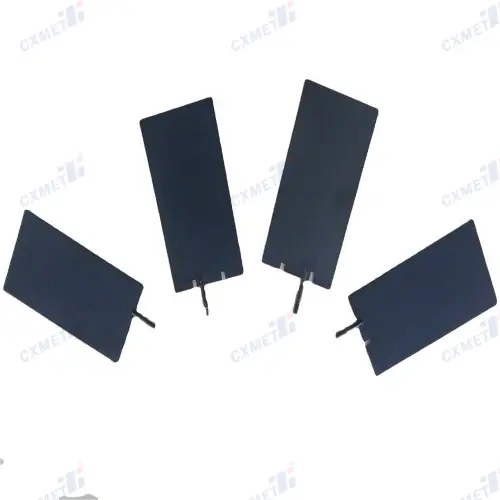

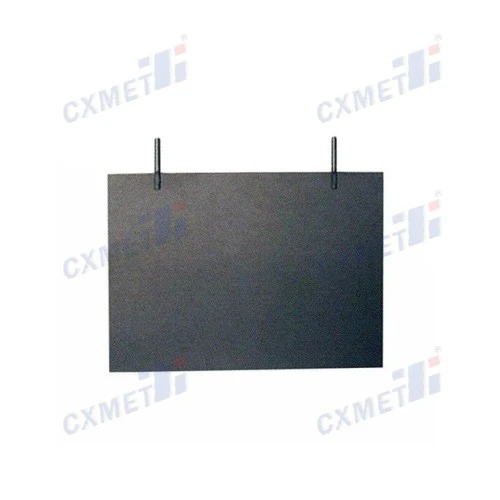

Titanium MMO anodes are made by CXMET and can be made in any size or shape, such as plates, tubes, mesh, rods, and wires. Surface treatments like sandblasting, acid cleaning, polished finish, and brushing can be chosen based on where the product will be used. Custom geometry is very useful for adding to cathodic protection systems that are already in place or for fitting unique electrochemical reactor designs.

Extending Service Life Through Maintenance

Maintenance that is done right is simple but important. Visual inspections done on a regular basis can help find early signs of layer loss before they affect performance. The best way to make a coating last longer is to keep the current density below the recommended design load. You can strip, clean, and recoat used anodes that still have their titanium substrates. This process usually costs 60–70% less than buying new units. Because they can be coated again, MMO anodes are a real long-term asset that saves money.

Why Choose Titanium MMO Anodes? Summary of Advantages and Practical Recommendations

Not marketing claims, but performance data that can be measured, make the case for MMO-coated titanium anodes. Process shift is stopped by their dimensional stability. Their low overpotential makes energy bills go down. Because they last a long time, they don't need to be replaced as often. Because they can work with challenging fluids like acidic, alkaline, or saline ones, they are really useful in a lot of different industries.

Before placing an order, procurement managers should make sure that the following things are met: the substrate grade and standard (GR1, ASTM B381); the coating type must match the process chemistry; the coating thickness must be between 8 and 12 microns for Ru-Ir or Ir-Ta; between 0.5 and 2.5 microns for platinum; the dimensions must be within tolerance; and proof of accelerated life test results.

Conclusion

Titanium MMO anodes are a good way to protect against corrosion and do electrochemical processing in naval and commercial settings that is also good for the wallet. If you get these anodes from a good manufacturer like CXMET and use the right coating chemistry and size, they will work well for a long time with little maintenance. When it comes to offshore cathodic protection, chlor-alkali production, or industrial electroplating, MMO-coated titanium is a good long-term investment for engineering teams that want to keep operations running smoothly because it is stable in size, uses little energy, and can be recoated.

FAQ

How long do titanium MMO anodes typically last in marine environments?

When used in ICCP systems that are exposed to seawater, Ir-Ta coated anodes that are properly described usually last 20 years or more at current levels of 500 to 1,500 A/m². The actual life varies on the amount of the coating, the current load, and the chemistry of the water.

Can titanium MMO anodes be recoated after the oxide layer is depleted?

Yes. As long as the GR1 titanium substrate is still structurally sound, the old oxide coating can be removed with sandblasting or chemical methods, and a new MMO layer can be put on top. It usually costs 60–70% less to recoat something than to buy a new one.

How do I choose between Ru-Ir and Ir-Ta coatings?

Ru-Ir surfaces are made to release chlorine, so use them in systems with salt or hypochlorite. It is designed so that Ir-Ta coatings can release oxygen in acidic conditions. You can use them for ICCP in soil or concrete, as well as for metal electrowinning.

What causes premature MMO anode failure?

The most common reason is that a non-conductive TiO₂ layer forms between the substrate and the coating. This can happen when the voltage is higher than the breakdown voltage or when the substrate is not properly prepared before the coating is applied.

Does CXMET offer custom sizes and configurations?

Yes. CXMET makes MMO anodes in a wide range of shapes and sizes, such as plates, tubes, mesh, and rods. The surface can also be treated in different ways to meet the needs of the application.

Request a Quote from CXMET — Trusted Titanium MMO Anodes Manufacturer

Every job that CXMET does is backed by more than 20 years of experience making things. As a specialist company in making titanium mmo anodes in China's "Titanium Valley," we make GR1 titanium anodes to ASTM B381 standards with Ru-Ir, Ir-Ta, or platinum finishes in any size you need. You can reach our expert team at sales@cxmet.com to talk about the details of your project and get a price.

References

1. Trasatti, S. — Electrochimica Acta, 2000. "The Absolute Electrode Potential: The End of the Story?"

2. Comninellis, C., & Chen, G. — Electrochemistry for the Environment, Springer, 2010.

3. NACE International — NACE TM0108: Testing of Electrodes Used in Cathodic Protection, 2008.

4. Hine, F., et al. — Journal of the Electrochemical Society, 1984. "Electrochemical Behavior of the Oxide-Coated Metal Anodes."

5. ASTM International — ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings, 2023.

6. Hayfield, P.C.S. — Development of the Noble Metal/Mixed Oxide Coated Titanium Electrode, Royal Society of Chemistry, 2002.
