When engineers and procurement managers evaluate electrode materials for electrochemical systems, the choice between a titanium oxide electrode and a graphite electrode carries real operational weight. Based on performance data and field applications, the titanium oxide electrode—built on a Grade 1 titanium substrate with mixed metal oxide (MMO) coatings—outperforms graphite in most industrial scenarios. It delivers lower overpotential, zero electrolyte contamination, and a service life measurably longer than graphite alternatives. That said, graphite still holds relevance in specific cost-sensitive contexts. This guide breaks down both options so your team can make a well-grounded decision.

Introduction to Titanium Oxide and Graphite Electrodes

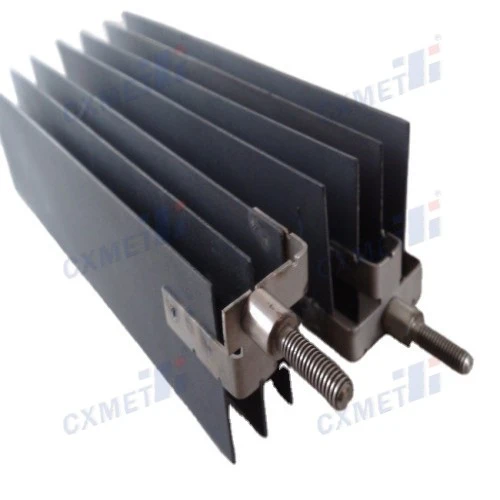

What Is a Titanium Oxide Electrode?

It is made up of a Grade 1 or Grade 2 titanium substrate that is coated with catalytic metal oxides like RuO₂, IrO₂, or Ta₂O₅. This type of electrode is also known as a Dimensionally Stable Anode (DSA) or MMO-coated titanium anode. These coatings, which are usually 8–12 microns thick, make a crystalline rutile structure that is very good at catalysis, stable in shape, and not easily worn down by electrochemical reactions. These electrodes are made by CXMET to ASTM B381 standards, and they can be coated with Ru-Ir, Ir-Ta, or platinum.

What Is a Graphite Electrode?

Graphite electrodes are made of carbon and have been used for more than one hundred years in electrochemical processes. They don't conduct electricity and aren't too expensive. During use, however, oxidation and physical weathering break down graphite, releasing carbon particles into the solution. Over time, this loss of material leads to changes in dimensions, which impacts the uniformity of the process and the cleanliness of the product—a big problem in high-specification industrial settings.

Why the Distinction Matters for Procurement

Electrode choice has a direct effect on how much energy is used, how pure the product is, how often upkeep is done, and how long the system is up and running. In fields like metal electrowinning, chemical processing, and water treatment, making the wrong choice can lead to higher costs and unexpected downtime. When procurement teams know how materials behave in real-world situations, they can better negotiate requirements, assess the skills of suppliers, and keep lifecycle costs under control.

Performance and Functional Comparison of Titanium Oxide vs. Graphite Electrodes

Corrosion Resistance and Chemical Stability

Titanium oxide electrodes work effectively in harsh environments like strong acids, chlorinated brines, and high-temperature solutions without losing their shape. On the other hand, graphite slowly oxidizes in places where oxygen is being formed. In copper electrowinning using sulfuric acid, anodes made of lead or graphite let impurities into the bath, which lowers the purity of the cathode. This problem is completely solved by MMO titanium anodes.

Energy Efficiency and Overpotential

The chlorine evolution potential of MMO-coated anodes is less than 1.13V vs. SHE, which is a lot less than graphite. Cutting down on overpotential directly leads to less energy being used per unit of production. Studies in chlor-alkali electrolysis show that moving from graphite to DSA-type anodes lowers cell voltage by 0.2 to 0.5V. This can save a lot of money on an industrial basis.

Mechanical Strength and Dimensional Stability

It is easy for graphite to crack when it is under mechanical stress or when the temperature changes. The shape of titanium plates that are approved to ASTM B381 stays the same over time. This level of stability in three dimensions stops the gap between electrodes from changing, which is important for making sure that current flows evenly in large electrolytic cells. Graphite can't reliably handle current densities up to 10 kA/m², but CXMET electrodes can.

Cost, Procurement, and Market Availability Considerations

Upfront Cost vs. Total Cost of Ownership

When buying things on a budget, graphite electrodes are more appealing because they cost less per unit. But graphite needs to be replaced often because it wears away, and process losses caused by pollution add to the secondary costs. A titanium oxide electrode from a reputable company like CXMET can work for 5 to 20 years, based on the covering thickness and current density. This means that the total cost of replacement is much lower over the lifecycle of the asset.

Supplier Evaluation and Customization

Not every company that sells MMO electrodes has the same level of coating quality or substrate purity. Accelerated Life Test (ALT) data according to NACE TM0108 is a good sign of a trustworthy titanium oxide electrode manufacturer. Other signs are XRF-verified noble metal loading (usually 6–12 g/m²), and SEM documentation of surface morphology. It is possible to fully trace the coating composition at CXMET, which includes Ru-Ir oxide, Ir-Ta oxide at 8–12 microns, or platinum at 0.5–2.5 microns. The geometries can be changed to fit plates, rods, and mesh configurations up to 1000mm × 2000mm.

Bulk Orders and Procurement Strategy

Bulk purchase deals with a capable titanium oxide electrode seller lower the cost per unit and make delivery more predictable for projects that need a lot of electrodes, like water treatment plants or offshore cathodic protection systems. CXMET handles both OEM and custom orders with dedicated technical coordination. This lets engineering teams specify exact sizes, coating formulations, and surface treatments like brushing, sandblasting, acid cleaning, or polishing.

Installation, Maintenance, and Troubleshooting Insights

Installation Best Practices

To prevent galvanic incompatibility at contact points, titanium oxide electrodes must be placed with connection hardware that is compatible. Oxide passivation films should not be on the surface areas that will be touching other things. These films can be removed by light mechanical cleaning before assembly. Because they are so fragile, graphite electrodes need to be handled carefully, and connection joints are often where they break. Titanium anodes can handle mechanical systems that are tighter without breaking.

Maintenance and Cleaning Protocols

Over time, calcium or magnesium scale may build up on MMO-coated anodes in systems that treat water or use electricity to chlorinate it. When the electrode design allows it, periodic polarity reversal can get rid of these deposits without using chemicals to clean them. For normal setups, washing with diluted acid (5–10% HCl) brings back surface activity. Once corrosion starts, graphite electrodes can't be cleaned or fixed properly; they need to be replaced.

Extending Electrode Service Life

The best way to make an MMO coating last longer is to stay within the current density range specified by the manufacturer. Higher-than-rated current levels make the loss of precious metals faster. When a titanium oxide electrode coating wears out, the titanium substrate can be recoated by sandblasting, acid-etching, and thermal redeposition. This can bring back full performance for a lot less money than buying a new electrode. Graphite doesn't have a similar way to get back to normal.

Case Studies and Industry Applications

Water Treatment and Electro-Chlorination

A city worker who treats bilge water replaced graphite anodes with titanium anodes coated with Ir-Ta oxide. As a result, 30% less energy was used, carbon was taken out of the treated water, and the time between maintenance visits went from 6 months to over 4 years. This result is in line with what the scientific data says will happen: low overpotential and stable dimensions lead to real practical gains.

Hydrometallurgy: Copper Electrowinning

In copper electrowinning circuits with sulfuric acid solutions, lead-based and graphite anodes make sludge and add impurities that lower the quality of the cathode. When you switch to MMO titanium anodes, the cell voltage drops by about 0.3V, and the copper purity rises to meet LME Grade A standards. The lack of anode sludge also lowered the cost of filtering further down the line.

Where Graphite Still Makes Sense

Graphite electrodes are still useful in situations where the purity of the electrolyte is not important, the operating temperatures are normal, and short-term cost is the main issue, like in some lab setups or low-throughput batch processes. Titanium-based MMO anodes are the technically better choice for any application that needs to work continuously, with strong chemicals, or with strict standards for product purity.

Conclusion

It has been shown that titanium oxide electrodes work better than graphite in industrial B2B settings for treating water, making chemicals, and refining metals. MMO titanium anodes are the best choice for operations that need to be reliable and keep costs low because they have a lower overpotential, a longer service life, the ability to recoat, and no electrolyte contamination. Graphite can still be used in some limited, low-intensity situations. The technical and financial case for titanium oxide electrodes is clear for engineers and purchasing managers who are looking for electrodes for harsh settings.

FAQ

What are the main advantages of titanium oxide electrodes over graphite?

Titanium oxide electrodes don't wear away into the solution, keep their shape over time, and work at a smaller overpotential, which lowers the cost of energy. Graphite is always breaking down, polluting process streams and needing to be replaced often.

How does electrode material affect water treatment performance?

In electro-chlorination and wastewater treatment, the stability of the anode has a direct effect on how well the water is disinfected and how good it is after treatment. Titanium anodes treated with MMO produce a steady flow of chlorine without adding carbon particles, which would mess up processes further down the line.

Can titanium oxide electrodes be customized for specific applications?

CXMET lets you choose the size, covering type (Ru-Ir, Ir-Ta, or platinum), and surface treatment. You can choose the shape of the electrode (plates, rods, or mesh) to match existing cell designs. The coating thickness is changed based on the service life you need and the operating current density.

What happens when the coating wears out?

The structure of the titanium substrate stays the same. Industrial recoating using sandblasting, acid etching, and thermal decomposition brings the electrode back to its original working condition, which greatly increases its useful life.

Is there a risk from fluoride in the electrolyte?

Fluoride levels above 50 ppm can damage the titanium base where it meets the layer. A safe sub-layer or ceramic intermediate cover is needed in these kinds of places. If you ask, CXMET can design electrodes for process lines that contain fluoride.

Partner with CXMET for Your Titanium Oxide Electrode Supply

For more than 20 years, CXMET has sold high-quality MMO titanium anodes to businesses in the marine, chemical processing, and water treatment industries. Our company, which is based in China's "Titanium Valley," makes reliable titanium oxide electrodes. We provide Grade 1 titanium substrates that meet ASTM B381, tested coating compositions, and fully customizable designs for both bulk and project-specific orders. To get specs or procurement advice, email our expert team at sales@cxmet.com.

References

1. Trasatti, S. (1999). Electrochimica Acta — "Electrocatalysis: understanding the success of DSA."

2. Beer, H.B. (1980). Journal of the Electrochemical Society — "The Invention and Industrial Development of Metal Anodes."

3. Panizza, M., & Cerisola, G. (2009). Chemical Reviews — "Direct and Mediated Anodic Oxidation of Organic Pollutants."

4. Comninellis, C., & Vercesi, G.P. (1991). Journal of Applied Electrochemistry — "Characterization of DSA-type Oxygen Evolving Electrodes."

5. NACE International. (2008). NACE TM0108 — "Evaluation of Coatings for Use as Anode Materials in Cathodic Protection Systems."

6. Hine, F., Yasuda, M., & Noda, T. (1979). Journal of the Electrochemical Society — "On the Oxidation of the Graphite Anode in Electrochemical Processes."
