Titanium oxide electrodes — commonly known as Mixed Metal Oxide (MMO) anodes or Dimensionally Stable Anodes (DSA) — have become the preferred choice across demanding industrial sectors. Built on a Grade 1 titanium substrate (ASTM B381) and coated with active oxide layers such as Ru-Ir or Ir-Ta at 8–12 microns, these electrodes deliver low overpotential, dimensional stability, and extended service life. From water treatment to corrosion protection, titanium oxide electrodes address performance gaps that graphite and lead anodes cannot close.

Water Treatment and Purification

In industrial water treatment, electrodes must withstand chemical attack 24 hours a day, 7 days a week. MMO-coated titanium anodes make oxidants like chlorine and ozone right where they are needed. These break down biological pollutants and germs without adding contaminants to the treated water, which is a problem that keeps happening with graphite dissolution.

Performance Advantages Over Traditional Electrodes

The Ru-Ir oxide-coated electrodes from CXMET can handle current levels of up to 10 kA/m² while keeping their shape. The titanium substrate doesn't lose its shape over time like graphite anodes do, which release particles that pollute the effluent. Studies in the Journal of Hazardous Materials confirm that MMO anodes can make chlorine in seawater electrolysis systems with an efficiency of up to 95%.

Real-World Industrial Application

Electro-chlorination cells with MMO titanium anodes kill invasive bacteria successfully in ships' ballast water control systems. Periodic polarity switching doesn't damage the wires' coating, which is important for keeping calcium and magnesium scale from building up.

Procurement Guidance for B2B Buyers

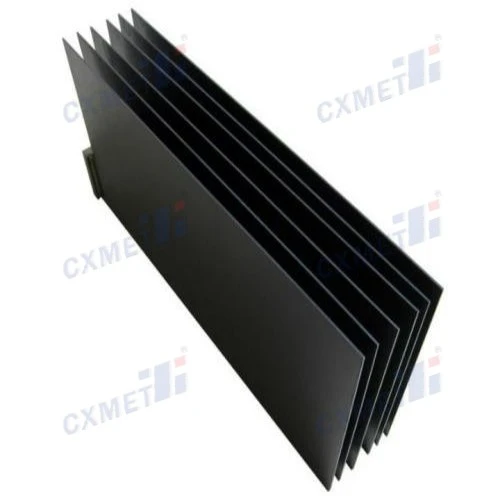

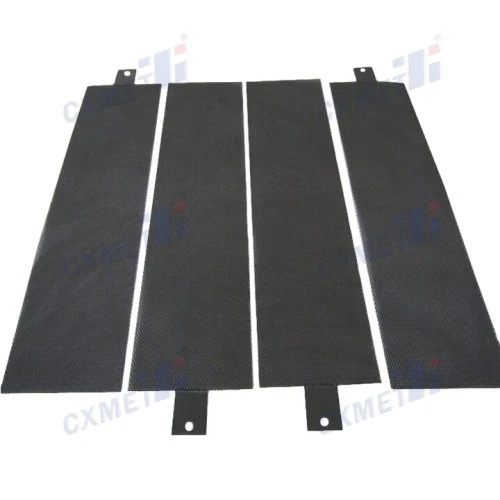

When looking for water treatment, buyers should be clear about the substrate grade (GR1, ASTM B381), coating type (Ru-Ir for chlorine evolution), and coating thickness (8–12 microns). CXMET has plate, mesh, and rod shapes that can be changed, and the surfaces can be acid-cleaned or sandblasted to fit any cell configuration.

Electrochemical Synthesis and Industrial Catalysis

Chemical companies that use chlor-alkali, ozone generation, or organic electrosynthesis processes need a titanium oxide electrode that can work continuously and with a lot of work going through them. Platinum electrodes work well, but they are very expensive to repair. Carbon anodes break down and pollute product lines. MMO titanium electrodes are in the middle ground in terms of how they work.

Coating Chemistry and Catalytic Efficiency

CXMET makes Ir-Ta oxide coatings (8–12 microns) that work well for oxygen evolution reactions and Ru-Ir oxide coatings (8–12 microns) that work best for chlorine evolution reactions. The rutile-phase crystalline structure of these coatings lowers the chlorine evolution potential to less than 1.13 V vs. SHE. This directly lowers the amount of energy needed to make a ton of product.

Lifespan and Cost-Performance Ratio

Depending on the current load and the chemistry of the liquid, an MMO anode in a chlor-alkali cell can usually last between 5 and 15 years. The titanium base can be recoated through thermal decomposition when a coating has reached the end of its useful life. This method returns full functionality at a fraction of the cost of a new unit. Because it can be recoated, the total cost of ownership is much lower than with platinum or carbon options.

Sourcing Specifications Checklist

Before placing large orders, procurement teams that are evaluating suppliers should ask for the following paperwork:

• XRF analysis confirming noble metal loading (e.g., 6–12 g/m² Ir or Ru)
• Accelerated Life Test (ALT) data per NACE TM0108 standards
• SEM images showing uniform "mud-crack" surface morphology
• Confirmed coating adhesion strength exceeding 20 MPa (ASTM D3359)

An XRF test that shows the presence of noble metals (6–12 g/m² Ir or Ru)

Energy Storage and Conversion Systems

As infrastructure moves toward green energy, the need for solid electrodes in electrolyzers, flow batteries, and fuel cells has grown. In proton exchange membrane (PEM) water electrolyzers, the oxygen evolution anode works in acidic conditions with a high anodic potential. This is an environment that breaks down most common electrode materials in just a few months.

Why Ir-Ta Coatings Outperform Graphite in Electrolyzers

Ir-Ta oxide coatings on GR1 titanium surfaces, such as a titanium oxide electrode, don't dissolve in strong sulfuric acid, and the rate of oxygen generation stays fixed. Under the same conditions, graphite anodes lose mass and oxidize, which makes the cell more resistant over time. CXMET's electrodes are made to work at temperatures up to 80°C and are compliant with ASTM B381. For higher temperatures, there are special coating choices available.

OEM Design Compatibility

CXMET makes electrodes in common sizes up to 1000 mm × 2000 mm. For OEM electrolyzer stacks and fuel cell bipolar plate systems, custom shapes are also possible. Different surface processes, like polishing and brushing, are chosen based on how the fluids will move and how they need to touch each other in each design.

Bulk Order and Logistics Considerations

Lead time and shipping efficiency have a direct effect on project timelines in the energy industry. The factory where CXMET makes its products in Shaanxi Province ships all over the world and has clear quality records. When buyers place bulk orders, the coating quality is consistent from batch to batch, as confirmed by in-house XRF and SEM inspections before shipment.

Industrial Sensors and Monitoring Devices

For process monitoring in power plants, drug factories, and chemical plants, you need reference and working electrodes that stay accurate even when they are exposed to chemicals, heat, and pressure. Standard electrodes made of stainless steel or silver move around or rust, giving wrong readings that make it hard to control the process.

Wear Resistance in Aggressive Process Environments

IrO2 or Ta2O5 layers on titanium electrodes keep their electrochemical properties stable at temperatures up to 80°C and over a wide pH range. Their toughness means they can handle rough slurries found in mineral processing and pharmaceutical mixing environments, which cuts down on the number of times sensors need to be replaced by a large amount.

Customization Options for Precision Sensing

CXMET makes titanium oxide electrodes in rod and tube shapes with platinum coatings (0.5–2.5 microns) for uses that need precise potential control. Surface finishes, like polishing or acid cleaning, are chosen based on how sensitive the sensor needs to be. This makes sure that the electrodes behave the same way in all production batches.

Supplier Evaluation and QA Practices

OEM sensor makers should give more weight to providers who offer uniform coating thickness records, lot-level tracking, and recorded adhesion testing. Every production batch at CXMET goes through ASTM D3359 adhesion tape tests and SEM proof as part of quality control. This gives OEM buyers the peace of mind they need for high-stakes tracking applications.

Corrosion Protection and Coating Applications

Offshore platforms, buried pipelines, and chemical storage tanks are all constantly being corroded by electricity and chemicals. ICCP systems work against this by sending a protective current through an MMO titanium anode that is buried in dirt, concrete, or ocean. These are the same places where graphite and cast iron anodes break down in a few years.

Protection Mechanism and Material Advantage

In ICCP devices, the anode has to keep oxidation going without burning up. The Ir-Ta or Ru-Ir oxide coating drives the reaction, while the titanium substrate stays still. CXMET's electrodes can handle high soil resistivity, acidic anode-interface chemistry, and the mechanical stresses of thermal cycling, all of which break down graphite quickly.

Total Cost of Ownership vs. Conventional Anodes

When looking at lifetime costs, MMO titanium anodes usually last 5–10 times longer than graphite versions. Less frequent repair lowers the cost of work, keeps system downtime to a minimum, and lowers long-term capital costs. For marine owners who take care of offshore buildings, this means that their assets will be safer and they will have less work to do.

Procurement Tips for Corrosion Protection Projects

If a buyer wants ICCP anodes, they should make sure the base is pure (GR1, ASTM B381), ask for Ir-Ta coatings for places where oxygen levels change, and ask for ALT data that predicts the service life at different current densities at the site. CXMET can work with project-specific plans and make custom anodes that fit deep groundbed, ribbon, and canister designs perfectly.

Conclusion

MMO-coated titanium electrodes consistently outperform traditional graphite, platinum, and lead alternatives in terms of durability, electrochemical efficiency, and total operating cost. They are used in water treatment, industrial synthesis, energy systems, process monitoring, and corrosion protection. Titanium oxide electrodes from CXMET are made on GR1 titanium (ASTM B381) and have Ru-Ir, Ir-Ta, or platinum coatings to meet the needs of each application. If buying workers and engineering teams are looking for high-performance electrodes, knowing about these five application areas will help them choose the right materials.

FAQ

What coating should I specify for chlorine evolution vs. oxygen evolution?

Ru-Ir oxide coatings (8–12 microns) are best suited for chlorine evolution, as used in chlor-alkali and seawater electrolysis. Ir-Ta oxide coatings (8–12 microns) are preferred for oxygen evolution environments such as cathodic protection and metal electrowinning, where higher stability in acidic conditions is required.

Can a worn MMO electrode be recoated?

Yes. The GR1 titanium substrate retains its structural integrity after the coating reaches end-of-life. Recoating via sandblasting, acid etching, and thermal decomposition restores the electrode to full performance at substantially lower cost than purchasing a new unit.

How does fluoride contamination affect the electrode?

Fluoride concentrations above 50 ppm can attack the titanium substrate beneath the oxide coating, causing delamination. In fluoride-bearing electrolytes, a protective sub-layer or ceramic intermediary coating should be specified when ordering.

What quality certifications should I request from a supplier?

Request XRF coating analysis, ALT data per NACE TM0108, SEM surface morphology reports, and ASTM D3359 adhesion test records. These documents verify noble metal loading, predicted service life, and coating integrity.

What are standard lead times for custom orders?

Lead times vary based on order complexity, but CXMET typically processes custom electrode orders within agreed project schedules.

Partner with CXMET for Your Titanium Oxide Electrode Requirements

For more than 20 years, CXMET has sold high-quality titanium oxide electrodes to businesses in the energy, chemical processing, marine, and oil and gas industries. Our GR1 titanium electrodes can be coated with either Ru-Ir or Ir-Ta oxide up to 8–12 microns thick and are certified to ASTM B381. They can also be made in any shape or size you want. Today, ask for your product catalog, detailed data sheets, or a straight source comparison. You can start your question by emailing sales@cxmet.com or going to www.cxmet-tech.com.

References

1. Comninellis, C., & Chen, G. (Eds.). Electrochemistry for the Environment. Springer, 2010.

2. Trasatti, S. "Electrocatalysis: Understanding the Success of DSA." Electrochimica Acta, 2000.

3. Lipp, L., & Pletcher, D. "The Preparation and Characterization of Tin(IV) Oxide Coated Titanium Electrodes." Electrochimica Acta, 1997.

4. Martínez-Huitle, C. A., & Brillas, E. "Decontamination of Wastewaters Containing Synthetic Organic Dyes by Electrochemical Methods." Applied Catalysis B: Environmental, 2009.

5. NACE International. Standard TM0108: Testing of Catalytic Anodes for Use in Cathodic Protection Systems. NACE International, 2008.

6. Jain, R., & Bhardwaj, P. "Performance Evaluation of Mixed Metal Oxide Anodes in Industrial Water Treatment Applications." Journal of Hazardous Materials, 2015.
