MMO coated titanium anodes have become a go-to electrode solution across demanding industrial sectors. Built on a Grade 1 titanium substrate (per ASTM B381) and finished with either Ru-Ir oxide, Ir-Ta oxide, or platinum coatings ranging from 8–12 microns, these anodes deliver consistent electrochemical performance where traditional materials fall short. From cathodic protection on offshore platforms to high-purity metal recovery in hydrometallurgy, titanium MMO anodes offer a service life that often exceeds 10–20 years — making them a sound investment for any procurement team sourcing for long-cycle industrial operations.

​

​

What Makes MMO Coated Titanium Anodes Different

The Titanium-MMO Combination

The titanium base forms a passive TiO₂ film that can fix itself and is not easily damaged by chemicals. The layer of mixed metal oxides on top acts as a catalyst for either chlorine evolution (Ru-Ir) or oxygen evolution (Ir-Ta). This mix makes an anode that is dimensionally stable, which means that the electrode doesn't break down while it's working, as lead or graphite options do.

Coating Options and Their Purpose

When it comes to chlor-alkali and water disinfection, Ru-Ir oxide coatings (8–12 microns) work best for chlorine evolution reactions. Coats of Ir-Ta oxide (8–12 microns) can handle oxygen generation in acidic conditions, and coats of platinum (0.5–2.5 microns) are better for precise electrochemical uses. All three types are available from CXMET, and the sizes and finishes can be changed. The surfaces can be sandblasted, acid cleaned, polished, or brushed.

Performance vs. Graphite and Lead Anodes

Graphite anodes wear down so quickly that they pollute process pools and need to be replaced often. When sensitive metals are recovered, lead anodes can cause pollution. Titanium MMO electrodes, on the other hand, keep the inter-electrode gap fixed over their entire service life. This keeps the cell voltage steady and lowers the energy draw by 10–20% compared to lead-based systems, which is supported by published electrochemical studies.

Top 7 Industrial Applications of MMO Coated Titanium Anodes

The fact that these electrodes are used in many different fields shows how flexible the technology is. The seven most important application areas are listed below, along with reasons why each one is so useful.

Impressed Current Cathodic Protection (ICCP)

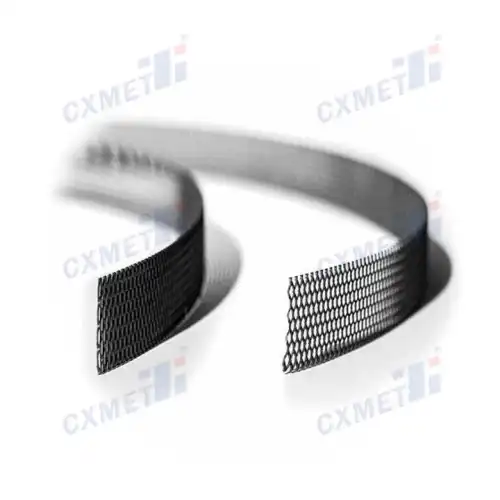

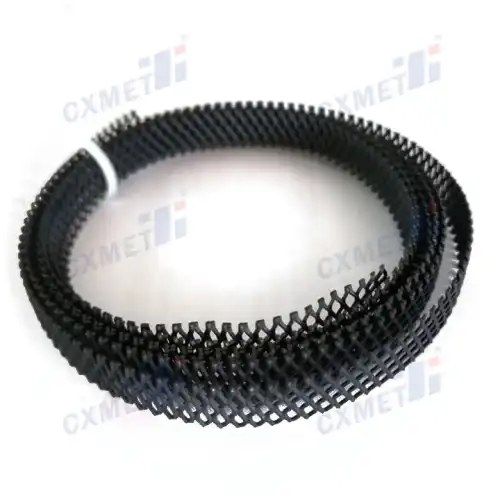

Corrosion costs the U.S. economy about $276 billion a year in marine and oil and gas settings (NACE International, 2016). Pipelines, offshore platforms, and reinforced concrete buildings are all protected by ICCP systems that have mmo coated titanium anodes in the form of wire or ribbon attached to them. In seawater and high-resistance soils, design lives of more than 20 years are possible. The titanium substrate is very stable in terms of its shape, so the protection current output stays the same for the whole rated service period.

Electrowinning and Hydrometallurgy

Recovery processes for copper, nickel, and cobalt use acidic sulfate solutions that destroy regular anodes in just a few months. Titanium MMO anodes can handle these conditions without giving off ionic contaminants that would lower the cleanliness of the cathode. Mines and mills all over North America have switched to these electrodes because metal sources with higher purity directly lead to higher market prices. Operating current densities are usually between 500 and 1,500 A/m², which is a good balance between anode longevity and throughput.

Water Treatment and Electrochlorination

Consistent chlorine evolution is needed to make sodium hypochlorite on-site for managing ballast water, power plant cooling loops, and city sanitation systems. When the overpotential is low, Ru-Ir covered anodes make chlorine, which uses less energy than older electrode types. Some cell designs can reverse the polarity, which stops scale from building up on the electrode surface and greatly reduces the number of times chemicals need to be cleaned.

Chlor-Alkali Production

One of the biggest markets for MMO-coated electrodes in the world is the chlor-alkali business, which makes chlorine and caustic soda. Since the 1970s, industrial chlor-alkali cells have used dimensionally stable anodes instead of graphite, and the technology keeps getting better. Less chlorine overpotential means direct savings on electricity, which is the main cost of doing business in electrolytic chlorine production.

Electroplating and Metal Finishing

For consistent plating thickness and adhesion, it is important that the current flow is even across the anode surface. mmo coated titanium anodes (0.5–2.5 microns, provided by CXMET) give fine electrochemical control in plating lines for chrome, gold, and decorations. Since the titanium substrate doesn't dissolve, there is no anode sludge to mess up the bath chemistry, which is a problem that often stops production in regular plating shops.

Pharmaceutical and Electronics Manufacturing

Pharmaceutical synthesis and PCB manufacture need electrodes that don't introduce any metallic contamination because they work in high-purity electrochemical settings. Anodes that are covered with Ir-Ta oxide are good for releasing oxygen in these acid-sensitive processes. CXMET makes these anodes in sizes that can be changed, so they can fit current cell designs without having to change the way the process is done.

Wastewater Treatment and Organic Oxidation

Advanced electrochemical oxidation methods are used to get rid of persistent organic toxins in industrial wastewater, which is becoming more and more important to do because of U.S. EPA rules. In situ, MMO anodes generate hydroxyl radicals and active oxidants that break down chemicals that biological treatment systems can't handle. This use is growing quickly in wastewater streams from chemical processing and pharmaceutical manufacturing.

Maintenance and Longevity

Routine Inspection Practices

Visual and electrical checks on mmo coated titanium anodes done every 6 to 12 months find early signs of coating wear, which are usually shown by a rise in cell voltage at a constant current density. Titanium base passivation can't be stopped without recoating, so it's important to act quickly at this stage.

Cleaning and Scaling Control

Scaling from hard water on the anode surface raises the electrical resistance and lowers the catalytic output. Scale can be removed with mild acids like oxalic acid or diluted HCl. This won't hurt the oxide layer. Fluoride is a known "anode poison" that breaks down MMO coatings forever, so don't use cleaning products that contain it.

Recoating and Substrate Reuse

After the first MMO layer is gone, the titanium base can be taken off, cleaned chemically, and then treated again. This method is often used to get back the value of the titanium base, which is the most expensive part of the assembly. It also makes the electrode assembly last a lot longer, which saves money.

Comparing MMO Anodes with Alternatives

Graphite anodes are always wearing away, releasing carbon particles that get into process streams and need to be replaced, which means the cell has to be shut down. Platinized titanium anodes work well, but they cost a lot to load with platinum and are sensitive to changes in the current. MMO-coated titanium anodes have a balanced profile: they use less raw material than platinized types, they don't use any energy like graphite does, and the coating can be reused instead of being thrown away. Over 10 years, the total cost of ownership for MMO anodes is always lower when compared to other products in the same industry.

Procuring MMO Coated Titanium Anodes: Tips for B2B Buyers

To start buying successfully, make sure the seller has ISO 9001 approval and can show that they follow ASTM B381 for the titanium substrate. Ask for accelerated life test data; reputable manufacturers will give you results that show the coating is stable at high current densities. Because cell shape is so different across industries, make sure the seller lets you choose your own sizes.

For custom geometries, lead times from specialized manufacturers are usually between 4 and 8 weeks. Having a provider that gives more than just order fulfillment cuts down on mistakes made during installation and helps engineering teams choose the best coating chemistry for each job.

Conclusion

MMO coated titanium anodes have proven to be the best electrodes for uses that need long-lasting, stable dimensions, and high electrochemical efficiency. The seven businesses we'll talk about here, from ICCP and electrowinning to pharmaceutical production, all benefit from the same core material advantages: a titanium substrate that doesn't conduct electricity, an oxide coating that does, and a shape that can be made to exact specs. When procurement teams compare starting price to total lifecycle cost, the data always points to MMO-coated titanium as being better than graphite or lead options.

FAQ

How long do titanium MMO anodes typically last?

Service life depends on operating current density, electrolyte chemistry, and temperature. At standard industrial densities of 500–1,500 A/m², well-manufactured anodes achieve 10–20 years of service. ICCP deep-well configurations are often rated for 20+ years.

What is the difference between Ru-Ir and Ir-Ta coatings?

Ru-Ir coatings are optimized for chlorine evolution reactions — ideal for chlor-alkali and electrochlorination. Ir-Ta coatings are designed for oxygen evolution in acidic environments, such as copper foil production and pharmaceutical electrochemistry.

Can the titanium substrate be reused after coating depletion?

Yes. The spent coating can be stripped, the titanium substrate cleaned and inspected, and a fresh MMO layer applied. This significantly lowers long-term electrode costs since titanium accounts for the largest share of material value.

What operating current density should I specify?

Most industrial processes run 500–1,500 A/m². Higher densities accelerate coating wear; staying within the manufacturer's recommended range maximizes service life.

What should I avoid during installation and operation?

Avoid mechanical scratching of the coating surface, and keep the active electrode face free from oils or greases, which can passivate the electrode. Never use fluoride-based cleaning agents.

Partner with CXMET for Reliable MMO Coated Titanium Anode Supply

From its base in China's "Titanium Valley" in Shaanxi Province, CXMET is a reputable manufacturer of Mmo coated titanium anodes with more than 20 years of production experience. These anodes are made from Grade 1 titanium that meets ASTM B381. They can be coated with Ru-Ir, Ir-Ta, or platinum, and the sizes can be changed to fit your needs. You can email our technical team at sales@cxmet.com to get specs, samples, or a price that is tailored to your project.
