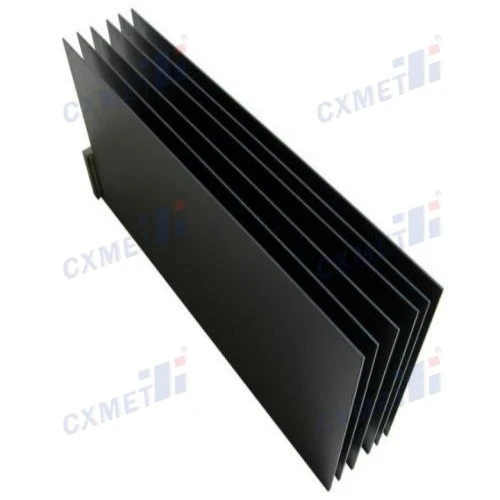

DSA titanium anodes represent a breakthrough in electrochemical technology, consisting of a pure titanium substrate coated with electrocatalytic mixed metal oxides. Unlike traditional graphite anodes that erode and contaminate electrolytes, these dimensionally stable electrodes maintain consistent geometry throughout their operational life. This stability delivers energy savings of 15-20% in high-power applications while eliminating the frequent replacement cycles that plague conventional anode systems. Industries spanning electroplating, chemical processing, and water treatment have embraced this technology to achieve superior performance and operational reliability.

Comparing DSA Titanium Anodes vs Graphite Anodes

Graphite anodes ruled industrial electrolysis for decades, even tho they had problems that made them more expensive to run and harder to maintain. Knowing these problems helps explain why purchasing managers are choosing dimensionally stable options more and more for important uses.

When used, traditional graphite electrodes are constantly worn away. As the material oxidizes, it releases carbon particles into the solution. These particles taint the process and lower the quality of the result. This dissolution changes the shape of the anode as well, which makes the space between the electrodes bigger over time. The growing distance raises the voltage in the cell, which uses 10-15% more energy over the shorter life of the anode. Maintenance teams have to replace these worn-out parts on a regular basis, which slows down production and costs money to get rid of.

The difference in function is especially clear in systems that make chlorine. Graphite anodes in these settings usually need to be replaced every 6 to 18 months, but this depends on the current density and the way they are used. Because of the rapid changes, inventory needs to be carefully managed, and special handling processes need to be followed, which makes purchasing and running the business more difficult.

Dimensionally stable electrodes get rid of these problems because they don't use up energy. The base is made of titanium, which is resistant to chemical attack and keeps its shape. This keeps the cell voltage stable for 5 to 10 years under normal conditions. Case studies from electroplating facilities show that voltage drops by 0.5 to 1 volt per cell when switching from graphite. This means that in high-current situations, a lot of energy is saved.

A wastewater treatment company in the chemical processing industry wrote about its experience with transitioning. Their graphite anode system had to be replaced every three months, and it produced 2,400 kg of dirty trash every year and used about 1.2 million kWh of electricity. The facility got rid of unplanned maintenance, cut power use by 18%, and got a three-year return on investment after switching to mixed metal oxide-coated titanium anodes, even tho the initial capital costs were higher.

The stability of the dimensions of dsa titanium anodes also makes process control better. By keeping the distance between the electrodes the same, you can precisely control the flow of current, which improves the accuracy of the coating in electroplating and the reaction efficiency in water treatment. When procurement managers look at the total cost of ownership, they find that the longer life, less maintenance, and energy savings make up for the higher unit price of dimensionally stable technology.

Benefits and Applications of DSA Titanium Anodes

Materials that are reliable in harsh conditions and help meet sustainability goals are needed for industrial operations. Electrochemical electrodes made today meet these needs with carefully designed extra features that go beyond basic functionality.

The longer operational life is the main benefit for engineering teams that are in charge of important processes. Normal electrodes might only last a few months, but mixed metal oxide devices that are set up correctly can work nonstop for years. The catalytic coating process makes reactions easier without taking part in them, which is why it lasts so long. The noble metal oxides keep working as electrochemically active even after millions of charge transfer cycles, gradually getting thinner because they don't wear away quickly.

Environmental compliance is now a must in businesses that are controlled. Traditional lead anodes release harmful chemicals into the fluids, which makes them hard to get rid of and could be against the law. Graphite devices pollute with carbon, which needs to be cleaned up and filtered. Dimensionally stable alternatives get rid of these sources of pollution, making cleaner effluents that make waste management easier and help companies with their sustainability efforts.

Improving energy efficiency has direct benefits for operations. Because optimized coating formulations have low overpotential, they need less voltage to drive electrochemical reactions. When thousands of amps are processed by big chlor-alkali plants, this drop in voltage saves megawatts of power. The fixed cell voltage over time stops the slow loss of efficiency that happens with electrode systems that are used up.

The variety of applications shows how flexible the technology is across many industries. Oxygen-evolving anodes are used in the electroplating business to add copper, chrome, and other artistic finishes. The stable current distribution these electrodes provide makes it possible for metal finishing operations to get better coating uniformity. Chlor-alkali producers use chlorine-evolving variants that work best in concentrated brine environments to make chlorine and caustic soda.

Water and garbage cleaning is an area of use that is growing very quickly. These electrodes are used in municipal treatment plants to kill pathogens and break down organic contaminants through disinfection and oxidation processes. They are used by industrial wastewater systems to clean up process wastewater so that it meets release rules without adding chemicals. For sensitive cleaning tasks, the pharmaceutical and technology industries particularly like processes that don't leave any contamination.

Maintenance practices that are done correctly extend the life of these parts and protect the large investment they represent. As part of regular inspection routines, the state of the coating should be checked for damage or delamination that could affect its performance. Abrasive cleaning methods could damage the oxide layer. Chemical cleaning with the right solutions gets rid of scale buildup without hurting the coating. Working within certain limits for current density stops wear from speeding up, and staying away from reverse polarity keeps the coating from failing.

Selecting and Procuring the Right DSA Titanium Anodes

When making a procurement choice, technical specs must be carefully compared to application requirements. The most important selection factor is the coating's composition, which has a direct effect on how well it works and how long it lasts in certain chemical environments.

Ruthenium-iridium oxide mixtures are most often used in chlorine evolution applications. Ruthenium is a strong catalyst for chlorine production, and iridium makes the coating more stable and extends its useful life. Most formulations have between 30 and 70% ruthenium oxide, and the rest is iridium oxide. Because these coatings work so well in both alkaline and neutral fluids that contain chloride, they are the usual choice for making chlor-alkali and hypochlorite.

Combinations of iridium and tantalum oxide help oxygen move around in acidic surroundings. The high iridium content provides the catalytic activity needed to make oxygen efficiently, and the tantalum oxide adds strength and resistance to acid. In electroplating, this type of coating is most common in places where acidic sulfate and fluoroborate baths need long-lasting anodes that release oxygen. The layer is usually between 8 and 12 microns thick, and if the system is properly maintained, it will last for years.

Platinum-coated versions are for specific needs where the best rust protection is worth the extra cost. Electrowinning methods that recover valuable metals and some pharmaceutical synthesis processes can use platinum because it is very chemically stable. The thickness of these coatings is usually between 0.5 and 2.5 microns, and they are put on top of an oxide layer that helps them stick to the titanium substrate.

The substrate specs are important in addition to the finishing choice for dsa titanium anodes. CXMET makes our electrodes with Grade 1 titanium that meets ASTM B381 standards. This makes sure that the electrodes are as pure and strong as possible. Preparing the substrate by sandblasting, acid cleaning, and controlled roughening creates the surface profile that the coating needs to stick to. The right way to treat the surface is what makes a covering last and work well over time.

Customization options let you get the best results for your specific installations. The form and size of the electrodes have to match the design of the cells, which means they have to be made to order. Perforation patterns change how current flows and how electrolytes move, so hole sizes and spacing need to be customized for each purpose. Connection methods need to be engineered to work with the way bus bars are set up and the needs of today. Being able to define exact sizes and features ensures that the product fits perfectly with new or existing setups.

Concerns about procurement go beyond technical specs and include things like the supplier's skills and the terms of the deal. Different manufacturers have different minimum order quantities. Knowing the volume requirements helps with planning budgets and keeping track of inventory. Standard configurations usually have lead times of 4 to 8 weeks. Custom designs, on the other hand, need more engineering and production time. Pricing structures take into account the amount of noble metals, how complicated the manufacturing process is, and the size of the order. Comparing suppliers is necessary to get the best prices.

Relying on suppliers is important for businesses that need to handle things all the time. You can be sure that the quality of the products you buy will stay high by checking their production experience, quality standards, and customer references. When dealing with application problems or improving performance, being able to provide technical support is important. Logistics for sending goods around the world and how quickly customers can get help after the sale affect the total cost of ownership and operating risk.

Why Choose CXMET DSA Titanium Anodes

People in charge of buying things and tech teams looking for tried-and-true electrochemical solutions can trust Shaanxi CXMET Technology Co., Ltd. Over the past 20 years, we have consistently delivered high-performance electrodes that meet the most stringent industrial needs.

Quality control starts with choosing the materials and continues through all stages of production. We get Grade 1 titanium that meets the requirements of ASTM B381, which we can prove by analyzing it with spectroscopy and checking its strength. In our coating facility, thermal decomposition processes are used with carefully controlled temperature profiles to build oxide layers by applying and firing them many times. Nondestructive testing methods, such as measuring the thickness of a coating with X-ray fluorescence, make sure that all of the requirements are met before it is shipped.

Industry certifications prove that our quality management systems and our ability to make things are good. Our factory keeps a lot of records that make it possible to track everything from the raw materials to the final review. This organized approach to quality gives purchasing teams the peace of mind they need for important application standards.

Services for customization meet the specific needs of a wide range of industry uses. Our engineers work with clients to make sure that the electrode geometry, coating formula, and current distributor design are all perfect for the conditions of the process. We provide custom solutions that work well with our clients' current operations, whether it's changing the sizes of existing cell banks to fit them better or coming up with new shapes for trial systems.

Performance data from systems that have already been put shows how our goods improve operations. An electroplating center that processes decorative chrome parts reported 7 years of continuous operation with little voltage increase. This meant that they didn't have to change the anode every three months as they did with their old graphite system. A water treatment plant cut 22% of its energy use while improving the effectiveness of disinfection. This helped it meet stricter discharge rules without having to add more capacity.

Our supply chain can handle both small-scale tests and large production orders. Flexible minimum order numbers let equipment makers work on both new systems and businesses that only want to use tried-and-true designs. Competitive pricing shows that the production process is efficient and that the materials are sourced strategically, so the product delivers value without lowering quality standards. Global shipping options and help with export documentation and logistics coordination make sure that deliveries get to project sites on time all over the world.

Technical support includes more than just delivering products; it also includes helping with applications and making them run better. Our team of more than 80 expert techs helps customers choose the right electrodes, install them correctly, and fix problems throughout the lifecycle of the product. Responding to questions quickly and correctly is what responsive communication does to keep projects on track and operations running smoothly.

The ability to recoat the titanium substrate adds to its long-term value. When the coating has reached the end of its useful life, the titanium base can be chemically cleaned and recoated. This makes replacement much cheaper than replacing the whole electrode. This function for sustainability fits with the company's environmental goals and makes the most of the economics of the whole lifespan.

Conclusion

Changing from standard graphite electrodes to dsa titanium anodes technology that is stable in terms of size is a big step forward for businesses that use electrochemical processes. When you combine longer service life, less maintenance, and better energy efficiency, you get a very attractive total cost of ownership advantage. When purchasing managers look at different electrode choices, they should put coating formulation compatibility with process chemistry, substrate quality, and supplier technical support skills at the top of their list. The bigger initial investment is always worth it because it lowers the number of times the parts need to be replaced, saves energy, and improves process control, all of which improve product quality and operating efficiency in tough industrial settings.

FAQ

1. What lifespan can facilities expect from dimensionally stable electrodes?

The service life is mostly determined by the current level and the make-up of the battery. In industrial settings, it usually lasts between 2 and 10 years. Chlorine evolution in concentrated brine with high current loading is the toughest situation. If the ruthenium-iridium coatings are properly specified, they can work nonstop for three to five years. Oxygen development in electroplating baths with modest current densities makes the service life longer, moving toward the upper range. Accelerated life testing protocols make sure that coatings will last before they are used, and they give accurate predictions of performance for planning purchases.

2. Can the titanium substrate be reused after coating depletion?

The titanium base keeps its full structural integrity even after the coating wears off. This means that it can be chemically stripped and recoated to make it last longer. This process of remanufacturing electrodes significantly lowers long-term capital costs compared to replacing them all. After the base goes through the same surface preparation steps as the first manufacturing process, a new material is applied by breaking it down thermally. Recoated electrodes work just as well as new units, which makes this a good choice for companies that want to save money.

3. What factors cause premature electrode failure?

When there are more than 50 parts per million of fluoride ions in the solutions, the coating breaks down faster. This is especially true for iridium-tantalum mixtures used in acidic plating baths. Through cathodic reduction, reverse polarity events, even short ones, can damage oxide coatings in a way that can't be fixed. Lack of care or contact with other parts of the cell can cause mechanical abrasion, which removes the coating material physically. When you operate above a certain current density limit, too much air or chlorine is released, which speeds up wear. With the right working methods and regular monitoring, these failure types can be avoided.

Partner with CXMET for Superior Dimensionally Stable Anode Solutions

Shaanxi CXMET Technology Co., Ltd. offers tailored electrode solutions based on more than 20 years of experience in metalworking and production. Our dimensionally stable anode systems use Grade 1 titanium plates and carefully mixed metal oxide layers, such as iridium-tantalum (8-12 microns), ruthenium-iridium (8-12 microns), and platinum (0.5–2.5 microns) versions that work best in certain electrochemical settings. We follow ASTM B381 standards when we make our products, and you can change the size or finish the surface in any way you want, such as by sandblasting, acid cleaning, or polishing.

As a top manufacturer of dsa titanium anodes, we offer flexible minimum order amounts, low prices, and reliable shipping around the world to support both the development of prototypes and the purchase of large numbers. Our engineering team can help you choose the best electrodes for your process chemistry and operating conditions by giving you full technical advice. Email our experts at sales@cxmet.com to talk about your application needs, get unique quotes, or set up a sample review. We provide the quality, flexibility, and quick help that project managers and tech teams need to make sure that the project runs smoothly.

References

1. Beer, H. B. (1965). "The Invention and Industrial Development of Metal Anodes." Journal of the Electrochemical Society, Vol. 127, pp. 303C-307C.

2. Comninellis, Ch. and Vercesi, G. P. (1991). "Characterization of DSA-Type Oxygen Evolving Electrodes: Choice of a Coating." Journal of Applied Electrochemistry, Vol. 21, pp. 335-345.

3. Trasatti, S. (2000). "Electrocatalysis: Understanding the Success of DSA." Electrochimica Acta, Vol. 45, pp. 2377-2385.

4. Chen, G. (2004). "Electrochemical Technologies in Wastewater Treatment." Separation and Purification Technology, Vol. 38, pp. 11-41.

5. Karlsson, R. K. B. and Cornell, A. (2016). "Selectivity Between Oxygen and Chlorine Evolution in the Chlor-Alkali and Chlorate Processes." Chemical Reviews, Vol. 116, pp. 2982-3028.

6. Schmuki, P. (2002). "From Bacon to Barriers: A Review on the Passivity of Metals and Alloys." Journal of Solid State Electrochemistry, Vol. 6, pp. 145-164.
