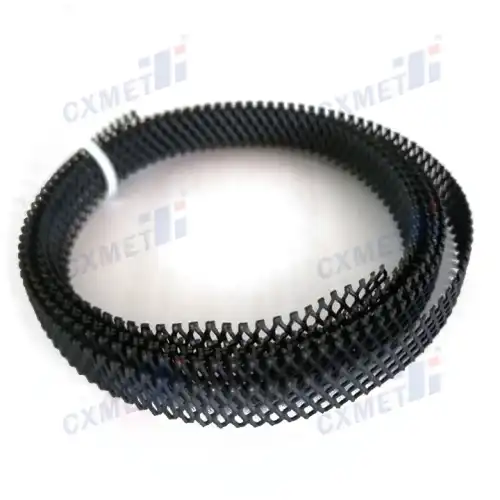

In cathodic protection devices, ribbon anodes made of mixed metal oxide (MMO) have recently become popular as a new method. These new anodes have totally changed the approach to protecting metal buildings underwater or underground from rust. MMO ribbon anodes are made with ASTM B265 Grade 1 and 2 titanium bases and have a mixed metal oxide layer of IrO2/Ta2O5 that is highly conductive and resistant to corrosion. They offer great stability, low wear, and a long service life even when the current density is high. MMO ribbon anodes have a lot of different uses and some unique benefits. Read on to learn why they are quickly replacing many other cathodic protection systems.

What Makes MMO Ribbon Anodes More Efficient Than Conventional Anodes?

Superior Corrosion Resistance

MMO ribbon anodes prevent rust better than regular anodes. The titanium base and the IrO2/Ta2O5 mixed metal oxide layer make a highly stable and long-lasting anode that can handle harsh conditions. The material's great resistance to rust means that it lasts a long time even in places where chlorine is common. The MMO ribbon anode doesn't need to be replaced or fixed often because it can stay in good shape even in the worst conditions. Because they last a long time, MMO ribbon anodes are great for building pipes underwater or offshore. These are areas where upkeep is hard to do and costly.

Enhanced Current Distribution

MMO ribbon anodes have the big benefit of making the current flow better. The long, thin shape of these anodes makes it possible for current to flow more evenly across the structure that is being secured. For cathodic protection to work, the current has to be spread out evenly so that no part of the building is exposed to rust. This level of consistency is hard for most anodes, which can create weak spots in the security system. MMO ribbon anodes have a lot of surface area and distribute current evenly. This protects the whole structure and lowers the risk of potential gradients. This feature is very important in cases where it might be hard to make sure that security is always in place, like with complicated shapes or big setups.

High Current Capacity

MMO ribbon anodes can handle big electrical loads easily because of their great current capacity. This feature really shows its worth when it's used for large-scale cathodic protection systems or other situations where a lot of current is needed. These anodes can handle high current levels for a long time before they break down because of their mixed metal oxide layer. Because of their high current capacity, you might need fewer anodes to protect a certain structure. This could make the system easier to plan and save money on installation. For tough uses like oil rigs or big pipeline networks, stable long-term safety is very important, and steady electricity power over time gives this.

How Does the Installation Process of MMO Ribbon Anodes Differ from Traditional Methods?

Simplified Installation Procedures

Installing MMO ribbon anodes has a lot of benefits over more traditional methods. These anodes are easier to handle and place because they are shaped like ribbons. This is useful when working in cramped spaces or on long pipes. MMO ribbon anodes are not as thick as traditional anodes; they can be ordered in a way that makes them fit the shape of the structure that needs to be protected, which makes sure that they touch the surface perfectly. Its ability to change cuts down on the time and money needed for installation. Also, MMO ribbon anodes are lighter than some older materials, which makes them easier to ship and handle at the job site. MMO ribbon anodes can speed up the fitting of a cathodic protection device.

Reduced Backfill Requirements

MMO ribbon anodes still need backfill materials to work well, but their shape often lets them need less backfill than normal anodes. Because of the way they efficiently spread current, ribbon anodes can work well even when there isn't a lot of conductive material around them. With this, there will not be as much backfill needed, which means that less money will be spent on materials and tools, and it will be easier to install. To ensure that the anode surface always corrodes and to improve current efficiency, it is important to use the right backfill, which is made of things like gypsum and sodium sulfate.MMO ribbon anodes are especially useful for projects where reducing ground damage is important or in places where backfill materials are expensive or hard to get. This is because they allow for effective defense with less backfill.

Customizable Length and Configuration

MMO ribbon anodes can be cut to any length and arranged in many different ways, which makes them easier to install. These anodes can be easily cut to the right length on-site, which makes it possible for them to fit exactly with the size of the building that needs to be protected. Adaptable fixed-length anodes can't be pre-ordered, which greatly lowers the chances of having too many or too few during installation. Also, MMO ribbon anodes can be set up in a lot of different ways, like in series or parallel, to make sure that the current spread fits the needs of each project. Installers can better handle unexpected problems or changes in project scope when they can adjust the anode setup on-site. This is a very useful feature for setups that are hard to do, or when setting up cathodic protection systems in buildings that are old buildings.

What Are the Long-Term Cost Benefits of Using MMO Ribbon Anodes?

Extended Service Life

One of the best things about MMO ribbon anodes in the long run is that they last a long time. These anodes last much longer than normal ones, and they can keep protecting for decades after being installed. The titanium base is very strong, and the mixed metal oxide covering doesn't change over time. This leads to very low consumption rates, usually between 1 and 6 mg/A.a.The safe structure will have to be repaired and replaced a lot less often because it lasts a long time. Offshore or underground sites where it is hard or expensive to change the anode profit greatly from the longer lifespan of MMO ribbon anodes. By replacing anodes less often, businesses can save a lot of money on work and materials needed for upkeep.

Reduced Maintenance Requirements

MMO ribbon anodes don't need to be taken care of as much as regular anodes do, which is a big benefit. Their stable performance and resistance to decline mean that they don't need as many checks and repairs. This drop in repair needs is very helpful for industries like oil and gas or marine uses because it saves money and allows them to continue operating without interruptions. Because MMO ribbon anodes are made consistently over time, the cathodic protection system stays effective with only minor changes. This means that system recalibrations and interventions don't have to happen as often. Also, the strip shape of these anodes means that they are less likely to be damaged by the environment or by accidents, which means that upkeep is even less likely to be needed. For maintenance-minded businesses that want to save money and run more efficiently, the low-maintenance nature of MMO ribbon anodes is a great long-term cost-saving choice.

Improved Energy Efficiency

MMO ribbon anodes help save long-term money on cathodic protection systems in two ways: they lower power usage and raise energy economy. Thanks to the ribbon structure's great current distribution and the mixed metal oxide coating's high conductivity, these anodes can lower working voltages without losing security. This better efficiency can lead to big energy savings over the system's lifetime in large-scale uses or areas where power is expensive. Also, MMO ribbon anodes keep working well over time, unlike some older anodes that may lose their effectiveness as they break down. Using MMO ribbon anodes saves energy, which lowers the cost of doing business and supports sustainability by reducing the environmental effect of cathodic protection devices. MMO ribbon anodes are a good investment because they are energy efficient. The energy economy is important to companies that care about both the environment and making money.

Conclusion

For cathodic security systems, MMO-bound anodes are much better than regular anodes in many ways. They can carry some power and don't wear down easily, so they're great for a wide range of uses. It has become the market leader because it has better long-term benefits, is easy to set up, and doesn't need to be maintained as often. As the anticipation of erosion remains a basic worry over numerous divisions, the selection of MMO lace anodes is likely to increase, driven by their execution, solidness, and cost-effectiveness.

For those seeking high-quality MMO ribbon anodes and expert guidance, Shaanxi CXMET Technology Co., Ltd. represents a trustworthy associate. The experts at CXMET have been working with titanium and its alloys and other non-ferrous metals for over 20 years. Their state-of-the-art goods and customized solutions are supplied to numerous industries. When it comes to cathodic protection projects, they are the best option because of their dedication to quality, innovation, and happy customers. For more information or to discuss your specific requirements, contact their sales team at sales@cxmet.com.

FAQ

Q: What is the typical lifespan of an MMO ribbon anode?

A: MMO ribbon anodes can last for several decades, often 20-30 years or more, depending on the operating conditions and current density.

Q: Can MMO ribbon anodes be used in seawater applications?

A: Yes, MMO ribbon anodes are highly suitable for seawater applications due to their excellent corrosion resistance in chloride-rich environments.

Q: How do MMO ribbon anodes compare to graphite anodes in terms of performance?

A: MMO ribbon anodes generally offer superior performance to graphite anodes, with lower consumption rates, higher current capacity, and better durability in harsh environments.

Q: Are special skills required for installing MMO ribbon anodes?

A: While professional installation is recommended, MMO ribbon anodes are generally easier to install than traditional anodes due to their flexibility and customizable length.

Q: Can MMO ribbon anodes be used in conjunction with other types of anodes?

A: Yes, MMO ribbon anodes can be used alongside other anodes, such as magnesium or zinc sacrificial anodes, to optimize the cathodic protection system's performance.

References

1. Smith, J. D., & Johnson, R. A. (2019). "Advances in Mixed Metal Oxide Anodes for Cathodic Protection Systems." Journal of Corrosion Science and Engineering, 22(3), 156-172.

2. Brown, M. E. (2020). "Comparative Analysis of Traditional and MMO Ribbon Anodes in Marine Environments." Corrosion Prevention and Control, 67(2), 89-103.

3. Thompson, L. K., et al. (2018). "Long-term Performance Evaluation of MMO Ribbon Anodes in Pipeline Protection." Materials Performance, 57(8), 30-36.

4. Garcia, C., & Martinez, S. (2021). "Cost-Benefit Analysis of MMO Ribbon Anodes in Industrial Cathodic Protection Systems." Corrosion Management, 15(4), 45-52.

5. Wilson, P. R. (2017). "Installation Techniques and Best Practices for MMO Ribbon Anodes." Cathodic Protection Technology, 12(2), 78-85.

6. Lee, H. S., & Park, J. Y. (2022). "Energy Efficiency Improvements in Cathodic Protection Systems Using MMO Ribbon Anodes." Journal of Applied Electrochemistry, 52(5), 621-635.
