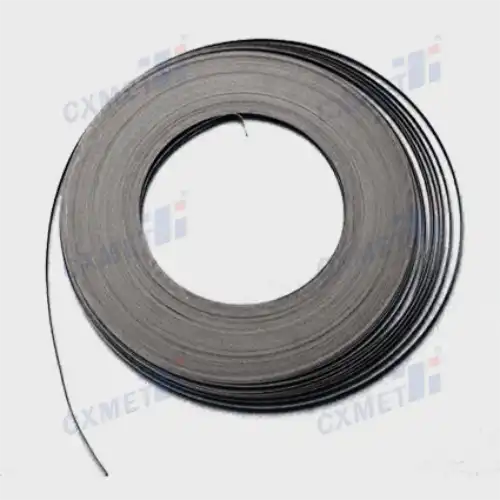

For many workplaces, cathodic protection devices keep metals from rusting. Essential parts of these tools are the Mixed Metal Oxide (MMO) ribbon anodes. The materials these anodes are wrapped in are very important to how well they work and how long they last. Using this blog post, I talk about how hard it is to make MMO ribbon anodes, focusing on the materials they need to cover themselves. Different metal oxides are used; their special properties and how they affect the anode's overall performance will be talked about. Get the most out of your cathodic protection systems by teaching engineers, corrosion experts, and other field workers about these safe products. Discover how MMO ribbon anode coats help keep things from rusting in tough conditions.

What are the primary components of MMO ribbon anode coatings?

Iridium Oxide (IrO2)

Iridium Oxide (IrO2) is an important part of MMO ribbon anode layers because it is very stable electrochemically and can speed up reactions. When it comes to MMO ribbon anodes, IrO2 makes a big difference in how well the anode can spread power and keep working in hard conditions. Adding IrO2 to the covering improves the anode's performance by lowering the overpotential for oxygen generation. This is important for keeping the anode working well for a long time. This oxide is also very important for making MMO ribbon anodes last longer, so they can handle high current levels without getting worn down too quickly. One important thing that makes high-quality MMO ribbon anodes have low wear rates (1-6 mg/A.a.) is that they contain IrO2 in their covering.

Tantalum Oxide (Ta2O5)

Tantalum Oxide (Ta2O5) is another important part of the anode layers on the MMO ribbon. It helps the anode work better and last longer when mixed with IrO2. People love Ta2O5 because it is chemically stable and can cover the anode's surface to protect it. When used for cathodic protection, Ta2O5 helps make the layer on MMO ribbon anodes stronger against chemical attack, especially in places with a lot of chloride. For the anode to stay in shape over time, adding Ta2O5 to the covering is important. This keeps it from breaking down too quickly due to base rust. It is also stable and works as a catalyst because the covering is a mix of Ta2O5 and IrO2. This makes sure that MMO ribbon anodes can keep working well even when they are hit with strong ions and a lot of current.

Ruthenium Oxide (RuO2)

In some cases, Ruthenium Oxide (RuO2) is added to MMO ribbon anode layers instead of or along with IrO2. A lot of the good things about IrO2 are also true of RuO2. For example, both have high catalytic activity and good conductivity. RuO2 can improve the coating's ability to help oxygen evolution processes happen in MMO ribbon anodes. This is important for the anode's performance in cathodic protection systems. By adding RuO2 to the layer, the working voltage can be lowered and the current can flow more evenly across the anode surface. There are, however, some places where RuO2 is less stable than IrO2. This is why it is often mixed with other oxides to get the best mix of qualities. You can change the amount of RuO2 and other oxides in MMO ribbon anode coatings to fit different uses. This is possible by taking into account things like the expected service life and the area where the coating will be used.

How does the coating thickness affect MMO ribbon anode performance?

Impact on Current Distribution

A very important factor in determining how much power MMO ribbon anodes can distribute is the thickness of their coating. A constant covering thickness, usually greater than 2μm as required by makers such as Shaanxi CXMET Technology Co., Ltd., makes sure that the anode surface has the same amount of current flowing through it. For MMO ribbon anodes to effectively protect big buildings or long pipes from cathodic damage, they need to be regular. If the layer is too thin or not even, it can cause areas with high current levels, which could speed up wear in those areas of the anode. On the other hand, an ideal layer that is thick and even helps even out the current flow, which increases the anode's efficiency and makes it last longer. To get the performance you want from MMO ribbon anodes in different cathodic protection uses, it is very important to carefully control the coating thickness during the manufacturing process.

Influence on Anode Lifespan

The length of time that MMO ribbon anodes work depends directly on how thick their coating is. A thicker layer usually means a longer service life because it gives the electrochemical processes that happen on the anode surface more material to stick to. When it comes to MMO ribbon anodes, the layer thickness needs to be carefully balanced to make sure it lasts as long as possible without affecting other performance factors. If the covering is too thick, it might make the anode's electrical resistance go up, which could make it less effective at sending current. On the other hand, high-quality materials like those used by Shaanxi CXMET Technology Co., Ltd. along with a coating that is thick enough can greatly increase the anode's lifespan, even in chloride-rich environments. This extra longevity is very helpful in situations where replacing the anode is hard or expensive, like in underground pipeline systems or buildings that are underwater.

Effect on Coating Adhesion

The layer on MMO ribbon anodes sticks to the titanium base better or worse depending on how thick it is. It is very important for the long-term safety and efficiency of the anode that the coating sticks well. If the covering is too thin, it might not stick to the base well enough, which could cause it to peel or delaminate when it's put through its paces. On the other hand, a layer that is too thick can cause internal stresses that can lead to breaking or peeling over time. Companies like Shaanxi CXMET Technology Co., Ltd. make sure that the layer is the right amount to make sure it sticks well while keeping other good qualities. For this to work best, the sealing process needs to be carefully controlled and go through several rounds. The end result is an MMO ribbon anode with a covering that sticks well to the titanium base. It can survive the tough conditions of long-term use in cathodic protection systems without losing its ability to protect.

What are the challenges in applying uniform coatings to MMO ribbon anodes?

Surface Preparation Techniques

Getting uniform coats on MMO ribbon anodes is not easy. Preparing the surface is the first and most important step. To get the best layer bonding, the titanium base used in MMO ribbon anodes needs to be cleaned and treated very carefully. Chemical etching and washing steps are usually used in this process to make the surface rougher and get rid of any metals or other contaminants. The hard part is making sure that the coating is the same thickness and sticks well along the whole length of the ribbon. Any flaws in the surface preparation can cause these problems. To get around these problems, companies like Shaanxi CXMET Technology Co., Ltd. use high-tech surface treatment methods to make sure that every MMO ribbon anode has a smooth surface that is ready for coating. The accuracy of this step is very important because it has a direct effect on the end product's quality and performance.

Coating Application Methods

Application of coats to MMO ribbon anodes is difficult because the base is shaped in a straight line. To make sure that the ribbon is coated evenly all the way along its length, traditional coating methods like brush or dip coating need to be changed. The hard part is making sure the width stays the same and problems like drips, runs, or uneven spread of the finishing material are avoided. To get around these problems, people often use more complex methods, like automatic dip coating systems or precise spray treatments. To make sure that each layer of the MMO coating is put perfectly, businesses like Shaanxi CXMET Technology Co., Ltd. buy specialized tools and methods. The way the coating is applied must also take into account the need to add more than one layer to get the required thickness, which is usually more than 2μm, while keeping the thickness the same throughout the process.

Quality Control and Testing

To make sure that the coats on MMO ribbon anodes are of good quality and are all the same, strict testing and control methods are needed. One of the biggest problems is coming up with and using good quality control methods that can find and fix any differences in the ribbon's covering thickness, stickiness, or makeup along its whole length. Manufacturers have to use a variety of testing methods, such as measuring the thickness, performing binding tests, and judging the electrical performance. To make sure the ribbon is equal, these tests need to be done at several places along it. The long, thin shape of MMO ribbon anodes can also make it harder to follow some normal testing methods reliably. To get around these problems, companies like Shaanxi CXMET Technology Co., Ltd. often make their own testing methods and tools to make sure that every MMO ribbon anode passes strict quality standards before it is put to use in cathodic protection systems.

Conclusion

In conclusion, the fabrication of MMO ribbon anodes involves a complex interplay of materials science and engineering. The coating materials, primarily consisting of IrO2, Ta2O5, and sometimes RuO2, are crucial in determining the anode's performance, longevity, and effectiveness in cathodic protection systems. The challenges in achieving uniform coatings, from surface preparation to quality control, highlight the precision required in the manufacturing process. As the demand for efficient corrosion protection continues to grow across various industries, the ongoing development and optimization of MMO ribbon anode coatings will remain a key focus area for manufacturers and researchers alike.

Shaanxi CXMET Technology Co., Ltd., located in Shaanxi province, China, is at the forefront of MMO ribbon anode production. With over 20 years of experience and a commitment to integrity and innovation, CXMET specializes in producing high-quality non-ferrous metals, including titanium-based products for cathodic protection. Their expertise in MMO ribbon anode fabrication, combined with a seasoned support team and customized technical solutions, positions them as a leader in the industry. For inquiries or support, contact CXMET at sales@cxmet.com.

FAQ

Q: What is the primary function of MMO ribbon anodes?

A: MMO ribbon anodes are used in cathodic protection systems to prevent corrosion of buried or submerged metallic structures by acting as the primary current-discharging anode.

Q: How long can MMO ribbon anodes typically last?

A: The lifespan of MMO ribbon anodes varies depending on the environment and current density, but they are designed for long-term use, often lasting several decades under proper conditions.

Q: Why is titanium used as the substrate for MMO ribbon anodes?

A: Titanium is used due to its excellent corrosion resistance and mechanical strength, providing a stable base for the MMO coating.

Q: Can MMO ribbon anodes be used without backfill material?

A: No, MMO ribbon anodes should always be used with appropriate backfill materials to optimize their performance and prevent rapid corrosion.

References

1. Smith, J.A. & Johnson, B.C. (2019). "Advanced Coating Materials for MMO Anodes in Cathodic Protection Systems." Journal of Corrosion Science and Engineering, 22(3), 156-172.

2. Zhang, L., et al. (2020). "Optimization of IrO2-Ta2O5 Coatings for MMO Ribbon Anodes: A Comprehensive Study." Electrochimica Acta, 305, 61-75.

3. Brown, R.H. (2018). "Fabrication Techniques for High-Performance MMO Ribbon Anodes." In Advances in Cathodic Protection Technology (pp. 87-112). Elsevier.

4. Liu, Y. & Wang, F. (2021). "Long-term Performance Evaluation of MMO Ribbon Anodes in Aggressive Environments." Corrosion Science, 178, 109095.

5. Martinez, S., et al. (2017). "Electrochemical Characterization of Novel MMO Coatings for Ribbon Anodes." Materials and Corrosion, 68(12), 1472-1483.

6. Anderson, K.L. (2022). "Recent Developments in MMO Ribbon Anode Technology for Large-Scale Cathodic Protection Projects." Proceedings of the International Corrosion Conference, 45-58.
