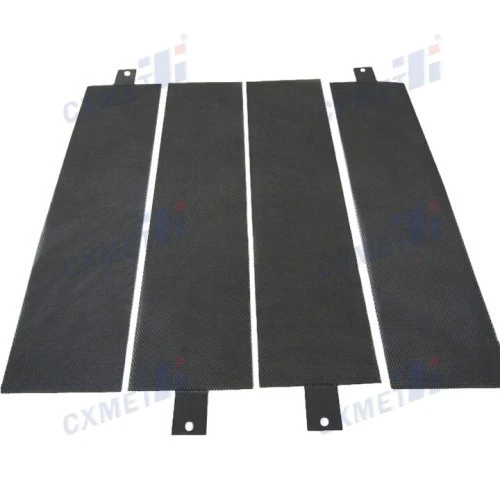

The DSA titanium anodes keep their shape by using a complex mix of high-quality titanium base and modern mixed metal oxide layers. Using titanium Gr1 as the base material makes it very strong and resistant to rust. Special layers, such as ruthenium-iridium oxide (8–12 microns) and iridium–tantalum oxide, make a shield that stops changes in size during electrochemical processes. Because of their high level of engineering, these anodes keep their physical stability and performance over long periods of time, which makes them essential for hard industrial uses.

Understanding Dimensional Stability in DSA Titanium Anodes

Stability in terms of dimensions is essential for electrochemical performance to be stable in industrial settings. Titanium anodes that are DSA (Dimensionally Stable Anode) are complex electrochemical parts that have a titanium base and mixed metal oxide layers that are carefully designed to work consistently in a wide range of situations.

The Science Behind Dimensional Stability

Because they were made in a special way, these anodes are stable in all dimensions. Traditional anodes may lose a lot of their shape or wear down a lot during use. DSA technology, on the other hand, keeps the structure intact through controlled material engineering. The titanium Gr1 base, which is made according to ASTM B381 standards, gives the structure the strength it needs to resist chemical and mechanical stress. Keeping dimensions stable is the main job, and it includes a lot of things that are all linked. Material clarity is very important because flaws can make weak spots that cause localized decline. Precise manufacturing methods make sure that the coating is applied evenly and that the base and protection layers stick together properly. Long-term stability performance is directly affected by changes in the operating environment, such as changes in temperature, current density, and chemical contact strength.

Critical Factors Influencing Stability

Controlling temperature becomes one of the most important things to think about when trying to keep the dimensions intact. Extreme changes in temperature can cause cycles of thermal expansion and contraction that put stress on the structure of the anode. The way density is managed now stops localized warmth that could make it harder for coatings to stick or damage the base. Chemical contact tracking makes sure that the coats' protective properties against harsh fluids don't wear off. When buying managers, engineers, and other workers in the field understand these basics, they can make choices that improve business efficiency while also meeting cost-effectiveness goals. Usually, investing in good DSA technology pays off in a big way because it requires less upkeep and needs to be serviced less often.

Core Components and Coatings That Ensure Dimensional Stability

The exceptional dimensional stability of dsa titanium anodes on carefully selected materials and precision-engineered coating systems that work synergistically to maintain structural integrity under demanding conditions.

Titanium Substrate Excellence

Titanium is the best material for the base because it has so many great qualities. The Gr1 titanium standard gives the best amounts of purity while still having great mechanical strength and resistance to rust. This choice of material makes sure that the structure underneath stays solid even when it's in a violent chemical environment, which is common in electrochemical processes. Titanium is very light, which makes mounting systems less stressed mechanically. It also has a higher strength-to-weight ratio than other materials. Techniques for preparing the surface, such as sanding, acid cleaning, polishing, and brushing, make the best surfaces for coatings to stick to, which is a big part of maintaining the shape over time.

Advanced Coating Technologies

Mixed metal oxide layers are the most important part of DSA anodes' technology for keeping their shape. These complex finishing systems work better than regular materials and can't be beat when it comes to performance. When put in 8–12 micron layers, the ruthenium–iridium oxide coating method gives great electrical activity while keeping the structure stable. This coating's makeup gives it the best transmission properties while also protecting it from the breakdown processes that usually happen with electrode materials. The iridium-tantalum oxide option has similar performance benefits but slightly different working properties that can be tailored to specific needs. Platinum coatings with thicknesses between 0.5 and 2.5 microns add extra layers of security that make the whole system last longer. These very thin layers have better catalytic qualities and help the anode unit stay stable in its overall shape.

Performance Comparison Analysis

When compared to graphite anodes, which lose a lot of their size while they're working, DSA titanium anodes stay the same size throughout their service life. Lead dioxide anodes have problems with covering, flaking, and breaking, which makes them less stable in terms of their dimensions. These issues are solved by mixed metal oxide technology, which also makes things more efficient and lasts longer. When choosing the right anode options for a certain manufacturing situation, the covering formulas and performance standards become very important. Each finishing system has its own benefits that must be matched to the needs of the job to get the best results.

Lifespan and Maintenance: Maximizing Stability Over Time

Operational longevity and dimensional stability are intrinsically linked in DSA anode performance, with proper maintenance practices significantly extending service life while preserving critical dimensional characteristics.

Service Life Expectations

DSA titanium anodes usually last between 5 and 15 years in normal industrial settings, but their performance can change depending on how hard they are used and the situations where they are used. In use with a lot of power, repair times may be shorter, but in normal working conditions, useful life can be longer than usual. The amount of application has a big effect on how stable the dimensions are over time. Operating at full capacity all the time causes more heat stress and covering wear than using it occasionally or moderately. Long-term dimensional integrity is directly affected by changes in the environment, such as temperature differences, chemical concentration changes, and pH changes.

Proactive Maintenance Strategies

Maintaining dimensional stability through regular checks and preventative care is what good maintenance programs are all about. As part of regular checks, the state of the coating, measures of its size, and its electrical performance should all be checked. These evaluations help find possible problems early on, before they hurt business performance. It's important to make sure that cleaning methods get rid of operating deposits without hurting protected layers. The right way to handle things stops mechanical damage that could start the processes of physical degradation. Conditions of storage between working periods have a big effect on how stable something is in the long run.

Early Warning Systems

Seeing the first signs of physical degradation early on lets you take action quickly to avoid costly business interruptions. Uneven wear patterns on the covering could mean that there are problems with the way it works that need to be fixed. Substrate contact means that the degradation is far along and needs to be fixed right away. Performance tracking systems can pick up on small changes in electrical properties that happen before changes in dimensions can be seen. These tracking methods give maintenance teams useful data that helps them make the best repair plans and cut down on unplanned downtime. Investing in full tracking systems usually pays off in a big way, as they make operations more reliable and cut down on the cost of emergency replacements.

Selecting and Installing DSA Titanium Anodes for Optimal Dimensional Stability

Proper selection and installation procedures are fundamental to achieving optimal dimensional stability throughout the operational lifecycle of DSA anode systems.

Selection Criteria Framework

To pick the right dsa titanium anodes, you need to carefully look at a lot of technical factors. When choosing a coating type, it's important to keep electrical needs and weather factors in mind. The anode size affects how electricity flows and how well the system works as a whole. Electrical specs, such as the amount of power and voltage, must exactly fit what is needed for performance. There are a lot of different things that need to be thought about when treating wastewater, electroplating, making chlor-alkali, and recovering metals. Each application has its own problems that affect the best way to set up the anode. When buying, workers know these standards, and they can choose options that offer better physical steadiness in real-world working situations.

Installation Best Practices

The long-term success of physical stability is directly affected by how the structure is installed. Secure mechanical fixing stops vibration-induced stress that could weaken the structure. The right electrical links make sure that the current flows evenly and that localized heating effects are kept to a minimum. Environmental safety methods keep important parts from coming into contact with chemicals that could speed up the breakdown process. The placement setting has a big effect on the results of physical stability. When there is enough airflow, heat doesn't build up too much, which can lead to thermal stress. Chemical compatibility tests make sure that the materials used for fitting and the tools around them don't cause harmful conditions. Access rules for repair tasks keep damage from happening during regular service processes.

Market Evaluation Guidelines

To compare market choices, you need to carefully look at things like product quality, seller dependability, and the total cost of ownership. Certifications for suppliers give you peace of mind about the quality of the goods you buy and how well they always work. After-sales assistance has a big impact on business success and maintaining measurement stability over the long run. Protocols for quality assurance should include certifying the materials, checking the correctness of the measurements, and confirming the thickness of the coating. These processes make sure that the equipment that is bought meets the requirements and performs as expected in terms of physical stability over its entire useful life.

CXMET Solutions for Durable DSA Titanium Anodes

Shaanxi CXMET Technology Co., Ltd. stands as a trusted leader in manufacturing and supplying high-quality DSA titanium anodes, leveraging cutting-edge coating technologies and rigorous quality assurance protocols developed over more than 20 years of industry experience.

Advanced Manufacturing Capabilities

Our wide range of products includes both standard and unique anode designs that are suitable for use in marine, oil and gas, chemical processing, power metallurgy, pharmaceutical, electronics, and paint industries. The 50,000-square-meter building in China's Titanium Valley has over 80 trained techs who can help with advanced manufacturing. The CXMET product line has Ti+MMO grade anodes that are made from a quality Gr1 titanium base that meets ASTM B381 standards. We offer specialized coats in ruthenium-iridium oxide (8–12 microns), iridium–tantalum oxide (8–12 microns), and platinum (0.5–2.5 microns). These are sprayed using precise methods that guarantee the best bonding and dimensional stability.

Customization and Quality Assurance

CXMET knows that custom solutions are needed for industrial applications, so they offer a wide range of customization services, such as custom sizes and forms, special coating formulas, unique hole patterns, built-in current distributors, and designs that are specifically made for the application. To meet specific operating needs, surface treatments such as grinding, acid cleaning, waxing, and brushing are available. Through strict testing and approval methods, our quality assurance routines make sure that the dimensions stay the same. A lot of checks are done on each anode to make sure the layer is thick enough, the dimensions are correct, and it works well electrically. These steps make sure that the goods that are given meet the standards and work as expected over their working life. Dimensional stability is important not only during production, but also during professional advice, installation support, and quick customer service. Throughout the service duration, our technology team is always available to help improve anode performance and make operations run more smoothly.

Conclusion

DSA titanium anodes are stable in terms of size because they are made with high-quality titanium surfaces and improved mixed metal oxide layers. The Ti+MMO design with special layers like ruthenium-iridium oxide makes it very resistant to changes in size while still having great electrical performance. When you choose, install, and maintain things the right way, they will stay stable for longer, which saves you a lot of money because you won't have to replace things as often, and they will work better every time. Investing in good DSA technology pays off in a big way by increasing efficiency, lowering upkeep costs, and extending the time between service visits in difficult industrial settings.

FAQ

How do MMO coatings contribute to dimensional stability?

Mixed metal oxide coatings protect the titanium substrate from electrochemical degradation while maintaining consistent dimensional characteristics. The ruthenium-iridium oxide and iridium-tantalum oxide systems create stable protective barriers that prevent substrate exposure and maintain structural integrity throughout operational cycles. These coatings resist chemical attack and dimensional changes that typically affect alternative electrode materials.

What factors should guide DSA anode selection?

Critical selection factors include coating type compatibility with process chemistry, anode size optimization for current distribution, electrical specifications matching operational requirements, and application-specific environmental conditions. Evaluating the total cost of ownership, including initial investment, maintenance requirements, and expected service life, enables informed decision-making that optimizes long-term operational efficiency.

How does proper installation prevent premature failure?

Correct installation procedures ensure uniform current distribution, prevent mechanical stress concentration, and protect against environmental factors that could compromise dimensional stability. Secure mounting prevents vibration-induced damage, proper electrical connections minimize localized heating, and environmental protection shields critical components from chemical exposure that could accelerate degradation processes.

Partner with CXMET for Superior DSA Titanium Anode Solutions

CXMET Technology delivers exceptional dimensional stability through premium DSA titanium anodes manufactured with advanced coating technologies and rigorous quality controls. Our 20+ years of expertise in non-ferrous metals enable customized solutions that meet specific industrial requirements while ensuring optimal performance and extended service life. As a leading dsa titanium anodes manufacturer, we provide comprehensive technical support, competitive pricing, and reliable supply chain management. Contact our technical specialists at sales@cxmet.com to discuss your project requirements and discover how our proven anode solutions can enhance operational efficiency and reduce total cost of ownership.
