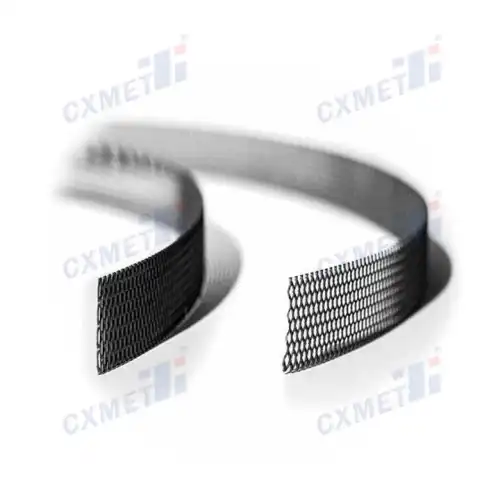

Heavy weather can cause metal buildings to rust. To keep them from doing so, many people use cathodic protection systems with Mixed Metal Oxide (MMO) ribbon anodes. Making sure to follow strict testing rules is important because these anodes' quality and performance directly impact how well they protect against rust. This article goes into great depth about the different standards that are used to test the quality of MMO ribbon anodes. It talks about the main things that are looked at and the ways that they are tested. We will talk about how these standards make sure that MMO ribbon anodes work well and last a long time in a number of different settings. This includes the way the materials are made, how well they stick to things, how well they conduct electricity, and how strong they are. These quality control measures are important for manufacturers, engineers, and end users to know in order to pick high-performance anodes that can keep things safe in tough industrial settings for a long time.

What are the Key Parameters Tested in MMO Ribbon Anode Quality Control?

Coating Composition and Thickness

The first step in quality control for MMO ribbon anodes is a careful look at the coating's makeup and thickness. The mixed metal oxide layer, which is usually made up of IrO2 and Ta2O5, is very important to how well the anode works. X-ray fluorescence (XRF) spectroscopy is used by manufacturers to check the coating's chemical makeup and make sure it has the right amount of metal oxides. Microscopic or eddy current methods are used to measure the thickness of a coating. Usually, a thickness of at least 2μm is needed. This number is very important because it has a direct effect on the anode's service life and its ability to distribute current. In cathodic protection systems, MMO ribbon anodes with even coverings that are thick enough work better, especially in high-current-density situations.

Adhesion and Mechanical Strength

What makes a difference in how long and effectively ribbon anodes work is how well the MMO layer sticks to the titanium base. To check the quality, the anodes are put through different types of mechanical stress tests to see how well the coating sticks. Most of the time, this is done with an informal test (ASTM D7027) or a regular test (ASTM D3359). These tests see how well the layer can stand up to physical forces without peeling or delaminating. They also bend and stretch the MMO ribbon anode to test its mechanical strength. These tests make sure that the anode can stand up to the stresses of being put in place and used in different places. It is important for good MMO ribbon anodes to have good covering bonds and dynamic strength so that their performance stays stable over time.

Electrochemical Performance

One important way to tell how well MMO ribbon anodes work in systems that protect against cathodic damage is by looking at how well they do with electricity. Quality testing in this area looks at a number of things, such as the rate of wear, the current capacity, and the possible stability. A lot of power is used in accelerated life testing to see how something will work over a long time. By looking at the polarization curve, we can see how well the anode can hold its potential while letting current pass. The wear rate of an anode, which is generally given in mg/A. a (milligrams per ampere-year) is a key part of working out how long it will last. When things get tough, good MMO ribbon anodes keep their electrical behavior fixed even though they wear out slowly (1-6 mg/A.a.). With these tests, the anodes are made sure to be able to protect against cathodes for a long time. Due to this, they can be utilized in various scenarios, ranging from safeguarding pipes to stopping rust at the base of tanks.

How Do International Standards Influence MMO Ribbon Anode Testing?

ASTM Standards for Materials and Coatings

Quality control for MMO ribbon anodes is heavily influenced by international norms. This group, ASTM International (formerly the American Society for Testing and Materials), sets a number of important standards that have a direct effect on how these anodes are tested and how well they are made. ASTM B265 is the main standard that controls the titanium core used in MMO ribbon anodes. It makes sure that the base material meets certain thickness and quality standards. For titanium sheets and plates, this standard covers their chemical makeup, mechanical qualities, and size limits. ASTM B910 includes instructions on how to apply and test mixed metal oxide coats on titanium surfaces for the MMO covering. Checking covering bonding, thickness regularity, and electrochemical performance is spelled out in this standard. Product makers of MMO ribbon anodes can make sure that all of their products have the same quality and performance by following these ASTM standards.

ISO Standards for Quality Management

The International Organization for Standardization (ISO) has a number of rules that affect how MMO ribbon anodes are managed and tested in terms of quality. A lot of companies in the cathodic protection business follow ISO 9001, which is a standard for quality management systems. This standard makes sure that companies have strong quality control systems in place for both making things and checking them. For MMO ribbon anodes, this means using the same production methods, keeping detailed records, and checking the quality often at different steps of production. ISO 17025 sets standards for the skills that testing and calibration labs must have. This includes centers that test the quality of MMO ribbon anodes. This standard makes sure that the tools and methods used to test these anodes are accurate and reliable according to international standards.

Industry-Specific Standards and Guidelines

Along with general worldwide standards, the quality testing of MMO ribbon anodes is also affected by a number of industry-specific rules and standards. Standards for corrosion protection and cathodic protection systems are made by groups like NACE International (now part of AMPP, the Association for Materials Protection and Performance). As an example, NACE SP0572 has rules for how to build, install, run, and take care of impressed current deep anode beds, which usually use MMO ribbon anodes. Along with the more general ASTM and ISO standards, these business standards often spell out performance goals and testing methods. They might include specific needs for the amount of current that can flow, how stable it needs to be over time in different electrolytes, and how well it works with different backfill materials. Following these industry-specific rules ensures that MMO ribbon anodes can handle the needs of users in areas like oil and gas, marine settings, and protecting underground structures.

What Are the Latest Advancements in MMO Ribbon Anode Testing Techniques?

Advanced Electrochemical Characterization

The quality of MMO ribbon anodes can now be judged much better thanks to recent improvements in electrochemical testing methods. A new technique called Electrochemical Impedance Spectroscopy (EIS) is very good at figuring out how the MMO layer and the electrolyte connect. Without damaging the anode, this method gives us useful information about its surface features, the strength of its layer, and how it reacts to different electrochemical conditions. You can make a picture of the electrochemical activity on the anode surface using Scanning Electrochemical Microscopy (SECM), which is another new method. A tiny level can be used to see if the MMO layer is uneven or has any other problems with this method. Companies can improve their production methods and make MMO ribbon anodes that work better and last longer with these improved evaluation methods.

Long-term Performance Prediction Models

MMO ribbon anode testing has come a long way since the creation of complex models for predicting performance. Anodes' long-term behavior under different working situations can be predicted by these models, which use data from accelerated life tests, field performance, and material properties. To look at a lot of data and find the most important factors that affect anode performance and lifespan, machine learning methods and statistical analysis are used. Some models help make the design and makeup of MMO ribbon anodes better for certain uses by modeling different weather conditions and current loads. Better quality control is made possible by this method, which also helps make anodes that last longer and work better, depending on the needs of the industry.

In-situ Monitoring and Real-time Testing

MMO ribbon anodes now have tracking tools and real-time tests, which is a big step toward making sure they are of good quality. It is now possible to check on how well the anode is working in everyday situations thanks to better sensor technology. In real time, these systems can record things like wear rates, current flow, and potential spread. This lets us learn how the anode works in real-life service situations. Any problems or slowdowns can be found quickly if you can watch from afar. This lets you fix or replace them. Some newer cathodic protection systems can also check to see how well the anode is working and change the flow of current if it is not. This will always ensure the best safety, no matter what. Because of this, cathodic protection systems with MMO ribbon anodes work better and are more stable. This is done by checking and following better in real time than before.

Conclusion

The quality testing of MMO ribbon anodes is governed by a comprehensive set of standards and advanced techniques that ensure their reliability and effectiveness in cathodic protection systems. From rigorous material and coating tests to sophisticated electrochemical evaluations, these quality control measures are crucial for producing high-performance anodes. As technology advances, new testing methods and predictive models continue to enhance our understanding and optimization of MMO ribbon anodes. For industries relying on these critical components for corrosion protection, adherence to these standards and adoption of cutting-edge testing techniques are essential for ensuring long-term infrastructure integrity and safety.

Shaanxi CXMET Technology Co., Ltd. stands at the forefront of MMO ribbon anode production, leveraging its expertise and state-of-the-art facilities to deliver products that meet and exceed international quality standards. With a commitment to innovation and customer satisfaction, CXMET continues to push the boundaries of anode technology, offering tailored solutions for diverse applications. For more information or inquiries, please contact us at sales@cxmet.com.

FAQ

Q: What is the typical lifespan of an MMO ribbon anode?

A: The lifespan of an MMO ribbon anode can vary depending on operating conditions, but typically ranges from 15 to 30 years when properly installed and maintained.

Q: How often should MMO ribbon anodes be inspected?

A: It's recommended to conduct annual inspections of MMO ribbon anodes, with more frequent checks in harsh environments or high-current applications.

Q: Can MMO ribbon anodes be used in seawater applications?

A: Yes, MMO ribbon anodes are well-suited for seawater applications due to their excellent corrosion resistance and stable performance in chloride-rich environments.

Q: What is the significance of the coating thickness in MMO ribbon anodes?

A: Coating thickness is crucial as it directly impacts the anode's service life and current distribution capabilities. A minimum thickness of 2μm is typically required for optimal performance.

References

1. ASTM International. (2020). "ASTM B265 - Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate." West Conshohocken, PA: ASTM International.

2. Lasia, A. (2019). "Electrochemical Impedance Spectroscopy and its Applications." New York: Springer.

3. NACE International. (2018). "SP0572 - Design, Installation, Operation, and Maintenance of Impressed Current Deep Groundbeds." Houston, TX: NACE International.

4. Revie, R. W., & Uhlig, H. H. (2021). "Corrosion and Corrosion Control: An Introduction to Corrosion Science and Engineering." Hoboken, NJ: John Wiley & Sons.

5. Shreir, L. L., Jarman, R. A., & Burstein, G. T. (2019). "Corrosion: Metal/Environment Reactions." Oxford: Butterworth-Heinemann.

6. Tait, W. S. (2020). "An Introduction to Electrochemical Corrosion Testing for Practicing Engineers and Scientists." Madison, WI: PairODocs Publications.
