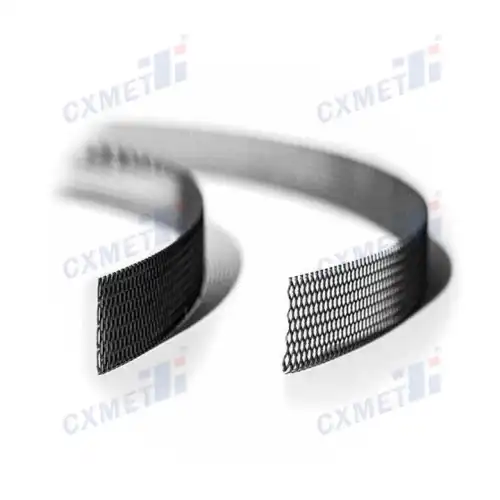

Mixed Metal Oxide (MMO) Mesh Ribbon Anodes are now an important part of cathodic protection systems, especially for buildings made of reinforced concrete and underground metal pipes. These cutting edge anodes are made to meet strict performance standards and follow a number of industry rules. A lot of different material science, electrochemistry, and engineering rules affect how MMO Mesh Ribbon Anodes are made. Manufacturers, engineers, and end users must all understand these standards in order to make sure that the anodes work well, last a long time, and are safe in a variety of settings. This article goes into great depth about the main rules that affect how MMO Mesh Ribbon Anodes are made. It talks about the technical needs, performance standards, and quality control methods that affect how they are made and used in systems around the world that protect against corrosion.

What are the Key Performance Criteria for MMO Mesh Ribbon Anodes?

Electrochemical Performance Standards

MMO Mesh Ribbon Anodes' electrical performance is a key part of how they are designed and how well they work. In order to be long-lasting, stable, and have a wide voltage range, these anodes must meet certain requirements. NACE International (now AMPP) provides guidelines for the performance of impressed current anodes, including MMO types. The anodes should maintain a stable potential and current output over their intended lifespan, typically 25-75 years, depending on the application. The coating composition, usually a mix of iridium and ruthenium oxides, must be optimized to achieve low overpotential and high catalytic activity. Manufacturers like Shaanxi CXMET Technology Co., Ltd. rigorously test their MMO Mesh Ribbon Anodes to ensure they meet or exceed these electrochemical performance standards, guaranteeing reliable cathodic protection for their clients' infrastructure.

Mechanical and Physical Property Requirements

The mechanical and physical properties of MMO Mesh Ribbon Anodes are equally important in their design. Places where these anodes are used, like acidic ground, high-chloride concrete, and the ocean, are very rough places for them to live. ASTM International makes rules for testing the physical features of titanium and titanium alloys. These anodes are made of titanium and titanium alloys. For easy installation, the ribbon needs to stay flexible, but it also needs to be able to fight deformation when it's under load. Tensile strength, elongation, and resistance to fatigue are key parameters that are carefully controlled. Additionally, the adhesion of the MMO coating to the titanium substrate is critical and must meet stringent pull-off test standards. Shaanxi CXMET Technology Co., Ltd. employs advanced manufacturing techniques to ensure their MMO Mesh Ribbon Anodes meet these mechanical and physical property requirements, resulting in durable and reliable products.

Chemical Composition and Purity Standards

The chemical composition and purity of the materials used in MMO Mesh Ribbon Anodes are subject to strict standards. The titanium substrate must meet ASTM B265 specifications for Grade 1 or Grade 2 titanium, ensuring the appropriate level of strength and corrosion resistance. The MMO coating, typically composed of iridium oxide, ruthenium oxide, and tantalum oxide, must adhere to precise stoichiometric ratios to achieve optimal performance. Impurities in either the substrate or the coating can significantly impact the anode's performance and lifespan. X-ray fluorescence (XRF) and inductively coupled plasma (ICP) analyses are commonly used to verify the chemical composition and purity of these materials. Shaanxi CXMET Technology Co., Ltd. maintains rigorous quality control processes to ensure that their MMO Mesh Ribbon Anodes consistently meet these chemical composition and purity standards, providing customers with high-performance cathodic protection solutions.

How Do Environmental Factors Influence MMO Mesh Ribbon Anode Design?

Temperature and Humidity Considerations

Temperature and humidity are very important to how MMO Mesh Ribbon Anodes work and how they are designed. These outside factors can have a big effect on the electrochemical processes happening on the anode surface and on how stable the coating is in the long term. The NACE Standard SP0290 tells you how to build impressed current cathodic protection systems, and it talks about things like temperature changes. MMO Mesh Ribbon Anodes must be designed to operate effectively across a wide temperature range, typically from -40°C to +70°C. High temperatures can speed up chemical processes and shorten the life of the anode, while low temperatures can change how well the electrolyte conducts ions. The amount of moisture in concrete buildings is affected by the humidity level, which in turn affects the resistivity of the environment. Shaanxi CXMET Technology Co., Ltd. conducts extensive testing to ensure their MMO Mesh Ribbon Anodes maintain optimal performance under various temperature and humidity conditions, providing reliable cathodic protection in diverse climates.

Soil and Water Resistivity Effects

The resistivity of the surrounding soil or water significantly influences the design of MMO Mesh Ribbon Anodes. ASTM G57 is a common way to measure the resistivity of soil in the field, which is very important for choosing the right anode configuration and spacing. In high-resistivity environments, the anode must be designed to deliver sufficient current while minimizing the risk of premature failure due to localized high current densities. Conversely, in low-resistivity environments, such as marine applications, the anode must be capable of withstanding potentially higher current outputs. The ribbon's dimensions, particularly its width and thickness, are often optimized based on the expected resistivity range. Shaanxi CXMET Technology Co., Ltd. offers a range of MMO Mesh Ribbon Anode designs tailored to different soil and water resistivity conditions, ensuring optimal performance and longevity in various installation environments.

Chemical Exposure and Corrosion Resistance

MMO Mesh Ribbon Anodes must be designed to withstand exposure to a wide range of chemicals and resist corrosion in aggressive environments. NACE TM0294 provides a standard test method for evaluating the performance of anodes under simulated service conditions. The titanium substrate is very resistant to corrosion, but the MMO coating must also stay intact when it comes into contact with chlorides, sulfates, and other corrosive substances that are common in concrete and dirt. The design of the anode needs to take into account the possibility that acid will form on the surface of the anode while it is working. This can have an impact on both the anode and the structure around it. Shaanxi CXMET Technology Co., Ltd. incorporates advanced coating technologies and carefully selected materials in their MMO Mesh Ribbon Anodes to ensure superior chemical resistance and long-term stability in challenging chemical environments, providing reliable cathodic protection for critical infrastructure.

What Quality Control Measures Ensure MMO Mesh Ribbon Anode Reliability?

Manufacturing Process Controls

Ensuring the reliability of MMO Mesh Ribbon Anodes begins with stringent manufacturing process controls. ISO 9001 quality management systems are typically implemented to maintain consistent production standards. The titanium substrate production must adhere to ASTM B265 specifications, with careful control of alloy composition and mechanical properties. Putting on the MMO layer is a very important step that needs careful management of the temperature, atmosphere, and deposition rates. X-ray diffraction (XRD) analysis is often used to verify the crystal structure and phase composition of the coating. Shaanxi CXMET Technology Co., Ltd. employs advanced manufacturing techniques and real-time process monitoring to ensure each MMO Mesh Ribbon Anode meets the required specifications. At every step of the production process, from inspecting the raw materials to testing the finished product, quality checks help keep the high standards needed for reliable cathodic protection performance.

Non-Destructive Testing Methods

Non-destructive testing (NDT) methods play a crucial role in quality control for MMO Mesh Ribbon Anodes. It is possible to do a full inspection with these methods without harming the product. Visual inspection under magnification is routinely performed to check for surface defects or coating inconsistencies. Eddy current testing, following ASTM E426 guidelines, can detect subsurface defects in the titanium substrate. For the MMO coating, techniques such as X-ray fluorescence (XRF) spectroscopy are used to verify coating thickness and composition without damaging the anode. Electrochemical impedance spectroscopy (EIS) provides insights into the coating's integrity and potential long-term performance. Shaanxi CXMET Technology Co., Ltd. utilizes a comprehensive suite of NDT methods to ensure the quality and reliability of their MMO Mesh Ribbon Anodes, providing customers with confidence in the product's performance and longevity.

Performance Testing and Certification

Rigorous performance testing and certification are essential final steps in ensuring the reliability of MMO Mesh Ribbon Anodes. Accelerated life testing, following protocols such as those outlined in NACE TM0108, provides data on the expected service life under various operating conditions. Current distribution tests verify the anode's ability to deliver uniform protection across its length. Adhesion tests, conducted according to ASTM D3359, ensure the MMO coating's durability. Many projects require anodes to be certified by independent laboratories or conform to specific standards such as EN 12696 for cathodic protection of steel in concrete. Shaanxi CXMET Technology Co., Ltd. subjects their MMO Mesh Ribbon Anodes to comprehensive performance testing and pursues relevant certifications to meet industry standards and customer requirements. Their dedication to quality control and performance testing makes sure that their anodes provide dependable, long-lasting cathodic protection in a wide range of global uses.

Conclusion

MMO Mesh Ribbon Anodes are made according to a complicated set of rules that make sure they work well, last a long time, and are safe for use in cathodic protection systems. These standards affect every part of making and using anodes, from how well they work electrochemically to how they affect the environment and how strictly they check for quality. As the need for strong infrastructure protection grows, following these guidelines becomes more and more important. Manufacturers like Shaanxi CXMET Technology Co., Ltd. are very important to the field's progress because they regularly meet and go beyond these standards, giving us high-quality MMO Mesh Ribbon Anodes that protect against cathodic damage in a wide range of situations.

Shaanxi CXMET Technology Co., Ltd, located in Shaanxi province, China, specializes in the production and distribution of non-ferrous metals, including MMO Mesh Ribbon Anodes. Our company has been in this line of work for more than twenty years and is dedicated to honesty, new ideas, and happy customers. Our goods are used in many fields, including marine, oil, chemical, and power metallurgy, because they are known to last a long time and be reliable. We offer technical help and solutions that are tailored to the needs of each of our clients. Our seasoned support team is well-versed in the latest technologies and standards of the non-ferrous metal industry, ensuring prompt and effective responses to all inquiries and challenges. For more information or to discuss your MMO Mesh Ribbon Anode requirements, please contact us at sales@cxmet.com.

FAQ

Q: What is the typical lifespan of an MMO Mesh Ribbon Anode?

A: Under proper operating conditions, MMO Mesh Ribbon Anodes are designed to deliver consistent performance for over 75 years.

Q: Can MMO Mesh Ribbon Anodes be customized for specific project requirements?

A: Yes, manufacturers like Shaanxi CXMET Technology Co., Ltd. can customize MMO Mesh Ribbon Anodes to meet specific project specifications and performance demands.

Q: What are the main advantages of using MMO Mesh Ribbon Anodes in cathodic protection systems?

A: MMO Mesh Ribbon Anodes offer several advantages, including flexibility for easy installation, uniform current distribution, low system resistance, and a long service life.

Q: How do environmental factors affect the performance of MMO Mesh Ribbon Anodes?

A: Environmental factors such as temperature, humidity, soil/water resistivity, and chemical exposure can significantly impact anode performance and must be considered in the design process.

Q: What quality control measures are implemented to ensure MMO Mesh Ribbon Anode reliability?

A: Quality control measures include strict manufacturing process controls, non-destructive testing methods, and comprehensive performance testing and certification.

References

1. NACE International. (2020). "SP0290: Impressed Current Cathodic Protection of Reinforcing Steel in Atmospherically Exposed Concrete Structures."

2. ASTM International. (2021). "B265: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate."

3. European Committee for Standardization. (2016). "EN 12696: Cathodic Protection of Steel in Concrete."

4. Brenna, A., et al. (2019). "Cathodic Protection of Reinforced Concrete Structures: State of the Art and Future Developments." Journal of Materials Engineering and Performance, 28(3), 1768-1785.

5. Bertolini, L., et al. (2013). "Corrosion of Steel in Concrete: Prevention, Diagnosis, Repair." Wiley-VCH Verlag GmbH & Co. KGaA.

6. NACE International. (2018). "TM0108: Testing of Catalyzed Titanium Anodes for Use in Soils or Natural Waters."
