If you're searching for where to buy titanium MMO anodes from a reliable supplier, the answer depends on your application requirements, coating specifications, and order volume. Shaanxi CXMET Technology Co., Ltd. manufactures Grade 1 titanium MMO anodes conforming to ASTM B381, with Ru-Ir oxide, Ir-Ta oxide, and platinum coating options. Whether your project involves cathodic protection, chlor-alkali production, or electroplating, sourcing directly from an experienced manufacturer ensures you receive verified material quality, application-specific customization, and consistent delivery support.

Understanding Titanium MMO Anodes: What You Need to Know

How These Anodes Work

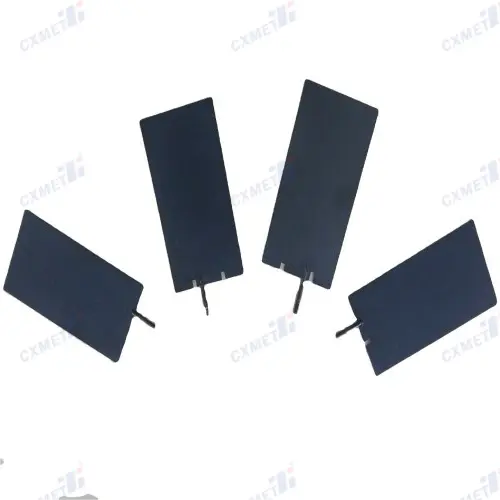

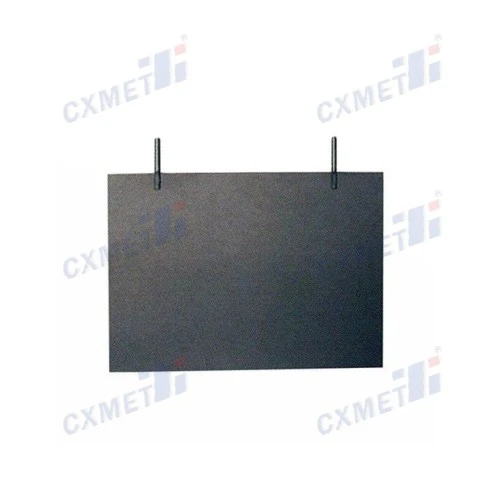

In the electrochemical field, Titanium MMO anodes, which are also known as DSA (Dimensionally Stable Anodes), are made up of a high-purity Titanium base that has noble metal oxides thermally covered on top of it. When chlorine is present, the most common oxide system is Ruthenium-Iridium (Ru-Ir), and when acidic conditions are present, the most common oxide system is Iridium-Tantalum (Ir-Ta). Depending on the process chemistry and the amount of current that is expected, the coating is usually between 8 and 12 microns thick.

Core Performance Advantages

These anodes work better than standard electrode materials in a way that can be measured. Because of these main benefits, they are the best choice in heavy industry:

• Dimensional stability: The Titanium base keeps its shape over time, so the electrode gap doesn't move around as it does with graphite or lead anodes. This directly leads to stable cell voltage and control of the process.
• Low overpotential: Compared to graphite electrodes, the catalytic oxide layer lowers the energy needed for chlorine or oxygen generation by 10–20%. This lowers running costs over production runs that last several years.
• Chemical resistance: Grade 1 Titanium substrate is resistant to corrosive electrolytes like hypochlorite solutions, dilute sulfuric acid, and brine. This means it can be used in a wide pH range.
• Recoatability: Once the oxide layer is gone, the Titanium substrate can be stripped, cleaned, and recoated, which saves about 60–70% of the cost of buying new ones.

These benefits directly address the problems that engineers and purchasing managers in water treatment, chlor-alkali, and cathodic protection have when they look at how much electrodes will cost in the long run.

Maintenance Practices That Extend Service Life

Operating current density is the most important factor that affects how long a coating lasts. To get the best mix of efficiency and lifespan, most commercial systems run between 500 and 1,500 A/m². Do not let oils, greases, or streams containing fluoride touch the active surface. These substances can passivate the substrate and cause it to fail early. In harsh settings, it is suggested that every 12 months, the layer should be checked for delamination or voltage drift.

Comparing Titanium MMO Anodes with Other Anode Types

Titanium MMO vs. Graphite and Lead Anodes

Over time, graphite anodes wear away, releasing carbon particles that contaminate the electrolyte and raise the resistance of the cell. In pharmaceutical and food-grade water applications, lead anodes are very dangerous because they pollute process streams with heavy metals. Both issues are solved by Titanium MMO anodes: the substrate doesn't dissolve, so the electrolyte isn't contaminated, and the shape stays the same, so the electrical performance is always reliable.

Titanium MMO vs. Platinum Anodes

Platinum-coated Titanium electrodes have a very low overpotential and a long useful life, but the high cost of the raw materials makes them unsuitable for large-scale commercial setups. You can get MMO coatings with Ir-Ta or Ru-Ir systems that work just as well as platinum at a much lower cost. This is why they have mostly replaced platinum in chlor-alkali and electrowinning processes in industry since the 1970s.

Application-Specific Selection Guide

The electrolytic atmosphere affects which coating method should be used. Ru-Ir films (8–12 microns) work best for making chlorine in electrolyzing salt water, treating bilge water, and chlorinating pools. Ir-Ta layers (8–12 microns) work well in electrowinning systems based on sulfuric acid and impressed current cathodic protection (ICCP) systems. Platinum films (0.5–2.5 microns) are designed for high-purity, low-current tasks like selective electroplating and electrochemistry in the lab.

How to Select a Reliable Titanium MMO Anode Supplier

Certifications and Quality Standards

Check that any seller of titanium MMO anodes is certified by ISO 9001 and follows ASTM B381 for the quality of Titanium substrates. Ask for material test reports (MTRs) that show the substrate is more than 99.6% pure and measurements of the coating's thickness. When suppliers can't give you paperwork that can be tracked, they add risk to your supply chain. This is especially true for ICCP projects where anode failure can damage pipes or ocean foundations.

Customization Capability and OEM Support

Off-the-shelf electrode dimensions are rarely used in industrial projects. A good maker should let you choose the shape, type of coating, connection hardware, and surface treatment choices, such as acid cleaning, polishing, brushing, and sandblasting. CXMET makes anodes in sizes that can be fully customized, and with records of how the surface was prepared, so they will work with your current cell designs.

After-Sales Support and Recoating Services

The total cost of ownership is higher than the price you paid for the car. When looking for a provider, find out about their warranty terms, coating programs, and expert help. A supplier with more than 20 years of experience in the application can give advice on limits on current density, compatibility of electrolytes, and installation procedures. This can help cut down on commissioning mistakes that cause many anodes to fail before they should.

Where and How to Buy Titanium MMO Anodes: Navigating the Market

Direct Manufacturer vs. Distributor Channels

When procurement teams buy directly from a manufacturer like CXMET, they have access to engineering support, custom fabrication, and clear pricing. Distributors may have faster local supplies for standard sizes, but they usually don't have the technical knowledge to help with non-standard uses or give advice on coatings. Directly working with the maker always leads to better results for large commercial orders or projects that need custom measurements.

Verifying Supplier Legitimacy

Ask for product samples, third-party inspection reports, and a list of reference clients in similar industries before you place a large order for titanium MMO anodes. Manufacturers who are telling the truth can show coating adhesion test results, electrochemical performance graphs, and proof that their products have been used successfully in oil and gas, naval, or chemical processing settings. As a minimum, technical datasheets must include information on coating oxide ratios and thickness tolerances.

Managing Lead Times and Bulk Orders

Lead times for custom anodes with certain finishing systems are usually between 2 and 4 weeks, based on the number of orders. Plan your buying cycles properly, and talk to your seller about blanket order agreements to get lower prices per unit on orders that will be made again and again. The 50,000-square-meter factory that CXMET has in Shaanxi Province can handle both small orders and big contracts for production.

Ensuring Long-Term Satisfaction: Post-Purchase Considerations

Installation Best Practices

Compared to the Titanium base, the MMO top layer is very fragile. When you're installing something, keep the working surface safe from direct tool contact, wear, and pressure. To stop galvanic corrosion at the contact point, make sure that Titanium or platinum-clad hardware used for electrical connections is properly torqued. One of the main reasons why coatings fail quickly in ICCP systems is that they were not installed correctly.

Monitoring and Replacement Timing

The obvious field sign of coating depletion is a slow rise in system voltage at steady current flow. This shows up as less protective current output in cathodic protection systems. At commissioning, take standard values of voltage and current, and then check them every three months. When the voltage goes up 15–20% above the average, you should check the anode and plan to recoat or replace it before it wears down completely and damages the Titanium substrate.

Environmental Factors Affecting Lifespan

A high electrolyte temperature, a high fluoride percentage, and rapid changes in the current all speed up the wear and tear on the coating. Biofouling on the anode surface can also hurt performance in seawater cathodic protection. When choosing the coating layer and deciding when to do upkeep, these site-specific factors should be taken into account. A seller with a lot of knowledge can help you figure out how long something is likely to last based on how it is used.

Conclusion

Finding Titanium MMO anodes means paying attention to the grade of the material, the chemistry of the coating, checking out the supplier, and getting help after the installation is done. When you choose to buy directly from a manufacturer whose production capabilities and application experience are well known, you greatly lower the risk of the purchase. The GR1 Titanium anodes that CXMET makes to ASTM B381 specifications can have a coating of Ru-Ir, Ir-Ta, or platinum. These anodes meet the performance needs of difficult electrochemical uses in the chemical processing, cathodic protection, oil and gas, and marine industries. The three steps that decide long-term system performance are choosing the right coating system for your working area, making sure the supplier is trustworthy, and making plans for anode maintenance.

FAQ

What coating system should I specify for cathodic protection?

Most of the time, 8–12 micron Ir-Ta oxide coatings are used for ICCP applications in soil, seawater, and concrete. They don't passivate in acidic, oxygen-evolving situations and keep their low anode resistance for more than 20 years at full current density.

Can the titanium substrate be reused after coating depletion?

Yes. As long as the Grade 1 Titanium base is still structurally sound, used anodes can be sent back to be stripped of oxide and coated again. This method usually costs 60–70% less than buying new units, and it makes the Titanium investment last longer.

What causes premature failure in MMO anodes?

Most of the time, failure happens when a non-conductive TiO₂ layer forms between the substrate and the coating. This can happen if the current density is too high or if the substrate surface is not properly prepared before the coating is applied.

How do I confirm coating thickness before accepting delivery?

Get a report on the thickness of the layer from a third party or someone in your own company. For Ru-Ir and Ir-Ta systems, standard industrial requirements say they should be 8–12 microns thick. Make sure the seller uses thermal decomposition coating methods, which make oxide layers that are thicker and stick to the substrate better than other deposition methods.

Get a Quote from CXMET — Your Trusted Titanium MMO Anode Manufacturer

For more than 20 years, CXMET has given high-performance Titanium MMO anodes to engineers and purchasing teams in the marine, oil and gas, chemical processing, and water treatment industries. We can provide reliable Titanium MMO anodes for both standard and unique projects thanks to our GR1 Titanium substrates, ASTM B381-compliant production, fully customized sizing, and coating choices like Ru-Ir, Ir-Ta, and platinum. You can email our expert team at sales@cxmet.com to get samples, datasheets, or a quote that is tailored to your project.

References

1. Trasatti, S. Electrochimica Acta — "Electrocatalysis: Understanding the Success of DSA®." 2000.

2. Beer, H.B. Journal of the Electrochemical Society — "The Invention and Industrial Development of Metal Anodes." 1980.

3. NACE International — NACE TM0108: Test Method for Evaluation of Coatings for use as Anodes in Cathodic Protection Systems. 2008.

4. ASTM International — ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings. 2023.

5. Hayfield, P.C.S. Platinum Metals Review — "Development of the Noble Metal/Oxide Coated Titanium Electrode." 1998.

6. Schmittinger, P. et al. Chlorine: Principles and Industrial Practice. Wiley-VCH. 2000.
