If an engineer asks which platinized titanium electrode is ideal for chlorine systems, The short answer: Titanium substrate, grade 1, with a platinum coating of 2-5 μm obtained by thermal decomposition or brushing and sintering. This design permits chlorine evolution potentials of 1.3-1.5 V vs. SHE, current densities up to 10,000 A/m2 and pH values in the whole 0-14 range. This kind of electrode has always been better than its graphite and stainless steel equivalents in terms of service life and energy efficiency for chlor-alkali plants, water disinfection systems and electrochemical chlorine generators.

Understanding Platinized Titanium Electrodes and Their Role in Chlorine Systems

What Makes This Electrode Different

A platinized titanium electrode is a DSA (Dimensionally Stable Anode) with a titanium substrate, often ASTM B265 or ASTM B381 Grade 1, coated with a thin coating of pure platinum of between 0.5 and 10 μm thickness. The high electrocatalytic activity is achieved by a platinum layer and the substrate corrosion is prevented by a passive oxide coating of the titanium base. The two-layer construction keeps the same electrode geometry for electrolysis constant therefore the voltage is kept constant and there is no sludge contamination as with graphite or lead anodes.

Role in Chlorine Generation

The anode in chlorine electrolysis is at the same time subjected to the hostile environment of hypochlorous acid, dissolved chlorine gas and acidic brine. Platinized titanium electrodes meet these criteria. The platinum surface provides a low overpotential for the chlorine evolution and consequently lowers the energy consumption per kilogram of chlorine generated. Dimensionally stable anodes are needed in chlor-alkali plants using membrane cell technology because the geometry of the electrode directly impacts the current distribution across the membrane. Warpage or dissolving may result in loss of efficiency and unscheduled down time.

Comparison with Graphite and Stainless Steel

Graphite anodes are consumed at a rate of around 1-3 kg per ton of chlorine generated. This contaminates the electrolyte and they need to be replaced often. Stainless steel anodes corrode in chlorinated brine at temperatures over 50 °C. In contrast, platinized titanium electrodes may operate for 5-10 years under normal working circumstances and can be recoated to prolong their life. That durability gap immediately means cheaper maintenance costs and fewer production disruptions for businesses operating continuous chlorination cycles.

Comparing Platinized Titanium Electrodes: Which One Fits Your Chlorine System Best?

Key Selection Criteria

There are four criteria that must be considered when selecting the proper electrode for a chlorine system: platinum coating thickness, substrate quality, form factor and current density rating. For low-current disinfection systems with a modest chlorine demand a thinner platinum layer (1-2 μm) is adequate. For high-current industrial chlorinators or electrochemical generators, where the anode is exposed to concentrated brine for extended periods at extreme temperatures, a thicker covering (5–10 μm) is preferred.

Here are the key performance differentiators to consider before you buy:

• Platinum coating thickness: Thicker coatings (5–10 μm) enhance service life for high-current chlorine systems but also increase material expense upfront. For the majority of industrial chlorination applications at modest current densities, the optimum working range is 2 to 5 μm.
• Substrate grade: Grade 1 titanium (commercially pure) is highly corrosion resistant in a chloride-rich medium. Grade 2 is a little stronger mechanically and this important if you are using the material as mesh or rods that will be exposed to physical stress during installation or as part of cleaning cycles.

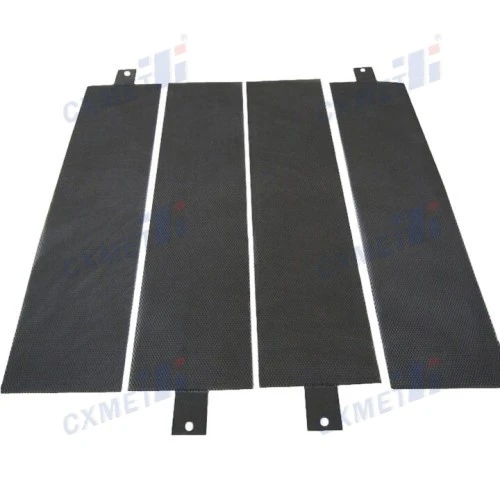

• Form factor: Mesh electrodes provide the most active surface area per weight and are the preferred choice for flow-through chlorine cells. Plate electrodes are the most suited with flat-cell designs, whereas bar and rod electrodes are suitable for the cylindrical reactors often used in water treatment skids.

These changes may have a direct impact on the energy bill, maintenance schedule and chlorine production per cycle of your system therefore it is more important to match the electrode specification to your real operating circumstances rather than just selecting the highest rated product on paper.

Pure Platinum vs. Platinized Titanium

Pure platinum electrodes have somewhat greater conductivity but the cost per electrode is five to ten times that of a platinized titanium counterpart. In most industrial chlorine systems the price difference is not worth the performance difference. In some brine media, platinized titanium offers 0.2-0.5 V cell voltage reductions over mixed metal oxide alternatives. This translates into considerable savings in energy consumption during a year of production.

CXMET Product Range

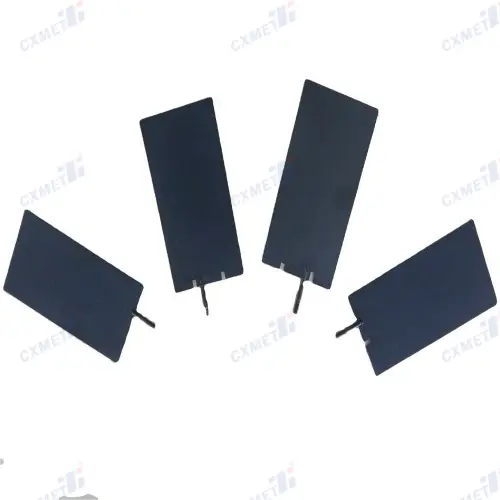

CXMET manufactures platinized titanium electrodes to ASTM B381 Grade 1 with platinum coatings of 1 to 10 μm thickness. Available forms include plate, mesh, bar and bespoke geometries. The electrodes are ideal for acid chlorination and alkaline brine settings with an operating temperature range of -40 °C to 120 °C and pH tolerance of 0-14.

How to Maintain and Maximize the Lifespan of Your Platinized Titanium Electrode

Routine Cleaning Practices

Primary reasons of early performance degradation are the build-up of scale and chlorine byproduct deposits. A mild hydrochloric acid soak (5–10% HCl) at room temperature for 15–30 minutes can remove calcium carbonate and iron oxide deposits without harming the platinum layer. Never use harsh mechanical cleaning. Wire brushing or sandblasting will physically destroy the platinum coating and invalidate any performance guarantee.

Inspection Schedule

If electrodes are used in continuous chlorine generating service, inspect them every 3 to 6 months. Look for apparent platinum delamination and substrate pitting near edges and any voltage shift over baseline during examination. An rise in cell voltage of greater than 0.3 V at constant current levels is often indicative of coating deterioration and an appropriate time for recoating prior to failure.

Operating Conditions to Protect Coating Life

To avoid oxygen evolution competing with chlorine evolution at the anode surface, keep the brine content above 200 g/L NaCl. Oxygen evolution promotes platinum oxidation and shortens the life of the coating. To avoid local overheating, the current density must not exceed the specified limit of 10,000 A/m². Do not utilize streams containing fluoride at all. The fluoride ions will attack the passive titanium oxide layer and may lead to deterioration of the substrate even with an unbroken platinum covering.

Procurement Guide: How to Buy the Best Platinized Titanium Electrode for Your Needs

Pricing and Lead Times

The price of platinized titanium electrodes depends on the thickness of the platinum coating, the weight of the substrate and the volume of the order. Bulk purchases often cut the cost per item by 15-25%. Lead times from recognized manufacturers are typically 2 to 4 weeks for catalog sizes and 4 to 6 weeks for bespoke geometries. CXMET delivers via air freight, sea freight or express courier, standard export wooden case packing or custom packing as per clients’ specifications.

Selecting a Verified Supplier

Procurement managers should ensure that vendors submit material certifications to ASTM B381, platinum coating thickness test results and adhesion strength data. Suppliers who provide recoating services may minimize the total cost of ownership since the titanium substrate still has value after the platinum is depleted. CXMET provides a complete OEM service with bespoke dimensions, choice of surface treatment (smooth, matte or textured), and optional edge sealing for situations where edge corrosion is a problem.

Logistics for Global B2B Clients

Average marine freight from China to US West Coast ports is 18-25 days, and to East Coast ports 25-35 days. Air freight may cut transit time to 5-7 days for urgent replacements. CXMET’s export packaging satisfies the standard standards for international shipment. The engineering team offers technical documentation in English to facilitate customs clearance and inbound inspection.

Case Studies and Success Stories: Real-World Applications in Chlorine Systems

Chlor-Alkali Plant Upgrade

An old graphite anode of a chemical processing plant with a membrane cell chlor-alkali operation was replaced with a platinized titanium mesh electrode. In the first year of operation, the plant achieved a 12% decrease in cell voltage at the same current loads and eradicated the electrolyte contamination occurrences that had previously needed quarterly bath replacements. Electrodes that used to need replacing every 18 months are now lasting over 5 years – a reduction of more than 60% in yearly anode replacement expenses.

Municipal Water Treatment

A municipal water district has improved its electrolytic chlorination system using platinized titanium anodes in plate form. The changeover addressed the periodic scale accumulation problems that had produced flow constraints in the old stainless steel system. Operators reported constant current efficiency above 90% with consistent chlorine production during a complete 12 month cycle with no unplanned maintenance.

OEM Collaboration for Marine Ballast Water Treatment

CXMET custom-geometry platinized titanium electrodes were included into onboard ballast water electrolytic treatment units by maritime equipment maker. The electrodes also met IMO D-2 discharge regulations under seawater chlorination circumstances at current densities as high as 8,000 A/m² in varying salinity conditions during several vessel deployments.

Conclusion

CXMET custom-geometry platinized titanium electrodes were included into onboard ballast water electrolytic treatment units by maritime equipment maker. The electrodes also met IMO D-2 discharge regulations under seawater chlorination circumstances at current densities as high as 8,000 A/m² in varying salinity conditions during several vessel deployments.

FAQ

What platinum coating thickness is best for chlorine systems?

For most industrial chlorine generation applications, a 2–5 μm platinum coating provides the best balance between service life and cost. High-current systems above 5,000 A/m² benefit from 5–10 μm coatings.

Can platinized titanium electrodes handle seawater chlorination?

Yes. These electrodes perform well in seawater electrolysis as long as current density stays within the rated limit and fluoride concentrations remain negligible. Marine ballast water treatment systems routinely use this electrode type.

How often should I replace or recoat the electrode?

Under standard chlorine generation conditions, expect 5–10 years of service before recoating. A measurable increase in cell voltage under constant current is the clearest signal that recoating is due.

Does CXMET offer custom sizes for OEM integration?

Yes. CXMET provides full OEM customization including dimensions, shape (plate, mesh, bar), platinum thickness, and surface finish. The engineering team works directly with OEM clients to match electrode geometry to equipment specifications.

What certifications come with CXMET electrodes?

CXMET provides material certifications conforming to ASTM B381, platinum coating thickness reports, and adhesion test documentation with each order.

Get a Custom Quote from CXMET — Platinized Titanium Electrode Manufacturer

CXMET's engineering team is ready to help you specify the right platinized titanium electrode for your chlorine system. We manufacture to ASTM B381 Grade 1 standards, offer fully customizable dimensions and platinum coating thickness, and provide material certifications with every order. Contact our team directly at sales@cxmet.com or visit https://www.cxmet-tech.com/ to request a technical datasheet or bulk pricing quote today.

References

1. Trasatti, S. Electrochimica Acta — "Electrocatalysis: Understanding the Success of DSA," 2000.

2. Tilak, B.V., & Chen, C.P. Journal of Applied Electrochemistry — "Dimensionally Stable Anodes for Chlorine Evolution," 1993.

3. Hayfield, P.C.S. Platinum Metals Review — "Development of the Noble Metal/Oxide Coated Titanium Electrode," 1998.

4. Kraft, A. Platinum Metals Review — "Platinized Titanium Electrodes for Water Electrolysis," 1999.

5. Bommaraju, T.V., & Orosz, P.J. Electrochemical Society Interface — "Brine Electrolysis and Dimensionally Stable Anodes," 2007.

6. ASTM International. ASTM B381 Standard Specification for Titanium and Titanium Alloy Forgings, 2019.
