Choosing the best anode material for chlor-alkali electrolysis has a direct effect on how well the process works, how much it costs to maintain, and the quality of the result. As an alternative, titanium anodes, especially those covered and platinized with Mixed Metal Oxide (MMO), have become the standard in the industry thanks to their stable dimensions, long service life, and excellent electrochemical performance. These dimensionally stable anodes (DSAs) keep their shape even in harsh alkaline and chloride-rich conditions. This makes them the best choice for modern chlor-alkali facilities that want to keep their systems running as much as possible while keeping their total cost of ownership as low as possible. By learning about the unique features of each type of anode, buying managers and engineers can make choices that meet their practical needs.

Understanding Titanium Anodes in Chlor-Alkali Systems

Chlor-alkali plants depend on reliable electrochemical conversion processes to produce chlorine, caustic soda, and hydrogen. The anode plays a critical role in this electrolysis, facilitating the oxidation reactions necessary for chlorine evolution while withstanding aggressive chemical environments.

The Role of Dimensionally Stable Anodes

Traditional graphite anodes, which were once popular in chlor-alkali uses, wear out quickly and can get contaminated, which lowers the quality of the product. These problems can be fixed with dimensionally stable anodes that have a titanium base covered in catalytically active layers. The titanium base makes the material strong and resistant to weathering, and the layer, which is usually made of ruthenium-iridium (Ru-Ir) or iridium-tantalum (Ir-Ta) oxides, speeds up the chlorine evolution process. This mixture keeps the electrode shape the same over the life of the battery, which keeps the voltage and current in the cell fixed. Plants that use DSA technology say they use a lot less energy and often have 15-20% lower power costs than plants that use older methods.

Electrochemical Principles Behind Titanium Substrates

Titanium works well as an anode material because it can form a thin, protective oxide layer that stops further rusting while still being electrically active when covered properly. When it's working, the current flows through the catalytic coating and starts oxidation reactions at the interface with the electrolyte. The coating's selection depends on what it's made of—Ru-Ir mixtures work best in chlorine evolution situations, while Ir-Ta mixtures work better in oxygen evolution situations. We make Grade 1 titanium substrates that meet ASTM B381 standards at Shaanxi CXMET Technology Co., Ltd. These substrates are the basis for solid anode performance. Precision surface treatments, such as sandblasting and acid cleaning, make sure that coatings stick well, which extends the service life of the anode beyond what is standard in the industry.

Why MMO Coatings Extend Service Life

Mixed metal oxide layers are a big step forward in the science of anodes. For Ru-Ir formulas, these layers are usually 8–12 microns thick. They make a porous structure that improves the active surface area while keeping the structure stable. The oxide matrix spreads the current evenly across the anode surface, stopping hotspots that speed up degradation. When working with chlor-alkali, with current densities between 2 and 6 kA/m² and temperatures between 80 and 90°C, MMO coatings that are applied correctly can last for 5 to 10 years without stopping. This means that production will stop less often and costs will be lower over their whole life. This is especially helpful for facilities that have to stick to tight maintenance schedules.

Comparing Titanium Anodes for Chlor-Alkali Systems: Types and Properties

Procurement decisions require evaluating multiple anode configurations, each offering distinct advantages depending on operational parameters and budget constraints.

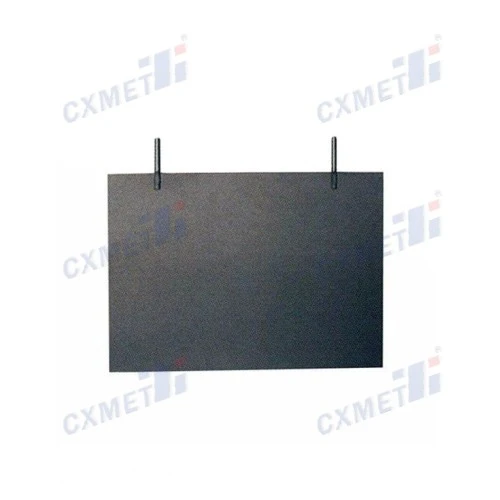

Mixed Metal Oxide Anodes: Cost-Effective Workhorse

Anodes coated with MMO have become the standard in membrane and diaphragm cell technologies. During the covering process, a solution of noble metal precursors is put on a titanium surface that has already been prepared. This is followed by heat breakdown at 450–550°C. This bonds an oxide layer that looks like clay to the base. At CXMET, our Ru-Ir oxide films offer high chlorine selectivity, which means they reduce unwanted side reactions that lower current effectiveness. The relatively low noble metal loading—usually 8–12 g/m²—and service lives that often last longer than seven years under ideal conditions make it a cost-effective choice. MMO anodes are especially appealing to facilities that want stable operations and predictable maintenance cycles because they wear out over time, allowing for planned replacements without having to shut down in an emergency.

Platinized Titanium Anodes: Premium Performance

Titanium anodes that have been platinized may be used in situations that need the highest catalytic activity and the lowest overpotential. A pure platinum layer, about 0.5 to 2.5 microns thick, is electroplated or cast onto the titanium base of these. Because platinum has better electrical qualities, it can work at lower cell voltages, which means it uses less energy. Platinum costs a lot more than mixed metal oxides, so the higher original investment is balanced by the fact that high-throughput processes might save energy. However, platinum coatings can't work well in places where fluoride ions are present because these ions can get through the coating's holes and attack the titanium below. At CXMET, our engineering team works closely with clients to find out if platinized options are right for their specific electrolyte chemistry and operational needs.

Performance Metrics That Matter

When looking at anode specs, there are a few technical factors that should be carefully thought through. The percentage of applied current that contributes to the desired electrochemical reaction compared to the percentage that contributes to other processes. Quality anodes keep their current efficiency at 95% or higher for the whole time they are in use. Cell voltage is directly related to energy costs—a 0.1V drop in working voltage can save a lot of money on power bills in big buildings. The adhesion strength of the coating, which is measured by standard bend and peel tests, tells us how resistant it is to mechanical breakdown caused by the movement of electrolytes and gasses. At CXMET, we make sure these properties are true by using strict quality control procedures, such as accelerated life testing, which makes our products work like they have for years. This makes sure they meet or beat performance claims.

How to Choose the Best Titanium Anodes for Your Chlor-Alkali System

Matching anode specifications to your facility's unique requirements requires balancing technical performance, economic considerations, and supplier capabilities.

Assessing Your Operational Parameters

Start by writing down the most important features of your system. Most membrane cells work with current levels of 3 to 6 kA/m³ and need anodes that are specially designed to pick chlorine. Even though diaphragm cells work at slightly lower numbers, they need strong mechanical qualities to handle rougher circumstances. Coating choice is affected by temperature patterns, electrolyte ratios, and the presence of toxins. If a facility processes salt that has a lot of calcium or magnesium in it, the coating may wear off faster, so stronger versions are needed. During this phase of assessment, our technical team looks over water chemistry reports and operational logs to help clients choose the best anode configurations.

Balancing Cost and Performance

The total cost of ownership is more than just the price of the car. To find the amortized cost per operating hour, divide the total cost of the anode, which includes installation and disposal, by the number of hours it is expected to be used. When you consider the money you'll save during changeovers, a high-quality anode that lasts 10 years may be more cost-effective than a cheap one that needs to be replaced every three years. Lead times also affect how projects are planned. Standard setups can ship in 4 to 6 weeks, but unique shapes need more time to be made. By committing to a certain amount, you can get better prices, which makes multi-year supply deals appealing for places that know when they need to repair things.

Evaluating Supplier Credentials

Choosing the right partner has a big effect on long-term success. Look for companies that have scientific publications, industry certifications, and customer reviews that show they know how to use electrochemicals. ISO 9001 certification means that the quality management system is strong, and ASTM B381 compliance makes sure that the materials are all the same. Shaanxi CXMET Technology Co., Ltd. has been serving the chemical processing, power generation, and naval industries for 20 years. This shows how dedicated we are to technical excellence. Our 50,000-square-meter factory in China's "Titanium Valley" has advanced production tools and more than 80 specialized technicians, so we can make both standard products and complex projects that require customization.

Procurement Insights: Where and How to Buy Quality Titanium Anodes

Strategic sourcing requires understanding global supply chains, quality verification methods, and negotiation strategies that protect your interests.

Navigating the Supplier Landscape

There are multinational companies, specialized manufacturers, and regional suppliers in the titanium anodes market, and each offers a different set of benefits. Large, multinational suppliers often charge more than smaller, local suppliers because they offer more technical support and service networks around the world. Specialized makers, like CXMET, offer deep subject knowledge, the ability to customize, and usually more affordable price structures. When you buy from other countries, you should think about how hard the logistics will be, how much the import taxes will be, and how the communication will work. Because we have experience shipping to the US market, we can make sure that customs processing goes smoothly and that all of our paperwork is correct. This keeps delays to a minimum, which keeps project timelines on track.

Quality Assurance and Compliance

Make sure that potential providers give you full material certificates that include testing the coating's thickness, its chemical makeup, and its mechanical properties. Ask that samples be tested in situations that are similar to those you will be using them in. Reliable providers will be happy to do this. Third-party inspection services can give buyers more peace of mind when they are buying a lot of something. Standards compliance goes beyond just the materials used; make sure that the manufacturing processes are in line with labor laws and environmental rules. CXMET keeps clear records of quality, so you can follow the process from receiving the raw materials to shipping the finished product.

Negotiation and Contract Considerations

Cost management and risk reduction go hand in hand in good negotiations. Volume savings usually start at order amounts that cover 6 to 12 months of expected usage. Payment terms should work with your cash flow and give the supplier peace of mind. For large orders, staged payments tied to production milestones work well. Include clear instructions on how to test for acceptance, finishing qualities, and size limits. As part of the warranty, there should be clear language about how the finish should last and how long it should last under certain working conditions. Our contracts with big factories include performance guaranties that are backed by our stable finances and decades of experience making things.

Maintenance and Performance Optimization of Titanium Anodes

Maximizing return on investment requires systematic care throughout the anode lifecycle, from installation through eventual replacement.

Establishing Routine Inspection Protocols

Visual inspections done on titanium anodes on a regular basis can find new problems before they get worse. Check for covering darkening, which could mean that there is overheating in one area or trouble with the flow of current. Electrolyte impurities should be quickly removed from the surface using approved cleaning methods, which are usually light acid washes that break down scale without hurting the layer. Weekly voltage checks show that the coating is slowly wearing away; a steady rise in voltage levels means that the coating is getting close to its end of life. Write down everything you find during the review so that you can make standard performance curves that are specific to your working conditions. With this historical data, predictive maintenance plans can be made that schedule replacements for planned outages instead of forcing unplanned ones.

Optimizing Operating Conditions

Keeping the current density within the design parameters stops the layer from failing too soon. Too much current concentrates oxidation processes in small places, which burns through the catalytic layer very quickly. Controlling the temperature is also important. High temperatures speed up electrochemical reactions but also make corrosion more likely. In chlor-alkali service, most MMO coatings work best between 80°C and 90°C. The purity of the electrolyte has a big effect on the service life. Getting rid of hardness ions and organics through the right pretreatment process makes coatings last longer. In some processes, irregular polarity switching is used for cathodic protection, but only with anodes that are made for these duty cycles.

Leveraging Advanced Coating Technologies

New technologies keep making anodes work better. Gradient coating structures, which change the makeup as the layer gets thicker, give the best qualities at both the substrate and electrolyte boundaries. Nanostructured surface treatments make the active area denser, which makes the catalytic activity stronger. When it comes time to replace your anodes, you might want to look into substrate refurbishment programs. The titanium base is still valuable even after the coating wears off. Specialized facilities can remove the worn-out coating, resurface the substrate, and add new catalytic layers for about 60% of the cost of a new anode. CXMET provides full lifecycle support, which includes expert advice on choices about repair based on an evaluation of the substrate's state.

Conclusion

Selecting the optimal anode solution for chlor-alkali systems demands careful evaluation of coating technologies, operational requirements, and supplier capabilities. MMO-coated titanium anodes provide proven reliability and cost-effectiveness for most applications, while platinized options serve specialized high-performance needs. Success depends on matching technical specifications to your facility's unique conditions, establishing quality supplier relationships, and implementing systematic maintenance practices. The advances in coating formulations and manufacturing processes continue enhancing anode performance, offering chlor-alkali operators ongoing opportunities to improve efficiency and reduce operating costs. By partnering with experienced manufacturers who understand both electrochemical principles and practical operational constraints, facilities can achieve optimal total cost of ownership while maintaining production reliability.

FAQ

What determines the service life of MMO-coated anodes in chlor-alkali applications?

Service life primarily depends on current density, electrolyte purity, and operating temperature. Under typical membrane cell conditions—3-4 kA/m² at 85-90°C with purified brine—quality MMO coatings deliver 7-10 years of continuous operation. Higher current densities accelerate coating consumption proportionally, while impurities like calcium, magnesium, and organics promote premature degradation through deposit formation and localized corrosion. Regular maintenance and optimal operating conditions significantly extend lifespan.

Can titanium substrates be recoated after the original coating depletes?

The titanium substrate retains structural integrity after coating depletion, making refurbishment economically attractive. Specialized facilities chemically strip exhausted coatings, inspect the substrate for damage, resurface as needed, and apply fresh catalytic layers. This process typically costs 40-60% less than purchasing new anodes while delivering comparable performance. Substrates can often undergo multiple refurbishment cycles, though each requires careful evaluation to ensure dimensional accuracy and surface quality remain acceptable.

How do I identify when anodes require replacement?

Monitor cell voltage trends as the primary indicator. Gradual voltage increases of 0.2-0.3V above baseline suggest significant coating wear. Visual inspection revealing substrate exposure through coating loss demands immediate replacement to prevent titanium passivation. Declining current efficiency—measured through product analysis—also signals degradation. Implementing systematic voltage logging enables predictive replacement scheduling during planned maintenance windows rather than responding to failures that force unscheduled outages.

Partner with CXMET for Superior Titanium Anode Solutions

Shaanxi CXMET Technology Co., Ltd. stands ready to support your chlor-alkali operations with precision-engineered titanium anode systems. Our CXMET-brand products combine Grade 1 titanium substrates conforming to ASTM B381 with optimized Ru-Ir and Ir-Ta oxide coatings in precisely controlled 8-12 micron thicknesses. As an established titanium anodes manufacturer, we deliver both standard configurations and fully customized geometries tailored to your exact specifications. Our comprehensive surface treatment capabilities—sandblasting, acid cleaning, polishing, and brushing—ensure optimal coating adhesion and longevity. Reach out to our technical team at sales@cxmet.com to discuss your specific requirements and discover how our two decades of non-ferrous metal expertise can optimize your electrochemical processes.

References

1. Trasatti, S., "Electrocatalysis in the anodic evolution of oxygen and chlorine," Electrochimica Acta, vol. 29, no. 11, pp. 1503-1512, 1984.

2. Schmittinger, P., Florkiewicz, T., Curlin, L.C., et al., "Chlorine," Ullmann's Encyclopedia of Industrial Chemistry, Wiley-VCH, 2012.

3. Kuhn, A.T., "Industrial Electrochemical Processes," Elsevier Publishing Company, Amsterdam, 1971.

4. Chen, G., "Electrochemical technologies in wastewater treatment," Separation and Purification Technology, vol. 38, no. 1, pp. 11-41, 2004.

5. Karlsson, R.K.B. and Cornell, A., "Selectivity between oxygen and chlorine evolution in the chlor-alkali and chlorate processes," Chemical Reviews, vol. 116, no. 5, pp. 2982-3028, 2016.

6. O'Brien, T.F., Bommaraju, T.V., and Hine, F., "Handbook of Chlor-Alkali Technology," Springer Science & Business Media, New York, 2005.
