If your business involves electrochemical processing, water treatment, or any application where electrode failure translates into expensive downtime, you already understand the importance of selecting the proper anode material. One of the oldest challenges in commercial electrochemistry is solved by a platinized platinum titanium electrode: how to attain platinum-level catalytic performance without the mechanical fragility or the outrageous cost of a solid platinum anode. This kind of electrode consists of a thin, homogeneous coating of 99.95% pure platinum on a high-purity titanium substrate and offers a long service life, consistent current distribution, and resistance to harsh chemical conditions across the whole pH range of 0-14.

What Is a Platinized Platinum Titanium Electrode and How Does It Work?

The Core Structure

The electrode is made of a titanium substrate (ASTM Grade 1 or Grade 2) covered with pure platinum via electrodeposition, thermal decomposition, or brush-and-sinter application. For example, CXMET’s products use ASTM B381 GR1 titanium, which is guaranteed to be 99.6% pure. The basic material is known to be very strong and resistant to corrosion even before coating.

The Role of the Platinum Layer

Platinum is the reference standard in electrocatalysis because it has the least overpotential for the oxygen and hydrogen evolution processes. A titanium substrate with a platinum layer of 2.5–7.5 µm thickness (customizable for particular service-life requirements) delivers catalytic activity equivalent to solid platinum while maintaining a lightweight and structurally robust overall electrode.

Electron Transfer and Surface Behavior

The microporous crystalline structure of the coating, which permits effective electron transport at the electrode-electrolyte interface, was discovered by scanning electron microscopy during quality-controlled production. This prevents passivation, a failure mechanism that results in the deposition of a non-conductive TiO2 layer on the titanium, and creates a voltage plateau over long working cycles.

Key Industrial Applications and Benefits

Platinum-coated titanium anodes, the platinized platinum titanium electrode, are now the electrode material of choice for a variety of heavy industries requiring electrochemical processes where graphite and lead were formerly used. Understanding where and why they work better helps procurement teams justify the expenditure.

These electrodes provide concrete benefits in the following main industries:

• Chlor-alkali and Chemical Synthesis: The electrode’s resistance to caustic and chlorinated environments in chlorine evolution cells avoids contamination of the electrolyte bath. This is different from graphite, which degrades and releases carbon particles. A dimensionally stable anode retains its geometry and voltage stability for thousands of hours of operation.
• Water & Wastewater Treatment: The electrode’s capacity to endure polarity reversal cycles required for self-cleaning without surface deterioration benefits electrolytic disinfection systems used in municipal and industrial water treatment systems. The literature of electrochemical water treatment studies confirms steady performance throughout long-term cycling.
• Electrolysis for Hydrogen Generation and Metal Recovery: The electrode supports high-efficiency electrolysis at current densities up to 10,000 A/m 2. This immediately means that green hydrogen production systems will need less energy for each unit of hydrogen they produce.
• Impressed Current Cathodic Protection (ICCP): Platinum-coated titanium anodes are long-lasting and deliver high output performance for ship hulls, offshore platforms, and buried pipelines in seawater, far outperforming sacrificial zinc or magnesium anodes, providing predictable service intervals and low consumption rates.
• Electroplating and Surface Finishing: When used as insoluble auxiliary anodes in gold, rhodium, or hard chrome plating baths, they avoid contamination by metal ions, which is essential to the brightness and dimensional correctness of the plating.

Engineers may use these features to decrease unexpected downtime while retaining the correctness of the process.

How to Maintain and Maximize the Lifespan of Platinum-Coated Titanium Anodes

Routine Cleaning Protocols

Contact resistance increases with time due to scale and oxide deposits on the electrode surface. Deposits are removed by periodic washing with dilute sulfuric or oxalic acid without assault on the platinum layer. Do not use cleaning chemicals with fluoride; fluoride ions strongly attack the titanium substrate and are one of the main reasons for early failure of the electrode.

Handling and Storage

Physical degradation to the platinum covering of the platinized platinum titanium electrode exposes the titanium substrate which may passivate fast in electrolysis service. Electrodes must be packed in protective packing (CXMET is supplied in standard export hardwood containers) and handled with non-abrasive instruments. Even the smallest flaws in the coating may result in localized production of TiO₂ and voltage instability.

Recognizing Wear and Planning Recoating

The use of a titanium substrate has the benefit of being reusable. When the platinum layer is depleted, as seen by a rise in cell voltage at constant current, the old coat may be scraped, the substrate sandblasted and pickled, and a new platinum layer deposited. Using this method of recoating may greatly lower the life cycle cost over buying new solid anodes. The substrate-coating contact is further protected from rapid oxidation by working within the suggested ceiling temperature of 80°C.

Comparing Platinum-Coated Titanium Anodes with Market Alternatives

Vs. Solid Platinum Electrodes

Solid platinum has an equivalent catalytic surface, but the cost of the material is much greater, and the flexibility is lower. The platinum-coated titanium performs similarly in electrocatalytic activity but at a fraction of the weight and expense, with the additional advantage of a reusable substrate.

Vs. Graphite Electrodes

Graphite is consumed during electrolysis, contaminating the electrolyte with particulates and needing regular replacement. It is also not resistant to powerful oxidizing acids. A platinum-coated titanium anode solves both concerns and is the preferable option if electrolyte purity is required.

Vs. Mixed Metal Oxide (MMO) Electrodes

MMO coatings work well for simple chlorine evolution applications but may not work as well for more sophisticated oxygen evolution processes or in acidic settings that demand strong conductivity and polarity reversal capacity. In such settings, platinum plating is still the technically better choice. Ultimately, the decision between the two is determined by the particular electrolyte chemistry and operating current density.

Procurement Guide: How to Source These Electrodes for Industry

Key Sourcing Criteria

When selecting a supplier of platinized platinum titanium electrodes, the three quality checks that are most reliable in predicting field performance are: coating thickness verification by X-Ray Fluorescence (XRF), adhesion testing in accordance with ASTM standards, and accelerated life testing in representative electrolytes. Ask SEM reports for a crack-free, dense platinum microstructure before large orders.

OEM and Customization Options

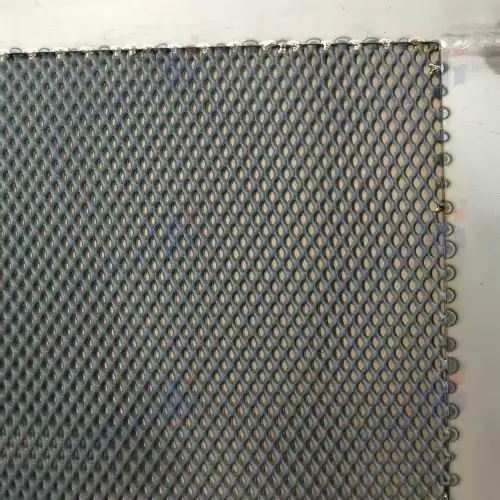

Plate, mesh, bar, expanded, and perforated are standard forms to suit most applications, but CXMET’s engineering team also creates unique geometries with precise specifications for incorporation into proprietary reactor designs. Customers have the option of selecting substrate grade (GR1, GR2 or GR3), platinum coating thickness in the 2.5 – 7.5 µm range or higher for extended life objectives, and electrode form factor to meet their process equipment.

Logistics and Lead Time

CXMET offers air, sea, and express freight services. Packing is done in conventional export wooden boxes or as per customer’s request. For procurement managers working to project deadlines, talk about lead times and minimum order quantities early on with the sales team to minimize scheduling issues.

Conclusion

A titanium electrode with a platinum coating satisfies the fundamental trade-offs faced in industrial electrochemical processes—catalytic efficiency, dimensional stability, corrosion resistance, and economic viability throughout a whole service life. Whether it’s for hydrogen electrolysis, cathodic protection, water treatment, or precision electroplating, platinized platinum titanium electrodes always surpass the usual options in terms of total cost of ownership and operational dependability. CXMET products are intended to fulfill the stringent technical requirements required by engineers and procurement teams in demanding sectors, with 99.95% pure platinum coatings and configurable geometries to ASTM B381 GR1 standards.

FAQ

Can a used platinum-coated titanium electrode be recoated?

Yes. The titanium substrate is reusable. Once the platinum layer is depleted, the substrate can be stripped, cleaned, and recoated—significantly reducing capital expenditure compared to purchasing new electrodes each replacement cycle.

What causes premature electrode failure?

The most common causes are exceeding the rated current density, exposure to fluoride ions in the electrolyte (which attacks the titanium base), and physical scratching of the platinum layer. All three allow TiO₂ passivation to develop, raising cell voltage and reducing efficiency.

How does coating thickness affect service life?

The relationship is roughly linear. A 2.5 µm coating will typically last several times longer than a 0.5 µm coating under equivalent operating conditions. Procurement decisions should balance initial cost against planned maintenance intervals.

What is the maximum operating temperature?

Standard electrodes are rated to 80°C. Operation above this threshold accelerates oxidation at the titanium–platinum interface. Higher-temperature variants are available upon request.

Is platinum-coated titanium better than MMO for all applications?

Not universally. MMO coatings work well for simple chlorine evolution. Platinum coatings are preferred for oxygen evolution reactions, acidic environments, and applications requiring polarity reversal capability.
