Choosing the right electrode material directly determines whether your electrolysis process runs efficiently or becomes a recurring cost problem. A titanium oxide electrode — technically classified as a Mixed Metal Oxide (MMO) coated titanium anode — offers a well-documented answer to this challenge. Built on a Grade 1 titanium substrate and coated with catalytically active oxide layers such as Ru-Ir or Ir-Ta, these electrodes deliver dimensional stability, low overpotential, and resistance to aggressive electrolytes. For engineers and procurement managers in chemical processing, water treatment, or cathodic protection, this combination makes them a technically sound and cost-effective choice.

Understanding Titanium Oxide Electrodes in Electrolysis

What They Are and How They Work

As stated in ASTM B381, a titanium oxide electrode is made up of a titanium substrate that is usually Grade 1 or Grade 2 and is covered with a crystalline matrix of noble metal oxides. Ru-Ir oxide (8–12 micron) is often used for chlorine evolution, and Ir-Ta oxide (8–12 micron) is often used for oxygen evolution. The rutile-phase crystal structure has a lot of electrocatalytic activity but doesn't react chemically. This design fixes a problem that has been around for a long time with graphite or lead anodes: it stops electrode disintegration from polluting the electrolyte and keeps the voltage between the electrodes constant over long service cycles.

Physical and Chemical Properties That Matter

As shown by ASTM D3359 adhesion tape testing, the acid-etched titanium surface has a coating adhesion strength of more than 20 MPa. In normal situations, the current density is 500 to 2,000 A/m². In high-speed plating, it can go up to 5,000 A/m². The chlorine evolution potential is less than 1.13V compared to SHE, which directly cuts down on energy use. These numbers aren't just guesses; they can be measured through Accelerated Life Testing (ALT) following NACE TM0108 or similar procedures. This turns lab hours into predicted years of service in the field.

Why Dimensional Stability Changes the Equation

In contrast to graphite anodes, which wear down and pollute the electrolyte, a titanium oxide electrode keeps its shape over time. This dimensional stability keeps the electrodes from shorting out on each other and makes sure that the current flows evenly across the electrode surface. This directly means fewer unplanned shutdowns and more predictable repair plans for procurement teams that are in charge of large chlor-alkali plants or electrowinning cells. Both of these things have a big impact on the budget.

Comparing Titanium Oxide Electrodes with Other Electrode Materials

Titanium Oxide vs. Platinum and Boron-Doped Diamond

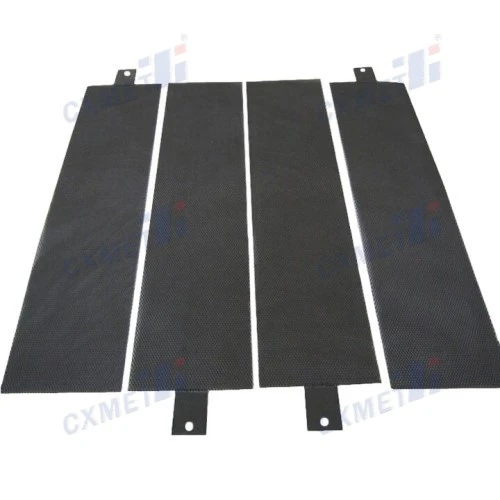

Platinum electrodes are very good at catalyzing reactions, but they are too expensive for large-scale use in industry. Boron-doped diamond (BDD) electrodes have large electrochemical windows, but they are fragile and cost a lot to make in large sizes. MMO titanium anodes, on the other hand, work well as catalysts and don't cost nearly as much. They can be made into plates, rods, meshes, and other shapes up to 1,000mm × 2,000mm. This performance-to-cost ratio is better than valuable metal options for most industrial electrolysis tasks.

Titanium Oxide vs. Carbon and Lead Anodes

Carbon anodes break down slowly in harsh ions, producing particles that contaminate the product. In sulfuric acid settings, lead-based anodes make toxic sludge, which creates both quality and removal issues. In copper electrowinning, for example, moving from lead anodes to MMO titanium anodes lowers cell voltage by 0.2–0.5V, which saves energy and gets rid of sludge while making the cathode metal purer. There are documented benefits to making this switch in the hydrometallurgy field.

Where MMO Titanium Anodes Win the Comparison

The benefit of MMO-coated titanium is not that it is better than all competitors in every single way. It wins because it performs well enough in all the important areas at the same time: corrosion resistance, catalytic efficiency, mechanical durability, and serviceable lifetime. Plus, it doesn't cost as much as precious metals or have the same contamination risk as carbon and lead. It is really hard to find the right mix between price, dependability, and following the rules when a procurement team needs to do so.

Procurement Considerations for Titanium Oxide Electrodes

Verifying Supplier Credentials and Quality Standards

When buying MMO titanium anodes, people in charge of procurement should ask for written proof of quality control procedures. X-Ray Fluorescence (XRF) analysis to check the precious metal loading (usually 6–12 g/m²), Scanning Electron Microscopy (SEM) to make sure the surface has a regular shape, and ALT data to confirm the expected service life are some of the most important parts of the inspection. As a bonus, suppliers should also say that the titanium base meets ASTM B381. The buy order should clearly list the coating choices, such as IrO2, RuO2, Ta2O5, or custom mixes, so that they are not switched out during production.

Cost Structure, Lead Times, and Customization

The cost of a titanium oxide electrode varies depending on the type of coating, the amount of precious metal it contains, and its shape. Unit economics are usually better for bulk orders, and reputable suppliers offer recoating services that make the current titanium substrate fully usable again for a lot less money than buying new units. During the RFQ stage, you should talk about custom fabrication, which includes non-standard sizes, edge sealing, and unique surface treatments like sandblasting, acid cleaning, polishing, or brushing. Lead times depend on how complicated the job is, so working with the supplier's engineering team early on keeps things on schedule.

Matching Coating Formulation to Application

Ru-Ir coatings are made for chlor-alkali, seawater electrolysis, and treating ballast water for chlorine evolution reactions. Ir-Ta films work well in places where oxygen is released, like metal electroplating, cathodic protection, and acidic process streams. Platinum coats (0.5–2.5 micron) are useful for high-precision analysis or keeping things clean. If you choose the wrong formulation, the coating will wear off faster, and the electrode will last less long. The application engineer, not just the procurement desk, should be involved in this design decision so that expensive mistakes don't happen.

Real-World Applications and Case Studies

Impressed Current Cathodic Protection (ICCP)

ICCP systems depend on anodes that can handle the high resistivity of the soil and the acidic microenvironments that form at the anode interface. These anodes are used in offshore oil rigs and underground pipeline networks. In deep groundbed placements, MMO titanium anodes have been shown to last more than 20 years, while graphite or mixed-oxide options would need to be replaced more often. It's not just fancy marketing language to say that the electrode is chemically stable in these conditions; engineers use this performance trait to figure out how long the protection system should last.

Electrochemical Water Treatment and Ballast Systems

To control the life in ballast water, shipboard electro-chlorination systems make sodium hypochlorite from seawater right where it is needed. Electrodes like titanium oxide electrodes in these systems need to be able to handle periodic polarity reversal for self-cleaning cycles and not get clogged up with calcium and magnesium precipitates. While standard MMO titanium anodes can handle this cyclic stress well, procurement teams should make sure that the supplier has reverse-polarity-rated formulations for these specific configurations. This is because standard coatings may break down when the polarity changes a lot.

Hydrometallurgy and Metal Electrowinning

When copper, nickel, and cobalt are electrowinning in strong sulfuric acid electrolytes, the electrodes have to work in one of the toughest conditions in the industry. When MMO titanium anodes are used instead of lead anodes, the cell voltage drops by 0.2 to 0.5V, which can be measured. This means that energy costs are cut directly at a large scale. In real life, getting rid of lead sludge lowers the costs of post-process treatment and helps companies follow environmental discharge rules. This is something that procurement and operations teams are thinking about together more and more when they decide what capital equipment to buy.

Making the Informed Choice: Why Titanium Oxide Electrodes Lead the Market

When you look at the whole repair cycle, an MMO titanium anode has a lower total cost of ownership than most other options. Recoating the base makes it last longer instead of having to be replaced completely. Process delays are less likely to happen when dimensions are stable. Less overpotential means lower long-term energy costs. It is easier to show that wastewater treatment and chemical output are following the rules when the electrode material has a steady and known chemical profile.

Market data backs up this trend. The global MMO electrode market has been steadily growing thanks to more water treatment plants, the production of green hydrogen, and stricter rules for how industrial wastewater can be dumped. For B2B procurement teams, picking a seller isn't just about which electrode material is better in theory; it's also about which supplier offers the best mix of technical documents, customization depth, and post-sale support.

Conclusion

Titanium oxide electrodes are an excellent option for harsh electrolysis activities in the energy, chemical, marine, and water treatment industries. This is due to the fact that titanium oxide electrodes are both technically sound and cost-effective. Titanium oxide electrodes are utilised in these industries, which is the reason for this phenomenon. Consequently, it is a great choice for carrying out the duties associated with electrolysis.

FAQ

Can a titanium oxide electrode be recoated after it loses activity?

Yes. The titanium substrate retains its value after coating depletion. Industrial recoating involves sandblasting, acid etching, and thermal decomposition and reapplication of the active oxide layer, restoring full electrode functionality at a fraction of new-unit cost.

What coating should I specify for seawater chlorination?

Ru-Ir oxide coatings are formulated for chlorine evolution reactions and perform well in seawater and chlor-alkali environments. Ir-Ta coatings are better suited for oxygen evolution and acidic electrolytes.

How does fluoride contamination affect MMO anodes?

Fluoride concentrations above 50 ppm can attack the titanium substrate at the coating interface, causing delamination. Applications with fluoride-bearing electrolytes require a protective ceramic sub-layer between the substrate and the active coating.

What testing should I request from a supplier?

Request ALT data (NACE TM0108), XRF coating thickness and noble metal loading verification, SEM surface morphology analysis, and ASTM D3359 adhesion test results before committing to a purchase order.

Is the operating temperature limited?

Standard configurations support up to 80°C. Higher operating temperatures are achievable with specialized coating formulations — confirm this requirement with the supplier's engineering team during the specification stage.

Partner with CXMET for Proven Titanium Oxide Electrode Solutions

Yes. The titanium substrate is still valuable after the coating wears off. For industrial recoating, the active oxide layer is reapplied after sandblasting, acid etching, and heat decomposition. This restores full electrode functioning at a fraction of the cost of a new unit. To get professional advice and a price quote on a product, email us at sales@cxmet.com.

References

1. Trasatti, S. Electrochimica Acta, 2000 — "Electrocatalysis: Understanding the Success of DSA."

2. Comninellis, C., & Chen, G. (Eds.). Electrochemistry for the Environment, Springer, 2010.

3. NACE International. TM0108: Test Method for Evaluation of Coatings for Submerged Service, 2008.

4. ASTM International. ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings, 2022.

5. Kraft, A. Platinum Metals Review, 2007 — "Doped Diamond: A Compact Review on a New, Versatile Electrode Material."

6. Vetter, K.J. Electrochemical Kinetics: Theoretical and Experimental Aspects, Academic Press, 1967.
