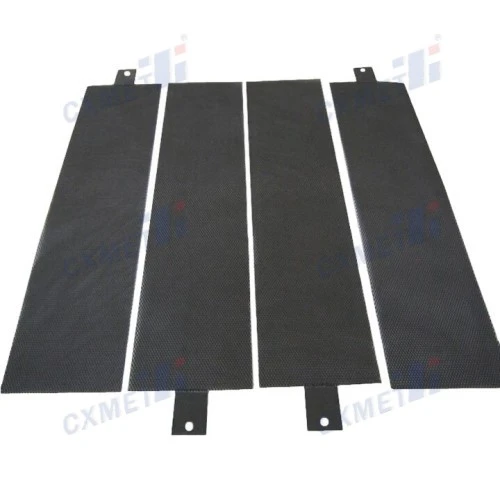

Due to its dimensionally stable titanium anode plate technology, the titanium anode plate is the main part of current chlor-alkali production. It has a high-purity titanium base and electrocatalytic noble metal oxide coatings like iridium and ruthenium. This design solves the most important problems in the industry: it stops the anode from dissolving and polluting the fluids, it keeps the gaps between the electrodes the same over long service periods, and it lowers the cell voltage by 10–20% compared to older graphite or lead electrodes. The result is better use of energy, cleaner production, and greatly increased operational lifespans that meet the strict requirements of chemical processing plants.

Understanding Titanium Anode Plates in Chlor-Alkali Production

Core Structure and Composition

The modern titanium anode is made up of a commercially pure titanium substrate that meets the requirements of ASTM B265 Grade 1 or Grade 2. This provides the mechanical support and electrical transmission path. Manufacturers use thermal decomposition methods to apply electrocatalytic coatings, which put down carefully controlled layers of mixed metal oxides that contain compounds of ruthenium, iridium, tantalum, or platinum. The overpotential needed for chlorine evolution processes is lowered by these coating materials. This directly means that less power is used during electrolysis operations.

Electrochemical Function in Chlor-Alkali Cells

During electrolysis, the anode helps oxidation processes happen that turn chloride ions from salt solutions into chlorine gas. As a side effect, oxygen evolution also happens. The titanium base keeps the structure strong, and the MMO coating gives electrons places to move. Instead of breaking down over time as replaceable electrodes do, dimensionally stable anodes keep their shape over many years of use. This level of consistency makes sure that current flows evenly across the electrode surfaces. This keeps cell voltages fixed and stops hot spots that lower efficiency. The technology works well in membrane cells, diaphragm cells, and mercury cells. However, environmental rules have pushed the industry to move toward membrane-based systems with titanium electrodes for the best performance.

Applications Beyond Chlor-Alkali Production

Titanium anodes demonstrate versatility across electrochemical industries, including electrowinning operations for copper and nickel recovery, industrial wastewater treatment systems, cathodic protection installations, and precision electroplating facilities. This broad application base reflects the fundamental advantages titanium electrodes provide whenever corrosive conditions, dimensional stability, or energy efficiency concerns drive material selection decisions.

Comparing Titanium Anode Plates with Alternative Materials

Graphite Electrodes: Cost Versus Performance

The first technology used in chlor-alkali production was graphite anodes, which have low initial prices that make them appealing to operations with limited funds. Graphite, on the other hand, is constantly worn down during use, so it needs to be replaced often. This causes big upkeep costs and stops production. Material wear makes electrolytes dirty with carbon particles, which lowers the purity of the product and makes it hard to get rid of polluted process streams. As electrodes age, the changes in size that come with graphite loss change how current flows through cells. This makes cells less efficient.

Platinum-Coated Options: Premium Performance Analysis

Platinum and platinum-group metal coatings have great electrochemical performance, with very low overpotentials and better protection to corrosion. Platinum materials are too expensive to be used in most situations, so they are only used in specific situations where the high performance justifies the high cost. Platinum-based electrodes can't be used cost-effectively across big cell arrays in most chlor-alkali facilities. This means that this technology is mostly useful in laboratories or for specific industrial uses with specific operating conditions.

MMO-Coated Titanium: The Industry Standard

For large-scale chlor-alkali production, mixed metal oxide coatings on titanium substrates provide the best balance of performance, operating lifespan, and cost-effectiveness. Graphite alternatives use 10–20% more energy than these electrodes, but these electrodes last longer than ten years under normal working conditions. Eliminating the need to use an anode stops electrolyte from getting contaminated, which improves the quality of the product and lowers the amount of waste that needs to be treated. Purchasing managers use MMO-coated titanium anodes as a standard when looking at electrode technologies. They use them as performance standards against which other materials must be judged. The comparison shows that titanium electrodes are more expensive to buy at first, but they are much cheaper in the long run when you consider how much energy they save, how often they need to be maintained, and how reliable their production is over a number of years.

Key Benefits of Titanium Anode Plates for Chlor-Alkali Production

Exceptional Corrosion Resistance and Extended Service Life

The chemical stability of titanium combined with protective oxide coatings enables these anodes to withstand highly concentrated sodium chloride brines, elevated temperatures, and aggressive pH conditions that rapidly degrade alternative materials. Field data from operating facilities documents titanium anode service lives exceeding fifteen years in well-maintained systems, compared to months for graphite electrodes operating under identical conditions. This durability directly reduces replacement frequency, minimizing production interruptions and lowering maintenance labor requirements.

Energy Efficiency and Cost Reduction

Because MMO coatings have low overpotential, they lower the voltage that cells need, which usually means that 200 to 400 kilowatt-hours less power are used per metric tonne of chlorine created. Over the course of a year, these saves add up to big cuts in the costs of running large factories that make thousands of tonnes of goods. Titanium anodes are dimensionally stable, so the distance between titanium anode plate their electrodes stays the same over the course of their service lives. This keeps the current flowing smoothly and stops the loss of efficiency that comes with electrode wear in traditional systems.

Environmental and Safety Advantages

Titanium electrodes get rid of the problems with carbon dust and lead pollution that come with older anode materials. This makes product streams cleaner, so they need less purification after processing. Because electrode materials don't need to be replaced often, less hazardous waste is made, which makes disposal easier and lowers the environmental compliance load. The mechanical strength of titanium substrates lowers the risk of breaking during installation and maintenance, making workers safer compared to alternatives made of fragile graphite. These and other benefits explain why titanium anodes have become the market leader in the chlor-alkali industry around the world, and why facilities are continuing to upgrade from older electrode technologies. The performance benefits are especially useful in situations where dependability, sustainability, and lowering long-term costs are more important than spending little on capital up front.

Procurement Insights for Titanium Anode Plates

Supplier Evaluation Criteria

Procurement teams should prioritize suppliers demonstrating established quality management systems certified to ISO 9001 standards, with documented experience supplying electrodes to major chemical producers. Material certifications verifying titanium substrate specifications and coating composition provide essential quality assurance. Reputable manufacturers offer comprehensive technical documentation including electrochemical performance data, recommended operating parameters, and maintenance guidelines based on extensive field experience. The supplier's capacity to provide post-installation technical support and warranty coverage reflects their confidence in product quality and commitment to customer success.

Customization Capabilities and Application Engineering

Many chlor-alkali installations can use standard titanium anode configurations. However, some cell designs or working conditions may need custom sizes, coating formulations, or electrical connection arrangements. Leading suppliers have engineering teams that can look at what the customer wants and suggest the best electrode specs. This method is used by CXMET to make titanium anode plates, which have mixed metal oxide coatings that can be changed to fit specific electrochemical needs while still having the high conductivity and superior corrosion resistance that make top electrode performance. Titanium anodes that are properly specified have a longer lifespan, which means they don't need to be replaced as often. This saves money in the long run, so it's important to pay close attention to the initial specification decisions. The lightweight but strong qualities of titanium make it easier to handle during installation and make sure that the product will last for a long time.

Cost Structures and Economic Considerations

Titanium anode prices depend on the cost of the raw materials, the difficulty of the coating, and the level of accuracy needed during production. The price per unit changes based on the size, coating needs, and the number of units ordered. When you buy in bulk, you usually get savings that make the project more affordable for big installations or upgrades that affect the whole building. Lead times for custom configurations may be several weeks longer than for standard products. This means that you need to plan to make sure that they work with your maintenance or new building schedules. To get a true picture of the total economic value, a full cost analysis should include estimates of energy savings, longer maintenance intervals, and better production reliability, along with the initial capital expenditure. When deciding where to source goods, companies have to weigh the benefits of being close for logistics and technical support against the possible cost benefits of buying from regions with competitive production capabilities. Established suppliers in both the North American and Asian markets offer high-quality goods that meet foreign standards. Which ones are chosen depends on the needs of the project, the time frame for delivery, the titanium anode plate, and the level of service that is most important.

Future Trends and Innovations in Titanium Anode Plates for Chlor-Alkali Production

Advanced Coating Technologies

Research initiatives focus on developing next-generation coating formulations that further reduce overpotentials, extend operational lifespans, and improve resistance to specific contaminants in brine feedstocks. Nanostructured coating architectures increase active surface area, enhancing catalytic efficiency while maintaining mechanical durability. These developments promise incremental but meaningful performance improvements as manufacturing techniques evolve and new material combinations undergo commercial validation.

Sustainable Manufacturing and Energy Optimization

The chlor-alkali industry faces increasing pressure to reduce carbon footprints and energy consumption as sustainability considerations influence purchasing decisions and regulatory requirements. Titanium anodes contribute to these objectives through inherent efficiency advantages, with ongoing development emphasizing further energy reductions. Suppliers are simultaneously addressing manufacturing sustainability by optimizing coating processes, reducing waste generation, and improving material utilization throughout electrode production.

Digital Integration and Predictive Maintenance

Smart monitoring systems incorporating sensors and data analytics enable real-time performance tracking, detecting gradual efficiency degradation before significant production impacts occur. Predictive maintenance approaches based on electrochemical impedance spectroscopy and voltage monitoring optimize electrode replacement timing, maximizing service life utilization while preventing unexpected failures. These digital tools transform maintenance from reactive problem-solving into proactive performance optimization, reducing downtime and improving capital equipment utilization rates across chlor-alkali production facilities. The convergence of materials science advances, sustainability imperatives, and digital technologies positions titanium electrodes to maintain and strengthen their dominant position in chlor-alkali production while contributing to broader industry evolution toward more efficient and environmentally responsible manufacturing practices.

Conclusion

The titanium anode plate has earned its position as the preferred electrode technology for chlor-alkali production through demonstrated advantages in corrosion resistance, operational longevity, energy efficiency, and environmental performance. The combination of dimensionally stable substrates with electrocatalytic coatings solves fundamental challenges that limited previous electrode technologies while delivering economic benefits throughout extended service lives. Procurement professionals and production managers evaluating electrode options should prioritize suppliers offering proven quality, comprehensive technical support, and customization capabilities aligned with specific operational requirements. The ongoing evolution of coating technologies and digital monitoring systems promises continued performance improvements that will further enhance the value proposition of titanium anodes in both existing facilities and new chlor-alkali production installations.

FAQ

1. What is the typical lifespan of titanium anode plates in chlor-alkali service?

Under standard operating conditions with properly maintained electrolyte chemistry and current densities below 7,000 A/m², titanium anodes typically deliver ten to fifteen years of productive service. Actual lifespan varies based on specific operating parameters, feedstock purity, and maintenance practices. Facilities implementing regular performance monitoring and maintaining optimal brine quality often achieve service lives at the upper end of this range.

2. Can titanium electrodes be used across different chlor-alkali cell designs?

Titanium anodes demonstrate compatibility with membrane cells, diaphragm cells, and mercury cells, though dimensional specifications and coating formulations may require customization for specific configurations. The industry transition toward membrane cell technology has driven electrode design optimization for these systems, where titanium plates deliver exceptional performance. Consultation with experienced suppliers ensures proper specification for particular cell types and operating conditions.

3. What maintenance practices maximize titanium anode performance?

Regular visual inspections detect physical damage or coating degradation requiring attention. Maintaining proper brine purity prevents contaminant accumulation that accelerates wear. Monitoring cell voltage trends identifies gradual efficiency changes indicating coating deterioration. Periodic electrochemical impedance testing quantifies remaining service life. Following manufacturer guidelines for current density limits and operating temperatures preserves coating integrity throughout the electrode's design life.

Partner with CXMET for High-Performance Titanium Anode Plate Solutions

Upgrading your chlor-alkali production facility requires a reliable titanium anode plate supplier with proven expertise and comprehensive technical support capabilities. Shaanxi CXMET Technology Co., Ltd. combines over twenty years of specialization in non-ferrous metals with cutting-edge manufacturing capabilities located in China's renowned titanium production region. Our engineering team of more than 80 technical professionals provides customized solutions addressing the specific challenges your operation faces, whether you need optimized coating formulations for particular brine chemistry, custom dimensions for existing cell configurations, or complete electrode systems for new installations. CXMET's titanium anode plates deliver the superior corrosion resistance, high conductivity, and extended lifespan that maximize operational efficiency while minimizing long-term costs. Contact our team at sales@cxmet.com to discuss your requirements with experienced professionals who understand the technical demands of chemical processing applications and can recommend electrode specifications optimized for your production parameters. Discover why leading facilities trust CXMET as their titanium anode plate manufacturer for solutions that enhance reliability, reduce energy consumption, and deliver measurable economic advantages throughout multi-year service cycles.

References

1. O'Brien, T. F., Bommaraju, T. V., & Hine, F. (2005). Handbook of Chlor-Alkali Technology: Volume I: Fundamentals. Springer Science & Business Media.

2. Trasatti, S. (2000). Electrocatalysis: Understanding the success of DSA®. Electrochimica Acta, 45(15-16), 2377-2385.

3. Schmittinger, P., Florkiewicz, T., Curlin, L. C., Lüke, B., Scannell, R., Navin, T., Zelfel, E., & Bartsch, R. (2012). Chlorine. Ullmann's Encyclopedia of Industrial Chemistry. Wiley-VCH Verlag GmbH & Co.

4. Chen, G. (2004). Electrochemical technologies in wastewater treatment. Separation and Purification Technology, 38(1), 11-41.

5. Hayfield, P. C. S. (2001). Development of a New Material - Monograph on Dimensionally Stable Anodes. Royal Society of Chemistry.

6. Karlsson, R. K. B., & Cornell, A. (2016). Selectivity between oxygen and chlorine evolution in the chlor-alkali and chlorate processes. Chemical Reviews, 116(5), 2982-3028.
