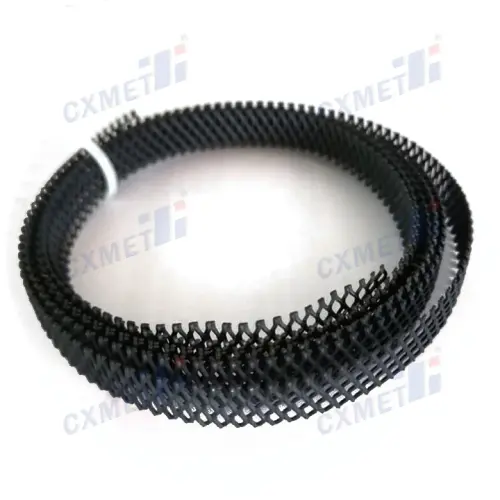

platinum coated titanium mesh anode

Key Features and Benefits

• High-purity titanium substrate for excellent mechanical strength
• Precision-applied platinum coating for maximum catalytic activity
• Optimized mesh design for increased surface area and mass transfer
• Excellent dimensional stability under varying operating conditions
• Reduced energy consumption in electrolytic processes
• Minimal electrode wear, ensuring consistent performance over time

OEM and Customization Services: Customized Geometries and Exact Dimensions

At CXMET, we understand that one size doesn't fit all. Our expert team works closely with clients to develop platinum coated titanium mesh anodes tailored to specific application requirements:

• Custom mesh sizes and patterns for optimal current distribution
• Varied platinum coating thicknesses to match performance needs
• Specialized shapes and dimensions for unique reactor designs
• Adjustable surface treatments for enhanced catalytic activity

Product Features

• Mesh openings ranging from 1mm to 5mm for diverse applications
• Platinum coating thickness options from 2.5 to 10 microns
• Available in flat sheets, cylindrical forms, or custom geometries
• Optional mixed metal oxide (MMO) coatings for specialized uses
• High oxygen and chlorine evolution efficiency

Excellent electrical conductivity



Titanium anodes offer excellent conductivity, ensuring efficient current flow and stable electrochemical performance

Compatible with high current outputs



Titanium anodes withstand high current outputs, maintaining performance, durability, and stability in demanding electrochemical applications.

Corrosion resistance





Titanium anodes resist corrosion in harsh environments, ensuring long service life and consistent electrochemical efficiency.

Simple installation and maintenance



Titanium anodes are easy to install and maintain, reducing downtime and simplifying system operation and servicing.

Long use time





Titanium anodes offer long service life, maintaining performance over time and reducing replacement frequency and maintenance costs.

Technical Specifications

• Base material: Grade 1 or Grade 2 titanium (ASTM B265)
• Platinum purity: ≥99.95%
• Typical mesh dimensions: 1000mm x 2000mm (customizable)
• Standard wire diameter: 0.8mm to 1.2mm
• Operating temperature range: -10°C to 95°C
• Current density capability: Up to 10 kA/m²

Applications and Industries

Our platinum coated titanium mesh anodes excel in various industrial applications:

• Chlor-alkali production
• Electrowinning of metals
• Wastewater treatment and disinfection
• Cathodic protection systems
• Electroplating processes
• Fuel cell technology
• Seawater electrolysis for hydrogen production

Tips and Tricks

To maximize the performance and lifespan of your platinum coated titanium mesh anodes:

• Maintain proper electrolyte composition and pH levels
• Implement regular cleaning procedures to prevent scale buildup
• Monitor current distribution to avoid localized overheating
• Ensure proper anode spacing in multi-electrode systems
• Conduct periodic inspections for early detection of wear or damage

Manufacturing Process

Our rigorous manufacturing process ensures consistent quality:

1. Titanium mesh substrate preparation and cleaning
2. Precision platinum electrodeposition or thermal decomposition coating
3. Controlled heat treatment for optimal coating adhesion
4. Rigorous quality control inspections and performance testing
5. Custom finishing and sizing to meet exact specifications

How to Choose Products and Why Choose Products Made by Us

When selecting platinum coated titanium mesh anodes, consider:

• Specific application requirements (e.g., current density, electrolyte composition)
• Mesh geometry and surface area needs
• Expected service life and replacement frequency
• Compliance with industry standards and regulations

Choose CXMET for:

• Over 15 years of specialized experience in titanium products
• ISO 9001:2015 certified quality management system
• Cutting-edge manufacturing facilities and technologies
• Comprehensive technical support and custom solutions
• Competitive pricing without compromising on quality

Certifications and Compliance

Our products meet or exceed industry standards:

• ISO 9001:2015 Quality Management System
• RoHS and REACH compliant materials
• ASTM B265 for titanium grade specifications
• Custom certifications available upon request

Quality Control and Testing

Every anode undergoes rigorous quality assurance:

• XRF analysis for coating composition and thickness
• Accelerated life testing for performance validation
• Visual and microscopic inspections for coating uniformity
• Electrochemical testing for catalytic activity and efficiency

Packaging and Shipping

We ensure safe delivery of your platinum coated titanium mesh anodes:

• Custom-designed protective packaging for each order
• Sealed moisture-barrier bags to prevent contamination
• Robust crating for international shipments
• Flexible logistics options to meet your delivery needs

Testimonials and Case Studies

"CXMET's platinum coated titanium mesh anodes have significantly improved our chlorine production efficiency. Their technical support is unmatched." - Leading Chlor-Alkali Producer

"We've seen a 30% reduction in energy consumption since switching to CXMET anodes in our electrowinning process." - Global Mining Corporation

Company Overview

Shaanxi CXMET Technology Co., Ltd., founded in 2005, is headquartered in China's Titanium Valley and operates a 50,000 m² facility. With 10 million RMB in registered capital and over 80 technical staff, we specialize in R&D, manufacturing, and exporting of non-ferrous and refractory metals, including titanium, nickel, tantalum, niobium, zirconium, molybdenum, and tungsten.

Our materials serve industries ranging from marine and oil & gas to medical, chemical, electronics, and aerospace. We uphold integrity, development, innovation, and excellence in service. Our mission is to create value for clients, benefit our enterprise, and support employee growth. With a forward-looking vision, we strive to innovate and lead the global titanium market.

Factory show

Production workshop

Production Equipments

Skin peeling machine

Sawing Machine

Planer

Wire Coiling Machine

Polishing Machine

Straightening Machine

Main Products

3D PRINTING PRODUCTS

ANODE PRODUCTS

TITANIUM PRODUCTS

NON-FERROUS METAL PRODUCTS

CUSTOMIZED PRODUCTS SERVICES

Why Choose Us

High Quality: Only ASTM-certified raw materials

Advanced Equipment: Precision coating and welding machinery

Professional Team: 80+ skilled engineers and technicians

One-Stop Solution: From design to export logistics

Global Reach: Experience in 40+ export countries

Responsive Service: Fast quoting and technical support

OEM Services We provide full OEM/ODM support. Whether you require custom ribbon width, coating thickness, or special connectors, Shaanxi CXMET Technology Co., Ltd. can tailor the product to meet your exact application requirements.

9001 Certification

9001 Certification

ISO 13485

ISO 13485

FAQs

1. What is the typical lifespan of your platinum coated titanium mesh anodes?
   Under normal operating conditions, our anodes can last 5-10 years, depending on the specific application and maintenance practices.
2. Can you provide rush orders for urgent replacements?
   Yes, we offer expedited manufacturing and shipping for critical situations. Contact our sales team for details.
3. Are your anodes suitable for seawater electrolysis?
   Absolutely. Our anodes are engineered to withstand the corrosive nature of seawater and perform efficiently in marine environments.

Contact Us

Ready to elevate your electrochemical processes with industry-leading platinum coated titanium mesh anodes? Contact our expert team today for personalized solutions and quotations.

Email: sales@cxmet.com
Tel&WhatsApp: 8615891192169
Address: Shaanxi Titanium Valley, Baoji City, China

Trust CXMET to power your industrial success with cutting-edge anode technology.
