ICCP MMO coated titanium anodes are very cost-efficient for cathodic protection, especially in long-cycle industrial applications. Using a Grade 1 titanium substrate (ASTM B381) combined with a sintered mixed metal oxide coating, it offers a consumption rate of less than 1 mg/A-year and a design life of over 20 years. Lower replacement frequency, less maintenance work, and constant current production across demanding electrolytes result in consistently better total cost of ownership than traditional anodes. This is critical for engineers and procurement teams with high resources for corrosion prevention.

Understanding ICCP MMO Coated Titanium Anodes

What Are They and How Do They Work?

Impressed Current Cathodic Protection systems (ICCP) use MMO-coated titanium anodes as the active discharge components. They operate by taking DC current from a transformer-rectifier unit and dispersing it into a surrounding electrolyte — saltwater, earth, or concrete — to prevent corrosion on nearby metal structures. These anodes are dimensionally constant during their service life and do not deplete, unlike sacrificial anodes, so their electrical resistance and protection output do not change.

Construction and Coating Technology

CXMET makes these anodes using Grade 1 titanium (ASTM B381) as the base material. The MMO coating – a patented combination of iridium oxide, tantalum oxide, and other electrocatalytic chemicals – is applied via a controlled brushing and sintering process. Coating thickness is 2 to 10 μm and is adjustable to meet the design life requirements. This bonded layer survives the acidic conditions at the anode-electrolyte interface, a recognized failure site for weaker anode materials.

Where Are They Applied?

CXMET makes ICCP MMO coated titanium anodes using Grade 1 titanium (ASTM B381) as the base material. The MMO coating – a patented combination of iridium oxide, tantalum oxide, and other electrocatalytic chemicals – is applied via a controlled brushing and sintering process. Coating thickness is 2 to 10 μm and is adjustable to meet the design life requirements. This bonded layer survives the acidic conditions at the anode-electrolyte interface, a recognized failure site for weaker anode materials.

Comparing ICCP MMO Coated Titanium Anodes with Alternative Anodes

MMO Titanium vs. Graphite Anodes

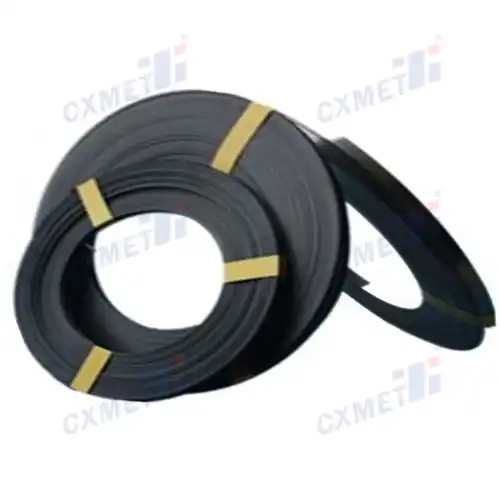

These anodes are used in a variety of industries and applications. In maritime infrastructure, they safeguard offshore platforms, steel piles, and jetty structures exposed to high-chloride saltwater. In oil and gas, they are used in deep-well groundbeds to protect buried carbon steel pipes. Ribbon or mesh arrangements protect rebar in chloride-contaminated bridge decks and parking buildings in civil infrastructure. Their versatility across industries makes them the most adaptable choice for cathodic protection in industry.

MMO Titanium vs. Platinum Anodes

Platinum-coated anodes have strong electrocatalytic activity but are much more expensive in terms of materials. The platinum covering is also prone to localized delamination during cycling at high current density. IrO2/Ta2O5 mixes are used for soil and fresh water, and RuO2/IrO2 blends for seawater. MMO coatings have the same electrochemical performance as platinum in most ICCP applications, but are less expensive and mechanically more robust.

Total Cost of Ownership Comparison

Here are the areas where MMO titanium anodes have a distinct advantage in the lifespan cost analysis:

• Consumption rate: < 1 mg/A-year compared to 50 – 100 mg/A-year for graphite, many less replacements over the system operational life.
• Operating range: Current density up to 600 A/m² in seawater and pH tolerance of 0-14 means it may be deployed across more project kinds without over-specifying.
• Maintenance: The dimensionally stable architecture avoids the requirement for intermediate examinations for anode geometry loss.

This makes MMO titanium the most cost-effective option, assuming the whole length of the project is taken into consideration rather than just the purchase cost.

Factors Affecting the Cost-Effectiveness of MMO Coated Titanium Anodes

Initial Investment vs. Long-Term Savings

Initial costs of ICCP MMO coated titanium anodes systems are greater than those of graphite or cast iron systems. The disparity, however, soon narrows when you include installation labor, replacement cycles, and lost production time from system shutdowns. A correctly designed MMO anode system on a maritime pipeline project may last 20+ years with minimum intervention, but a graphite system in the same environment may need replacing in 5–7 years.

Environmental and Operational Variables

Performance and cost-effectiveness are both dictated by application circumstances. Coating wear rates are a function of soil resistivity, electrolyte chemistry, operating current density, and temperature. CXMET anodes are designed to work from -40°C to 100°C and the whole pH range from 0 to 14, delivering dependable performance under most real-world circumstances. CXMET's technical team offers a service that involves selecting the coating formulation for your unique electrolyte and directly impacts the longevity of the anode before maintenance is required.

Maintenance Practices That Extend Service Life

With a few practical actions, procurement and operations teams may extract the most value from their anode investment: 1.

• Regularly check rectifier output to make sure the system is providing the design current without overloading the anodes.
• Check connection points and cable terminations yearly since electrical resistance at the junction is frequently the first source of deterioration.
• Take voltage and current measurements of the system over time to note early indicators of coating fatigue or changes in groundbed resistance.

Continued use of these procedures will preserve the system within design constraints and provide dependable service well beyond the minimum rated life.

Procurement Guide for ICCP MMO Coated Titanium Anodes

Key Specifications to Confirm Before Purchase

Procurement managers need to validate substrate grade (Gr1 or Gr2 per ASTM B381), coating composition appropriate for the deployment electrolyte, design life expectancy, and operating current density before ordering ICCP MMO coated titanium anodes. CXMET provides custom coating thickness from 2 to 10 μm, and all geometries (rod, tube, ribbon, mesh, or complicated shapes) are offered via OEM and custom manufacturing services.

Supplier Selection and Quality Standards

Good quality MMO titanium anodes should be verified to NACE TM0108 and ISO 15589 for electrochemical performance and service life. CXMET, situated in “China Titanium Valley” in Shaanxi Province, has been operating since 2005 and has more than 80 technical personnel serving customers in the maritime, oil and gas, chemical processing, power generation, and infrastructure industries. We deliver products to locations in the U.S. and throughout the world using air, sea, and express freight services.

Lead Times and Logistics

Standard configurations have shorter lead times, although special geometries or project-specific metal compositions need an extra production schedule. For specific project timetable procurement teams should include suppliers early.

Real-World Case Studies and Customer Insights

Offshore Pipeline Protection

A Gulf of Mexico pipeline operator converted from a sacrificial zinc anode system to an ICCP system with MMO titanium rod anodes in a deep-well ground bed. Annual inspection reports demonstrate no detectable corrosion on shielded portions after 15 years of operation. The ICCP system, the operator said, eliminates planned anode replacement cycles that previously necessitated the mobilization of offshore maintenance staff.

Bridge Deck Rebar Protection

A Gulf of Mexico pipeline operator converted from a sacrificial zinc anode system to an ICCP system with MMO titanium rod anodes in a deep-well ground bed. Annual inspection reports demonstrate no detectable corrosion on shielded portions after 15 years of operation. The ICCP system, the operator said, eliminates planned anode replacement cycles that previously necessitated the mobilization of offshore maintenance staff.

Procurement Manager Feedback

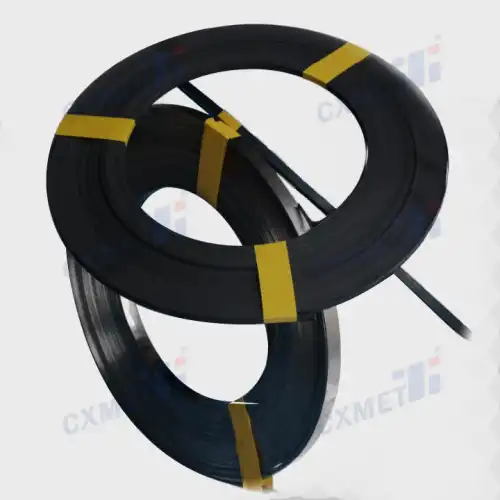

In a civil infrastructure project in the northeastern United States, MMO titanium ribbon anodes were installed in the concrete overlay of a chloride-damaged bridge deck. Electrochemical monitoring validated the effective current distribution across the rebar network in the first year. The project engineer pointed out that the thin anode profile permitted installation without any modification to the structural clearance envelope, a practical gain not achievable with graphite or cast iron designs.

Conclusion

ICCP MMO coated titanium anodes provide an economical cathodic protection solution for the whole project life. With a low rate of consumption, extended service life, and little maintenance needs, they always provide cheaper overall ownership costs than graphite or platinum alternatives. For procurement teams overseeing corrosion protection on maritime, pipeline, or infrastructure projects, the practical route to dependable long-term protection is to choose a quality-verified provider with technical customisation skills. CXMET has 20 years history and manufacturing depth in the titanium producing area of Shaanxi, making it a reliable supplier for these key components.

FAQ

How long do MMO titanium anodes typically last in ICCP service?

Under normal operating conditions, MMO titanium anodes carry a design life of 20 years or more. Actual service life depends on applied current density, electrolyte type, and coating thickness. CXMET anodes rated at a consumption rate below 1 mg/A-year consistently reach or exceed rated service life when the system operates within design parameters.

What routine maintenance do these anodes require?

Routine maintenance is minimal. Operators should check rectifier output and connection integrity annually. Unlike graphite anodes, MMO titanium anodes do not require geometry inspections because they do not erode appreciably during normal operation.

Are MMO titanium anodes compatible with existing ICCP systems?

Yes. MMO titanium anodes are compatible with standard transformer-rectifier units and most groundbed or surface-mounted configurations. CXMET's technical team can assess your existing system specifications and recommend compatible anode configurations without requiring full system replacement.

Can these anodes be customized for non-standard project requirements?

CXMET offers full OEM and custom manufacturing services, covering geometry, dimensions, coating thickness, and alloy composition.

Get a Quote from CXMET — Trusted ICCP MMO Coated Titanium Anodes Supplier

CXMET has supplied high-performance ICCP MMO coated titanium anodes to clients across marine, oil and gas, and infrastructure sectors for over 20 years. Our GR1 titanium substrate, ASTM B381-compliant products ship worldwide via air, sea, or express freight. Whether you need standard configurations or project-specific custom anodes, our engineering team is ready to support your procurement process. Contact us directly at sales@cxmet.com or visit https://www.cxmet-tech.com/ to request a quote or technical consultation.

References

1. NACE International. NACE TM0108: Testing of Catalytic Anodes for Use in Cathodic Protection. NACE International, 2008.

2. ISO. ISO 15589-2: Petroleum and Natural Gas Industries — Cathodic Protection of Pipeline Systems — Part 2: Offshore Pipelines. International Organization for Standardization, 2012.

3. Baeckmann, W., Schwenk, W., & Prinz, W. Handbook of Cathodic Corrosion Protection. Gulf Professional Publishing, 1997.

4. Laque, F. L. Marine Corrosion: Causes and Prevention. John Wiley & Sons, 1975.

5. Farzaneh, A., & Raeissi, K. "Electrochemical performance of mixed metal oxide coatings on titanium substrates for cathodic protection applications." Corrosion Science, 2013.

6. Brevoort, G. H., & Royer, J. E. "Impressed current cathodic protection anode selection for offshore structures." Materials Performance, NACE International, 1992.
