ICCP MMO coated titanium anodes improve corrosion control by delivering a controlled impressed current through a dimensionally stable titanium substrate coated with mixed metal oxides (MMO). This electrochemical process suppresses the oxidation reactions that cause metal degradation in pipelines, offshore platforms, and concrete structures. Unlike sacrificial anodes that deplete over time, these anodes maintain consistent geometry and electrical output across their entire service life, which routinely exceeds 20 years. Their low consumption rate (under 1 mg/A-year) and broad pH tolerance (0–14) make them the most dependable choice for long-term cathodic protection in demanding industrial environments.

Understanding ICCP MMO Coated Titanium Anodes

What Are They, Exactly?

An ICCP MMO-coated titanium anode is a Dimensionally Stable Anode (DSA) that is the main part of an Impressed Current Cathodic Protection system that discharges current. As per ASTM B381, the titanium base is usually Grade 1. It has an electrocatalytic coating made of iridium oxide (IrO₂), tantalum oxide (Ta₂O₅), or ruthenium oxide (RuO₂). Brushing and sintering are used to apply this coating, which forms a bond with a coating thickness of 2 to 10 μm that is resistant to chemical attack at the anode-electrolyte interface.

How the Electrochemistry Works

The anode sends DC into the electrolyte around it when it is attached to a transformer-rectifier. The electrolyte could be seawater, dirt, freshwater, or concrete. This current moves the nearby metal structure's electrochemical potential into the "immune" or "passive" zone on the Pourbaix diagram. This stops rust processes. The MMO layer has a low overpotential for oxygen and chlorine generation, which means that less energy is used to provide the same level of protection.

Material Specifications That Matter

Titanium Gr1 (ASTM B381) is used by CXMET to make these iccp mmo coated titanium anodes because it has a passive oxide film that can heal itself. The titanium substrate is strong enough to stop further damage, even if the MMO coating is damaged in some places. It is rated to work at temperatures ranging from -40°C to 100°C and current levels of up to 600 A/m² in saltwater. These numbers are in line with the requirements of NACE TM0108 and ISO 15589, which are the internationally accepted standards for cathodic protection anode performance.

Advantages of ICCP MMO Coated Titanium Anodes Over Traditional Anode Types

Why Graphite and High-Silicon Iron Fall Short

When mechanical stress is put on them, traditional graphite anodes break, and when there is a lot of current flowing through them, they wear away quickly. High-silicon cast iron anodes are bulky, fragile, and tough to set up abroad or in tight spaces. Both materials need to be replaced often, usually every 5 to 8 years. This raises the cost of upkeep and lengthens the time that the system is unavailable. That replacement regularity is a big problem for big pipeline projects or offshore sites.

The Performance Difference Is Measurable

Each of these problems is immediately fixed by MMO titanium anodes. It's important to look closely at the main technical and economic benefits.

Compared to regular anode materials, these are the main differences in how well they work:

• Consumption rate below 1 mg/A-year: Graphite anodes consume at rates 50 to 100 times higher. This extremely low wear rate means CXMET anodes maintain dimensional stability for 20+ years without geometry change.
• Current density up to 600 A/m²: This allows a smaller number of anodes to protect the same structure area, reducing installation cost and complexity in offshore and buried pipeline applications.
• Weight advantage: Titanium's strength-to-weight ratio is significantly higher than iron-based alternatives, reducing structural load on platforms and simplifying deep-well groundbed deployment.
• pH tolerance from 0 to 14: Unlike graphite, which degrades in acidic environments near the anode surface, the MMO coating retains electro-catalytic activity across the full pH spectrum encountered in industrial electrolytes.

There is a current level of up to 600 A/m². This means that fewer anodes are needed to protect the same structure area. This makes installation easier and cheaper for pipelines that are buried or in the water.

Applications and Use Cases for ICCP MMO Coated Titanium Anodes

Marine and Offshore Infrastructure

Offshore wind turbine supports, steel monopiles, jetties, and ship decks all have to deal with salty saltwater that is full of chloride, which speeds up electrochemical corrosion. When high current levels are needed in these conditions, iccp mmo coated titanium anodes work consistently. CXMET offers rod and tubular anode configurations that can be mounted directly on steel structures or used in retrofit groundbed configurations that don't need access to a dry dock.

Oil and Gas Pipelines

In the oil and gas industry, buried carbon steel pipes go for thousands of miles through dirt that has different levels of resistivity. Deep-well groundbeds or spread anode strings are used by ICCP systems to protect these assets. Because the anodes can work in a wide range of temperatures and soil pH levels, they are the first choice for pipeline operators who follow the NACE SP0169 design guidelines for stopping external corrosion.

Reinforced Concrete and Civil Infrastructure

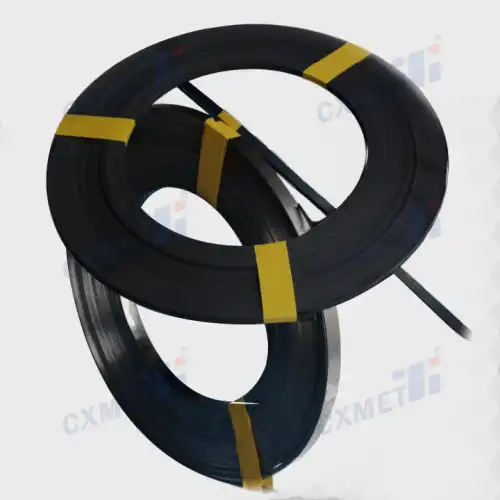

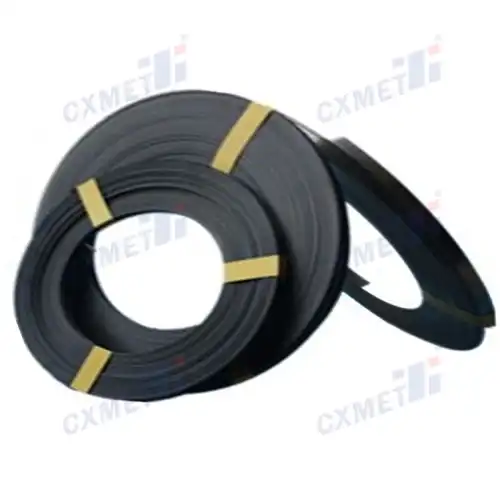

When chloride ions get through the concrete cover, they eat away at the rebar in bridge decks, parking structures, and marine concrete wharves. Ribbon or mesh anode configurations, which CXMET can make in custom geometries, are put under the concrete overlay without affecting the structural clearance. Because the titanium base has a low profile, this application is possible in places where regular anodes would need to remove too much concrete.

How to Select the Right ICCP MMO Coated Titanium Anode for Your Project

Match the Coating Chemistry to the Electrolyte

Formulations with IrO₂ and Ta₂O₉ work best in soil and freshwater where chloride levels are low. For saltwater use, where chlorine evolution rate is very important, RuO₂/IrO₂ mixes are best. If you choose the wrong coating chemical, the system will last less long and have higher working power. The expert team at CXMET can confirm the right mixture based on the chemistry of your electrolyte and the design life you want to achieve.

Evaluate Supplier Credentials Carefully

Quality isn't always maintained by all ICCP MMO treated titanium anode providers. When looking at possible sources, make sure of the following: A titanium substrate that is certified by ASTM B381, test data showing the rate of consumption according to NACE TM0108, coating thickness tolerances (CXMET offers 2–10 μm with customization options), and the supplier's ability to make custom shapes like rods, tubes, mesh, or plates with clear lead times. CXMET can ship freight by both air and sea to project sites in the US. For urgent needs, express freight is also available.

Conduct a Lifecycle Cost Analysis

ICCP MMO coated titanium anodes cost more per unit at first than graphite or high-silicon iron. But when you look at how often you have to repair things, how much it costs to put them in, and how long the system is down over 20 years, MMO titanium always gives you a lower total cost. For example, a project to protect a 500-meter offshore jetty might need to replace the anodes three or four times if they are made of graphite, but not at all if they are made of properly specified MMO titanium anodes from a certified supplier like CXMET.

Future Trends in Impressed Current Cathodic Protection Technology

Smart Monitoring Integration

IoT-enabled reference electrode sensors can now connect to ICCP rectifiers through remote monitoring platforms. This lets protected structures get real-time readings of the potential. This lets engineers find holes in the security before rust starts, instead of having to fix problems after they happen. It is possible to use MMO titanium anodes with these monitoring systems because they have stable outputs that allow for trend analysis over many years.

Regulatory and Environmental Drivers

The US EPA and international marine groups keep making it harder for anode materials to be harmful to the environment and for them to be dumped into waterways. MMO titanium anodes don't have as many toxic byproducts as other types of anodes, and they don't contain any of the cadmium or arsenic that can be found in some sacrificial anode alloys. This puts them in a good situation for projects that have to follow strict environmental rules in the sea and water treatment sectors.

Advances in Coating Technology

Researchers from groups like the Electrochemical Society have found that nano-structured oxide layers make MMO coatings stick better and improve their electrocatalytic activity. These changes point to longer design lives and lighter coatings, which will lower the cost of materials per unit without lowering their performance.

Conclusion

ICCP MMO coated titanium anodes have redefined what engineers and procurement managers should expect from a cathodic protection system. Their dimensional stability, low consumption rate, high current capacity, and tolerance of aggressive environments address the specific failure modes that make conventional anode materials expensive to maintain. Whether protecting offshore platforms, buried pipelines, or reinforced concrete infrastructure, these anodes consistently outperform older technologies across the 20-plus-year asset horizons that drive capital investment decisions in heavy industry.

FAQ

How long do MMO coated titanium anodes last?

With correct specification and installation, CXMET's anodes achieve design lives exceeding 20 years. Consumption rates below 1 mg/A-year ensure the coating retains electro-catalytic activity throughout this period. Actual service life depends on current density loading, electrolyte chemistry, and operating temperature.

What maintenance do these anodes require?

Maintenance requirements are minimal. Periodic electrical continuity checks, rectifier output verification, and reference electrode potential surveys — typically annually — are sufficient to confirm the system operates within design parameters. The titanium substrate does not require the physical inspection that sacrificial anodes demand.

Can CXMET produce custom anode configurations?

Yes. CXMET offers OEM and customization services covering custom shapes, sizes, coating thicknesses, current output specifications, and mounting configurations. Rod, tubular, mesh, plate, and complex geometries are all available. Clients provide project specifications, and CXMET's engineering team returns a production proposal with dimensional drawings and lead time confirmation.

Are CXMET anodes compliant with US procurement standards?

CXMET manufactures to ASTM B381 (Titanium Gr1) and tests to NACE TM0108. Documentation packages including material test reports and dimensional inspection records are available to support US government and private-sector procurement requirements.

Contact CXMET for ICCP MMO Coated Titanium Anode Supply

CXMET's anodes are designed to last more than 20 years if they are installed and specified correctly. The coating will keep its electrocatalytic activity for a long time if it is used at rates below 1 mg/year. The actual service life is based on the operating temperature, the current density, and the chemistry of the electrolyte. You can email our technical team at sales@cxmet.com to get specs, samples, or a price that is tailored to your project.

References

1. NACE International. NACE TM0108: Testing of Catalytic Anodes for Use in Cathodic Protection Systems. NACE International, 2008.

2. NACE International. NACE SP0169: Control of External Corrosion on Underground or Submerged Metallic Piping Systems. NACE International, 2013.

3. ISO. ISO 15589-2: Petroleum and Natural Gas Industries — Cathodic Protection of Pipeline Systems, Part 2: Offshore Pipelines. International Organization for Standardization, 2012.

4. Lide, D.R. (Ed.). CRC Handbook of Chemistry and Physics, 95th Edition. CRC Press, 2014.

5. Shreir, L.L., Jarman, R.A., & Burstein, G.T. Corrosion, Volume 2: Corrosion Control. Butterworth-Heinemann, 1994.

6. Electrochemical Society. Journal of The Electrochemical Society: Mixed Metal Oxide Electrode Coatings for Cathodic Protection Applications. The Electrochemical Society, 2019.
