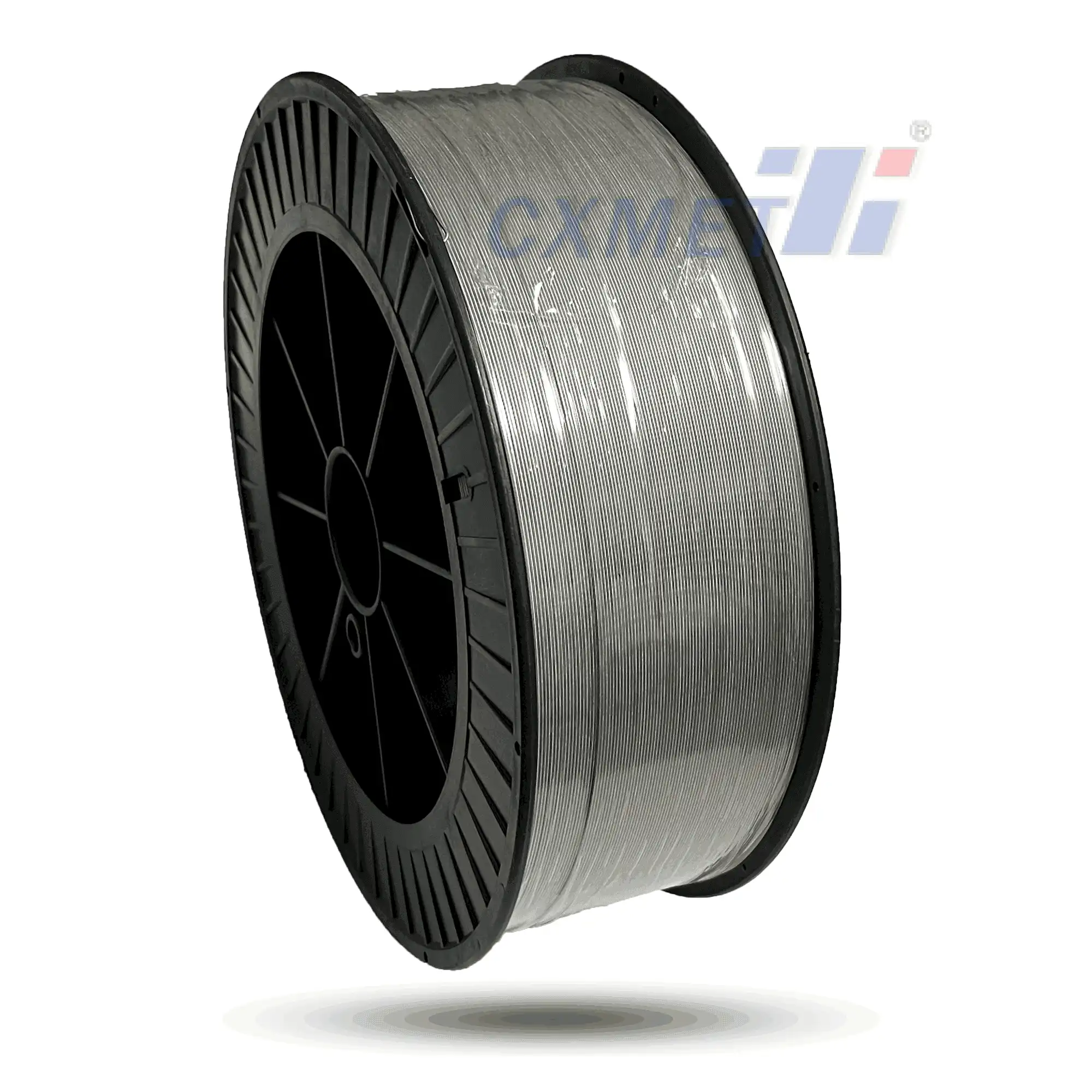

Hafnium wire that is very pure is used in a lot of high-tech areas, like nuclear energy, computers, and aerospace. A complicated and carefully managed process is needed to make this special wire consistently, so that its unique qualities stay the same. It takes a lot of precision to make hafnium, a transition metal that is known for being very resistant to corrosion, having a high melting point, and having great mechanical qualities. There are many technologies and methods used to make sure that the quality of high-purity hafnium wire is always the same. There is a lot of information in this blog post about how it is made. We'll look at how builders pick the right raw materials and make sure the finished item meets the exact requirements for this valuable material. Industries that use hafnium wire's unique properties for cutting-edge tasks need to understand this process very well.

What Are the Key Steps in Purifying Hafnium for Wire Production?

Raw Material Selection and Initial Processing

The first step in making high-purity hafnium wire is choosing the right raw materials. Typically, hafnium is sourced from zirconium-bearing ores, as the two elements are often found together in nature. The first step in the process is to separate hafnium and zirconium, which is hard to do because their chemical traits are similar. High-tech processes, such as solvent extraction or fractional crystallization, are used to sort these things. Once the hafnium has been separated, it goes through more purification steps to get rid of any leftover impurities. It is very important to finish this step because it determines the quality of the end hafnium wire product.

Refining Techniques for High-Purity Hafnium

After the initial separation, the hafnium undergoes rigorous refining processes to achieve the high purity required for wire production. One common method is electron beam melting, where the hafnium is melted in a vacuum using an electron beam. This process helps get rid of flammable impurities, which makes the metal even more pure. Another technique used is zone refining, where a narrow molten zone is moved slowly along a bar of impure hafnium. As the zone moves, it carries impurities along with it, leaving behind a wake of higher purity material. These refining steps are repeated multiple times to achieve the desired level of purity, often reaching 99.95% or higher.

Quality Control Measures in Purification

Strict quality control measures are used throughout the processing process to make sure that the hafnium is always the same and pure. Advanced analytical techniques such as mass spectrometry, X-ray fluorescence, and inductively coupled plasma analysis are used to monitor impurity levels at various stages. These tests help find any differences from the specs that were asked for, so the purification process can be changed. As part of quality control, physical traits like melting point and density are also checked. These can be used to tell if something is pure or not. By keeping quality control so strict, manufacturers can regularly make high-purity hafnium that can be used to make wire, meeting the exacting standards needed by industries that depend on this important material.

How Does the Wire Drawing Process Affect Hafnium Wire Properties?

Initial Wire Formation Techniques

Initial forming methods are the first step in turning pure hafnium into wire. Typically, the purified hafnium is first cast into ingots or bars. These are then subjected to hot working processes such as forging or extrusion to create a more manageable form for wire drawing. The hot working breaks up the structure of the cast metal and makes the metal more regular all over. It is very important to finish this step because it creates the microstructure of the finished hafnium wire. During this process, the temperature and rate of deformation are carefully managed to get the best properties out of the material. The resulting rod or bar is then prepared for the wire drawing process, which will ultimately determine many of the hafnium wire's final characteristics.

Wire Drawing Process and Its Impact

The drawing method is an important part of making hafnium wire that has a big effect on its properties. During this process, the hafnium rod is pulled through a series of dies with progressively smaller diameters. The cross-sectional area of the wire gets smaller while its length gets longer using this cold working method. As the wire is drawn, its grain structure is elongated in the direction of drawing, leading to changes in mechanical properties. The wire typically becomes stronger and harder but less ductile. The degree of these changes depends on the amount of reduction in cross-sectional area and the number of drawing passes. To avoid problems and keep the quality of the wire constant, it is important to carefully control the drawing speed, die angle, and lubrication.

Heat Treatment and Final Property Adjustments

After the wire drawing process, hafnium wire often undergoes heat treatment to fine-tune its properties. Annealing is a common heat treatment used to relieve internal stresses created during wire drawing and to restore some ductility to the wire. The annealing temperature and duration are carefully controlled to achieve the desired balance of strength and ductility. In some cases, certain heat treatments can be used to make the hafnium wire form certain crystalline structures or phases, which can change its qualities to fit a certain need. Post-heat treatment processes might include surface treatments to enhance corrosion resistance or improve electrical conductivity. These last changes make sure that the hafnium wire meets the exact needs of its intended use, whether it's for parts of spacecraft, nuclear reactors, or high-tech electronics.

What Quality Control Measures Ensure Consistent Hafnium Wire Production?

Dimensional and Surface Quality Inspections

To make sure that the quality of hafnium wire is always the same, it has to go through strict checks of its dimensions and surface. Advanced measurement tools such as laser micrometers and optical comparators are used to verify the wire's diameter, roundness, and straightness. To make sure the results are the same, these measures are taken at several points along the length of the wire. Two ways to check the quality of a surface and find flaws like scratches, pits, or other flaws are optical microscopy and profilometry. Electron imaging can be used to look at surfaces in more detail. These checks are very important because the accuracy of the wire's measurements and the smoothness of its surface directly affect how well it works in parts for nuclear reactors or airplanes.

Mechanical and Physical Property Testing

Testing the mechanical and physical properties of hafnium wire is an important part of making sure the quality is good. Tensile testing is used to find out how strong, flexible, and springy the wire is. To do this, pieces of the wire are stretched until they break, and the stress-strain connection is then studied. Hardness tests, such as Vickers or Rockwell tests, are conducted to assess the wire's resistance to deformation. For applications requiring specific electrical properties, resistivity measurements are taken. It is also checked that the wire has the right melting point and thermal expansion rate. These tests make sure that the hafnium wire meets the strict requirements for the jobs it's meant to do, like working in places with high temperatures or in high-precision electronics.

Chemical Composition and Purity Verification

It is very important to check the chemical make-up and purity of hafnium wire to keep the standard high. Advanced analytical techniques such as Inductively Coupled Plasma Mass Spectrometry (ICP-MS) and Glow Discharge Mass Spectrometry (GDMS) are employed to detect and quantify trace impurities. These methods can find flaws as little as a few parts per billion. In this way, the wire is kept clean enough to meet strict rules. You can quickly look at elements with X-ray fluorescence spectroscopy. Gas fusion analysis is often used to find out how much oxygen, nitrogen, and hydrogen are in the spaces between the wire's strands. These elements can have a big impact on the wire's qualities. Regular testing during the production process helps find any changes from the stated composition so that they can be fixed right away. To make sure that the hafnium wire always works well in important places like nuclear reactors or rocket parts, it needs to be carefully checked for its make-up and purity.

Conclusion

The steady fabricating of high-purity hafnium wire is a complex handle that requires fastidious consideration to detail at each arrange. Each step, from the first filtering of the raw hafnium to the final quality checks, is very important for making sure that the wire has its special qualities .Hafnium wire that meets the high standards of industries like aerospace, atomic energy, and hardware can be made using modern ways to polish it, draw it into exact shapes, and keep a close eye on the quality. As innovation proceeds to development, the request for high-quality hafnium wire is likely to develop, driving assist developments in its fabricating handle.

At Shaanxi CXMET Technology Co., Ltd, we pride ourselves on our commitment to producing high-quality non-ferrous metals, including hafnium wire. To make sure that the quality of our work is always good, our skilled workers use the latest technology and strictly follow quality control rules. Each and every customer is important to us, so we work hard to make sure they are happy. For more information about our hafnium wire products or any other non-ferrous metal needs, please contact us at sales@cxmet.com. No matter what you need, our team is ready to help you and find answers that work for you.

FAQ

Q: What is the typical purity level of high-purity hafnium wire?

A: High-purity hafnium wire typically has a purity level of 99.95% or higher.

Q: What are the main applications of hafnium wire?

A: Hafnium wire is commonly used in aerospace, nuclear reactors, electronics, and medical devices.

Q: How does the wire drawing process affect hafnium wire's properties?

A: Wire drawing increases the strength and hardness of hafnium wire while reducing its ductility.

Q: What quality control measures are used in hafnium wire production?

A: Quality control measures include dimensional inspections, mechanical property testing, and chemical composition verification.

Q: Why is hafnium wire preferred in certain applications?

A: Hafnium wire is preferred for its high melting point, excellent corrosion resistance, and good mechanical properties.
