When determining the difference between a reliable cathodic protection system and one that fails prematurely, engineers and procurement managers generally point to the anode. ICCP MMO coated titanium anodes consist of a Grade 1 pure titanium substrate with a sintered Mixed Metal Oxide electrocatalytic coating – commonly iridium, tantalum or ruthenium oxides – to provide regulated protective current into soil, ocean or concrete. They use less than 1 mg per ampere-year, are designed to last more than 20 years, and are dimensionally stable enough to maintain constant electrical resistance from day one to year twenty. And that mix is why they are the go-to option for significant corrosion prevention operations.

Understanding ICCP MMO Coated Titanium Anodes

What They Are and How They Work

Impressed current cathodic protection systems employ an external DC power source - a transformer-rectifier - to force protective current from an anode into the surrounding electrolyte and onto the protected structure. The qualities of the anode material, where the electrochemical oxidation takes place, determine the overall performance of the system. MMO titanium anodes are often referred to as Dimensionally Stable Anodes (DSA). This is because the titanium substrate self-heals with a passive oxide coating, therefore maintaining geometry and resistance during its entire service life.

Material Composition and Manufacturing Process

These anodes are produced by CXMET from Titanium Grade 1 (GR1) according to ASTM B381. The MMO coating is a unique mixture of iridium oxide, tantalum oxide, and other catalytic oxides applied by a coating, brushing and sintering process. Sintering immediately attaches the catalytic layer to the titanium surface, providing an adhesion that resists delamination at current densities of up to 600 A/m2 in saltwater. The coating thickness is typically 2–10 μm, and may be modified to meet particular design life requirements.

Technical Performance Parameters

That’s why engineers love iccp mmo coated titanium anodes, the statistics behind it. Operating temperature range is −40°C to 100°C, pH range is 0–14 and current density capacity is 600 A/m² in marine electrolytes. The current density in soil or deep-well groundbed arrangements is usually on the order of 100 to 300 A/m². These metrics may be requested by procurement teams as part of the quality paperwork and are validated to NACE TM0108 and ISO 15589 standards.

Comparing ICCP MMO Coated Titanium Anodes with Other Anode Materials

Performance Gap vs. Graphite and Silicon Iron Anodes

The current discharge causes structural degradation of the conventional graphite anodes and high silicon cast iron which increases the electrical resistance and causes nonuniform current distribution over time. The graphite anode in seawater normally has a life of 3-5 years before replacement. The titanium substrate of an MMO anode, however, does not corrode and the catalytic oxide layer wears at a rate of less than 1 mg/A-year. This results in continuous protection output throughout a 20+ year service life with no mid-cycle replacement.

Cost-of-Ownership Analysis vs. Sacrificial Anodes

Zinc and aluminum sacrificial anodes are attractive for low-complexity applications since they have no external power requirements. They burn themselves out completely and need regular replacement in high-usage areas. They also fail to safeguard buildings in high-resistivity soils if the operating voltage is inadequate. When you factor in manpower, downtime and access to submerged or buried buildings for replacement, ICCP systems using MMO titanium anodes consistently have the lowest overall lifespan costs for big or long-term projects.

Certification and Supplier Reliability Considerations

When procurement managers are looking for corrosion protection components, the certification is as important as the raw performance. CXMET products are produced to ASTM B381, with material test reports (MTRs) and electrochemical performance data available. Choosing a manufacturer with ISO compliant quality standards and traceable material certificates minimizes project risk, especially for offshore, pipeline or infrastructure contracts requiring routine third-party audits.

Applications and Industry Use Cases of MMO Coated Titanium Anodes

Marine and Offshore Infrastructure

Some of the most difficult ICCP applications are offshore wind turbine foundations, steel piling at jetties and ship hull protection. High velocity seawater, chloride ion concentration and biofouling pressure promote acceleration of corrosion. ICCP MMO coated titanium anodes resist degradation and can provide the current density required by marine settings. In particular, the lightweight titanium structure decreases the structural load compared to cast iron alternatives, which is significant for retrofitting existing offshore assets.

These anodes regularly perform in the following deployment settings across industries:

• Buried Pipelines (Oil & Gas) carbon steel pipe is protected in a wide range of soil resistivities by installation in deep-well groundbeds or linear dispersed layouts. Groundbed maintenance periods are in years, not decades, with low consumption rates.

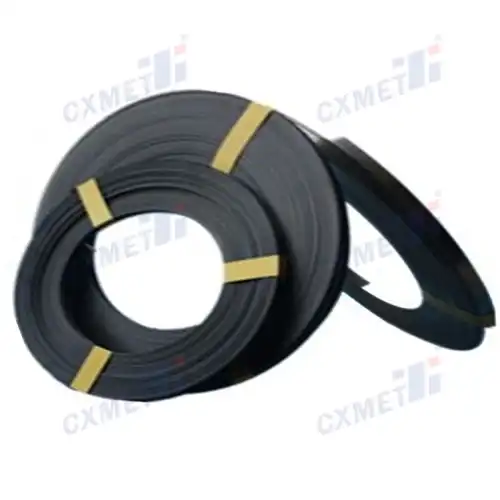

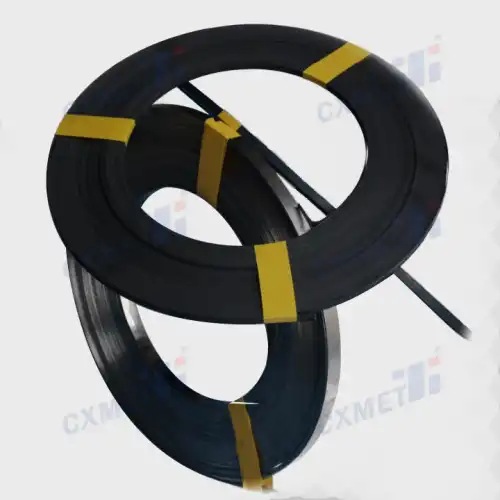

• Reinforced Concrete (Infrastructure): Used as ribbon or mesh anodes to avoid rebar corrosion in chloride contaminated concrete in bridge decks and parking constructions. Thin profile enables installation within existing structural clearances.
• Chemical Plants and Water Treatment MMO titanium anodes are stable in acidic and alkaline process settings (pH 0-14) and are appropriate for electrochemical treatment cells and process vessel protection.

The application profiles are diverse, from freshwater to brine. And that’s why engineers in marine, oil and gas and infrastructure are coming back to this technology project after project.

Maintenance Best Practices for Long-Term Performance

At installation and frequent inspection care must be paid to maximize a 20+ year design life. Annually evaluate the anode lead wire to transformer-rectifier connections for variations in resistance that indicate coating fatigue or corrosion of the connection. For underground applications, periodic monitoring of the reference electrode potential verify that the system is maintaining the desired protective potential. Early detection and resolution of distribution issues avoid local under-protection and hence the replacement of anodes.

Procurement Insights: Buying and Sourcing ICCP MMO Coated Titanium Anodes

Key Specifications to Confirm Before Ordering

Before placing an order, procurement teams should confirm substrate grade (GR1 or GR2), coating composition (IrO₂/Ta₂O₅ for soil/freshwater vs. RuO₂/IrO₂ for seawater), coating thickness, and design life in ampere-hours. CXMET offers fully customizable ICCP MMO coated titanium anodes sizes and geometries — rod, tubular, strip, mesh, or project-specific configurations — with tailored coating thicknesses and current output ratings. OEM services include specialized mounting options and project-specific alloy compositions.

Logistics and Lead Times

CXMET supports air freight, sea freight, and express freight from its manufacturing base in Shaanxi Province, China — located in the "China Titanium Valley," the country's primary titanium production region. For bulk orders, sea freight offers the most economical option. For time-sensitive projects, air or express freight allows fast delivery to US ports or project sites. Standard lead times depend on order volume and customization complexity; contacting the CXMET sales team early in the project planning cycle allows accurate scheduling.

Quality Assurance and After-Sales Support

CXMET's team of more than 80 technical professionals provides pre-sales specification guidance, order-specific material documentation, and post-delivery technical support. This level of after-sales engagement is particularly valuable for procurement managers who need to verify conformance on delivery or troubleshoot system performance after installation. All products ship with traceable documentation, and the team responds efficiently to technical questions or specification clarifications.

Why ICCP MMO Coated Titanium Anodes Are the Preferred Choice for Corrosion Protection

The preference for MMO titanium anodes in serious ICCP work comes from a straightforward equation: high electrochemical efficiency plus dimensional stability plus long service life equals predictable asset protection at lower lifecycle cost. Emerging trends in offshore renewable energy and aging infrastructure rehabilitation are expanding demand for these systems. Sustainability factors also favor MMO titanium anodes — their low consumption rate means minimal material waste over a 20-year service period compared to sacrificial systems that require repeated replacement cycles.

Conclusion

ICCP MMO coated titanium anodes have earned their position in demanding cathodic protection applications through measurable technical performance — not marketing claims. Their sub-milligram consumption rate, wide pH and temperature tolerance, and capacity to operate across diverse electrolytes address the real challenges engineers face in marine, pipeline, and infrastructure environments. For procurement managers, the combination of ASTM-conformant materials, customizable geometry, certified documentation, and responsive technical support makes CXMET a qualified manufacturing partner for projects where corrosion protection cannot be left to chance.

FAQ

How long do ICCP MMO coated titanium anodes typically last?

With correct installation and system operation, CXMET's MMO titanium anodes carry a design life of 20 years or more. Actual service life depends on applied current density, electrolyte type, and coating thickness specified at the time of order. Higher coating thicknesses, available through CXMET's customization service, extend life further in high-demand applications.

Can MMO coated titanium anodes be customized for specific ICCP applications?

Yes. CXMET offers full OEM customization — rod, tubular, strip, mesh, or complex geometries — with adjustable coating thickness (2–10 μm standard, wider range available), specific current output ratings, and specialized mounting configurations. The engineering team works directly with clients to match anode specifications to the project's electrolyte type, current requirement, and physical installation constraints.

What maintenance is required to maximize the lifespan of MMO-coated titanium anodes?

Routine inspection of electrical connections, periodic potential measurements using reference electrodes, and verification of transformer-rectifier output are the primary maintenance tasks. In buried or submerged installations, visual inspection during planned shutdowns can identify physical damage early. The system's low consumption rate means the anodes themselves rarely require replacement within the design life if the ICCP system operates within its specified parameters.

Request a Quote from CXMET — Trusted ICCP MMO Coated Titanium Anodes Manufacturer

CXMET's engineering team is ready to support your next cathodic protection project. As an experienced ICCP MMO coated titanium anodes supplier with over 20 years of production expertise and more than 80 technical professionals, we provide specification guidance, custom manufacturing, and full material documentation. Contact us today at sales@cxmet.com or visit www.cxmet-tech.com to request a quote tailored to your project's current output, geometry, and delivery requirements.

References

1. NACE International. NACE TM0108: Testing of Catalytic Anodes for Impressed Current Cathodic Protection Systems. NACE International, 2012.

2. ISO. ISO 15589-2: Petroleum, Petrochemical and Natural Gas Industries — Cathodic Protection of Pipeline Systems — Part 2: Offshore Pipelines. International Organization for Standardization, 2012.

3. Baeckmann, W. von, Schwenk, W., & Prinz, W. Handbook of Cathodic Corrosion Protection. Gulf Professional Publishing, 1997.

4. ASTM International. ASTM B381: Standard Specification for Titanium and Titanium Alloy Forgings. ASTM International, 2023.

5. Shreir, L. L., Jarman, R. A., & Burstein, G. T. Corrosion: Metal/Environment Reactions. Butterworth-Heinemann, 1994.

6. Lide, D. R. (Ed.). CRC Handbook of Chemistry and Physics. CRC Press, 2005.
